Kitagawa SCF06-050 Back Plate for MR160 Chuck + JN06 NC Rotary Table
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

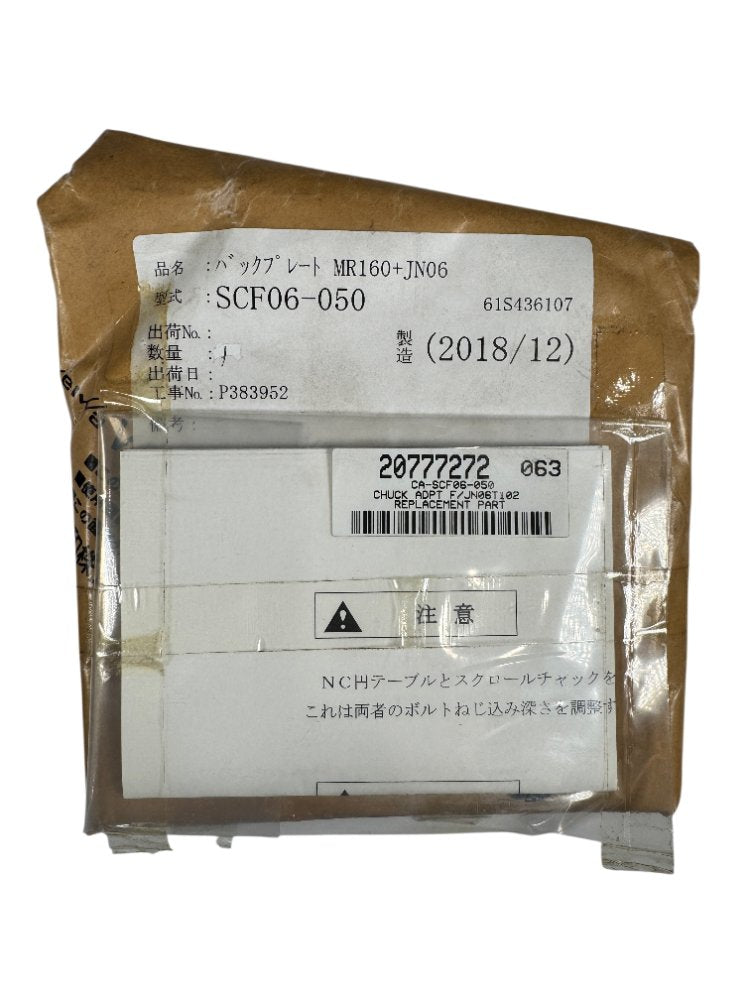

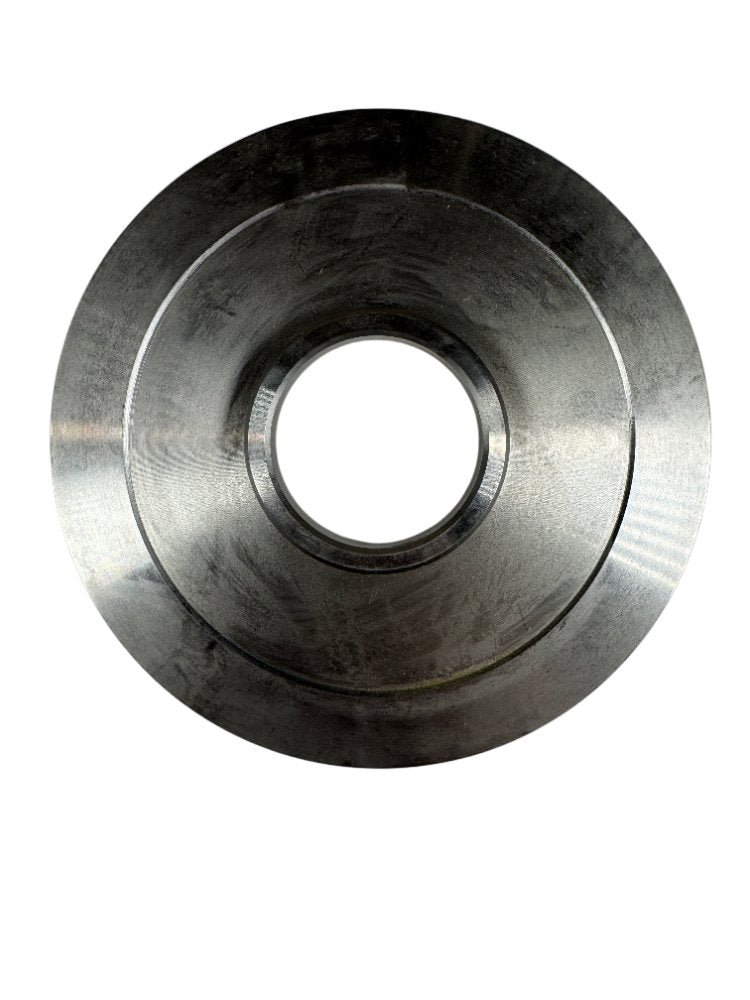

This is a new, unused Kitagawa part number SCF06-050, described on the original Japanese packaging as a back plate (バックプレート) configured for the MR160 scroll chuck mated to the JN06 NC rotary table. The secondary English label reads 'Chuck Adpt F/JN06Ti02 Replacement Part' with Kitagawa internal reference 20777272-063, confirming this is a genuine OEM replacement adapter plate manufactured December 2018. The part is a precision-machined steel disc with a recessed central bore and a raised annular register on the face visible in photo one, with the opposite face ground flat; this stepped geometry positions and pilots the scroll chuck concentrically on the NC rotary table while the plate's thickness sets bolt thread engagement depth, as stated in the Japanese caution notice on the packaging. Compatible confirmed equipment: Kitagawa MR160 series scroll chuck and Kitagawa JN06 (JN06Ti02) NC indexing/rotary table.
Product Specifications
| Manufacturer | Kitagawa |
| Part Number | SCF06-050 |
| Secondary Part Number | CA-SCF06-050 |
| Kitagawa Item Code | 20777272-063 |
| Internal Job Number | P383952 |
| Lot/Serial Reference | 61S436107 |
| Compatible Chuck | Kitagawa MR160 scroll chuck |
| Compatible NC Rotary Table | Kitagawa JN06 (JN06Ti02) |
| Component Type | Chuck adapter back plate (バックプレート) |
| Function | Mounts MR160 scroll chuck to JN06 NC rotary table; sets bolt thread engagement depth |
| Quantity | 1 |
| Condition | New (unused, original OEM packaging) |
| Date of Manufacture | December 2018 |
| Material | Steel (machined and ground) |

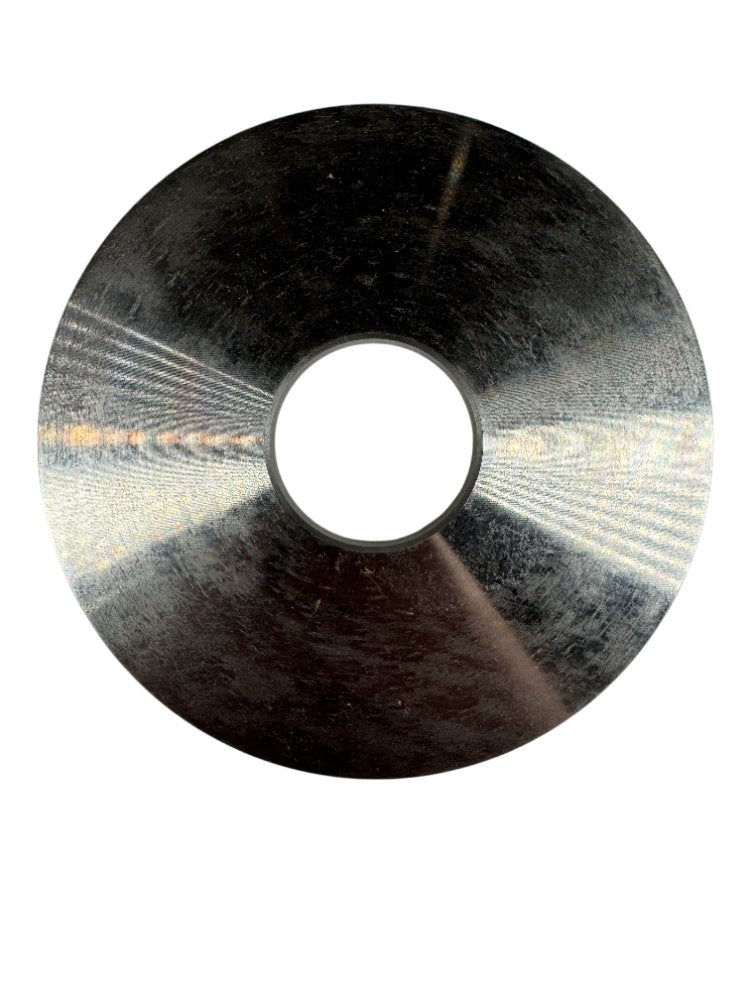

| Surface Finish | One face with raised annular register and recessed bore; opposite face ground flat |
