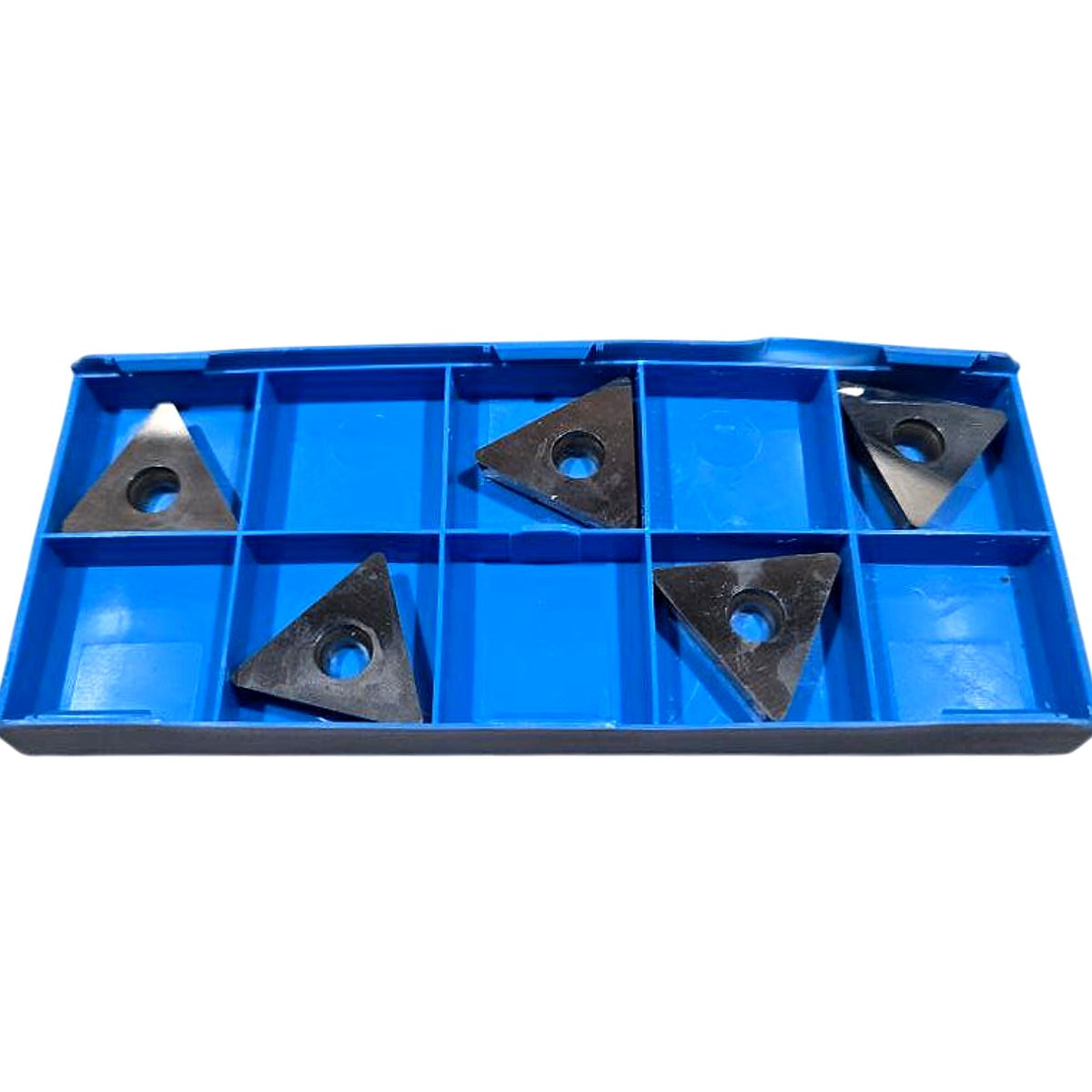

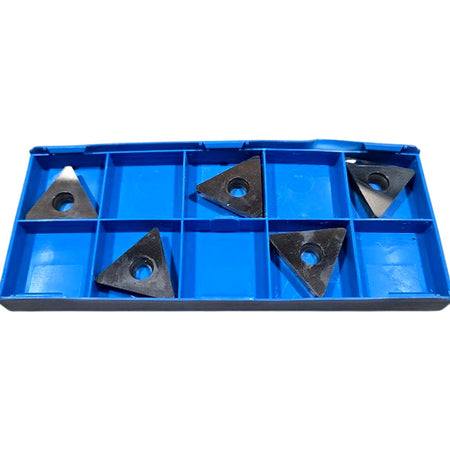

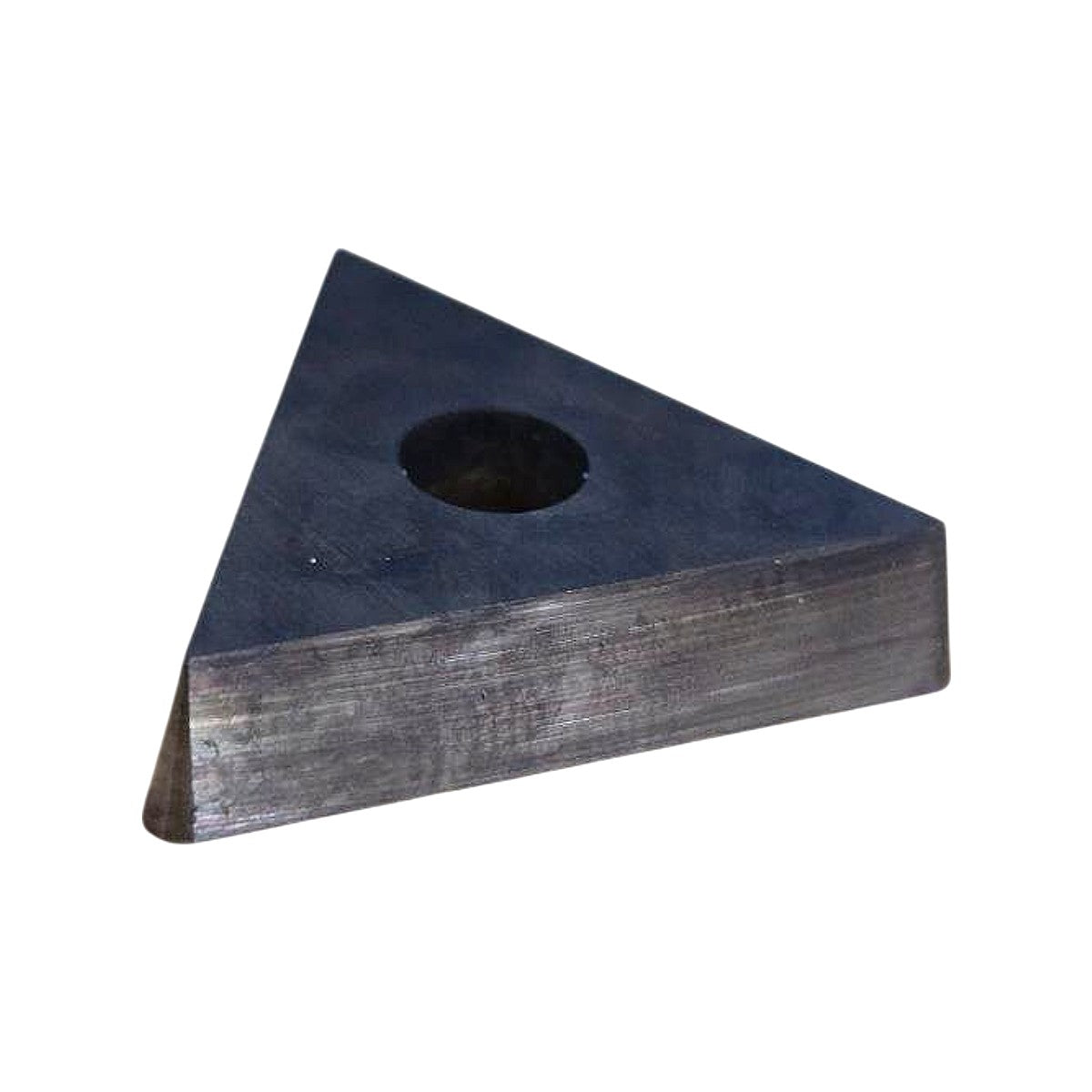

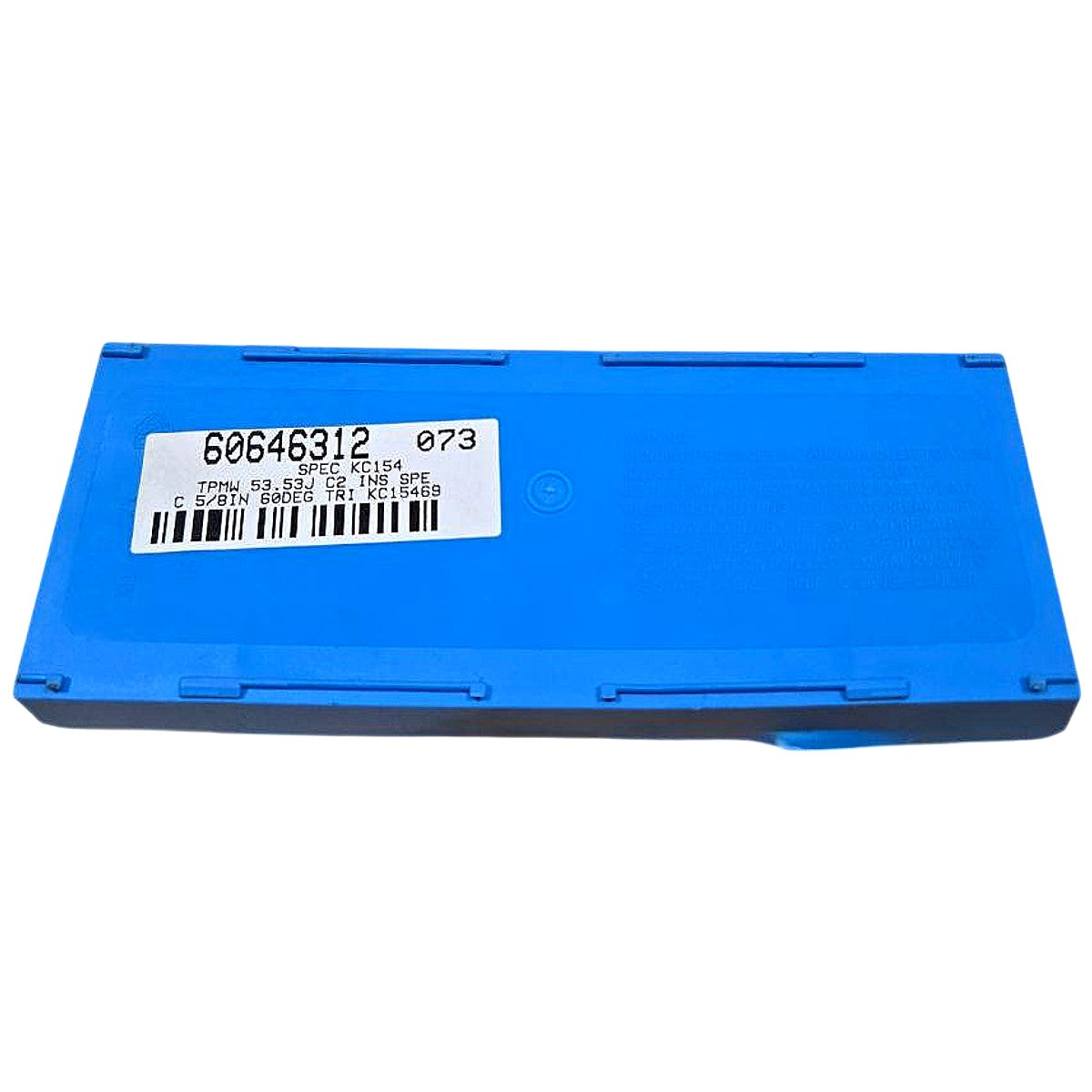

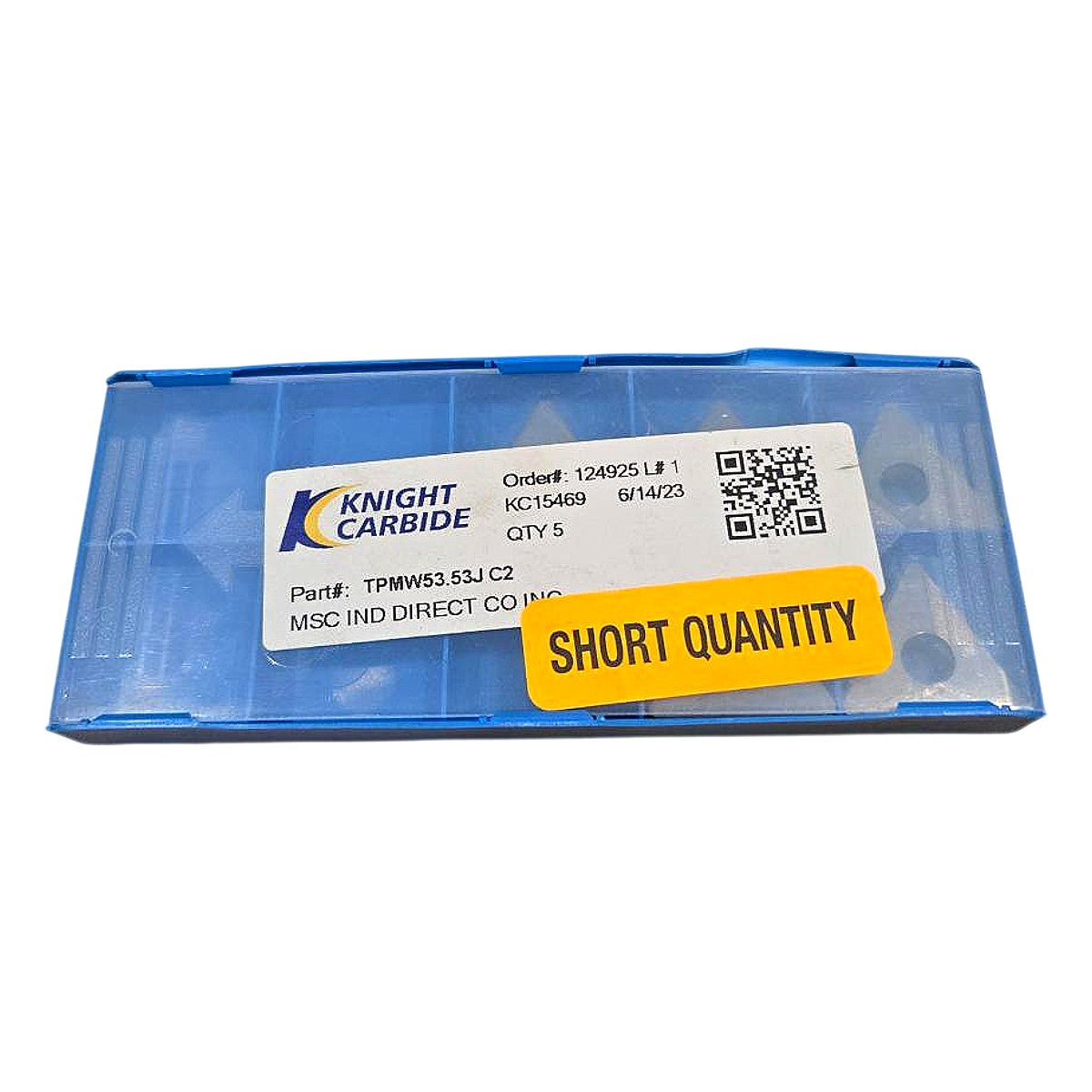

This Knight Carbide TPMW53.53J C2 is a special-order 60-degree triangle turning insert with a 5/8 in inscribed circle, supplied as a pack of 5 in the original blue plastic case. The TPMW designation decodes to a triangle shape (T), 11-degree positive clearance (P), M tolerance class and a single-sided countersunk center hole (W), and the box is marked with item number KC15469. It is made from C2 grade carbide, a general-purpose straight tungsten carbide grade commonly used on cast iron and non-ferrous materials, and the inserts show a ground, uncoated dark finish. The inserts are intended for external turning on lathes with a compatible positive-rake triangle insert pocket and a countersunk-head screw. This lot is new, unused stock.
Product Specifications
| Brand | Knight Carbide |
| MPN | TPMW53.53J C2 |
| Alternate Part Number | KC15469 |
| Item Number | 60646312 |
| Insert Shape | Triangle, 60 deg |
| Inscribed Circle (IC) | 5/8 in |
| Clearance Angle | 11 deg (P) |
| Tolerance Class | M |
| Hole Type | Single-sided countersunk hole (W) |
| Thickness | 3/16 in (ANSI size digit 3) |
| Material | Carbide |
| Grade | C2 |
| Coating | Uncoated |
| Operation | Turning |
| Workpiece Material | ISO K cast iron, ISO N non-ferrous |
| Quantity per Pack | 5 |
| Insert Type | Special (non-standard) insert |
