Komet WOEX120608-13 BK79 Unisix Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

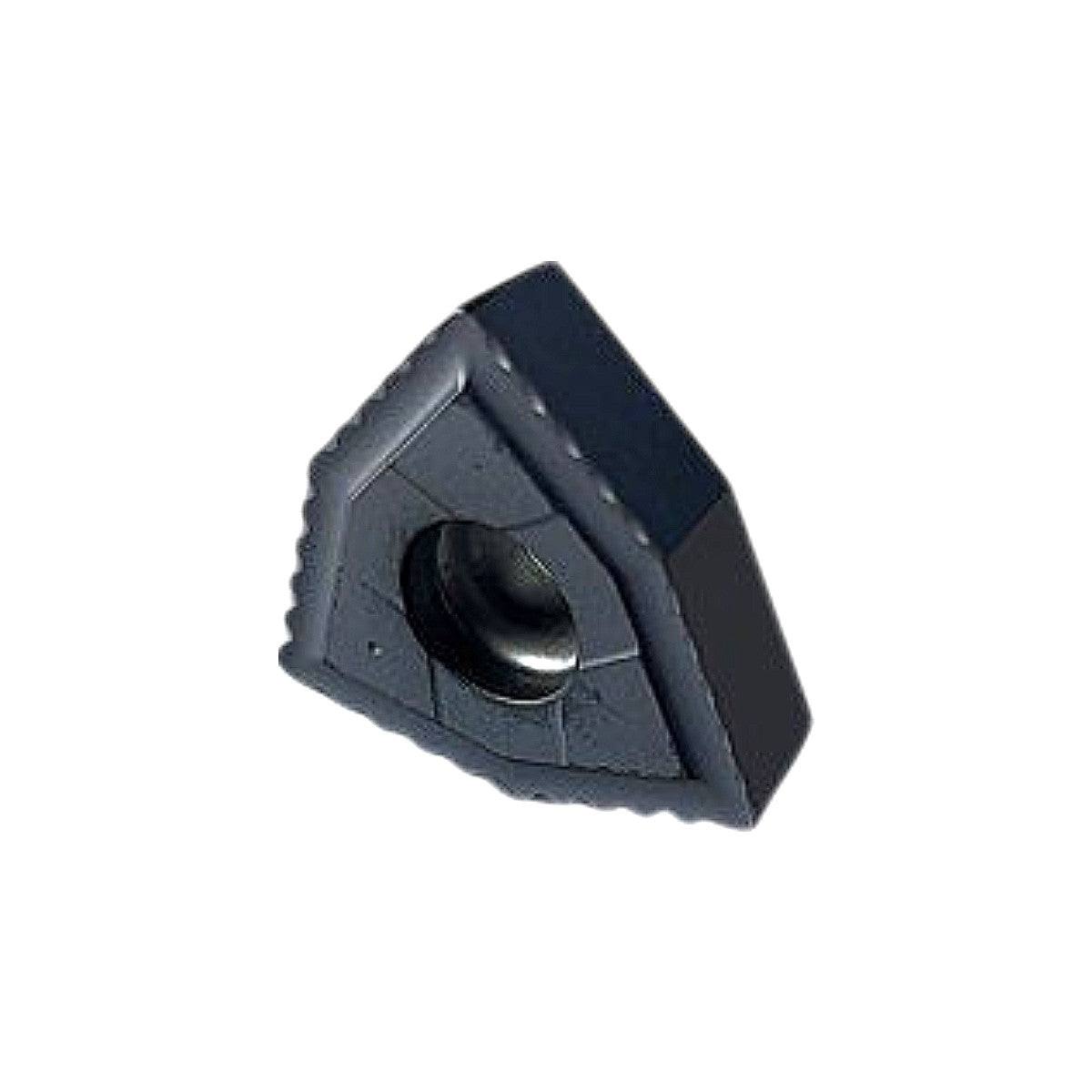

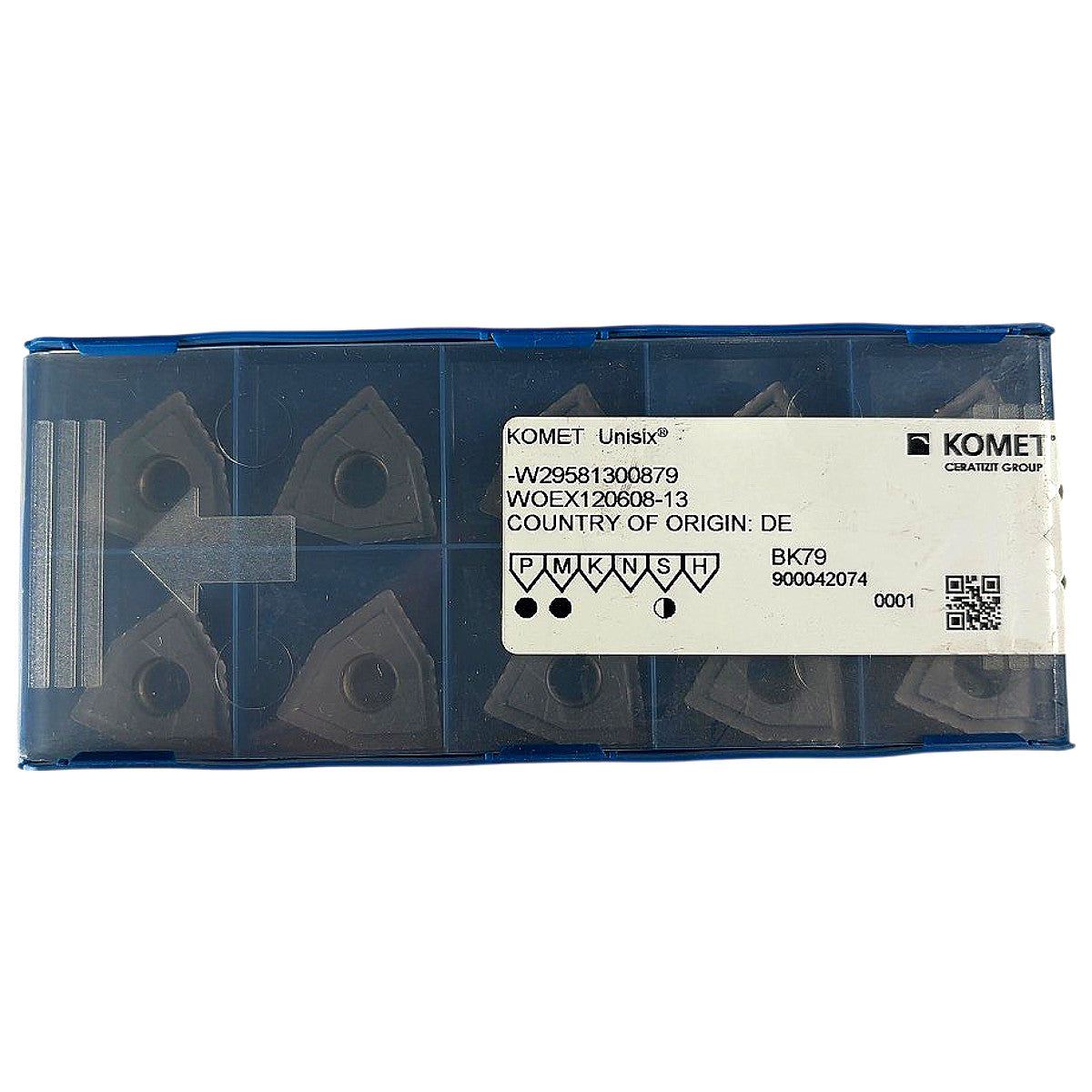

This is a new, factory-sealed box of 10 Komet (Ceratizit Group) WOEX120608-13 carbide milling inserts in grade BK79, designed for the Komet Unisix indexable milling system. Decoding the ISO-style designation: W = trigon (80° included angle, hexagonal-style triangular) insert shape; O = 0° clearance angle (relieved on toolholder side); EX = special tolerance/chipbreaker geometry with a positive rake face and aggressive chip-forming profile; 12 = 12 mm inscribed circle; 06 = 6.35 mm insert thickness; 08 = 0.8 mm nose radius; -13 denotes Komet's proprietary chipbreaker/geometry variant for this Unisix platform. Grade BK79 is a CVD/PVD-coated cemented carbide (Ceratizit designation) with a dark blue-black coating visible in the photos, suited for machining steels (P) and stainless/heat-resistant alloys (M), with secondary suitability for non-ferrous (N) and hardened materials (H) as indicated by the application dots on the label. These inserts are manufactured in Germany (Country of Origin: DE) and are compatible with Komet Unisix milling cutters; the Komet internal order number is W29581300879 / 900042074.
Product Specifications
| Brand | Komet (Ceratizit Group) |
| MPN | WOEX120608-13 |
| Grade | BK79 |
| Komet Order No. | W29581300879 / 900042074 |
| Insert Shape | W – Trigon (80° included angle) |
| Clearance Angle | O – 0° (relieved on holder side) |
| Inscribed Circle (IC) | 12 mm |
| Insert Thickness | 6.35 mm (06) |
| Nose Radius | 0.8 mm |
| Chipbreaker/Geometry | -13 (Komet Unisix proprietary) |
| Coating | CVD/PVD multilayer (dark blue-black) |
| Substrate | Cemented carbide |
| ISO Material Application | P (primary), M (primary), N (secondary), H (secondary) |
| Compatible System | Komet Unisix indexable milling |
| Country of Origin | Germany (DE) |
| Quantity per Box | 10 inserts |
| Condition | New (factory sealed) |
