Kool Mist 100NF12 1 gal Stainless Steel Mist Coolant System

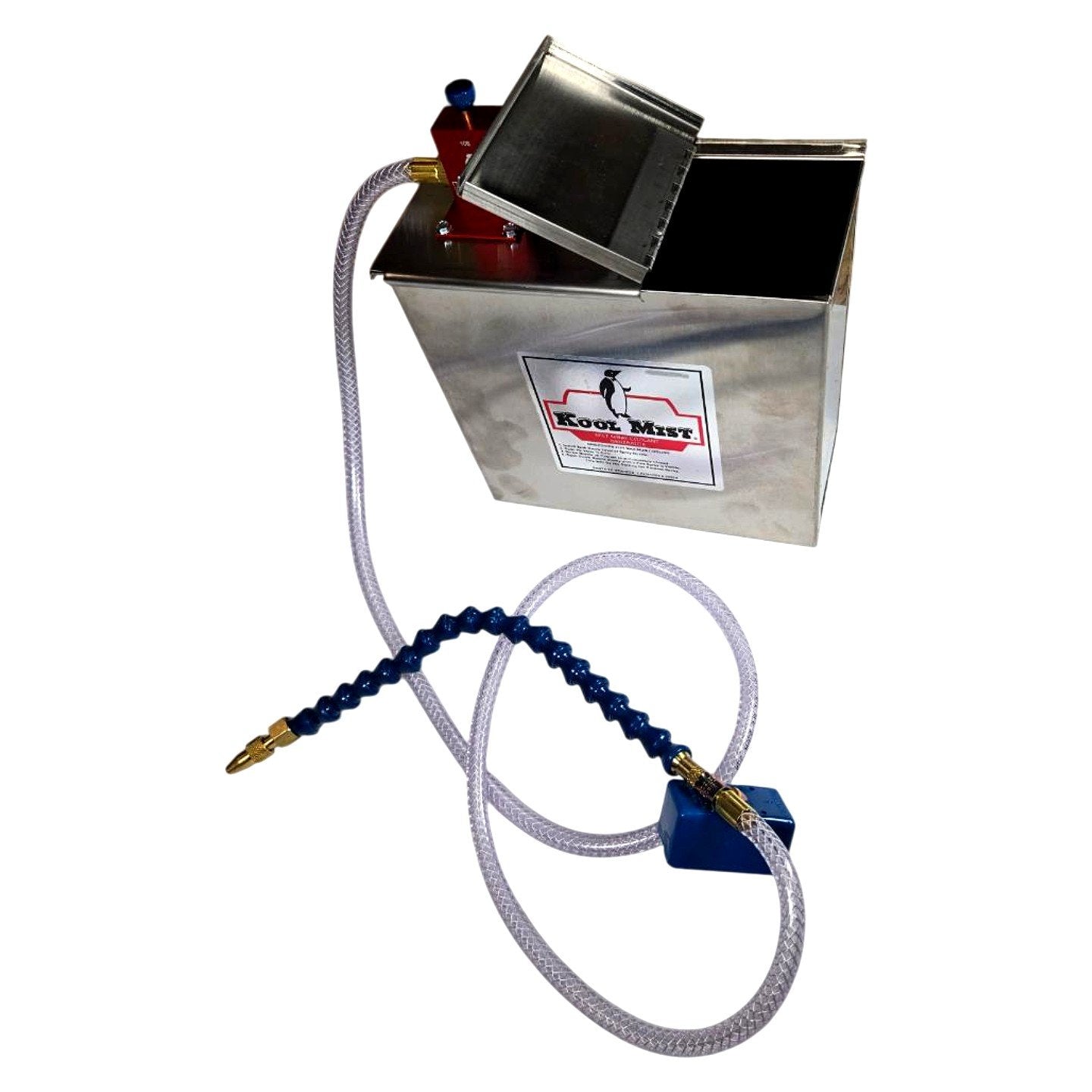

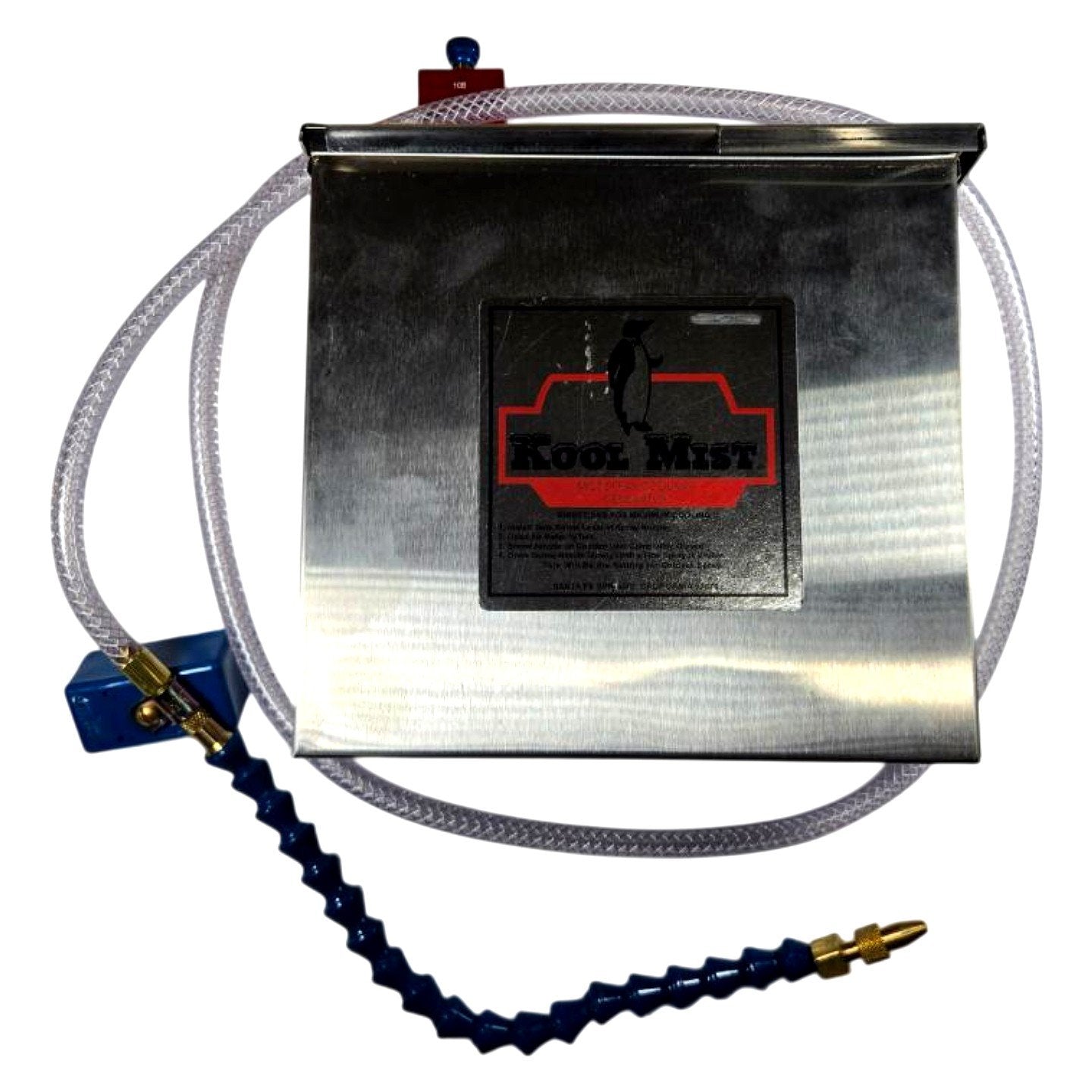

The Kool Mist 100NF12 is a new, air-operated mist coolant system designed for machining operations including milling, drilling, grinding, and sawing where flood coolant is impractical or undesirable. The system consists of a 1-gallon stainless steel reservoir tank with a hinged lid, a red anodized aluminum mixing/metering valve body mounted to the tank lid, and a single-outlet delivery circuit comprising a braided clear coolant supply line and a 12-inch blue segmented (loc-line style) flexible nozzle arm terminating in a 5/16-inch brass nozzle tip. Air pressure draws coolant from the tank via siphon and atomizes it at the nozzle, producing a fine mist that lubricates and cools the cutting zone while minimizing fluid consumption and workpiece flooding. The "NF" designation in the part number indicates the flex nozzle configuration, and "12" denotes the 12-inch nozzle arm length; the system is compatible with standard shop air supply and Kool Mist cutting fluid concentrates.

Product Specifications
