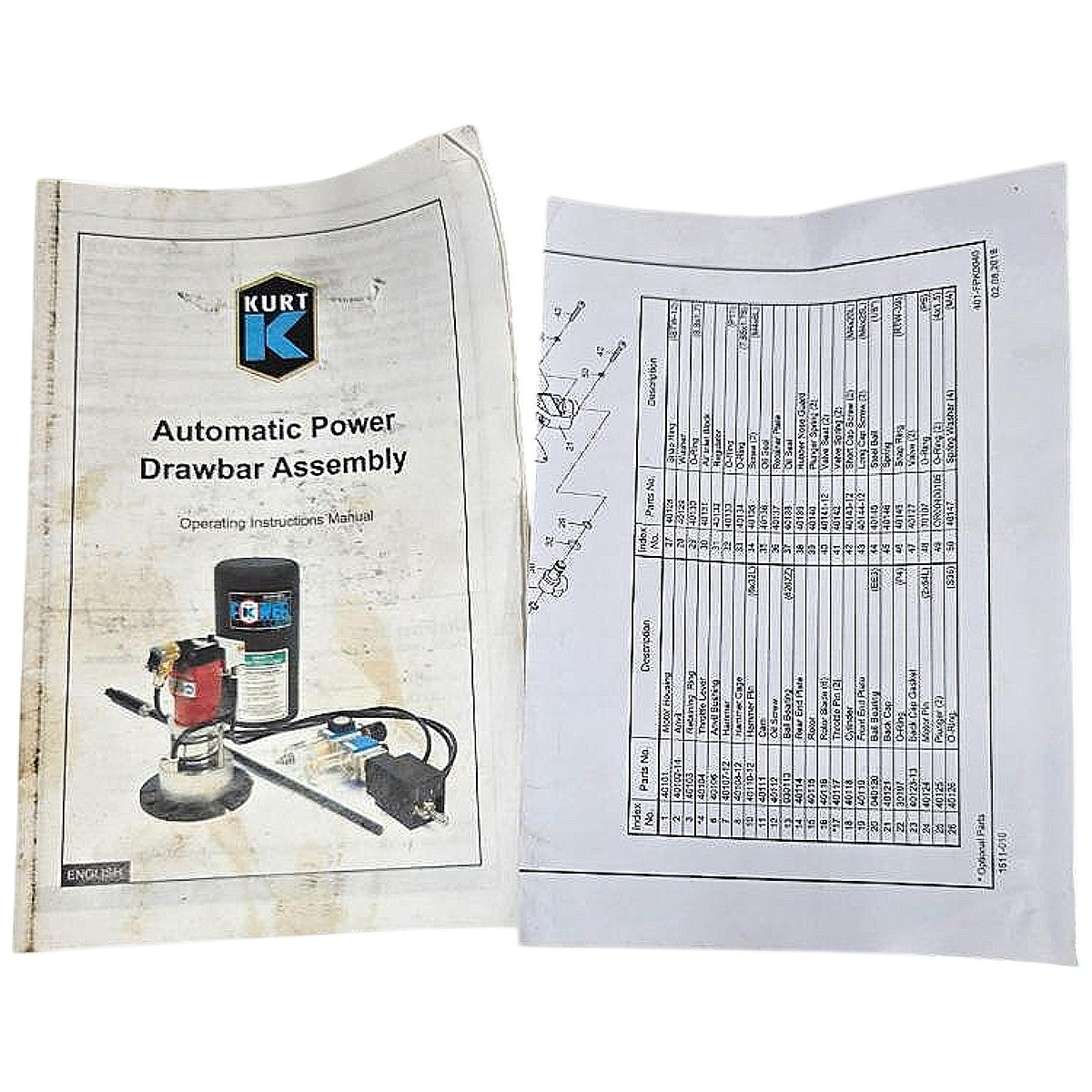

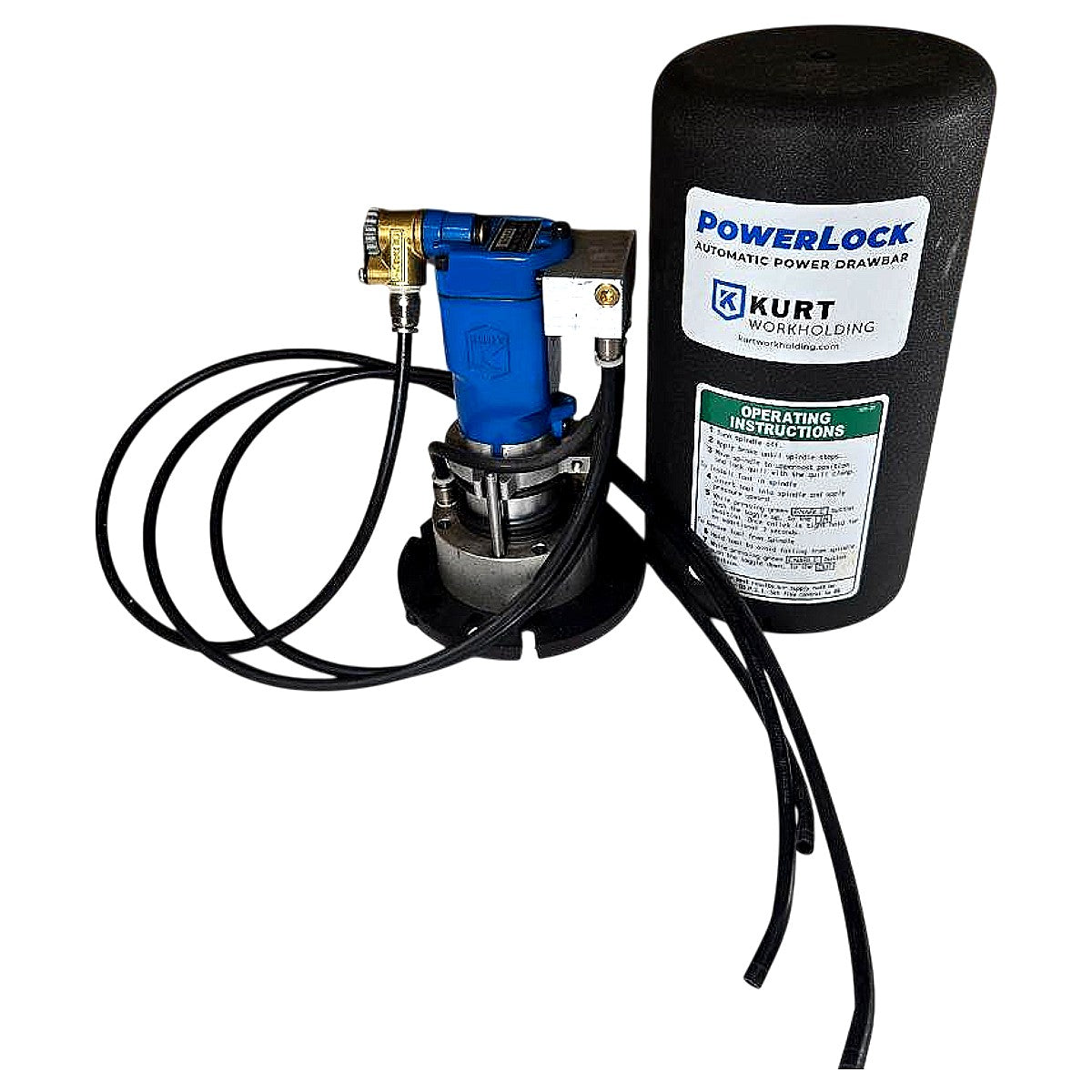

The Kurt PowerLock BR1000 (model 101-02) is a pneumatic automatic power drawbar assembly designed to replace the manual drawbar on Bridgeport-style vertical knee mills and compatible spindles, enabling hands-free tool changes via push-button actuation. The kit includes the PowerLock pneumatic drawbar unit with integrated air-over-spring belleville stack actuator, a black cylindrical air reservoir/accumulator (visible in photos), an MFD MGL200-08 filter-regulator (10–110 PSI, 1/4 in NPT), an MGFR200-08-S filter-regulator subassembly (20–130 PSI), an IMI Norgren S12-2052 solenoid valve (A24 282, visible in photo), a drawbar extension rod, pneumatic tubing/hoses, a wire harness, and the original Kurt Automatic Power Drawbar Assembly operating instructions manual. The drawbar actuator uses compressed air against a Belleville spring stack to release the collet chuck, then spring-return to clamp — eliminating spindle brake wear and speed-matching required with manual bars. This unit is listed as new — other condition, consistent with surplus/open-box inventory that includes all major components and documentation.
Product Specifications
| Brand | Kurt Workholding |
| Product Line | PowerLock Automatic Power Drawbar |
| Model / MPN | BR1000 101-02 |
| Actuation Type | Pneumatic (air-over-Belleville spring stack) |
| Compatible Machine | Bridgeport-style vertical knee mill |

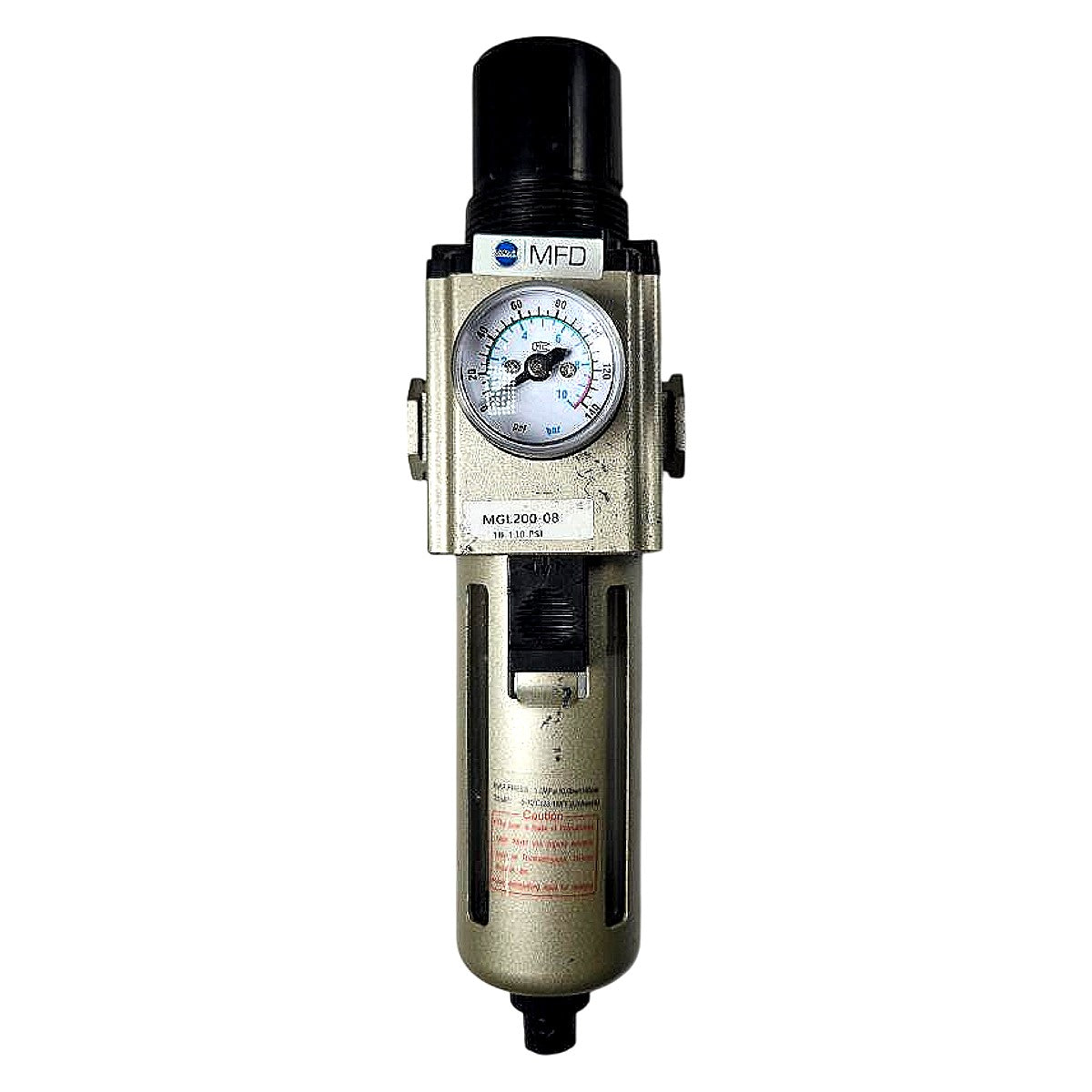

| Filter-Regulator 1 MPN | MGL200-08 (MFD), 10–110 PSI, 1/4 in NPT |

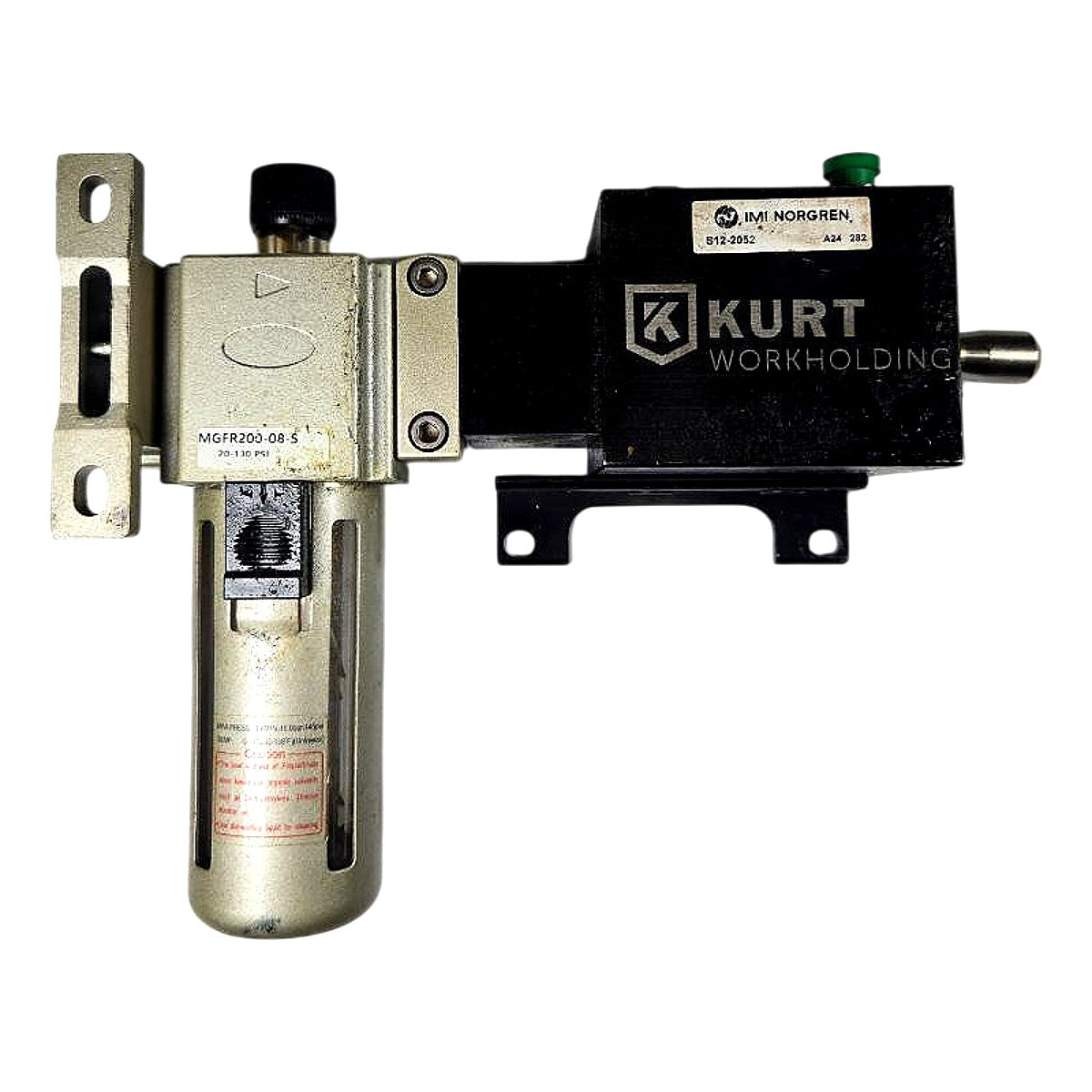

| Filter-Regulator 2 MPN | MGFR200-08-S, 20–130 PSI |
| Solenoid Valve MPN | IMI Norgren S12-2052, A24 282 |
| Air Supply Port Size | 1/4 in NPT |

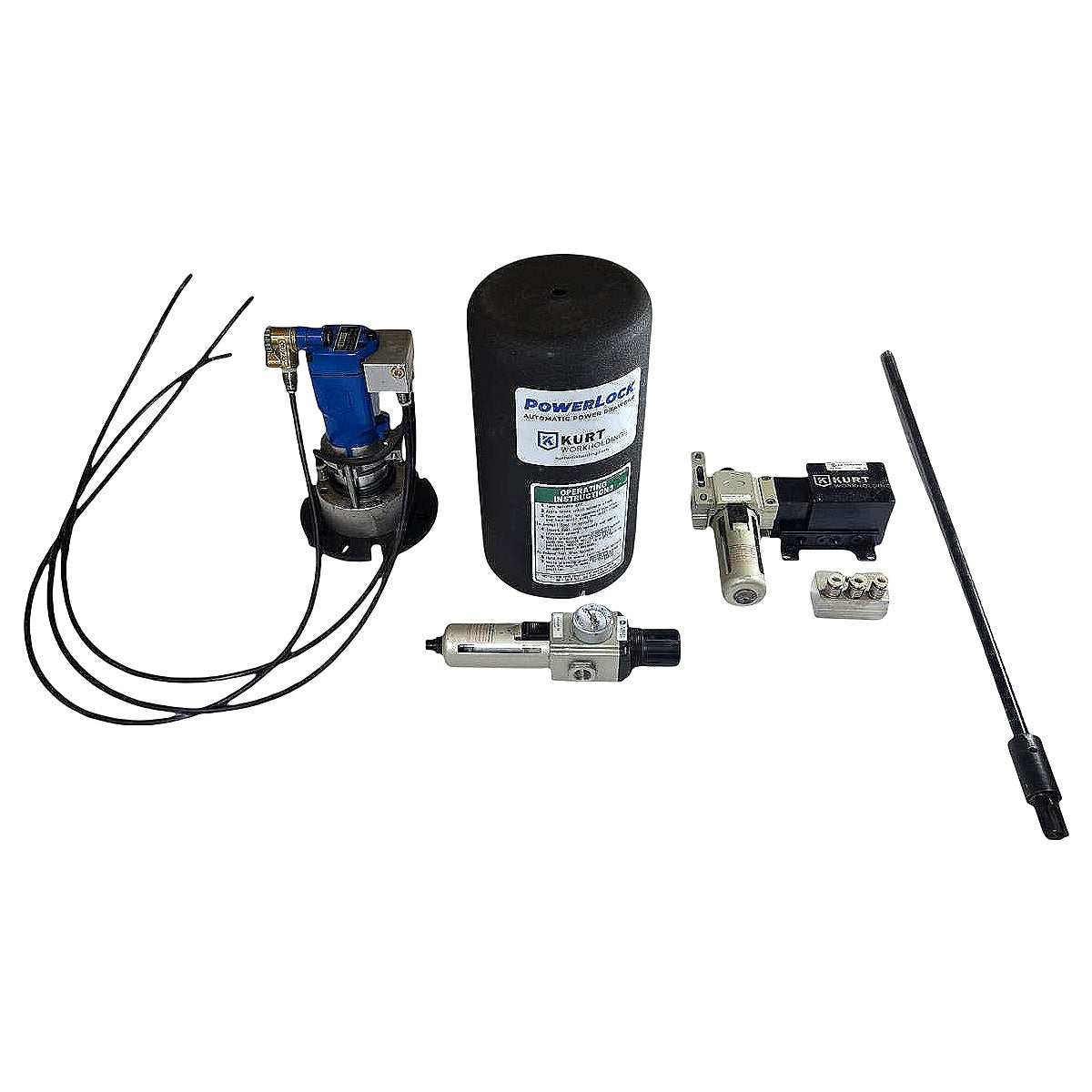

| Kit Contents | Drawbar unit, reservoir, filter-regs, solenoid, rod, hoses, wiring, manual |
| Condition | New — other (surplus/open-box) |
| Documentation | Kurt Automatic Power Drawbar Assembly Operating Manual included |
