Kyocera MFH0750-W750-03-3T-4 3/4in 3-Flute Indexable End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

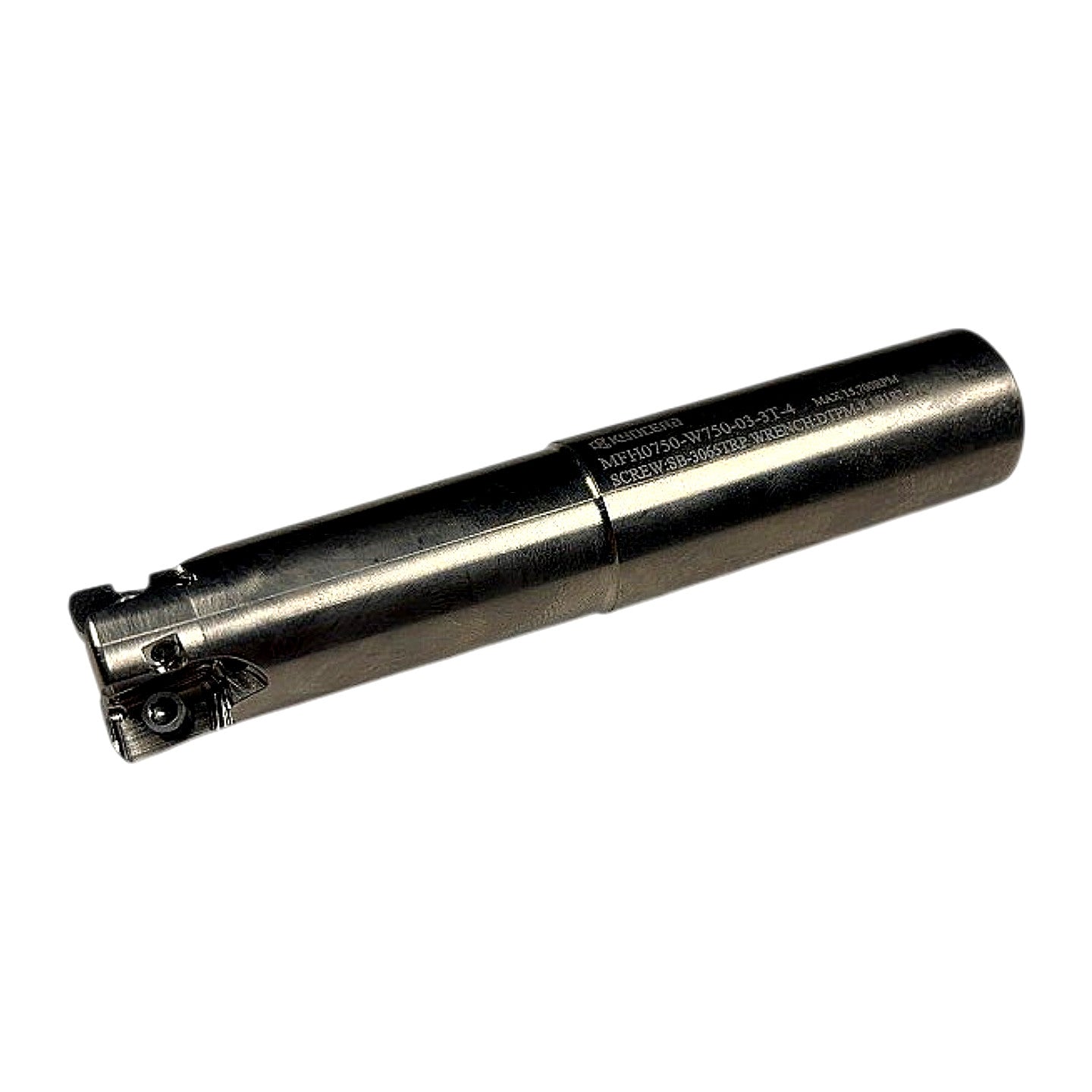

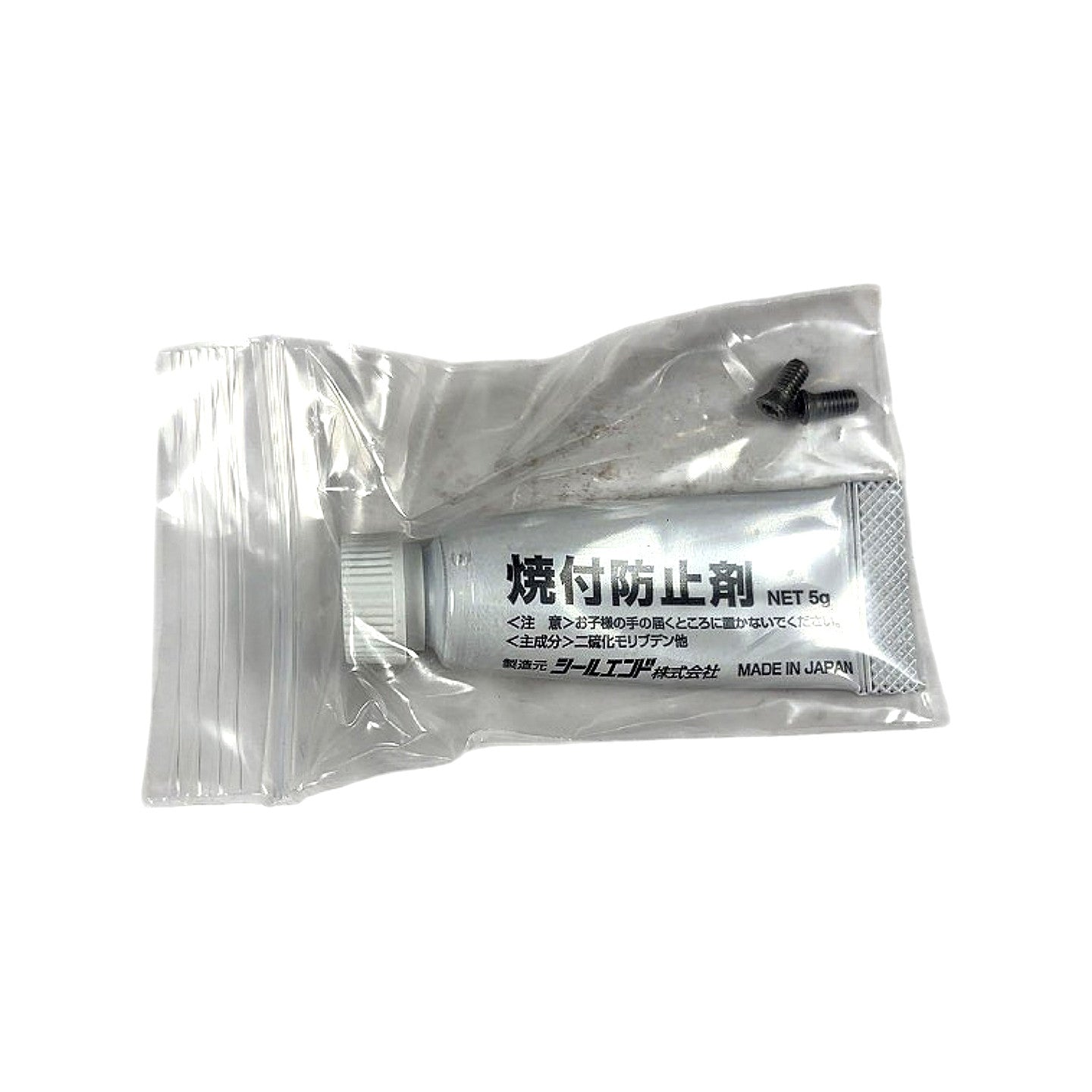

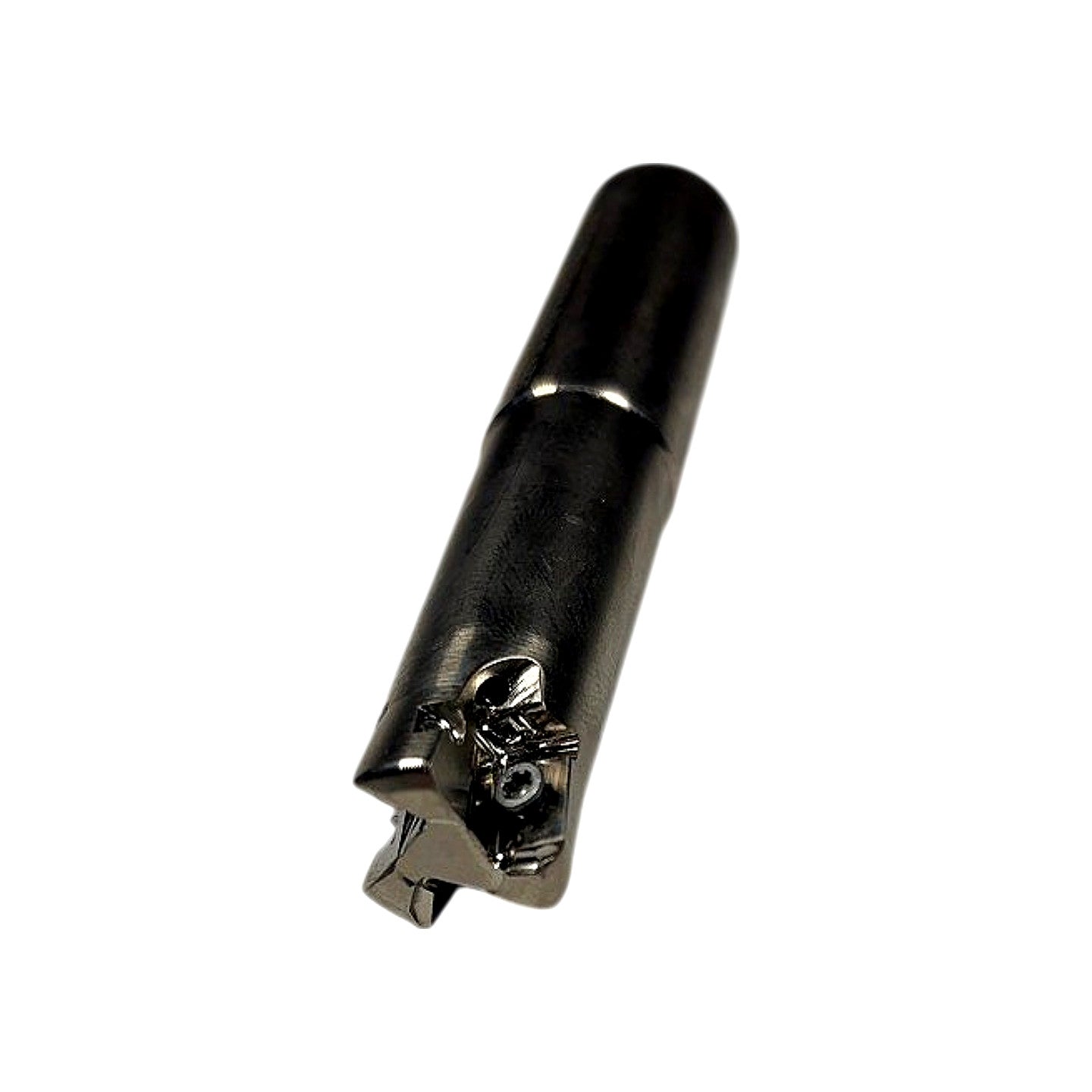

The Kyocera MFH0750-W750-03-3T-4 is a new 3/4 in (0.750 in) diameter, 3-flute indexable square-shoulder end mill body from Kyocera Precision Tools' MFH series, made in the USA. Decoding the part number: MFH = Multi-Flute High-feed/square-shoulder milling body; 0750 = 0.750 in cutting diameter; W750 = 0.750 in straight (Weldon) shank diameter; 03 = 03 mm insert IC (inscribed circle), accepting DTPM-style inserts; 3T = 3 teeth/flutes; 4 = generation/design variant. The body is engraved with a max speed rating of 15,700 RPM and specifies clamping hardware SB-3065TBP screws (included in the accessory bag along with a 5 g MoS₂ anti-seize compound tube, standard Kyocera accessories for insert installation). This tool holder accepts DTPM 0302_ style triangular inserts and is suited for shoulder milling, ramping, and helical interpolation on CNC machining centers with a 3/4 in tool holding system (R8, CAT40, BT30, etc.). The straight shank with Weldon flat is compatible with 3/4 in end mill holders and collet chucks.
Product Specifications
| Brand | Kyocera Precision Tools |
| MPN | MFH0750-W750-03-3T-4 |
| Series | MFH (Multi-Flute Shoulder Milling) |
| Cutting Diameter | 0.750 in (3/4 in) |
| Shank Diameter | 0.750 in (3/4 in) |
| Shank Style | Straight w/ Weldon Flat |
| Number of Flutes | 3 |
| Insert IC (Inscribed Circle) | 03 mm |
| Compatible Insert Style | DTPM 0302_ (triangular) |
| Max RPM | 15,700 RPM |
| Clamping Screw | SB-3065TBP |
| Country of Origin | USA |
| Condition | New |
| Accessories Included | Clamping screws, MoS2 anti-seize compound (5 g) |
