Kyocera MFH3000R-14-5T 3in 5-Flute Indexable Face Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

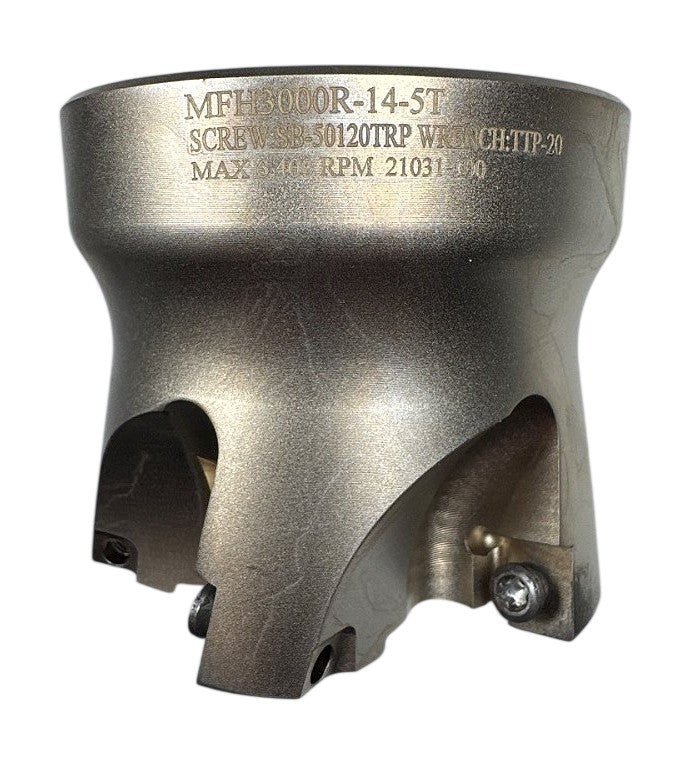

This is a new Kyocera MFH3000R-14-5T indexable face milling cutter from the MFH3000 series, designed for high-efficiency face milling operations on steel, stainless steel, cast iron, and non-ferrous materials. The body accepts 5 tangentially-clamped ROMU/ROMX-style square inserts, which seat in pockets arranged for a 90° lead angle, enabling true shoulder milling capability with excellent surface finish. The designation encodes a 3.000 in (76.2 mm) cutting diameter, a 1-4 in arbor bore, and 5 teeth; the body is engraved with a maximum speed rating of 21031-100 RPM and specifies clamping screw SB-50120TRP tightened with wrench TTP-20. The steel body is manufactured to Kyocera's MFH3000R standard with through-coolant-ready pockets and is compatible with standard 1-4 in arbor adapters and shell mill holders commonly used on VMCs and HMCs.
Product Specifications
| Brand | Kyocera |
| MPN | MFH3000R-14-5T |
| Series | MFH3000R |
| Cutting Diameter | 3.000 in (76.2 mm) |
| Arbor Bore Diameter | 1-4 in (1.25 in) |
| Number of Flutes / Teeth | 5 |
| Lead Angle | 90° |
| Insert Style | ROMU / ROMX square tangential inserts |
| Clamping Screw | SB-50120TRP |
| Wrench | TTP-20 |
| Maximum RPM | 21031 RPM |
| Body Material | Alloy steel |
| Hand of Cut | Right-hand |
| Condition | New |
