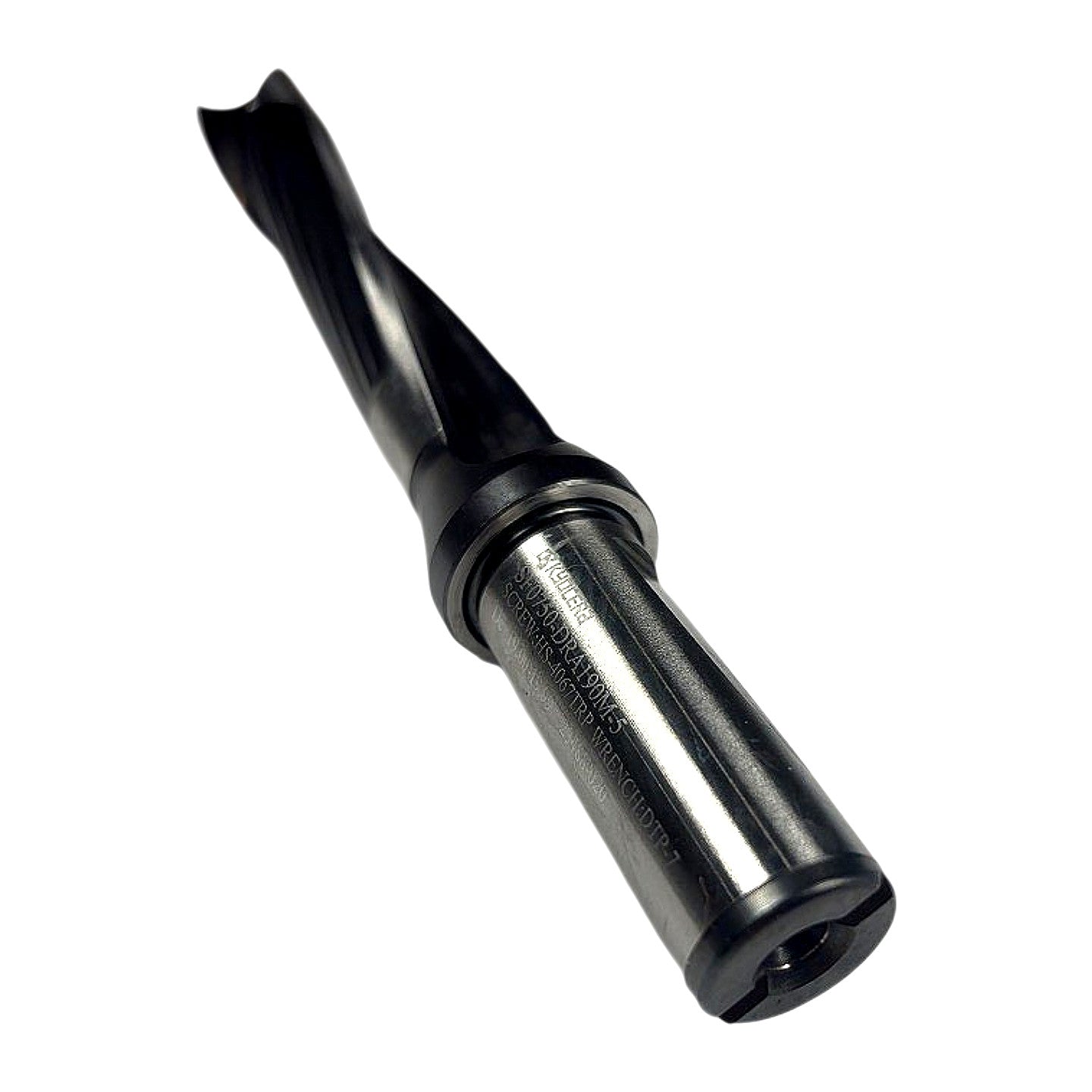

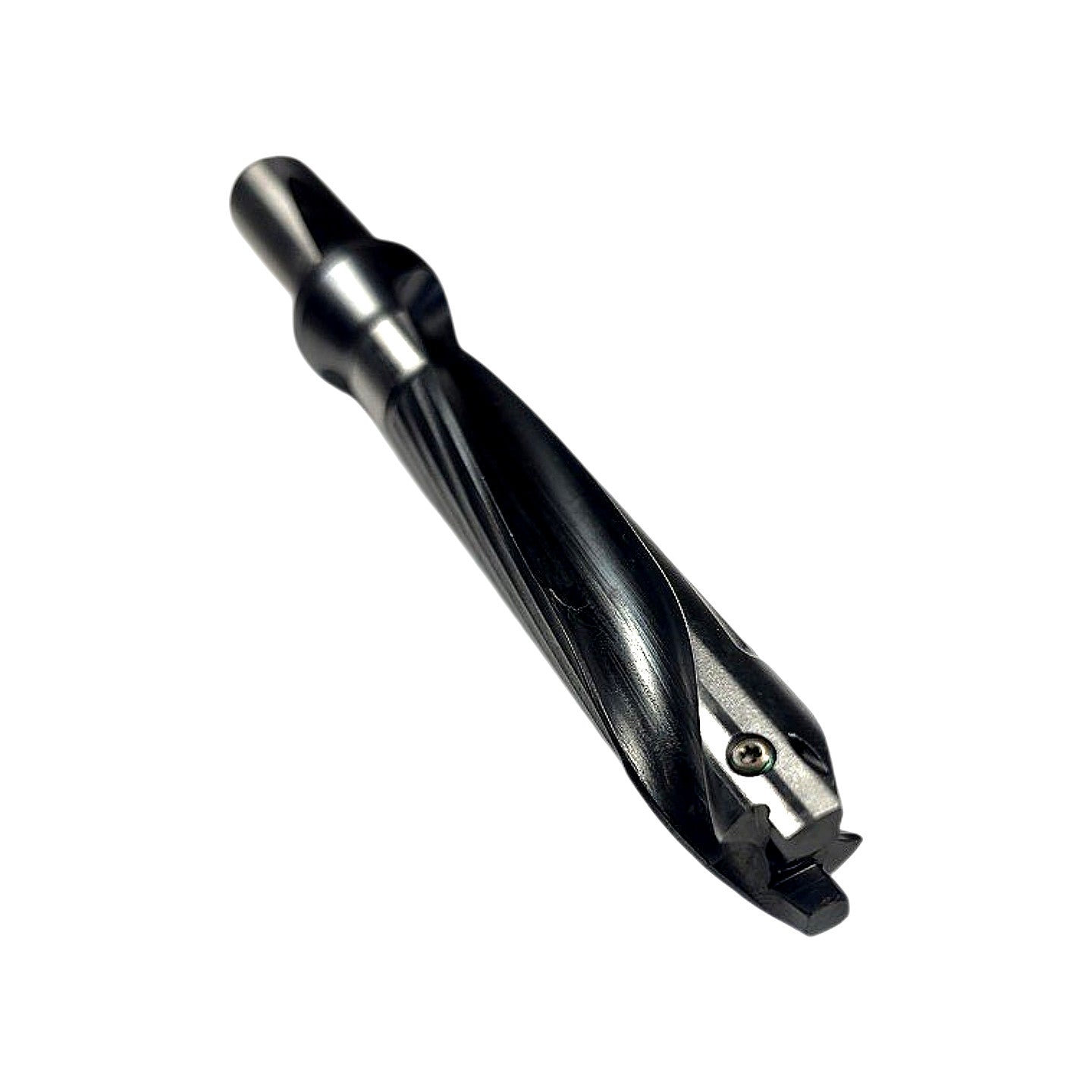

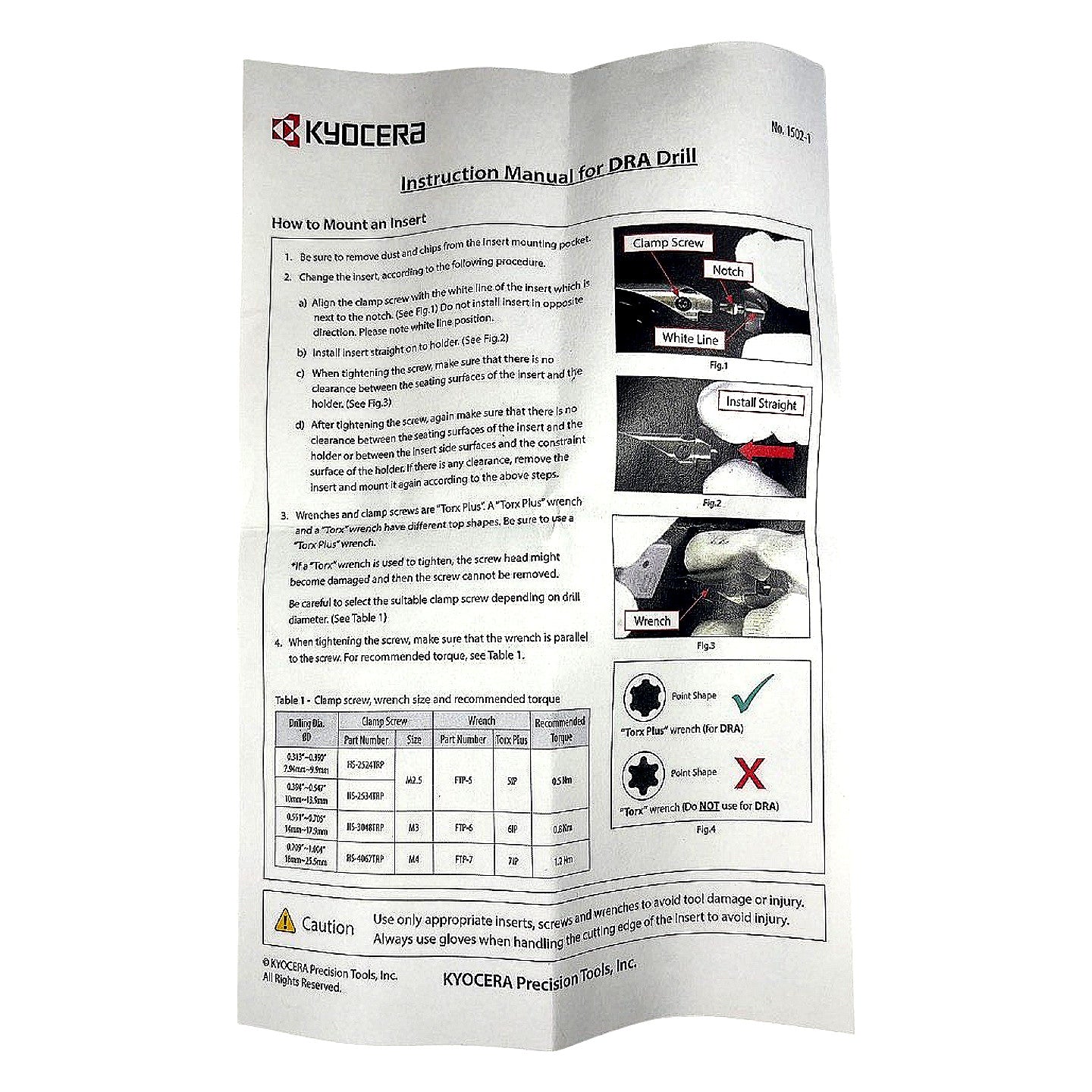

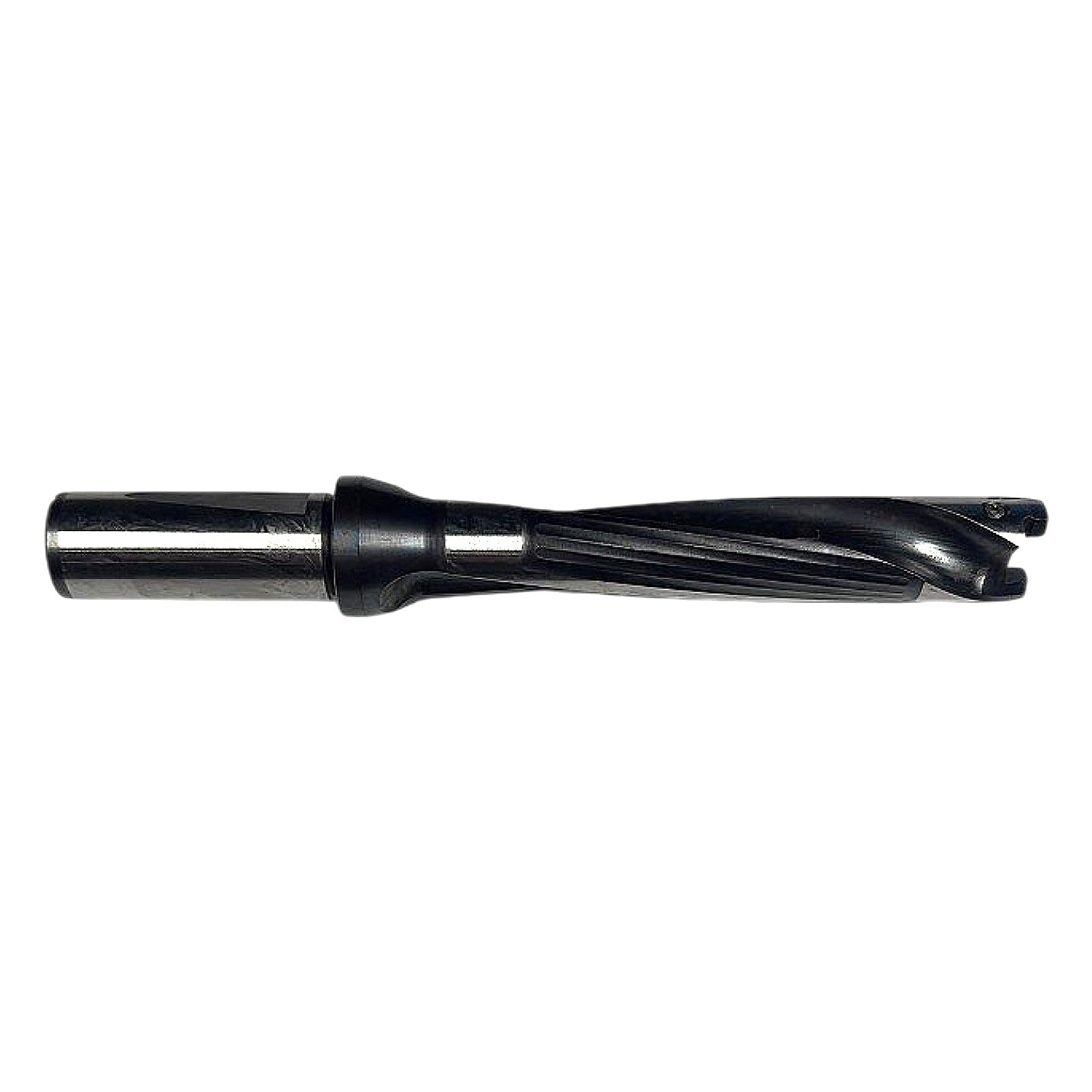

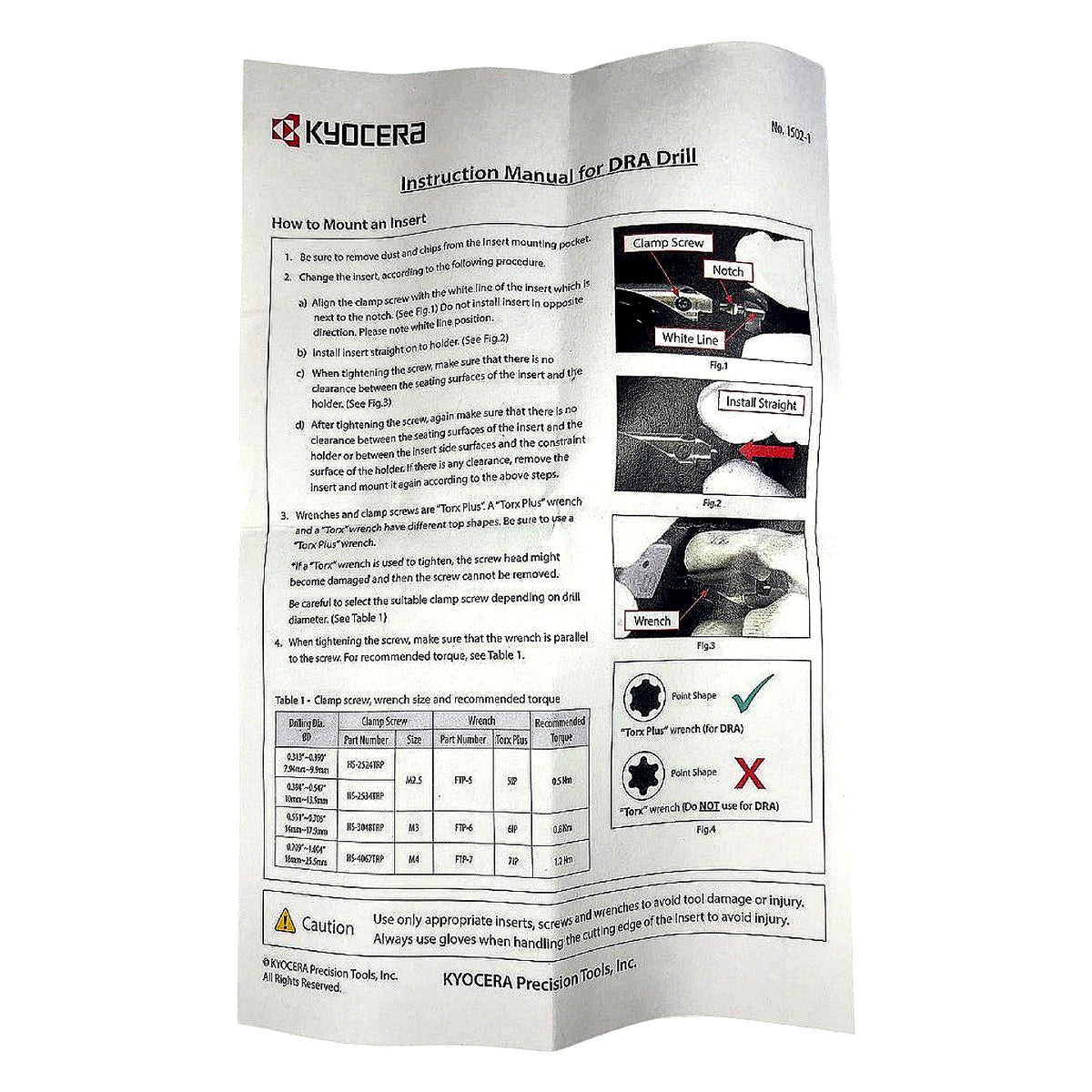

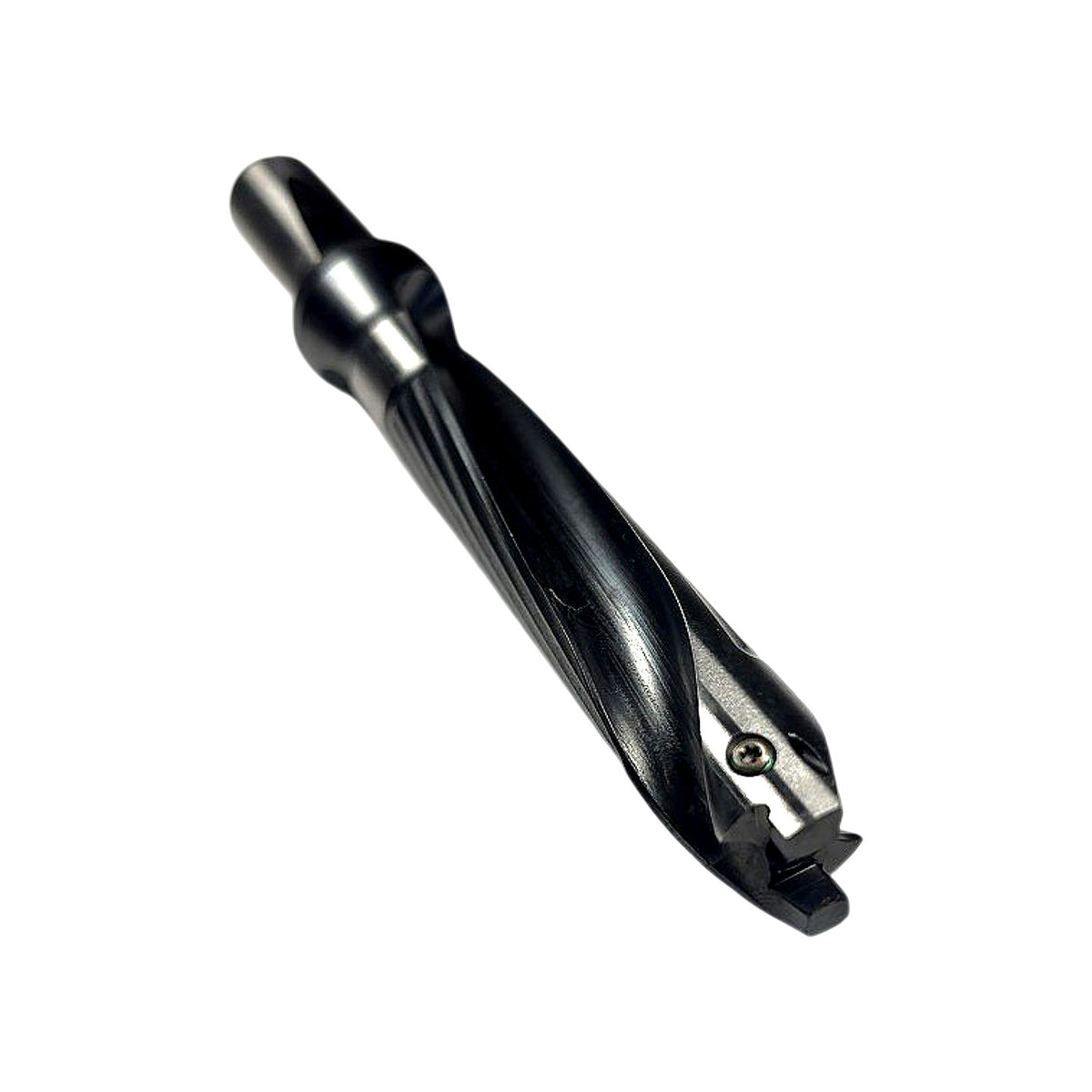

The Kyocera SF0750DRA190M6 is a new, factory-inspected DRA-series indexable insert drill body designed for use with Kyocera DRA replaceable carbide drill inserts. Decoding the MPN: "SF" = straight flute shank body, "0750" = 0.750 in (3/4 in) shank diameter, "DRA" = DRA insert drill series, "190" = 19.0 mm nominal drill diameter, "M6" = M6 cylindrical (straight) shank interface (6th generation M-shank). The body features through-coolant capability, a black oxide/nitrided steel body with helical flutes, and a single indexable insert seat secured by a Torx Plus (IP) clamp screw; the included hardware is an M4 Torx Plus clamp screw (HS-4067TRP) and a 7IP Torx Plus wrench (FTP-7), consistent with the 18–25.5 mm drill diameter range per Kyocera instruction manual No. 1502-1. Recommended clamp screw torque for this size class is 1.2 Nm; the tool is made in the USA by Kyocera Precision Tools, Inc. (Hendersonville, NC) and is compatible with DRA-series drill inserts for drilling steel, cast iron, and other common workpiece materials on CNC machining centers.
Product Specifications
| Brand | Kyocera Precision Tools |
| MPN | SF0750DRA190M6 |

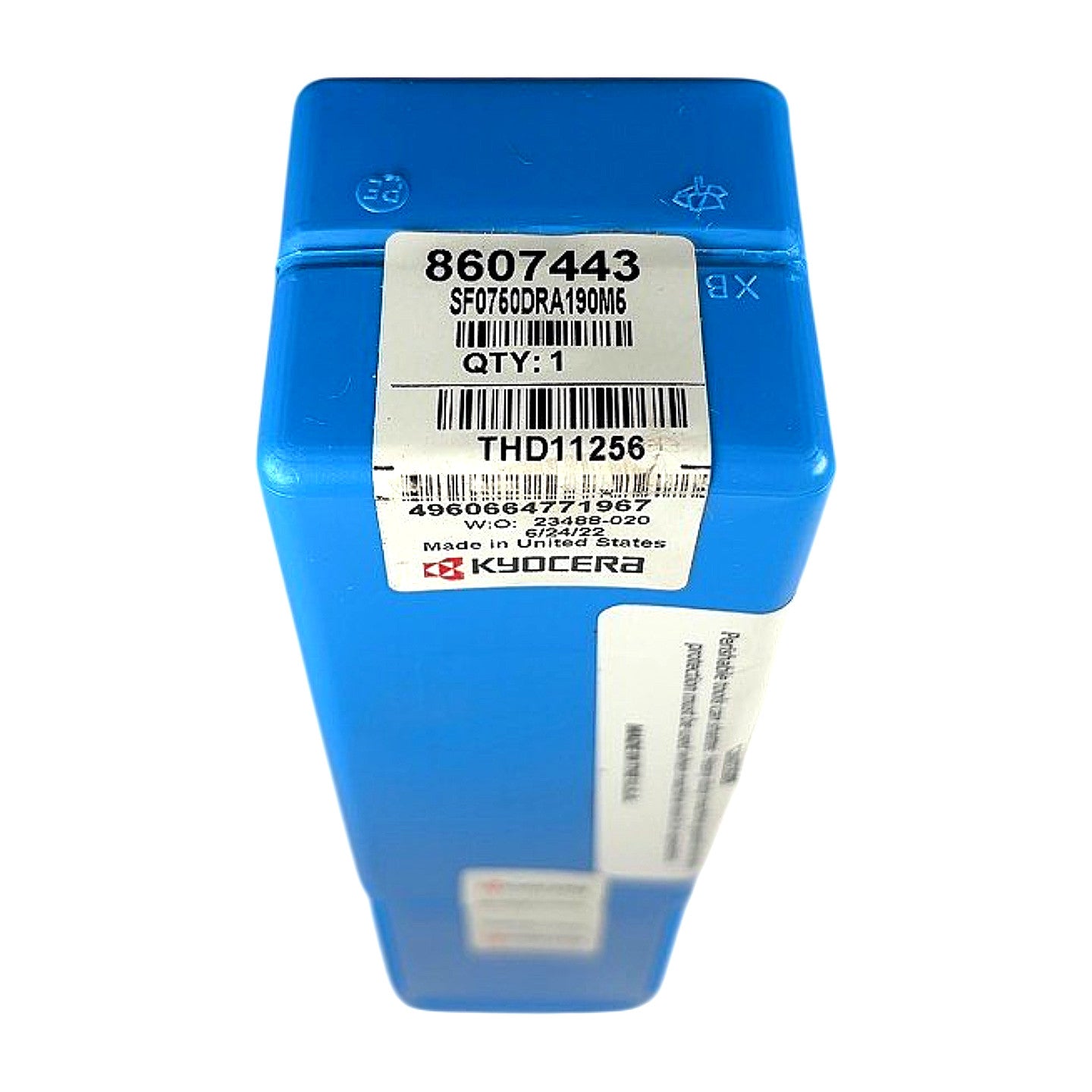

| Kyocera Item # | 8607443 |
| Series | DRA Indexable Insert Drill |
| Shank Diameter | 3/4 in (0.750 in) |
| Shank Type | Straight (Cylindrical) M6 Shank |
| Nominal Drill Diameter | 19.0 mm (0.748 in) |
| Body Material | Alloy steel, black oxide/nitrided finish |
| Flute Type | Helical |
| Number of Inserts | 1 |
| Coolant | Through-coolant capable |

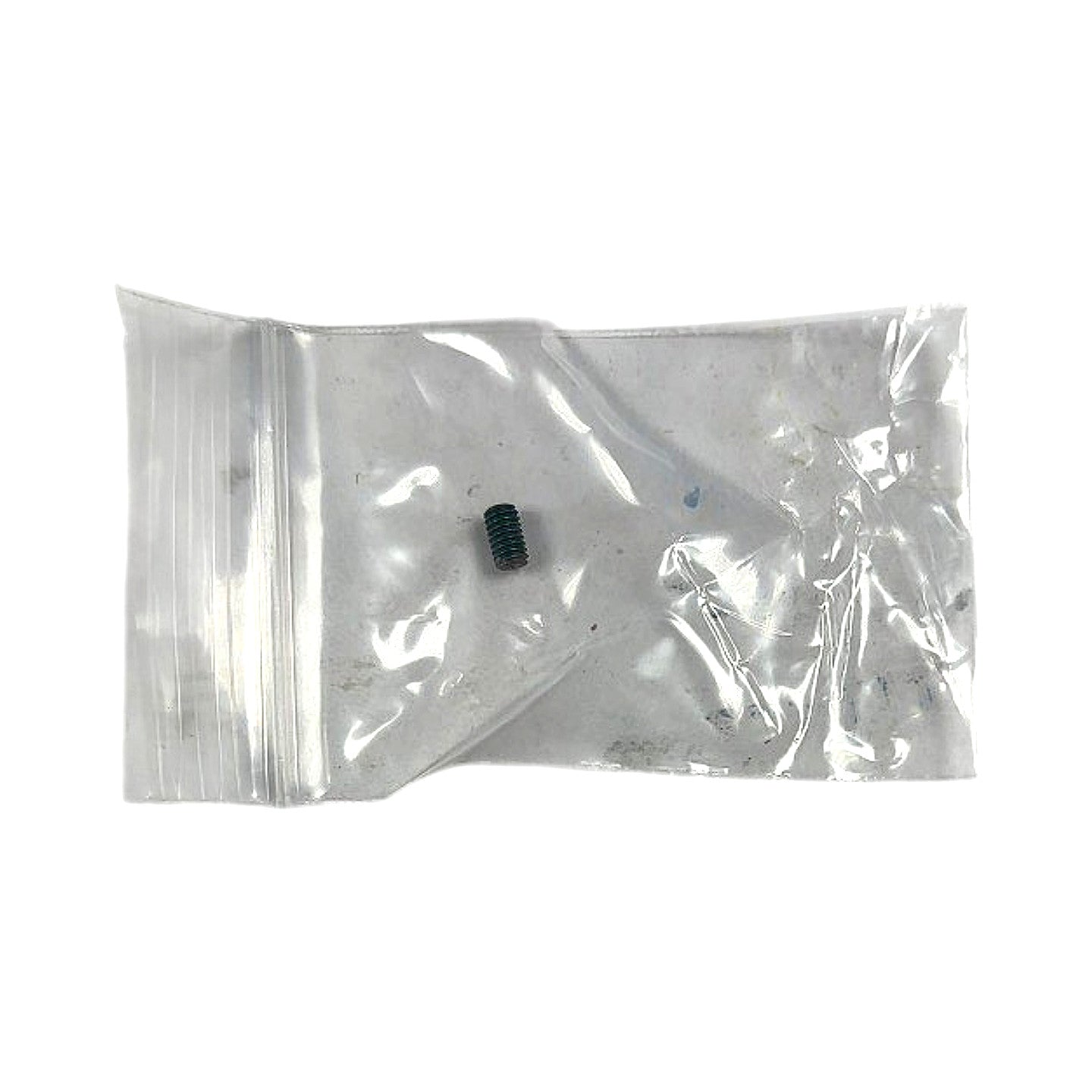

| Clamp Screw Included | HS-4067TRP, M4 Torx Plus |
| Clamp Screw Torque | 1.2 Nm |
| Wrench Included | FTP-7, 7IP Torx Plus |
| Country of Origin | USA |
| Condition | New |
| Compatible Insert Series | Kyocera DRA replaceable drill inserts |
