Kyocera SGS 00716 .052in 2FL Ball Nose Solid Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

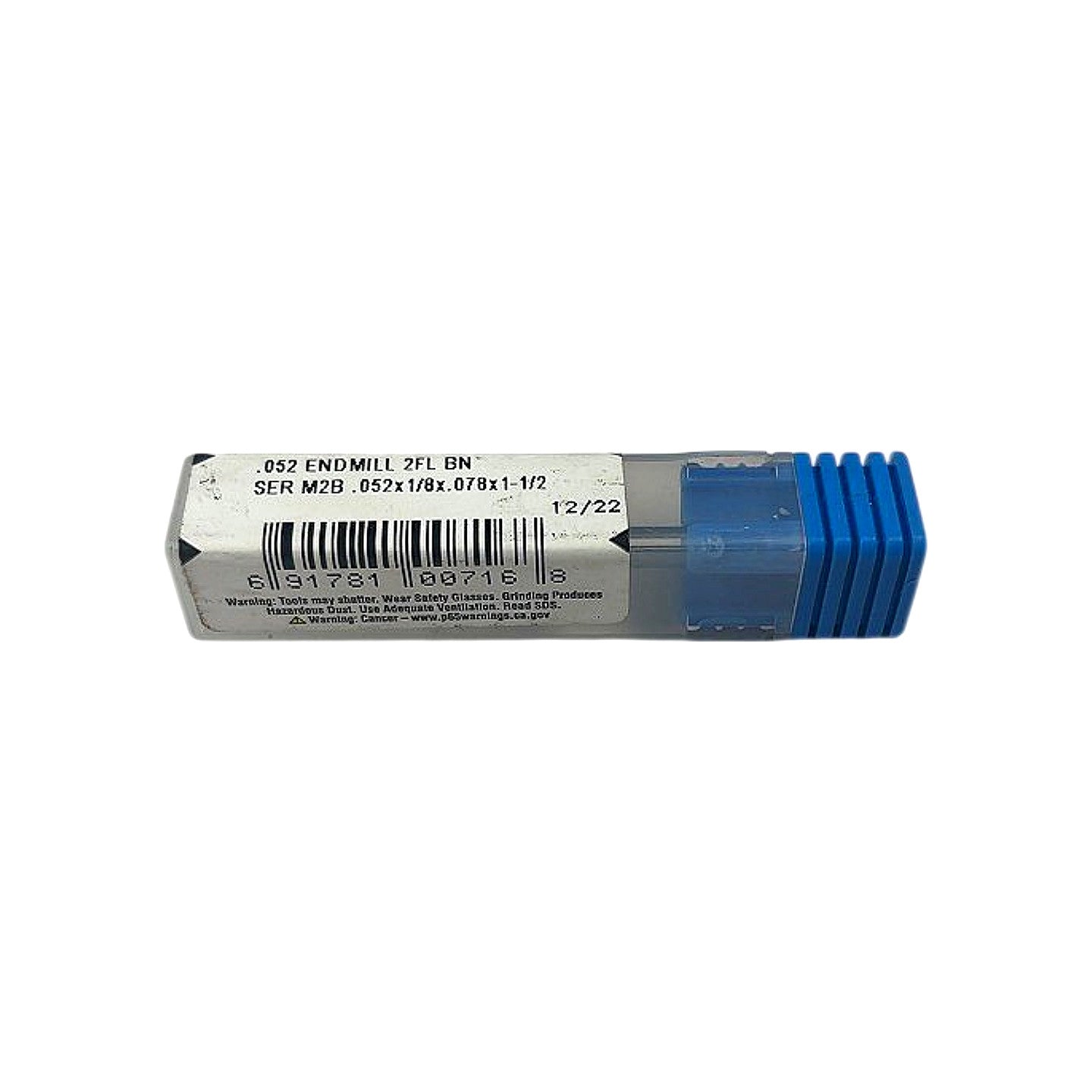

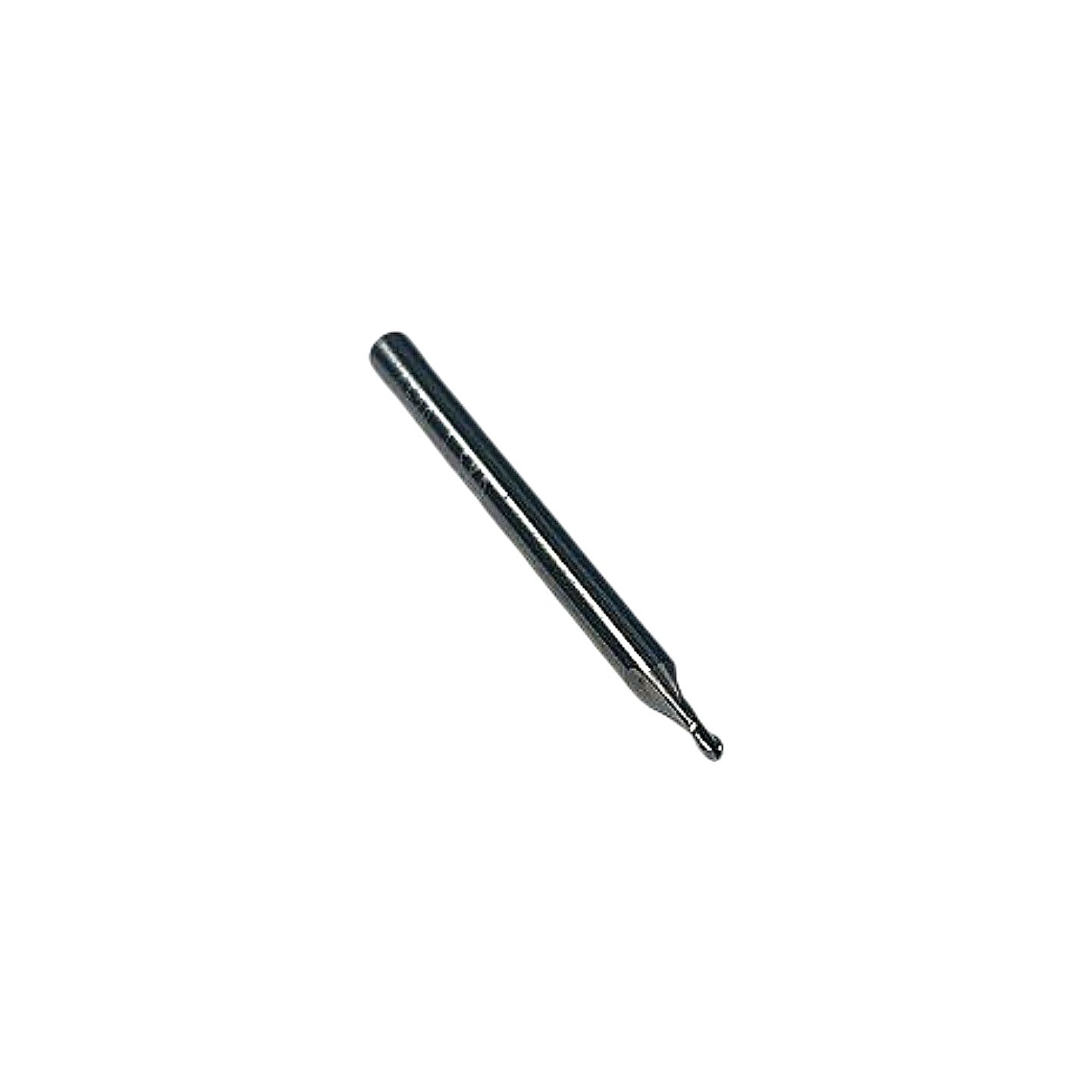

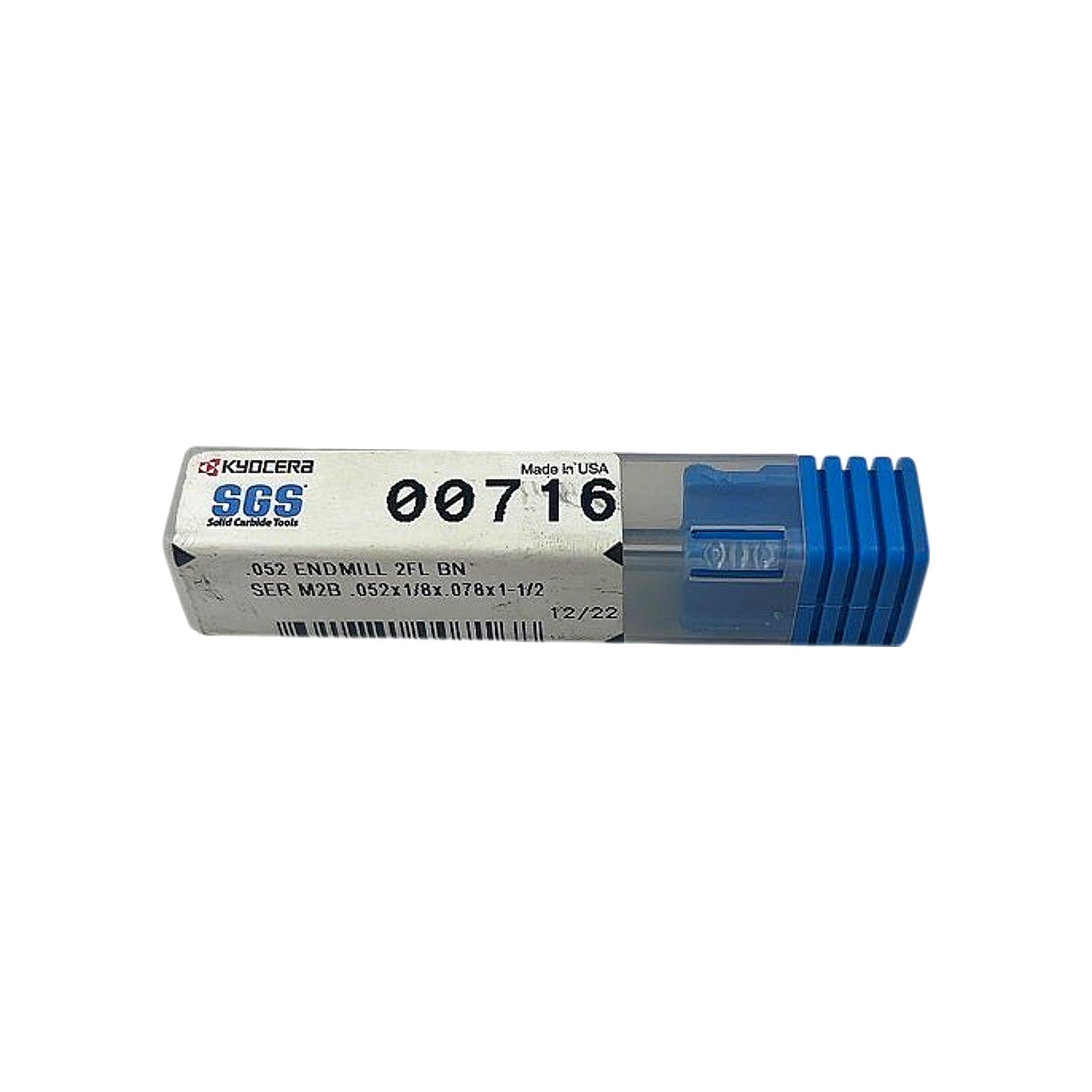

This is a new Kyocera SGS Series M2B solid carbide ball nose end mill, part number 00716, with a 0.052 in cutting diameter and 2 flutes. The tool features a 1/8 in shank diameter, 0.078 in length of cut, and 1-1/2 in overall length, as decoded directly from the label designation '.052x1/8x.078x1-1/2'. The 'BN' designation confirms a ball nose end geometry, designed for profiling, contouring, and 3D surface milling in precision applications such as mold and die work, micro-machining, and finishing of ferrous and non-ferrous materials. SGS Series M2B micro end mills are manufactured to tight tolerances from submicron grain carbide and are suited for use in high-speed CNC machining centers with collet-style toolholders in the 1/8 in bore size. Made in the USA per the packaging label.
Product Specifications
| Brand | Kyocera SGS |
| Manufacturer Part Number | 00716 |
| Series | M2B |
| Cutting Diameter | 0.052 in |
| Shank Diameter | 1/8 in (0.125 in) |
| Length of Cut | 0.078 in |
| Overall Length | 1-1/2 in (1.500 in) |
| Number of Flutes | 2 |
| End Geometry | Ball Nose (BN) |
| Material | Solid Carbide |
| Country of Origin | USA |
| Condition | New |
| Shank Type | Straight |
