Kyocera SGS 51367 37/64 in 2FL 3XD TA HiperCarb Solid Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

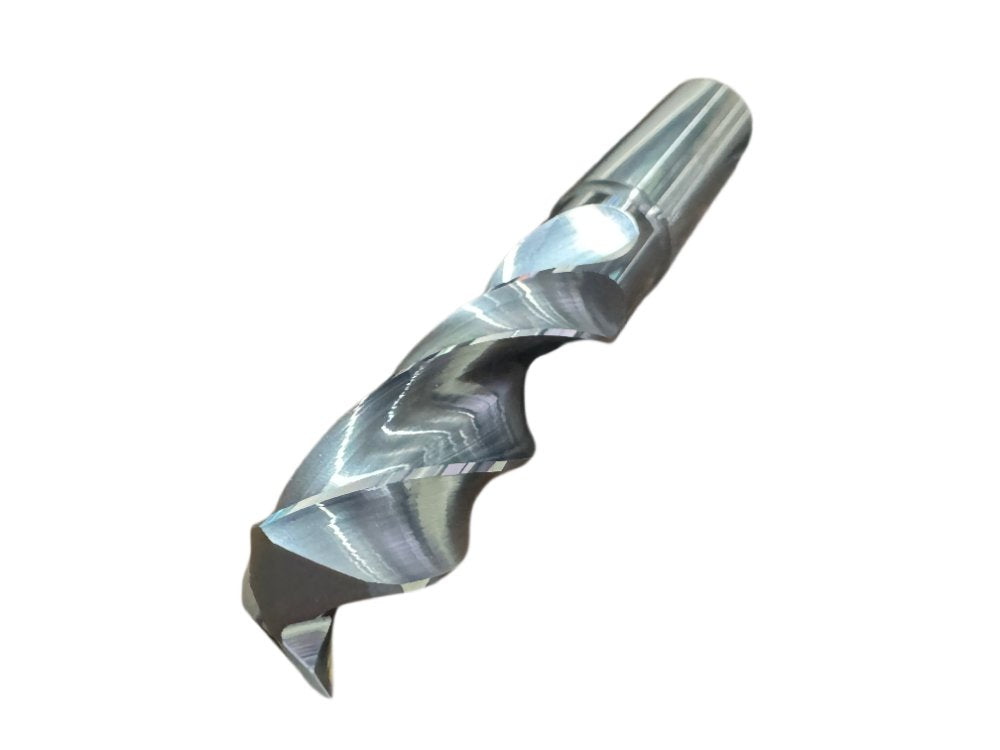

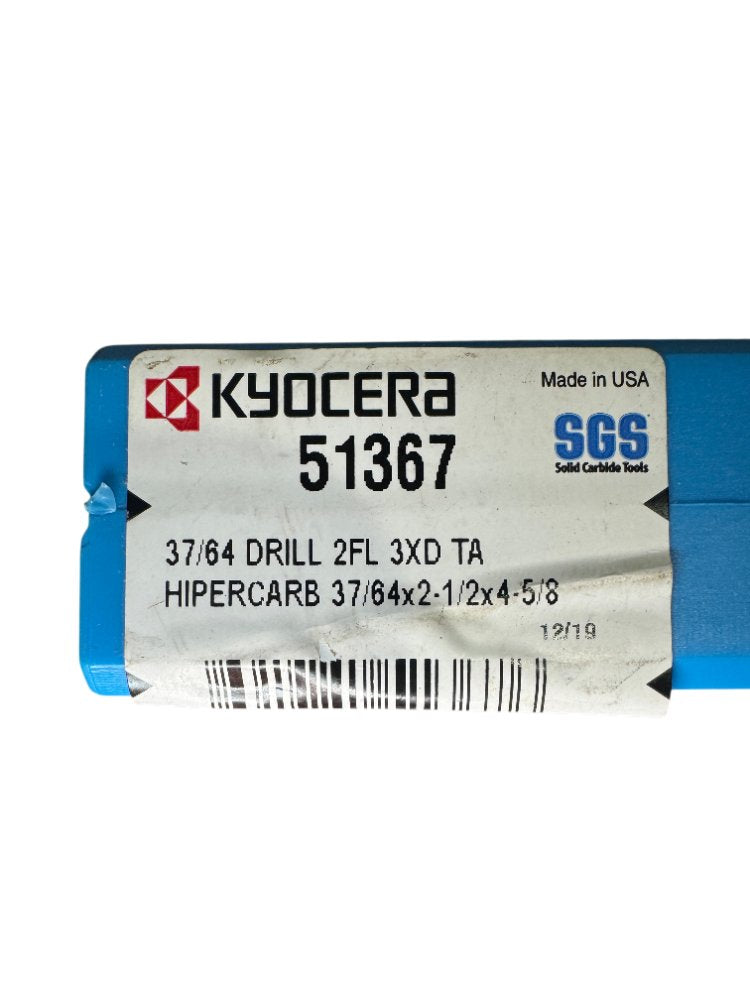

This is a new Kyocera SGS 51367 solid carbide drill in the HiperCarb series, featuring a 37/64" (0.578125") cutting diameter with a 2-flute geometry, 3xD flute length, and TA (Through-the-Air, i.e. coolant-through capable) construction — ground to 37/64" x 2-1/2" flute length x 4-5/8" overall length with a cylindrical shank. The HiperCarb series is SGS's premium solid carbide jobber-style drill optimized for aluminum and non-ferrous materials, utilizing a bright (uncoated) finish and a polished flute geometry that promotes chip evacuation and reduces built-up edge in gummy alloys. The 2-flute design and split-point geometry visible in the product photo confirm suitability for CNC machining centers and drill presses using standard hydraulic, shrink-fit, or collet-style toolholders accepting a 37/64" straight shank. Made in the USA per the label.
Product Specifications
| Brand | Kyocera SGS |
| Part Number (MPN) | 51367 |
| Series | HiperCarb |
| Cutting Diameter | 37/64 in (0.578125 in) |
| Number of Flutes | 2 |
| Flute Length (Depth of Cut) | 2-1/2 in |
| Overall Length (OAL) | 4-5/8 in |
| Depth-to-Diameter Ratio | 3xD |
| Shank Diameter | 37/64 in (straight shank) |
| Coolant Delivery | Through-the-Air (TA) |
| Material / Substrate | Solid Carbide |
| Coating / Finish | Uncoated (bright) |
| Country of Origin | USA |
| Condition | New |
