Kyocera SGS 51820 23/64in 8XD ICE-CARB Solid Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

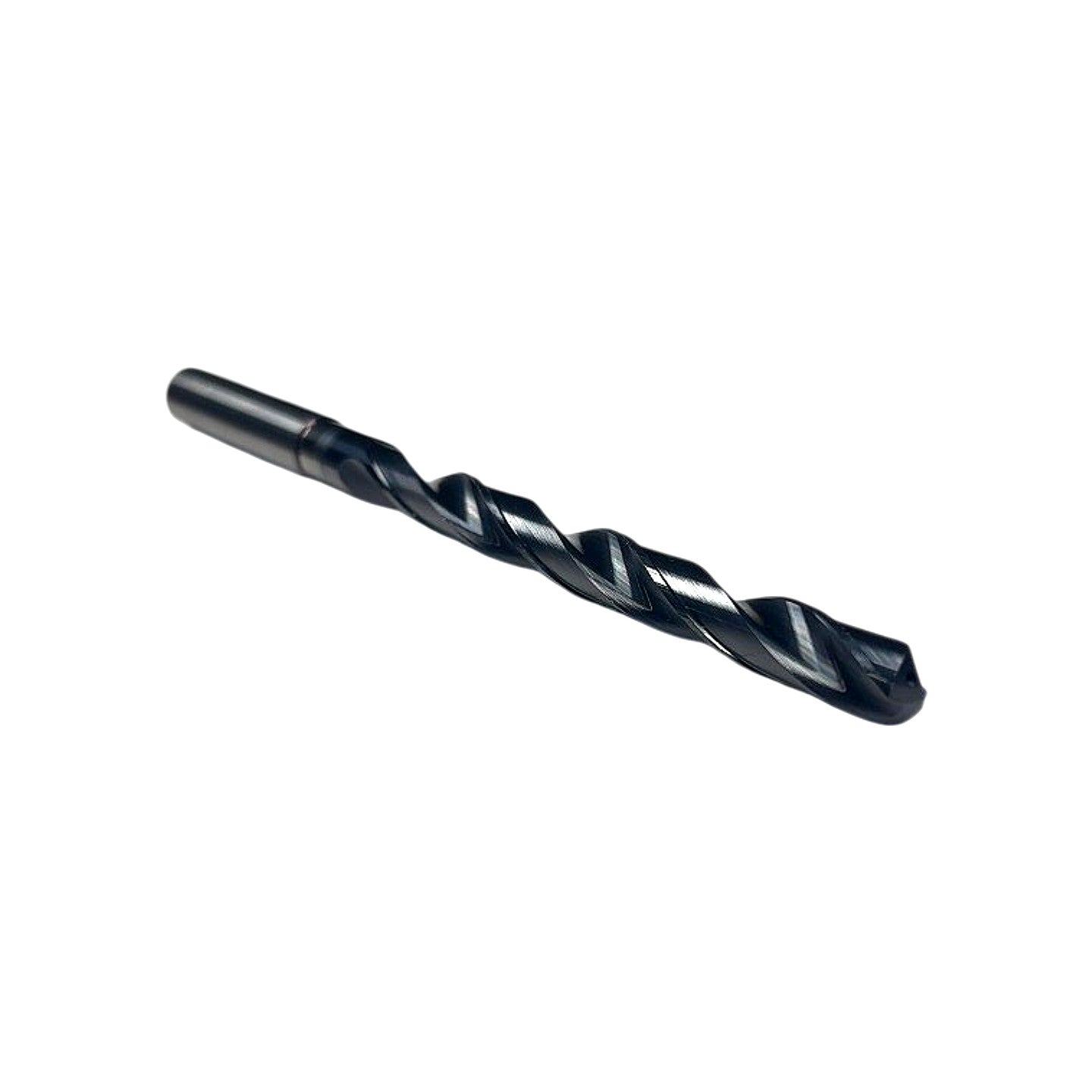

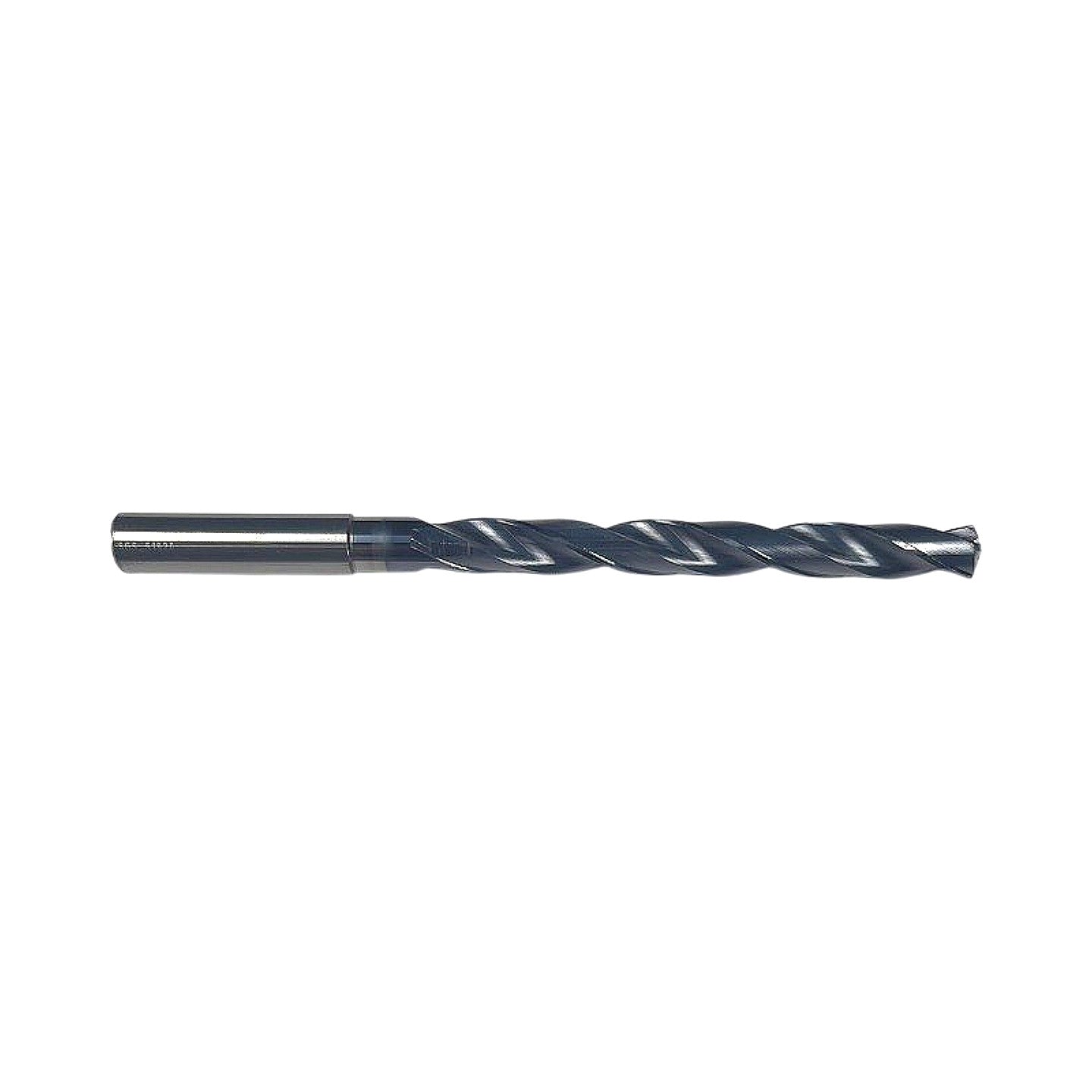

The Kyocera SGS 51820 is a new, solid carbide ICE-CARB series twist drill measuring 23/64 in (0.359375 in) in diameter with a 2-flute, 8XD deep-hole configuration, overall length of 142 mm, and flute length of 95 mm. The drill features a Through-Accuracy (TA) shank — a precision ground, oversized cylindrical shank designed for secure clamping in hydraulic or shrink-fit toolholders — and carries the IC (Internal Coolant) designation indicating through-coolant capability for chip evacuation and heat management in deep-hole applications. The ALtima or comparable PVD AlTiN-type coating characteristic of the ICE-CARB line provides elevated hardness and heat resistance, making this drill well-suited for ferrous materials including alloy steels and stainless steels in CNC machining centers. Manufactured in the USA and dated 06/21, this drill is designed for 8× diameter depth-of-cut in a single pass when paired with adequate coolant-through toolholding.
Product Specifications
| Brand | Kyocera SGS |
| MPN | 51820 |
| Series | ICE-CARB |
| Drill Diameter | 23/64 in (0.359375 in) |
| Number of Flutes | 2 |
| Depth-to-Diameter Ratio | 8XD |
| Overall Length (OAL) | 142 mm |
| Flute Length | 95 mm |
| Shank Type | TA (Through-Accuracy cylindrical) |
| Coolant | IC (Internal / through-coolant) |
| Material | Solid Carbide |
| Coating | ICE-CARB PVD (AlTiN-type) |
| Point Angle | 140° |
| Shank Diameter | 23/64 in (straight reduced TA shank) |
| Country of Origin | USA |
| Condition | New |
