Kyocera SGS 56455 23/64" 2FL 5XD TX IC Solid Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

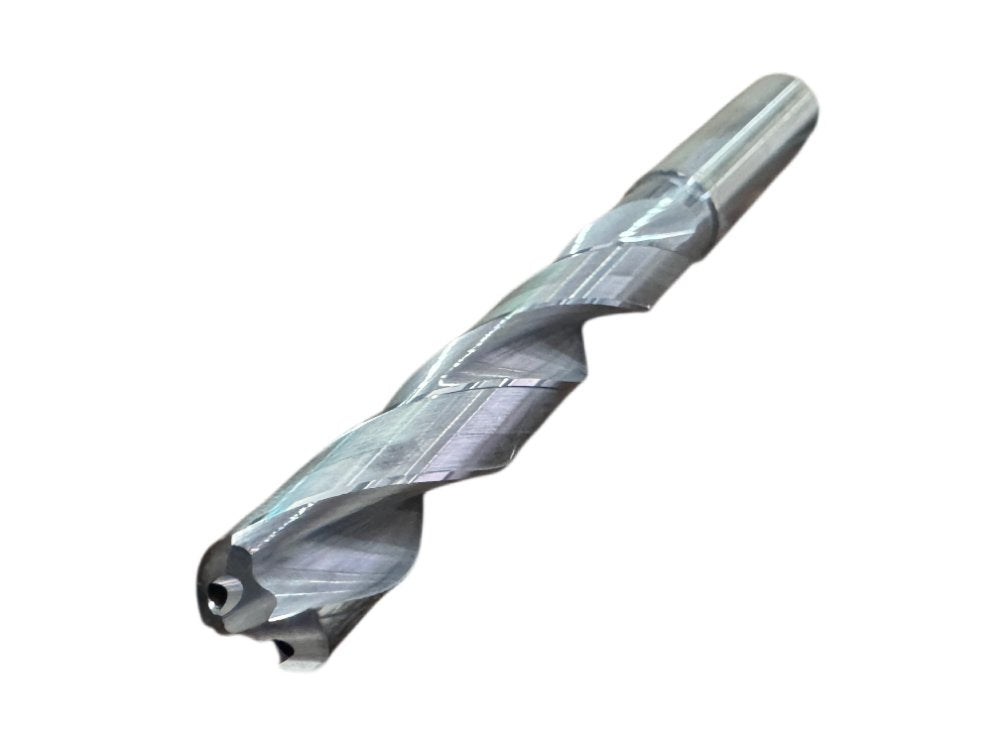

This is a new Kyocera SGS part number 56455, a 23/64" diameter solid carbide twist drill from the SER142P series, featuring 2 flutes, 5x diameter flute length (5XD), through-coolant internal coolant delivery (TX IC), and a straight shank designed for steel machining applications. The drill measures 23/64" (0.3594") in cutting diameter with a 61mm flute length and 103mm overall length, manufactured in the USA per the label. The TX (TiAlN-X or equivalent Kyocera SGS proprietary coating) coating and through-coolant capability make this drill suited for steel drilling operations in CNC machining centers with coolant-through toolholding systems. The SER142P series designation indicates a parabolic flute geometry optimized for chip evacuation in steel at 5x depth-to-diameter ratios.
Product Specifications
| Brand | Kyocera SGS |
| Part Number (MPN) | 56455 |
| Series | SER142P |
| Cutting Diameter | 23/64" (0.3594 in) |
| Number of Flutes | 2 |
| Drill Depth Capability | 5x Diameter (5XD) |
| Flute Length | 61 mm |
| Overall Length | 103 mm |
| Shank Type | Straight |
| Coolant | Through-coolant (internal coolant) |
| Coating | TX (Kyocera SGS proprietary coating) |
| Substrate | Solid Carbide |
| Application Material | Steel |
| Manufacture Date | April 2021 (04/21) |
| Country of Origin | USA |
| Condition | New |
