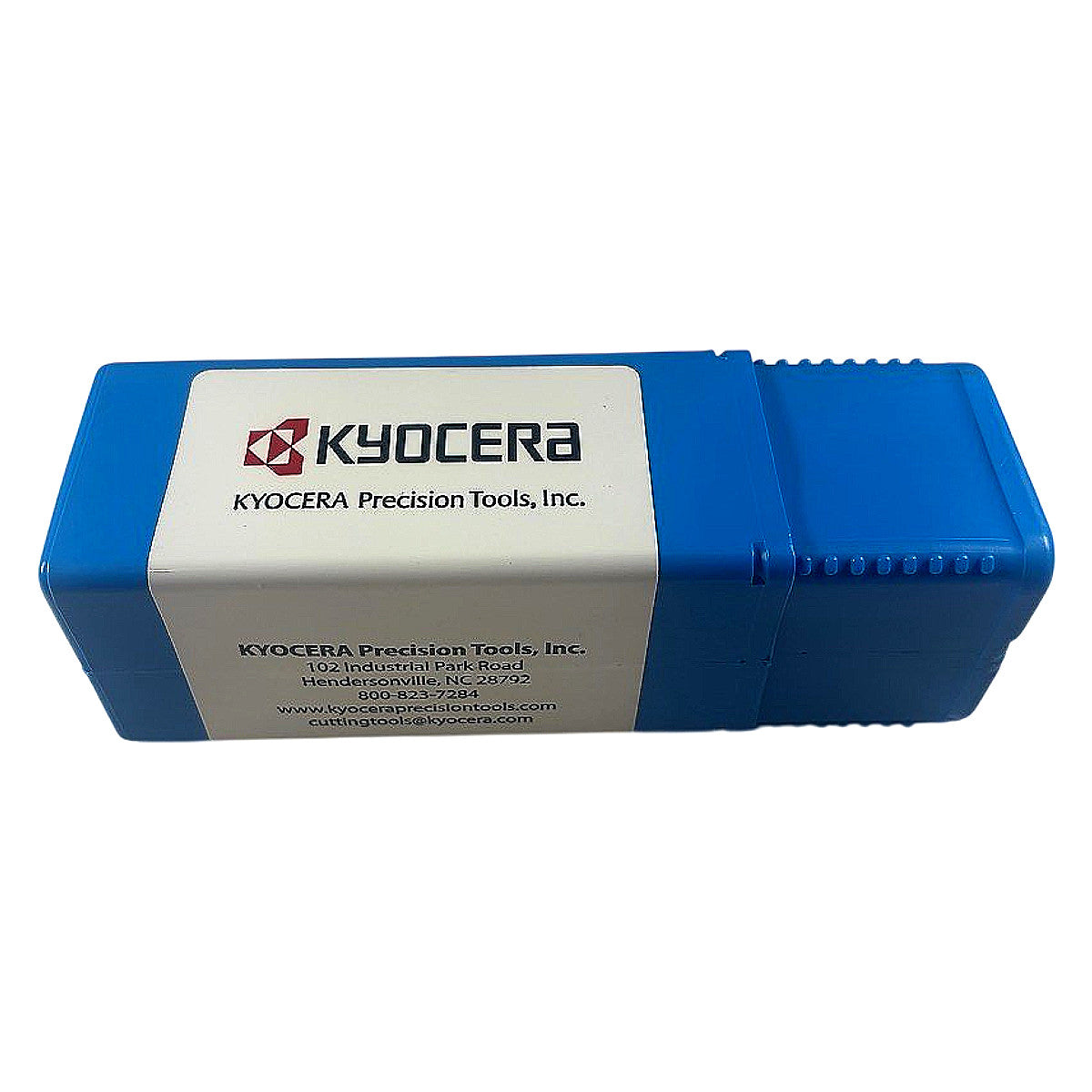

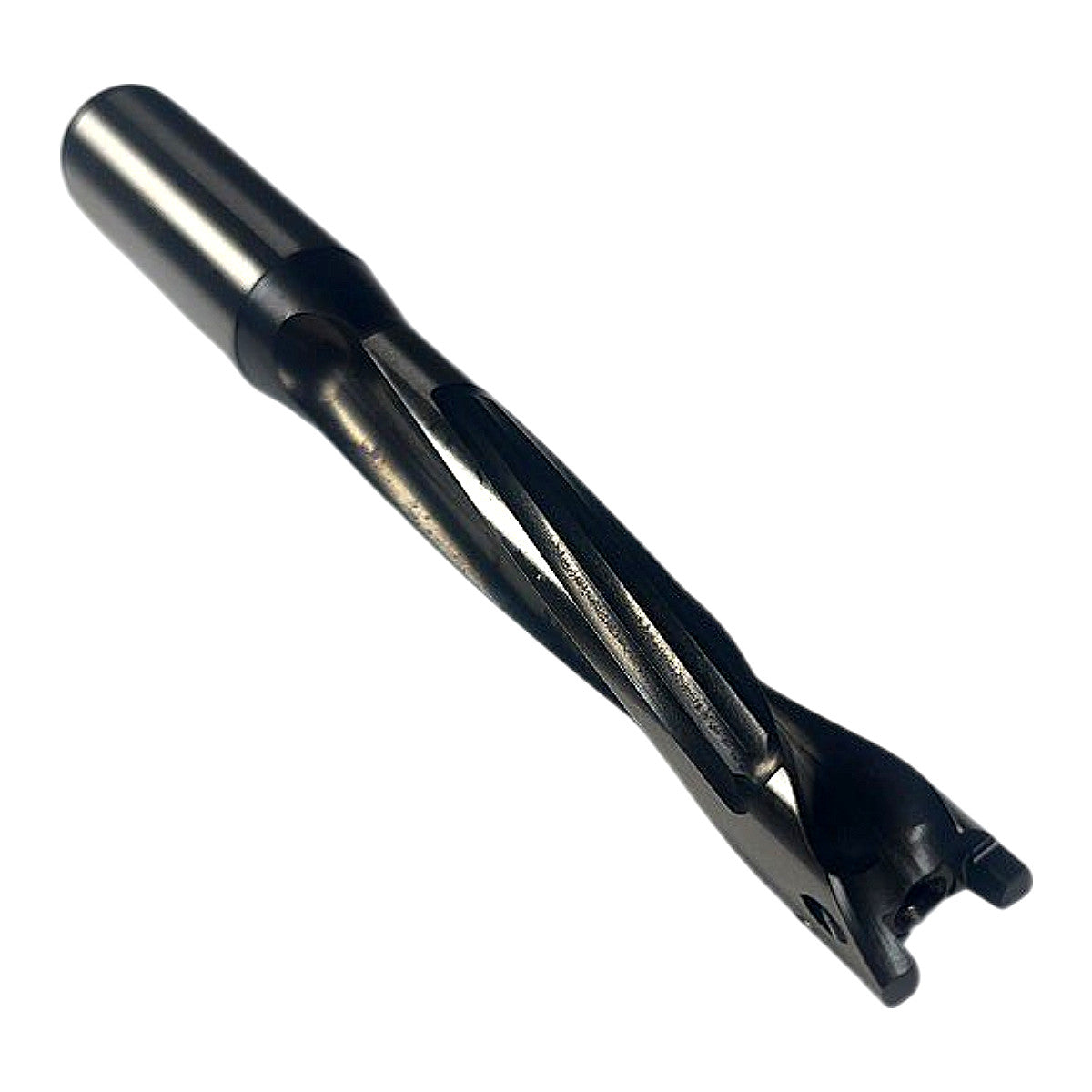

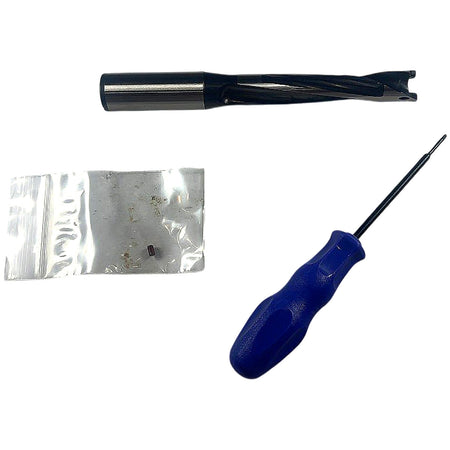

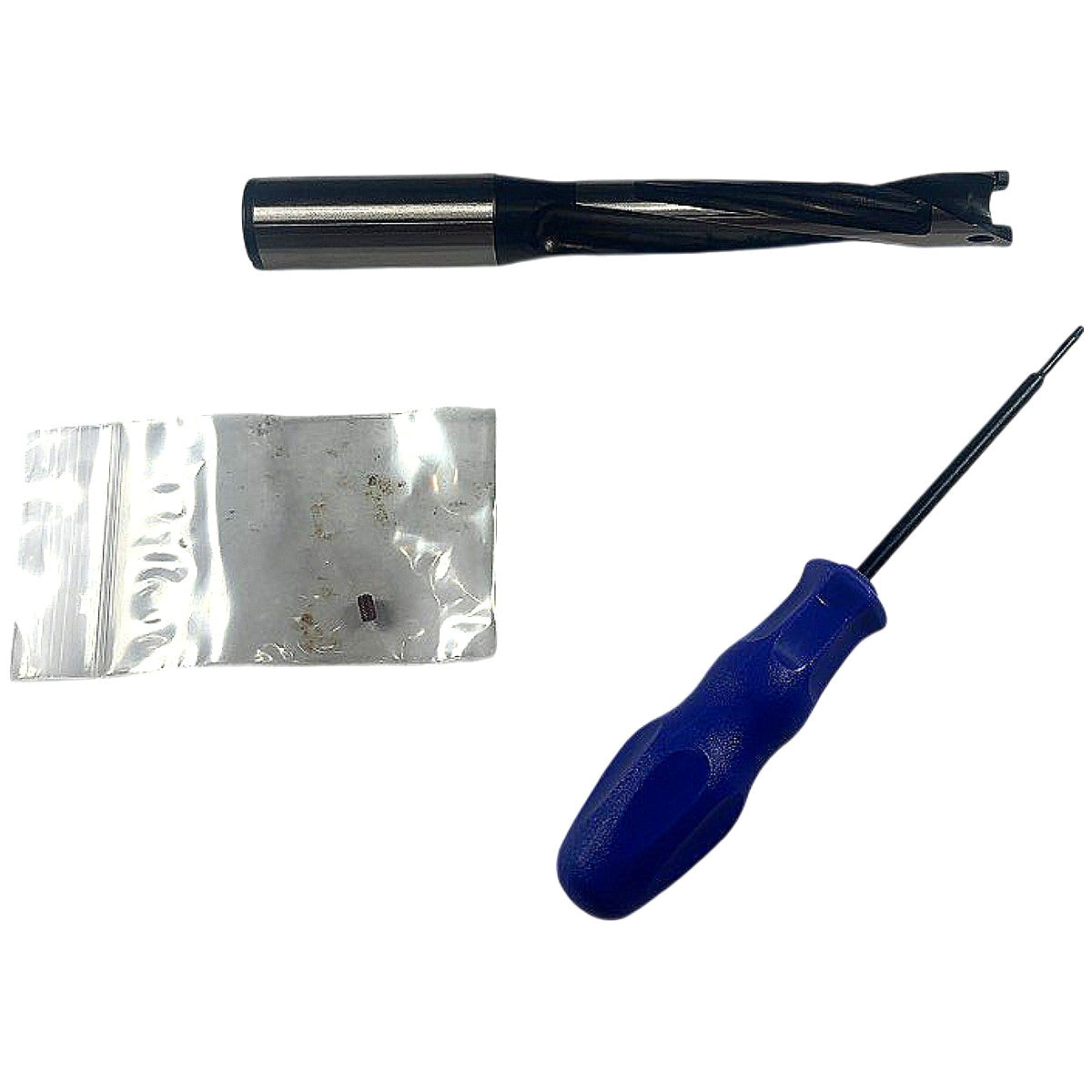

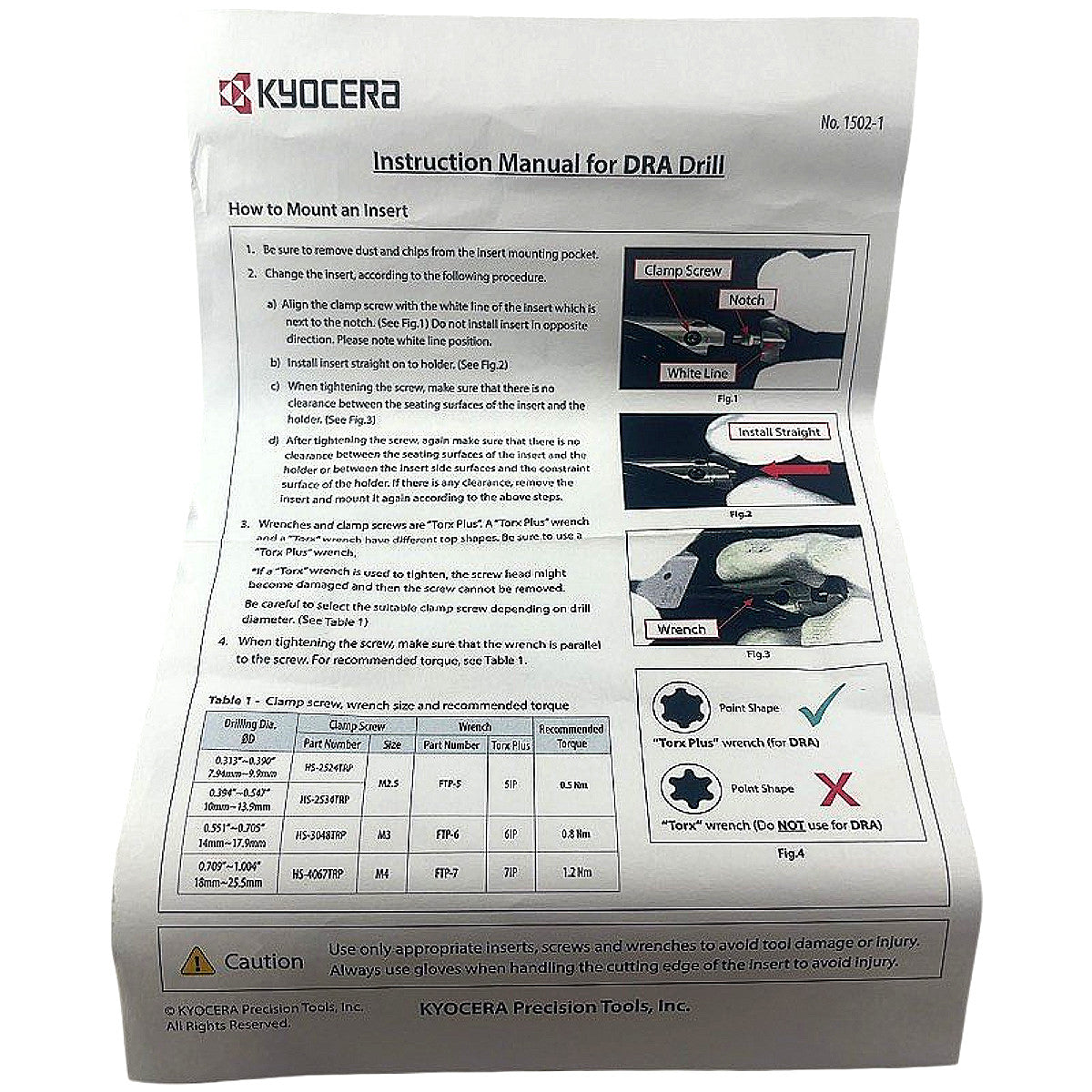

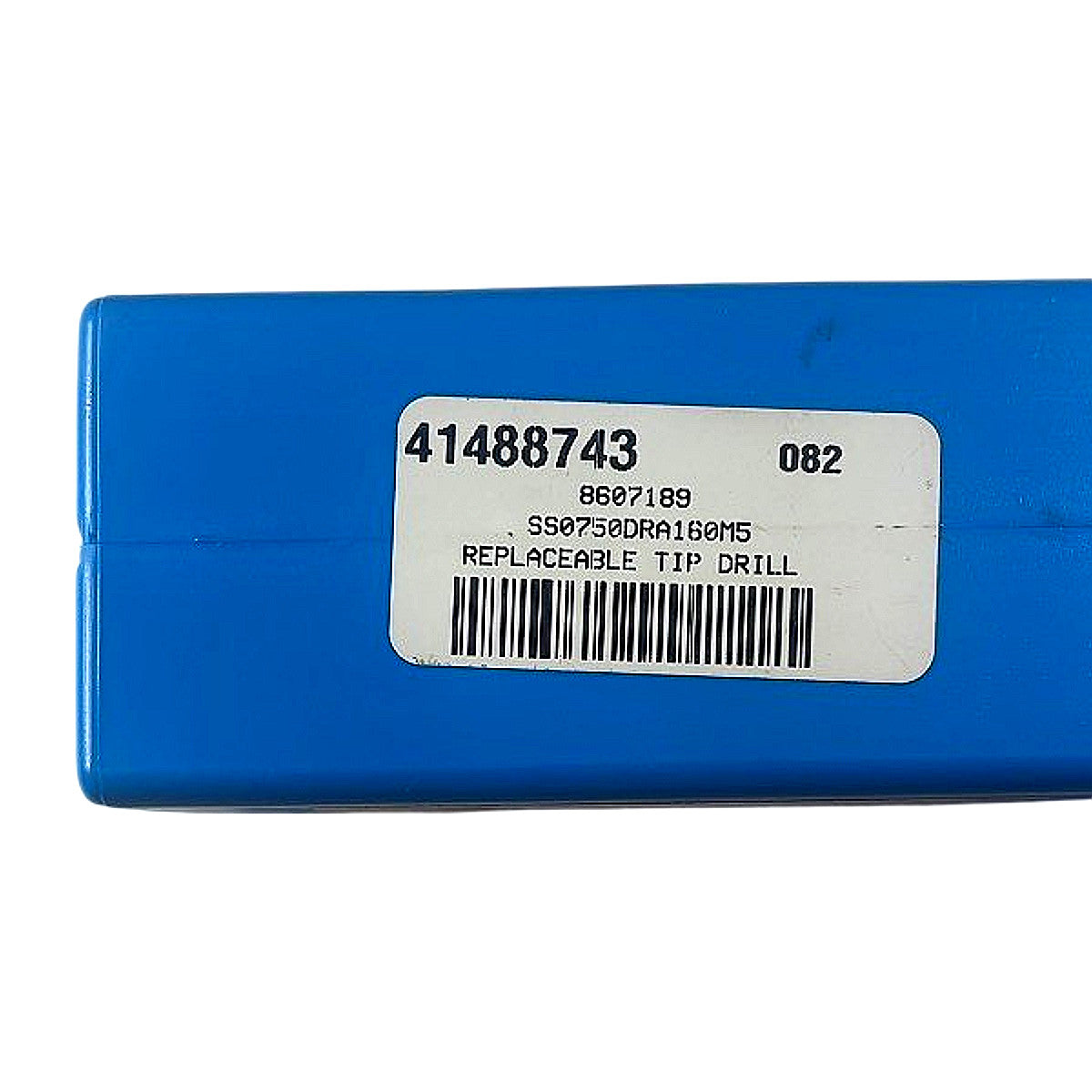

The Kyocera SS0750DRA160M5 is a new, steel-bodied replaceable-tip drill (DRA series) with a 3/4 in (0.750 in) cutting diameter and a depth-of-cut ratio of 16xD (approximately 12 in maximum drilling depth), designed to accept Kyocera DRA-series indexable carbide drill tips secured by a Torx Plus clamp screw. The body features helical flutes with an AlTiN-type black PVD coating on the shank and body for corrosion resistance, an M5 Torx Plus clamp screw pocket (HS-3048TRP screw, FTP-6 Torx Plus wrench per the included instruction sheet No. 1502-1), and internal coolant-through capability for effective chip evacuation and thermal management. Compatible DRA drill tips for this body include the 0.750 in diameter range of Kyocera DRA insert tips; the straight cylindrical shank is designed for use with standard drill chucks, collet holders, or Kyocera-compatible toolholders. Manufactured in the USA by Kyocera Precision Tools, Inc. (Hendersonville, NC); internal part number 8607189, distributor stock number 41488743.
Product Specifications
| Brand | Kyocera Precision Tools |
| MPN | SS0750DRA160M5 |
| Kyocera Part Number | 8607189 |
| Product Type | Replaceable Tip Drill Body (DRA Series) |
| Cutting Diameter | 0.750 in (3/4 in) |
| Depth-of-Cut Ratio | 16xD |
| Max Drilling Depth | 12 in (approx.) |
| Shank Type | Straight cylindrical |
| Shank Diameter | 0.750 in |
| Clamp Screw Size | M3 (HS-3048TRP, Torx Plus) |
| Required Wrench | FTP-6 (6IP Torx Plus) |
| Recommended Clamp Torque | 0.8 Nm |
| Body Material | Alloy steel w/ black surface treatment |
| Coolant | Through-coolant capable |
| Compatible Insert Type | Kyocera DRA series replaceable drill tips |
| Country of Origin | USA |
| Condition | New |
