Kyocera WNMU080608EN-GH PR1510 Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

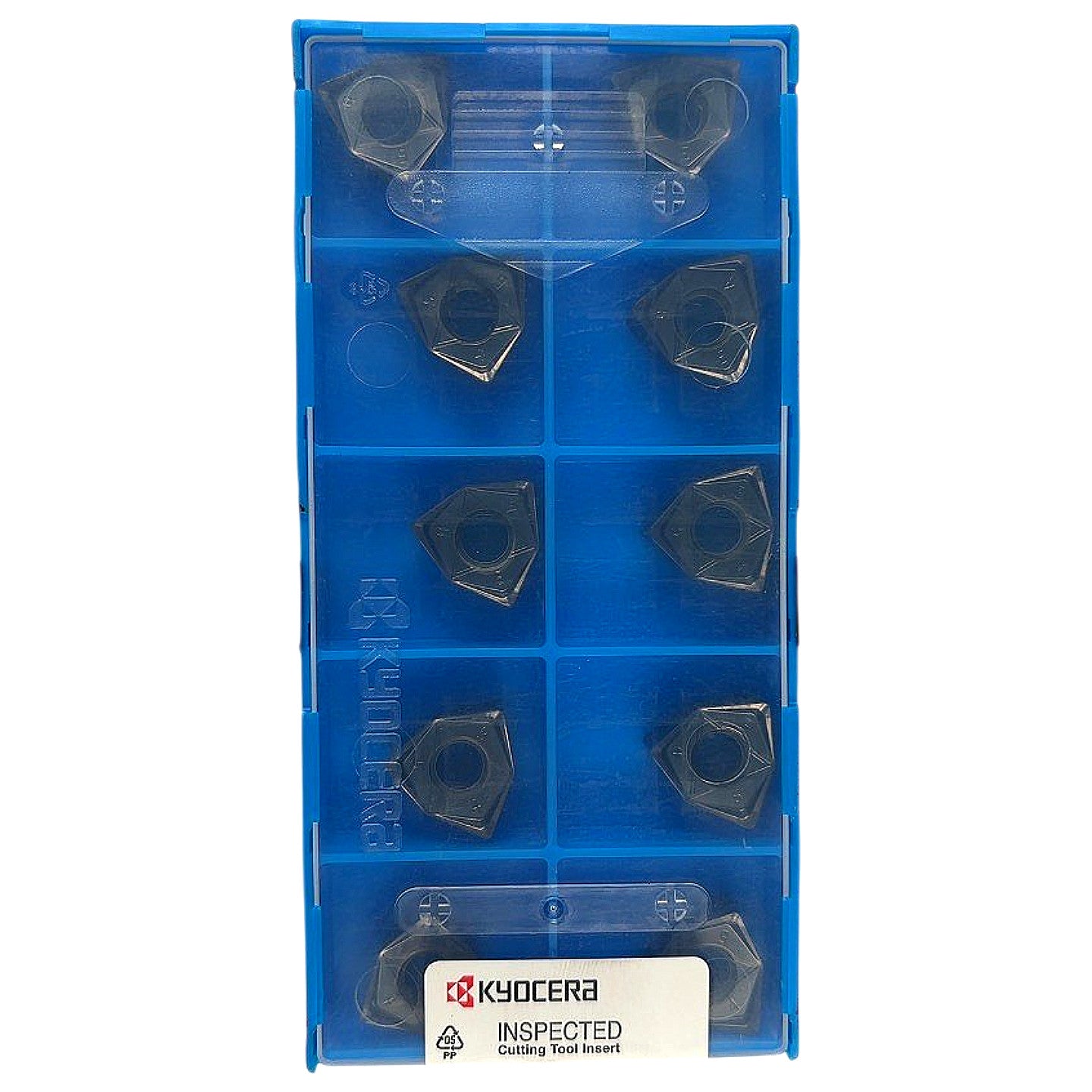

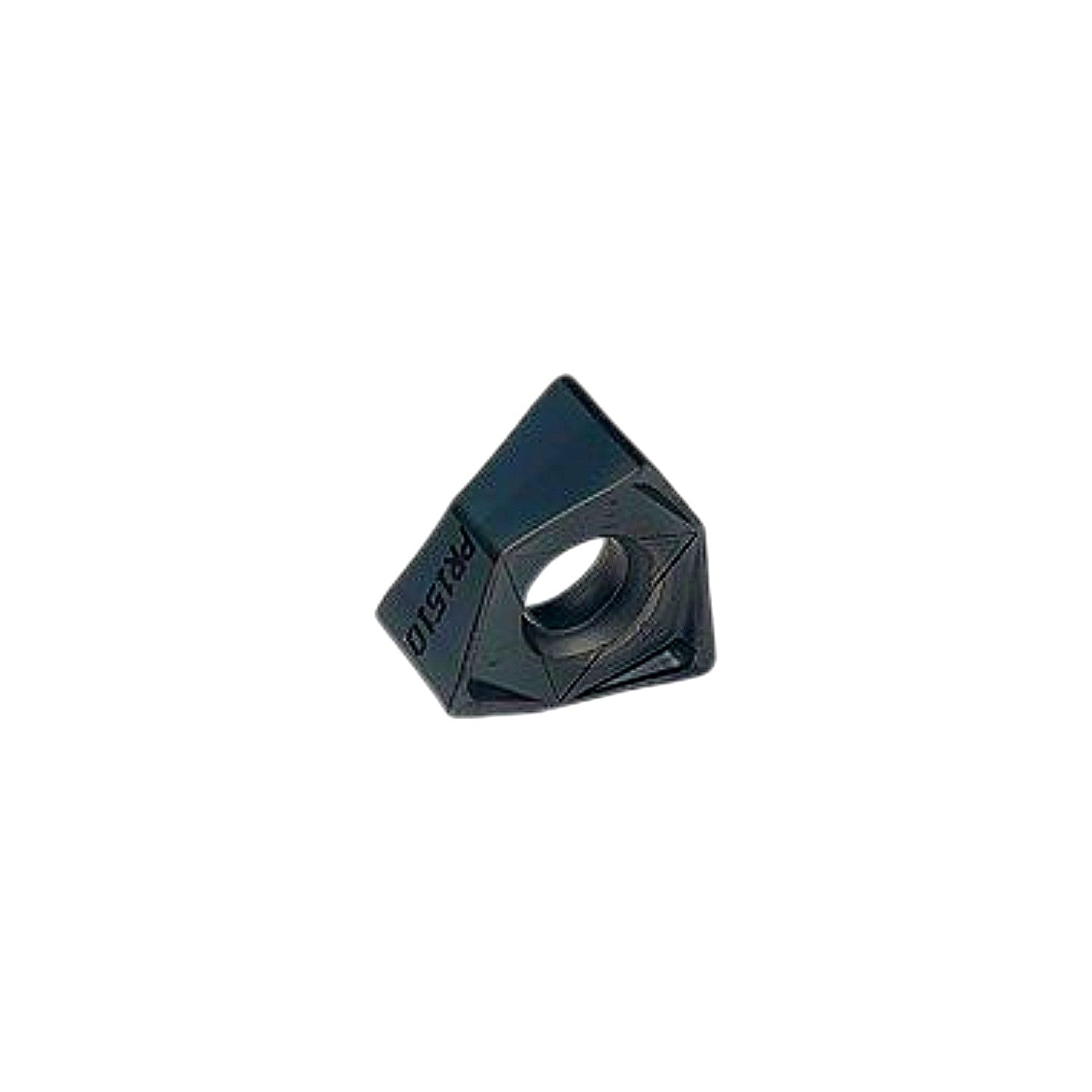

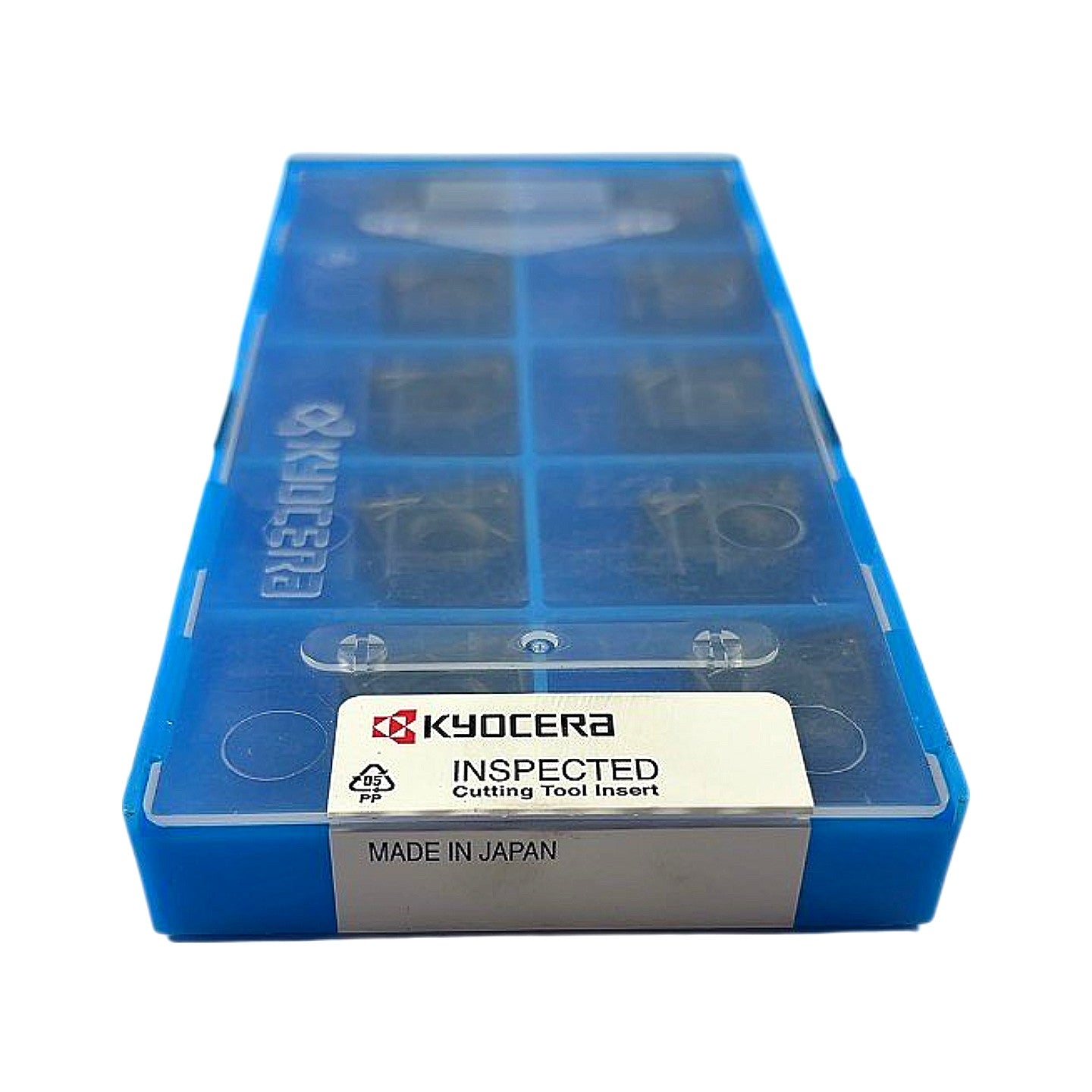

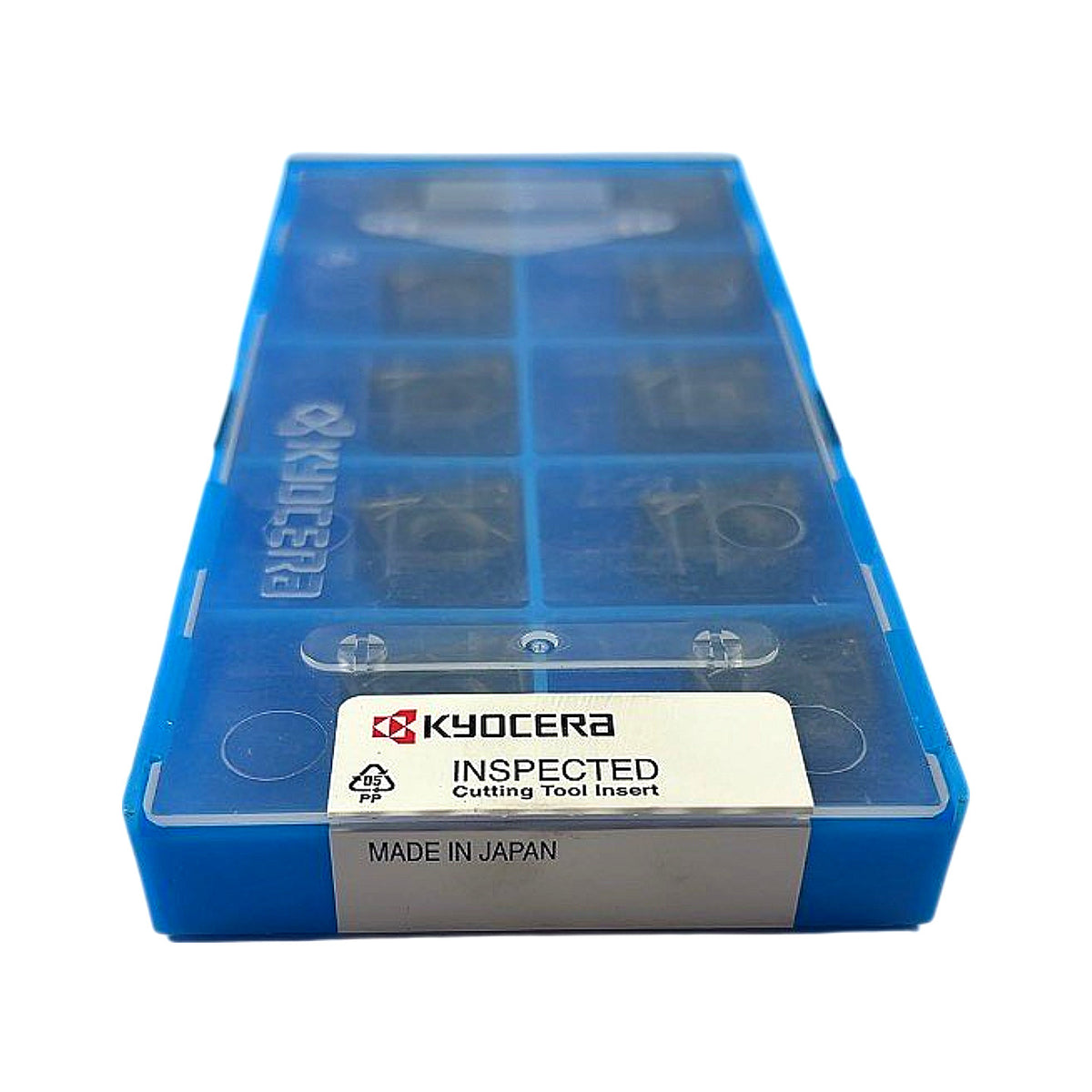

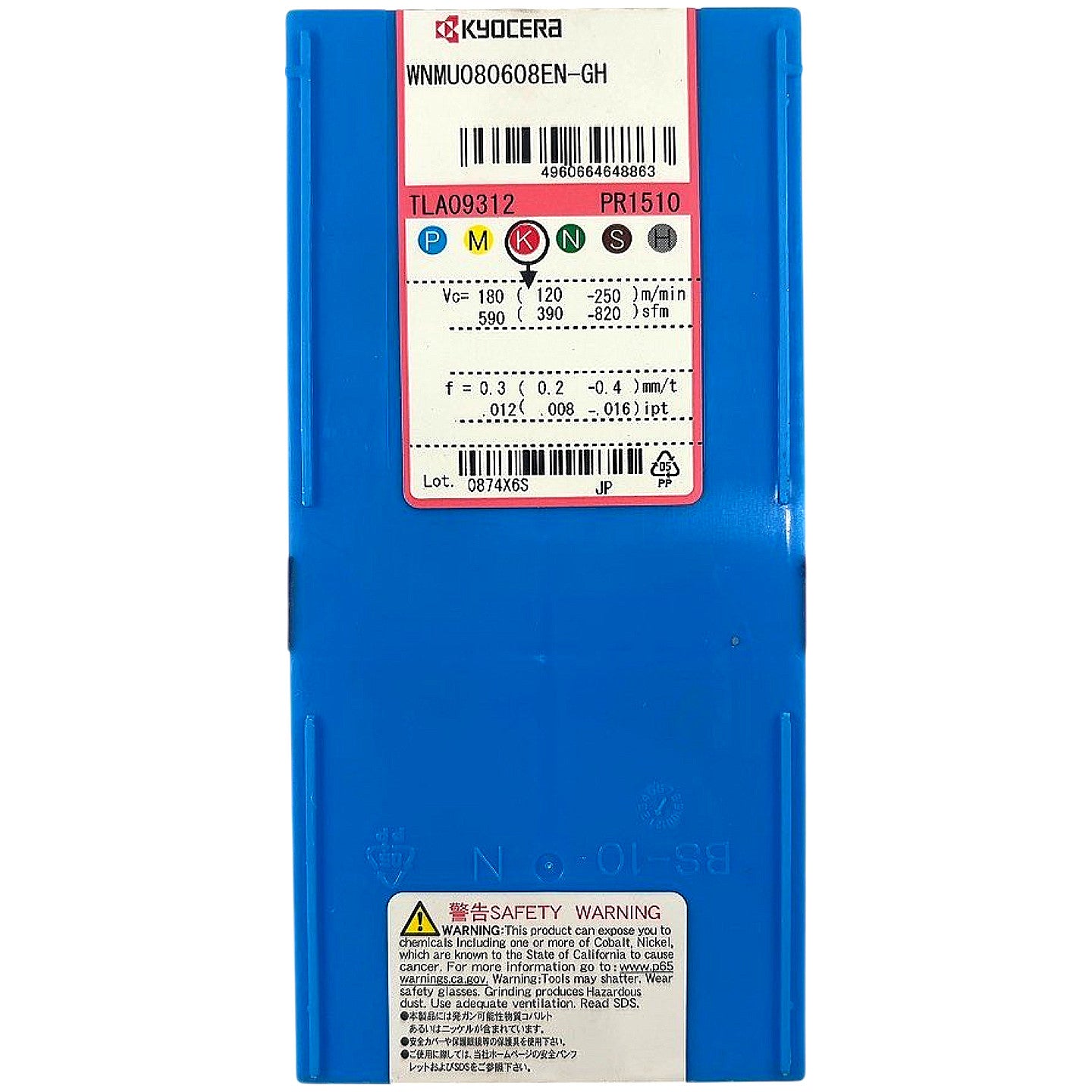

Kyocera WNMU080608EN-GH is a W-shape (pentagonal/hexagonal) double-sided carbide milling insert in grade PR1510, supplied new in a factory-sealed 10-piece box made in Japan (Lot 0874X6S). The ISO designation decodes as: W = irregular pentagon shape, N = 0° clearance (negative rake), M = mid-tolerance class, U = chip-breaker style, 08 = 8 mm inscribed circle, 06 = 6.35 mm thickness (metric 06 = ~6.35 mm nominal thickness class), 08 = 0.8 mm nose radius, EN = EN-style wiper/chipbreaker geometry, GH = chipbreaker variant. PR1510 is Kyocera's CVD-coated cermet/carbide grade with a TiCN-Al2O3 multilayer CVD coating optimized for cast iron (ISO K) milling, also usable on P and M materials; the package label confirms K as the primary recommended material group (highlighted dot). Recommended cutting conditions per the label are Vc = 120–250 m/min (390–820 SFM) at a feed of 0.2–0.4 mm/tooth (0.008–0.016 IPT). These inserts are designed for use in Kyocera MFH-series and compatible face/shoulder milling cutters accepting WNMU-style pockets.
Product Specifications
| Brand | Kyocera |
| MPN | WNMU080608EN-GH |
| Grade | PR1510 |
| Insert Shape | W – Irregular Pentagon (Double-Sided) |
| ISO Designation | WNMU080608EN-GH |
| Clearance Angle | N – 0° (Negative Rake) |
| Tolerance Class | M |
| Inscribed Circle (IC) | 8 mm |
| Insert Thickness | 6.35 mm (size code 06) |
| Nose Radius | 0.8 mm |
| Chipbreaker | EN-GH |
| Coating | CVD TiCN-Al2O3 multilayer |
| Coating Color | Black (dark PVD/CVD topcoat) |
| Primary Material Group | K (Cast Iron) – P, M also applicable |
| Cutting Speed (Vc) | 120–250 m/min (390–820 SFM) |
| Feed Rate | 0.2–0.4 mm/tooth (0.008–0.016 IPT) |
| Quantity per Box | 10 pcs |
| Country of Origin | Japan |
| Condition | New – Factory Sealed |
| Compatible Toolholder Style | WNMU-pocket milling cutters (e.g. Kyocera MFH) |
