Little Giant 500203 Model 1-A 115V 70W 1/4" NPT Submersible Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

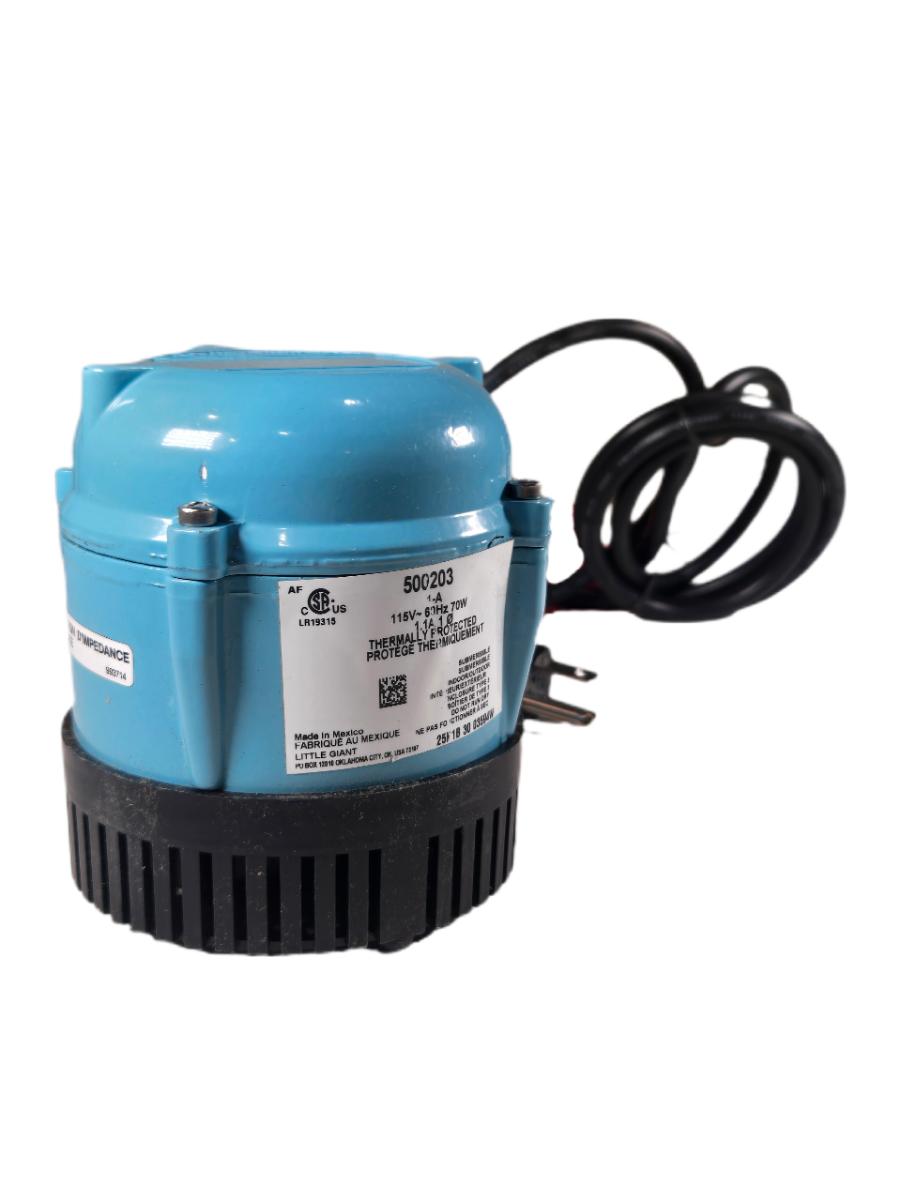

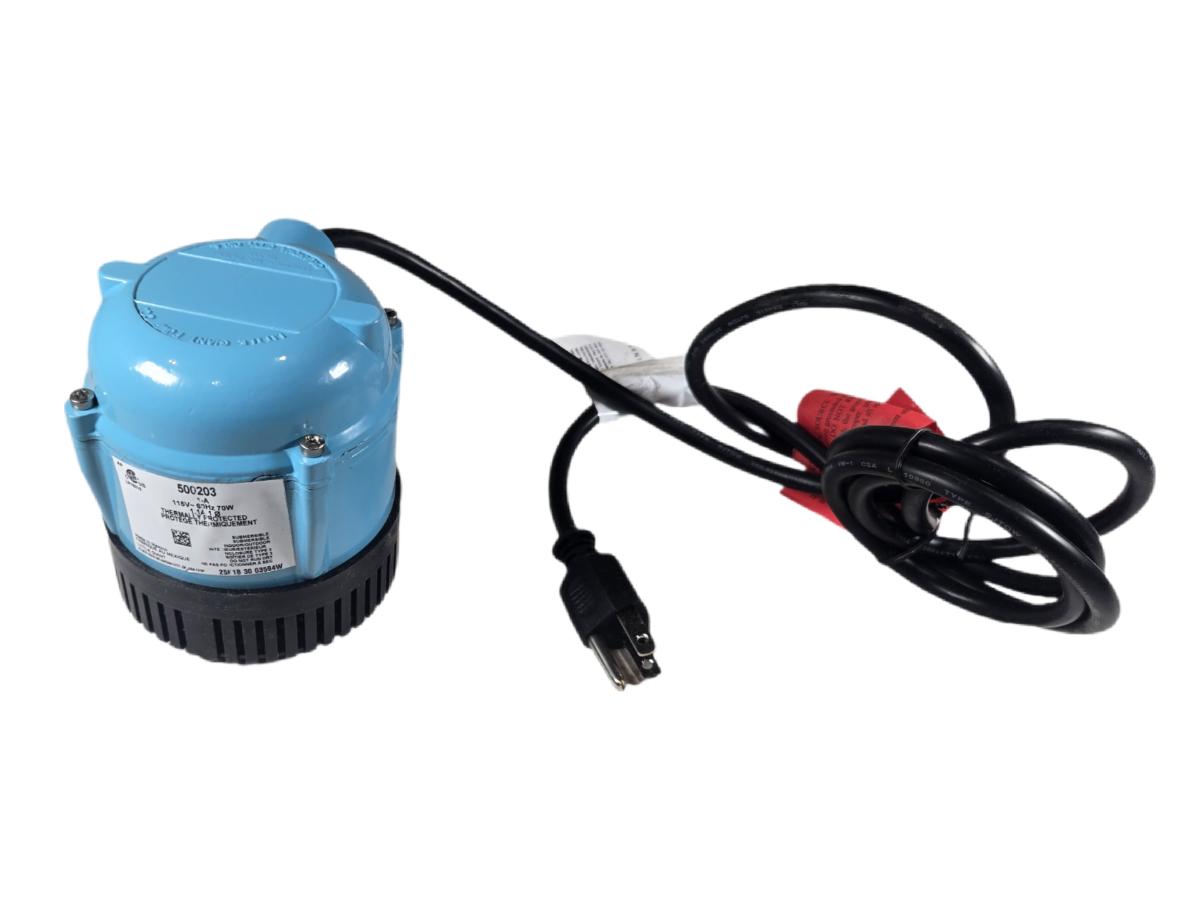

The Little Giant 500203 is a Model 1-A Series 1 manual-operation submersible pump manufactured by Franklin Electric, rated for continuous duty at 115V/60Hz drawing 1.1A at 70W. The oil-filled cast metal motor housing provides rapid heat dissipation and extended service life, and the pump includes built-in thermal overload protection to prevent motor burnout during dry-run or overload conditions. Discharge is through a 1/4" MNPT fitting, and the unit ships with a 6-foot power cord terminating in a standard 3-prong grounded plug. Typical applications include water transfer, recirculation systems, water displays, and fountain use where a compact, continuously rated submersible pump is required. This unit is new-in-box, cCSAus listed, and manufactured in Mexico.
Product Specifications
| Manufacturer Part Number | 500203 |
| Model | 1-A |
| Series | 1 Series |
| Brand | Little Giant (Franklin Electric) |
| Operation Type | Manual (no float switch) |
| Voltage | 115V AC |
| Frequency | 60 Hz |
| Power | 70W |
| Current Draw | 1.1A |
| Discharge Size | 1/4" MNPT |
| Cord Length | 6 ft |
| Motor Housing | Oil-filled cast metal |
| Thermal Protection | Yes — thermal overload protection |
| Duty Rating | Continuous |
| Certification | cCSAus (LR19315) |
| Country of Manufacture | Mexico |
| Condition | New |
