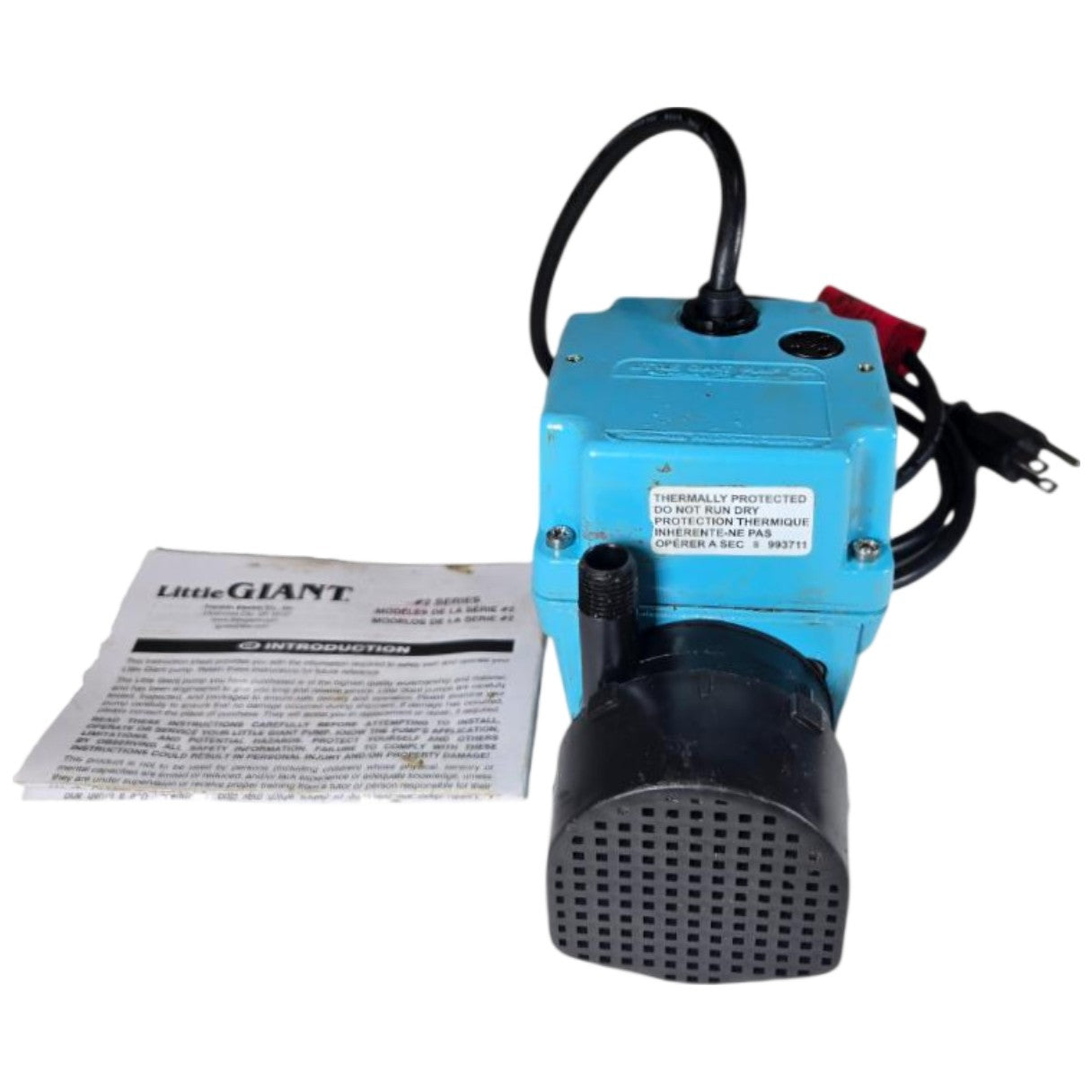

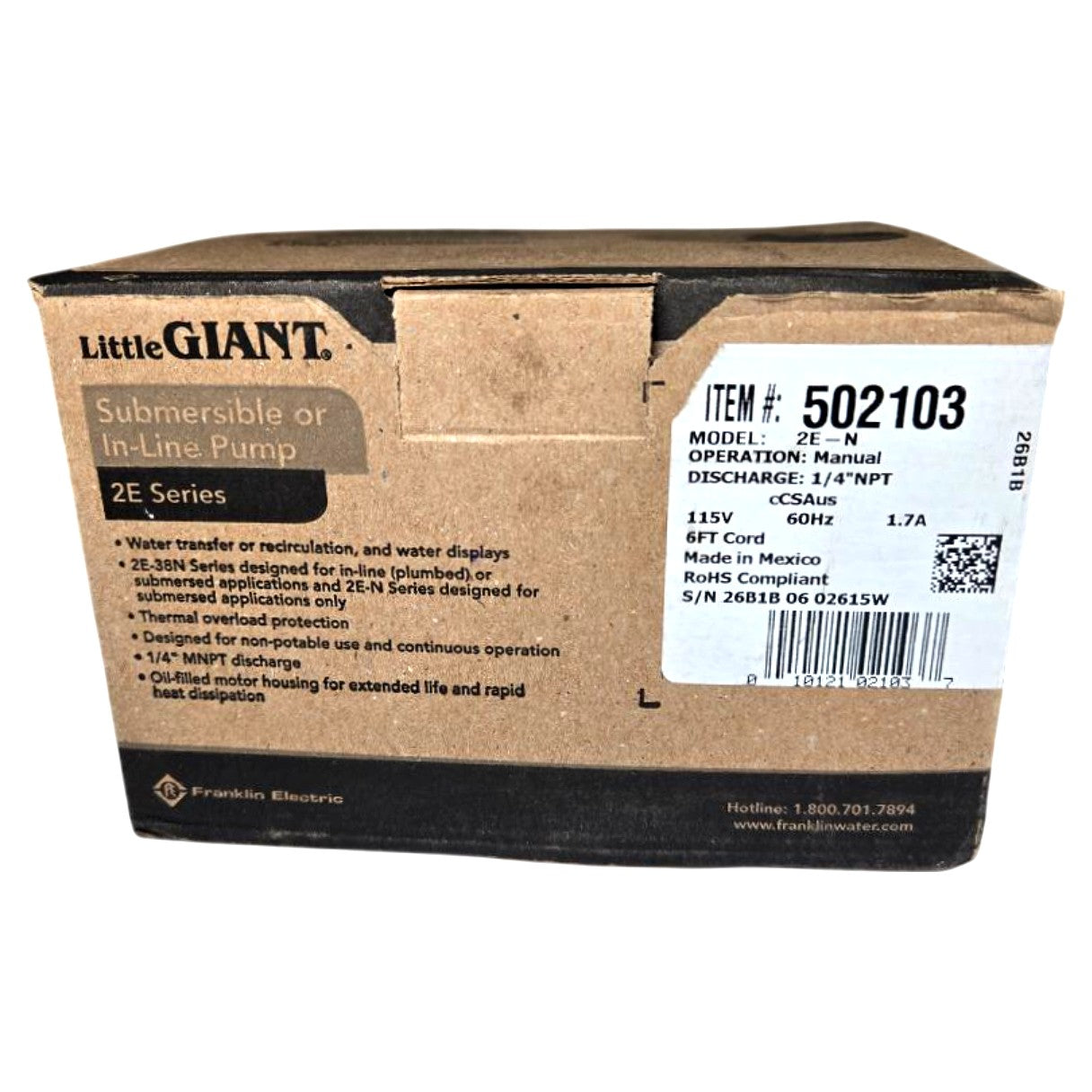

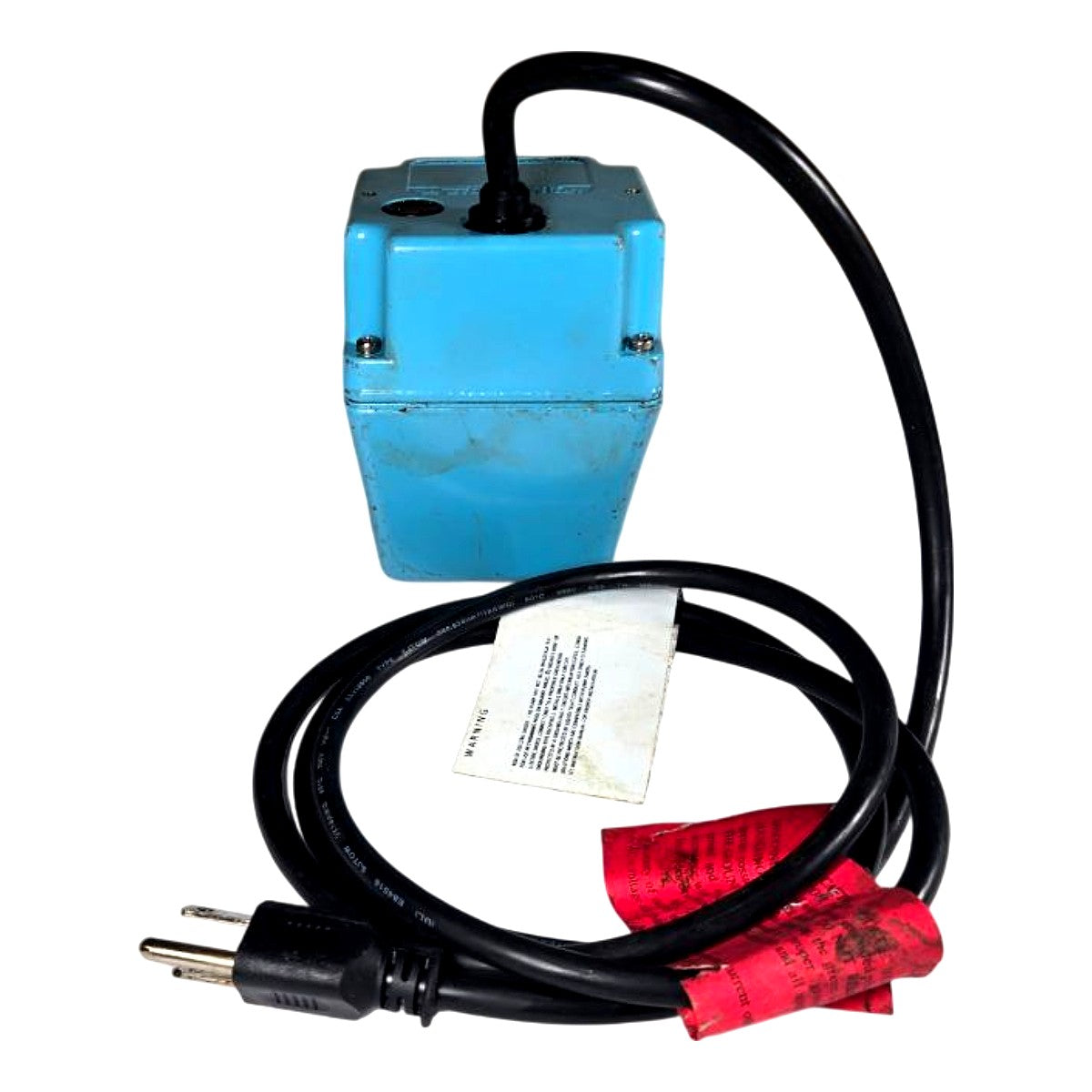

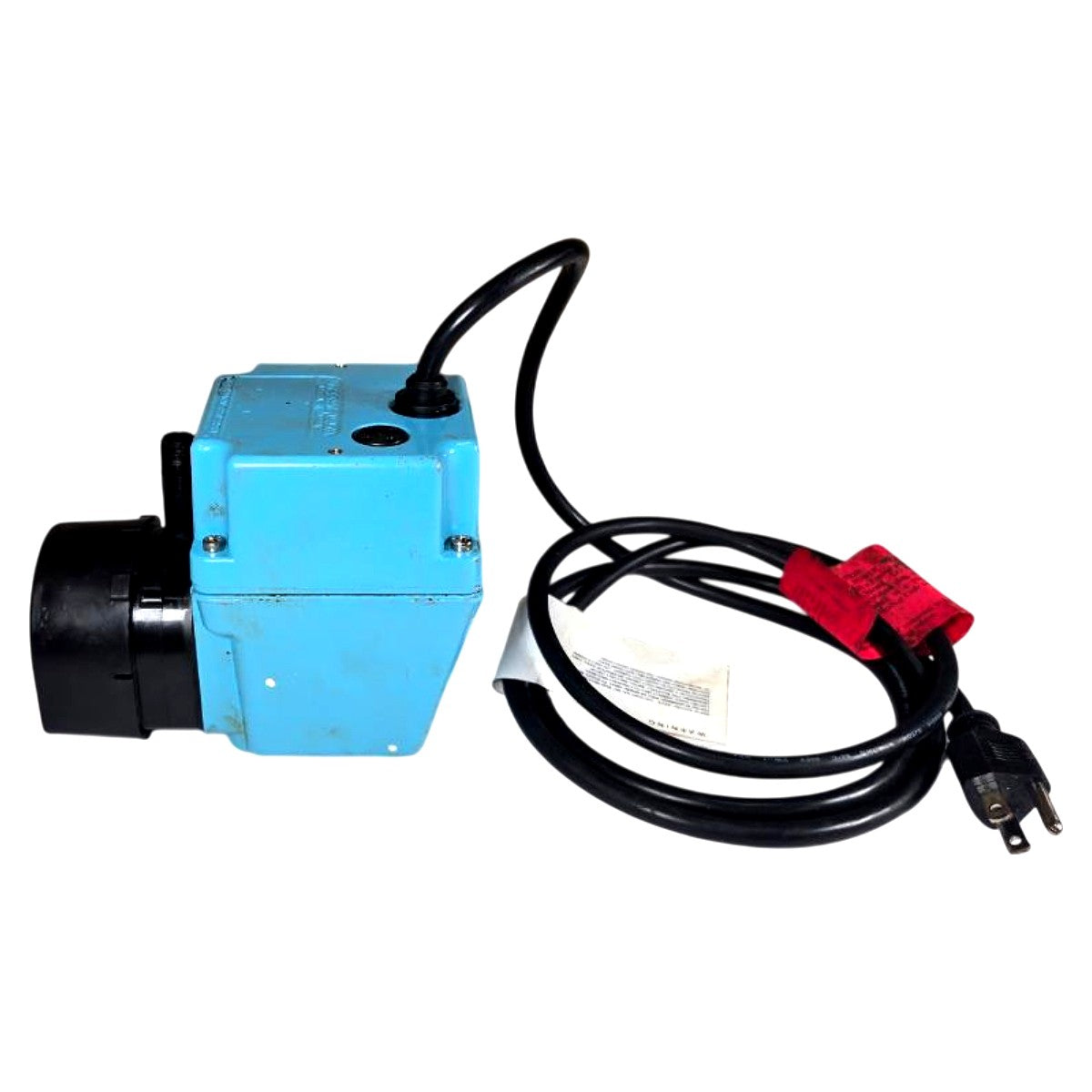

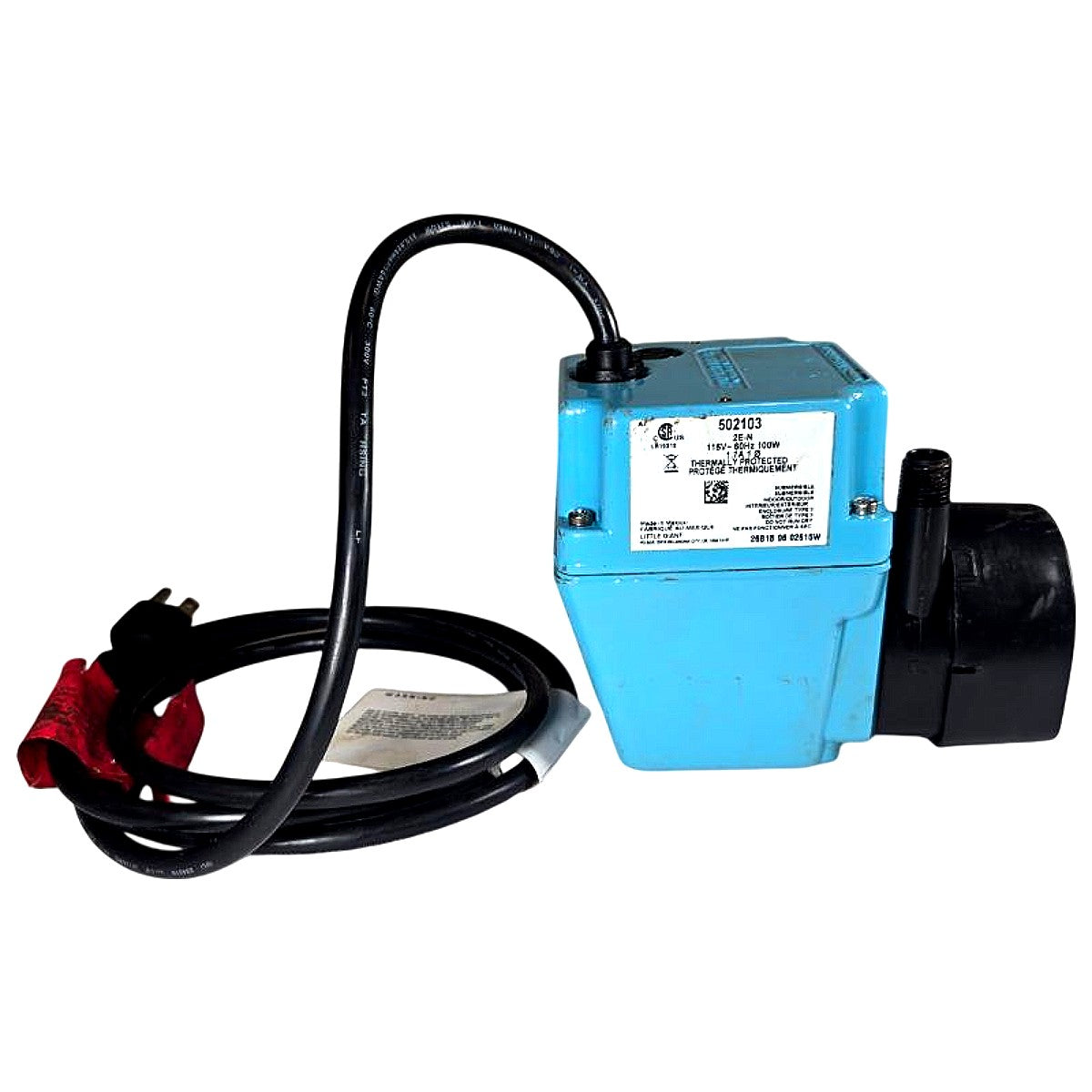

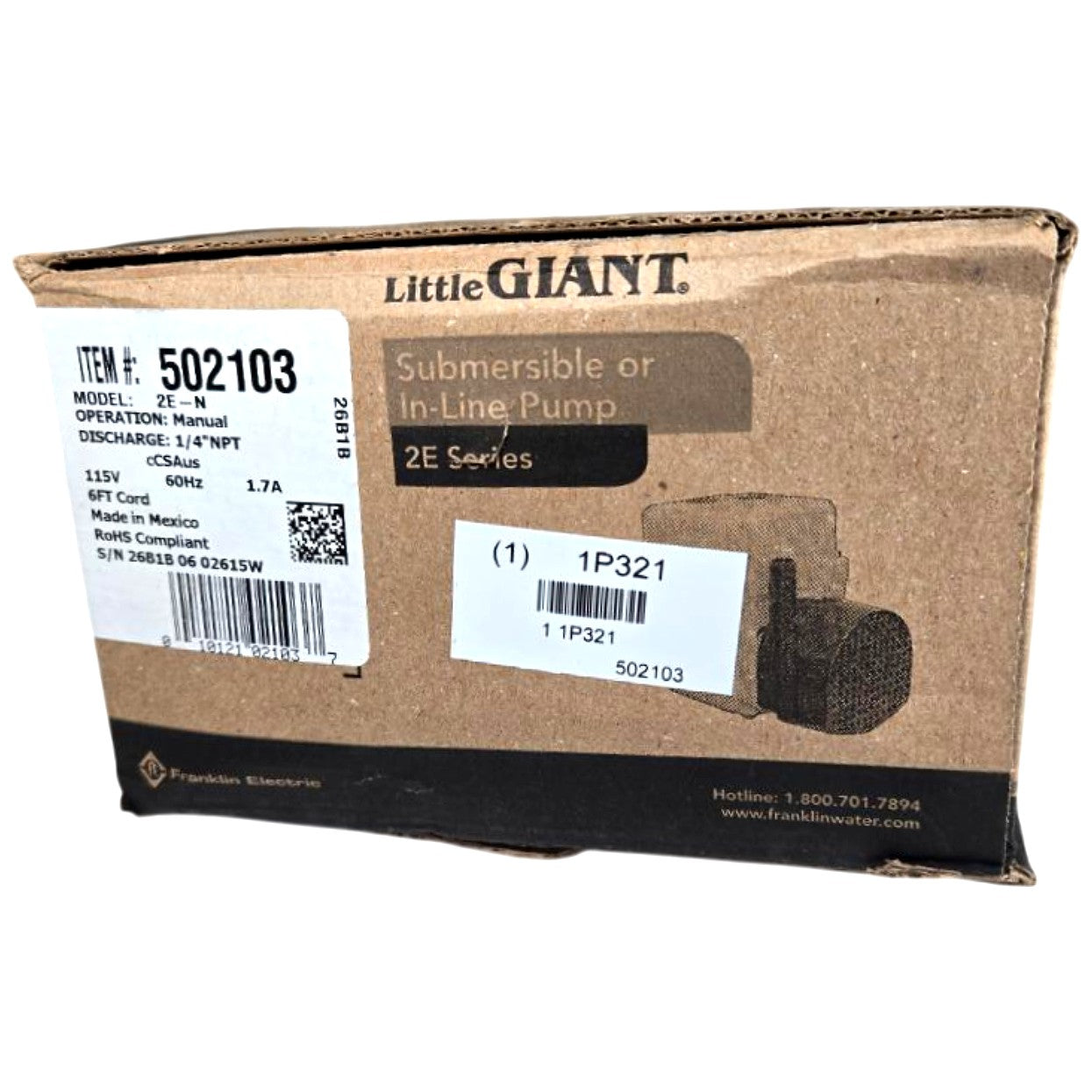

Little Giant 502103 2E-N 115V 1/40HP Submersible Centrifugal Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Little Giant 502103 is a new 2E-N Series submersible centrifugal pump designed for continuous-duty water transfer, recirculation, and water display applications using non-potable water. It is rated at 115V AC, 60 Hz, 1.7A, 100W (approximately 1/40 HP) and features an oil-filled motor housing for extended service life and rapid heat dissipation, along with built-in thermal overload protection to prevent motor burnout. The pump discharges through a 1/4 in MNPT fitting and ships with a 6 ft power cord; it is cCSAus listed and RoHS compliant, manufactured in Mexico by Franklin Electric under the Little Giant brand. The 2E-N model is rated for submersed applications only (not in-line plumbed use, which is reserved for the 2E-38N variant), and must not be run dry. Typical uses include small fountains, cooling water circulation, humidifiers, and low-flow water transfer systems.
Product Specifications
| Brand | Little Giant (Franklin Electric) |
| Item Number | 502103 |
| Model | 2E-N |
| Series | 2E Series |
| Pump Type | Submersible Centrifugal |
| Horsepower | 1/40 HP |
| Voltage | 115V AC |
| Frequency | 60 Hz |
| Amperage | 1.7 A |
| Wattage | 100 W |
| Discharge Size | 1/4 in MNPT |
| Operation | Manual (no float switch) |
| Cord Length | 6 ft |
| Motor Housing | Oil-filled |
| Thermal Protection | Yes — built-in thermal overload |
| Installation Type | Submersed only (not in-line) |
| Fluid Compatibility | Non-potable water |
| Certifications | cCSAus, RoHS Compliant |
| Country of Origin | Mexico |
| Dimensions (L x W x H) | 5-1/2 in x 3-1/2 in x 4-3/4 in |
