Little Giant 554651 VCMA-20ULST-PRO 230V Overflow Switch Condensate Removal Pump

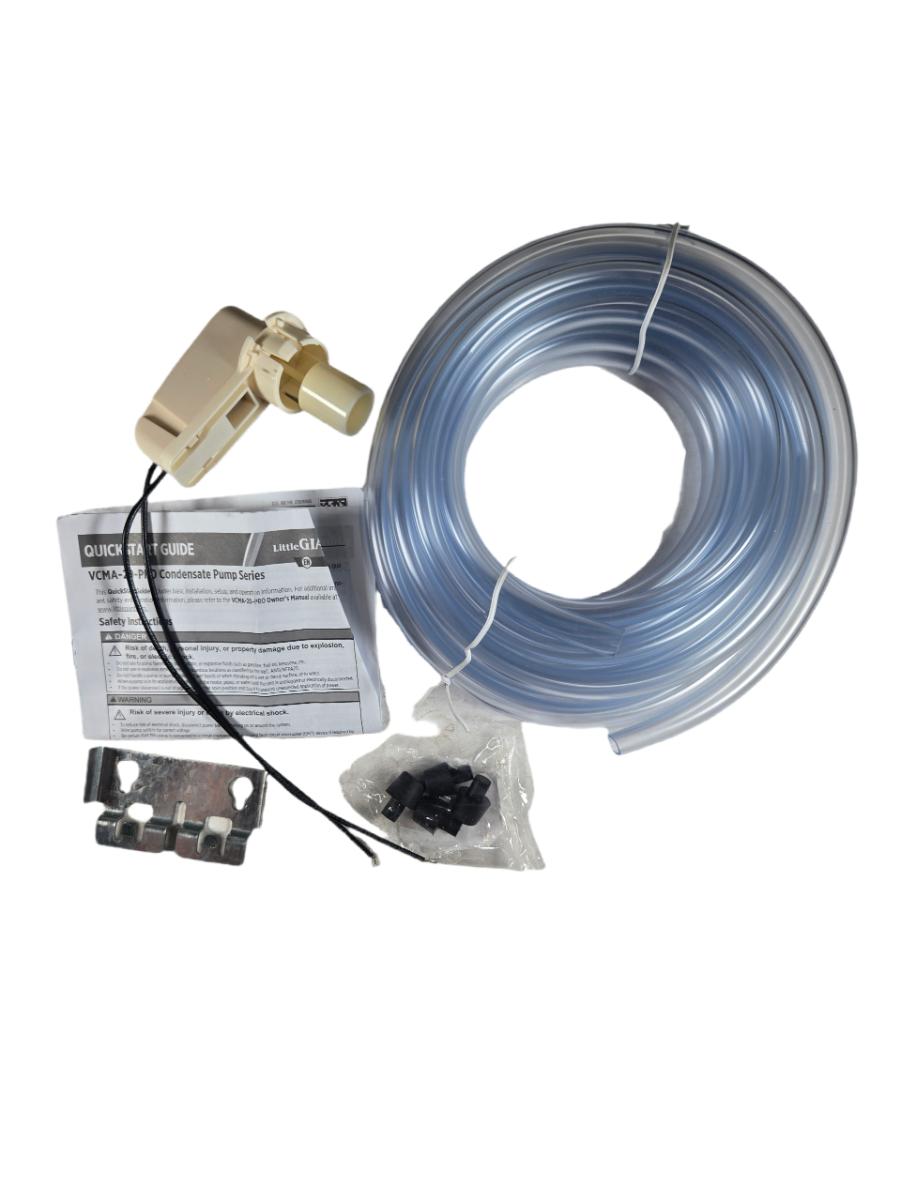

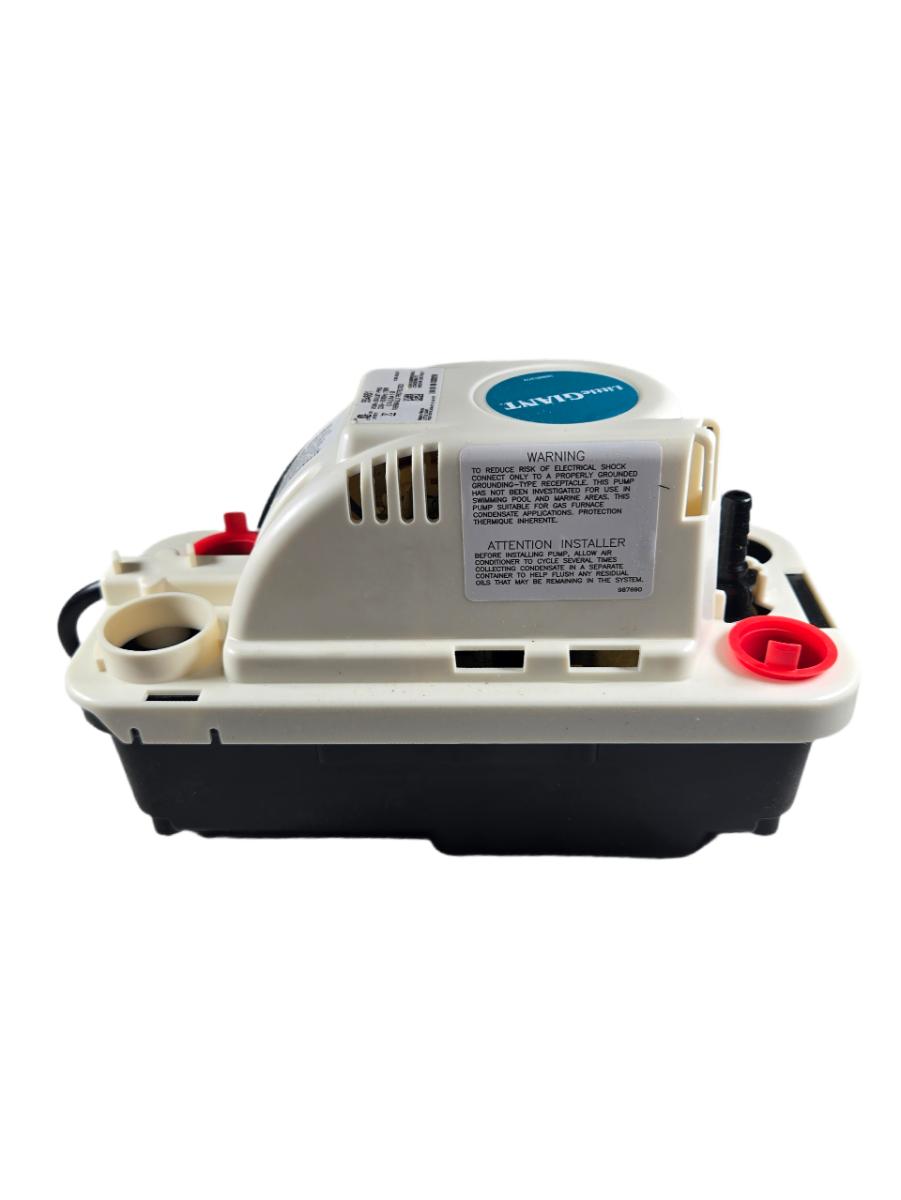

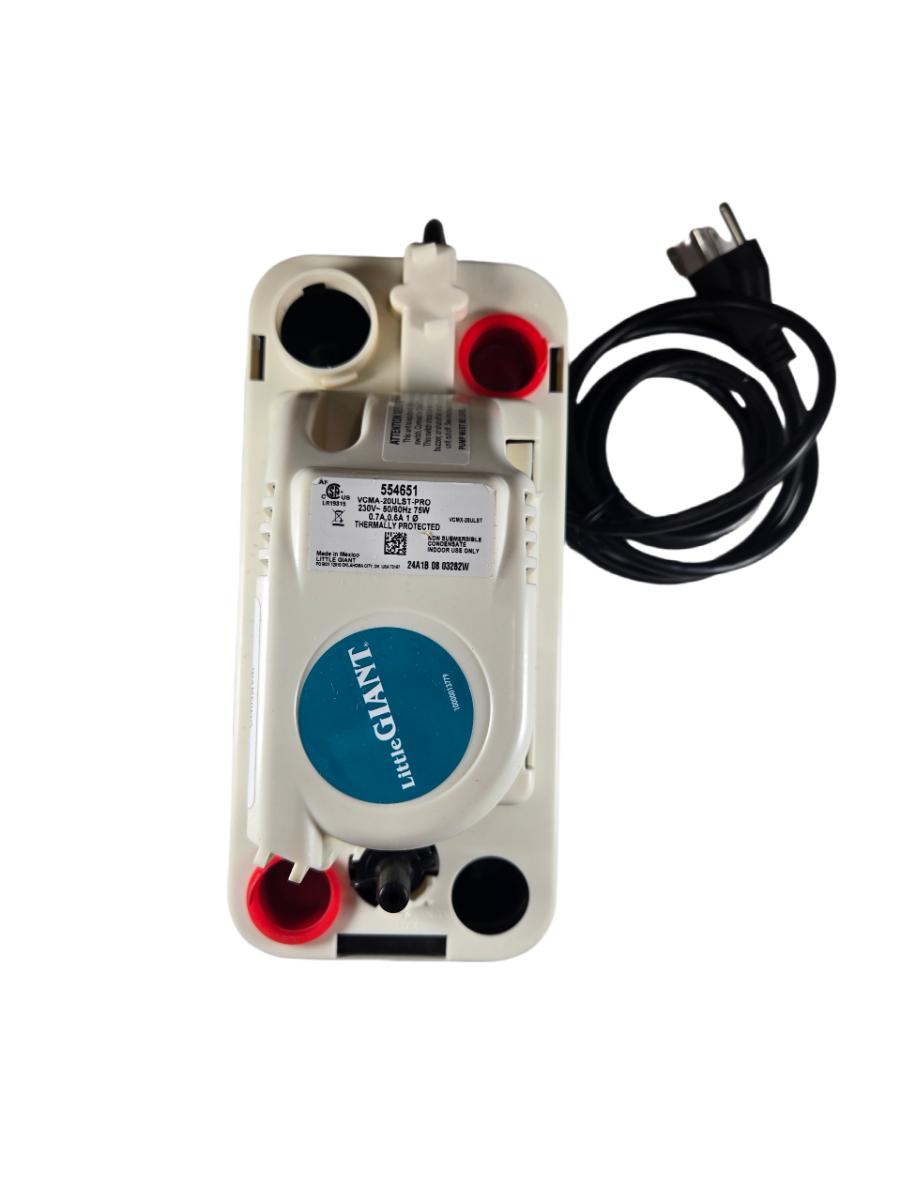

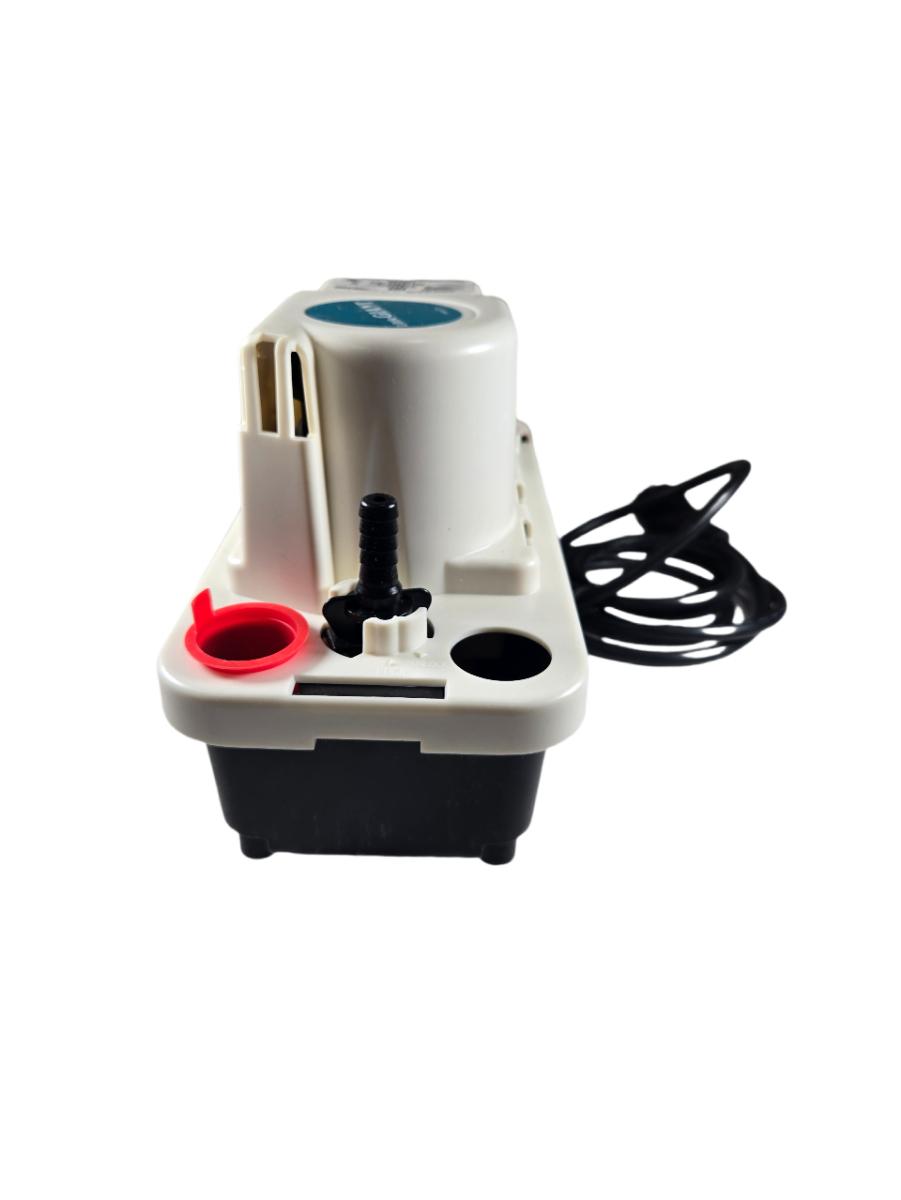

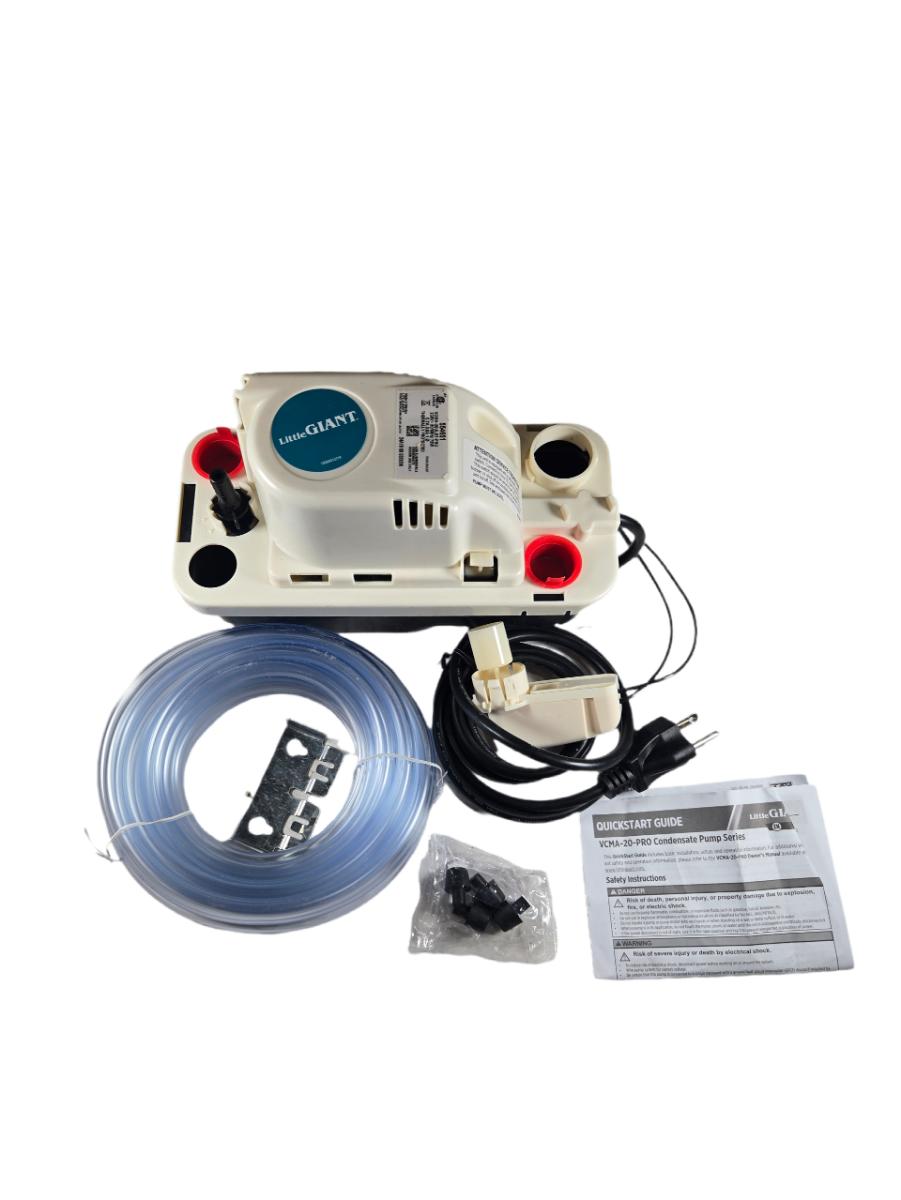

The Little Giant VCMA-20ULST-PRO (part number 554651) is a 230V automatic condensate removal pump designed for use with air conditioning systems, gas furnaces, and similar HVAC condensate applications — indoor use only, non-submersible. The unit operates at 230V~/50/60Hz, draws 0.7A/0.6A, and is rated at 75W with built-in thermal overload protection; the 'ST' suffix designates inclusion of an overflow safety float switch, which provides automatic shutoff and equipment protection in high-water conditions. The pump features a 180°-reversible reservoir for wall-bracket mounting, rubber vibration-absorbing feet, a removable 1/4"-to-3/8" check valve adapter on the discharge barb, an external manual test lever, and ships new complete with approximately 20 ft (6.1 m) of 3/8" clear PVC discharge tubing, a steel wall-mounting bracket, inlet fittings/barb adapters, and a Quick Start Guide. Manufactured by Little Giant (a Franklin Electric brand) in Mexico, ETL/cETL listed, and backed by a 3-year warranty.
