LMT Fette 4059326 ECT R12.125WFF060 Carbide Face Mill

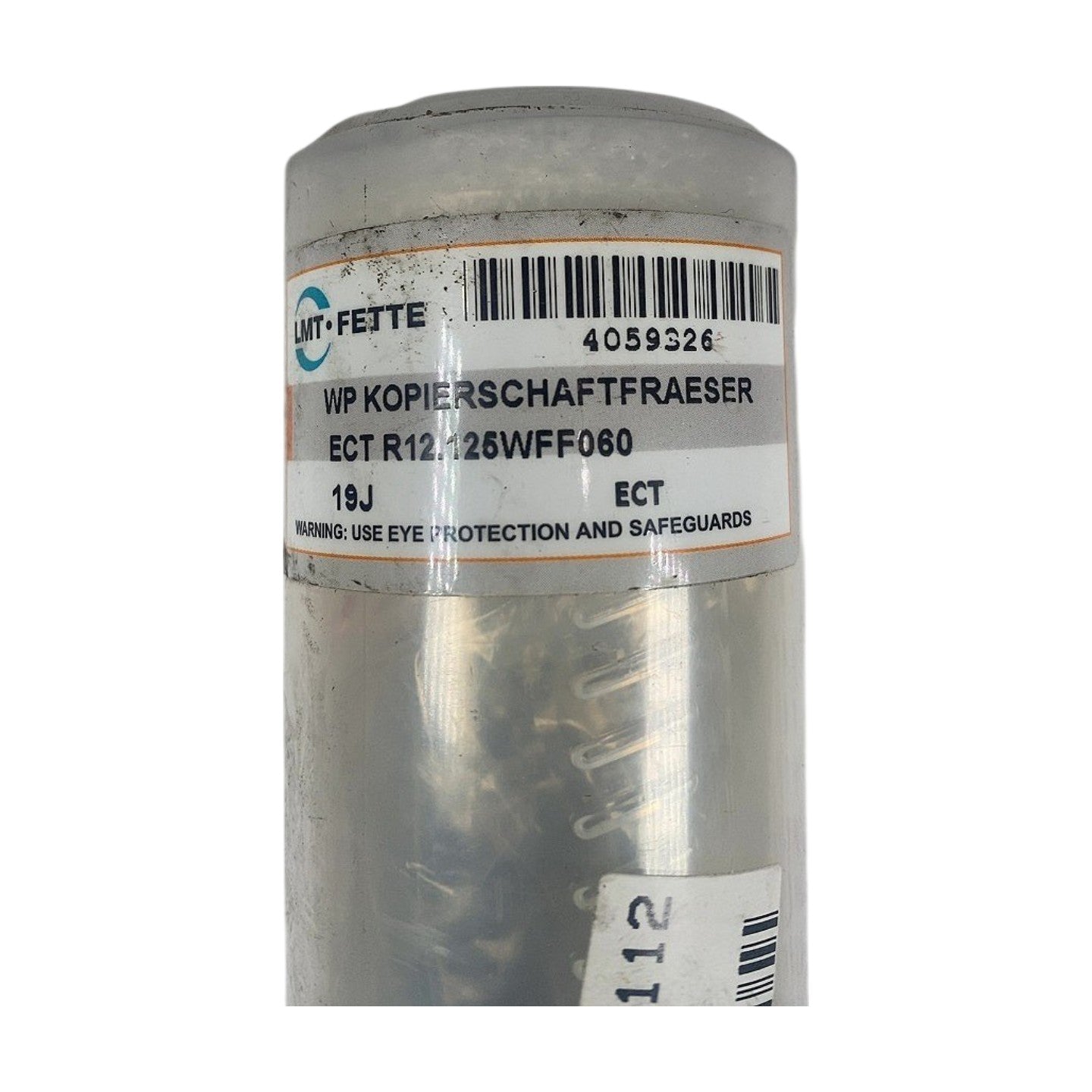

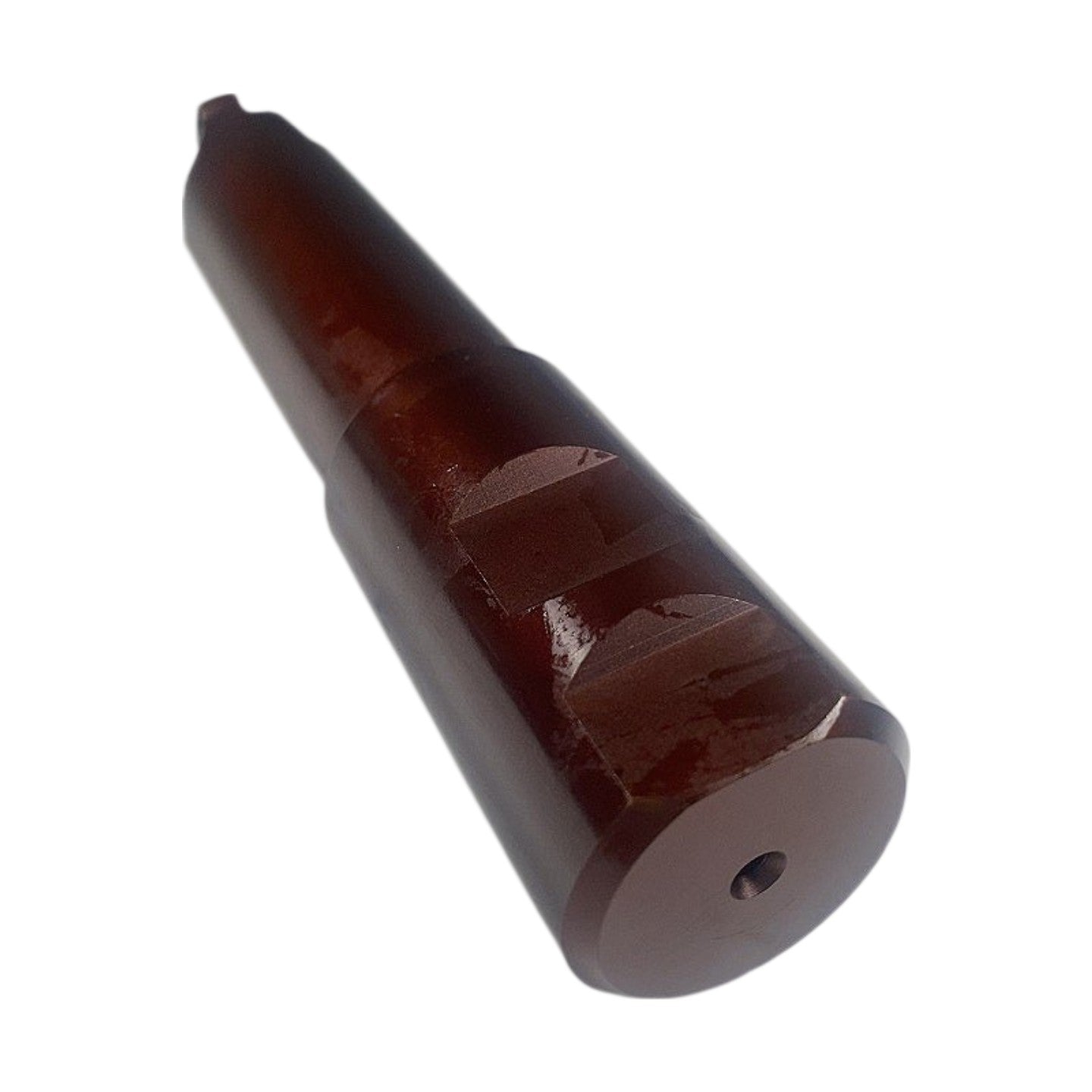

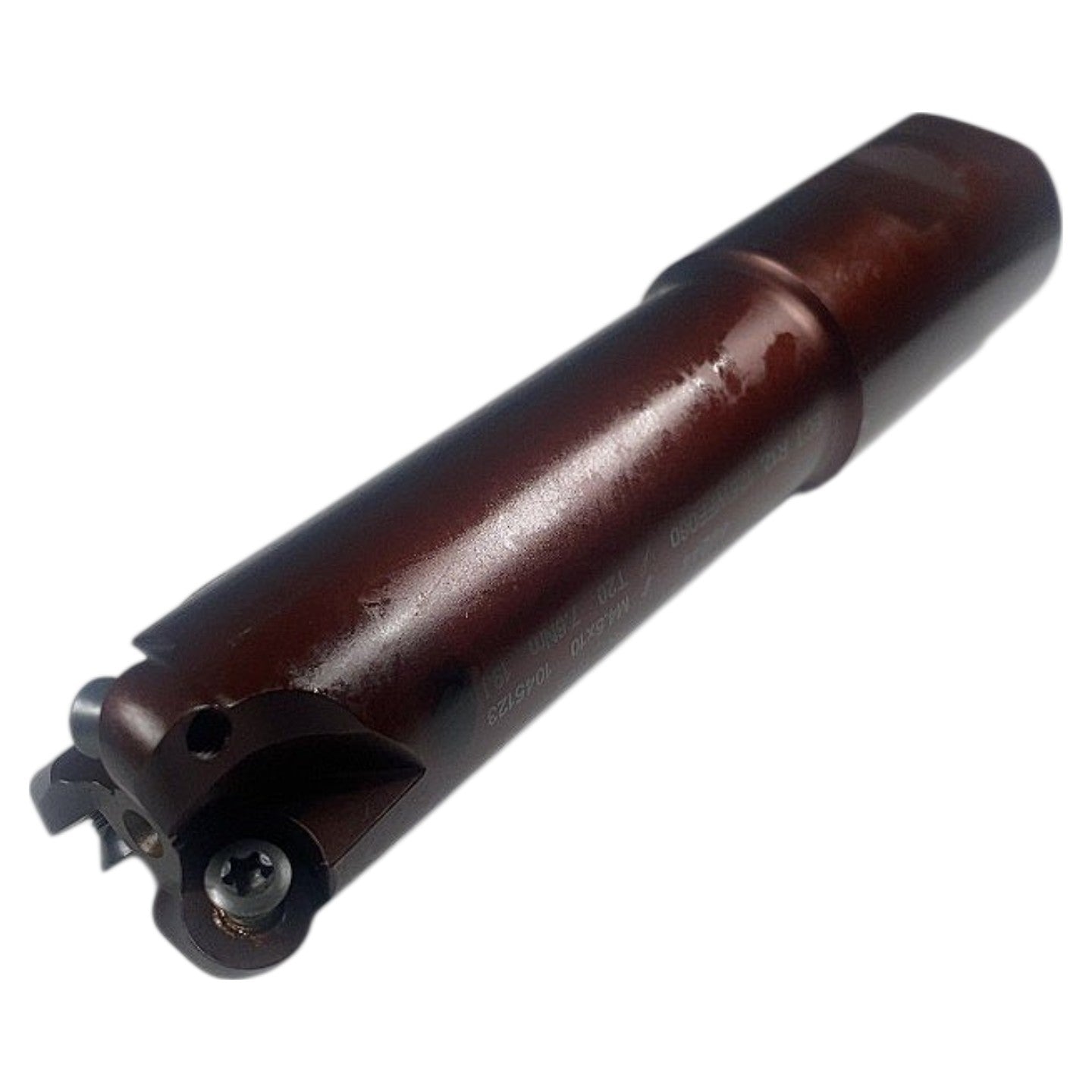

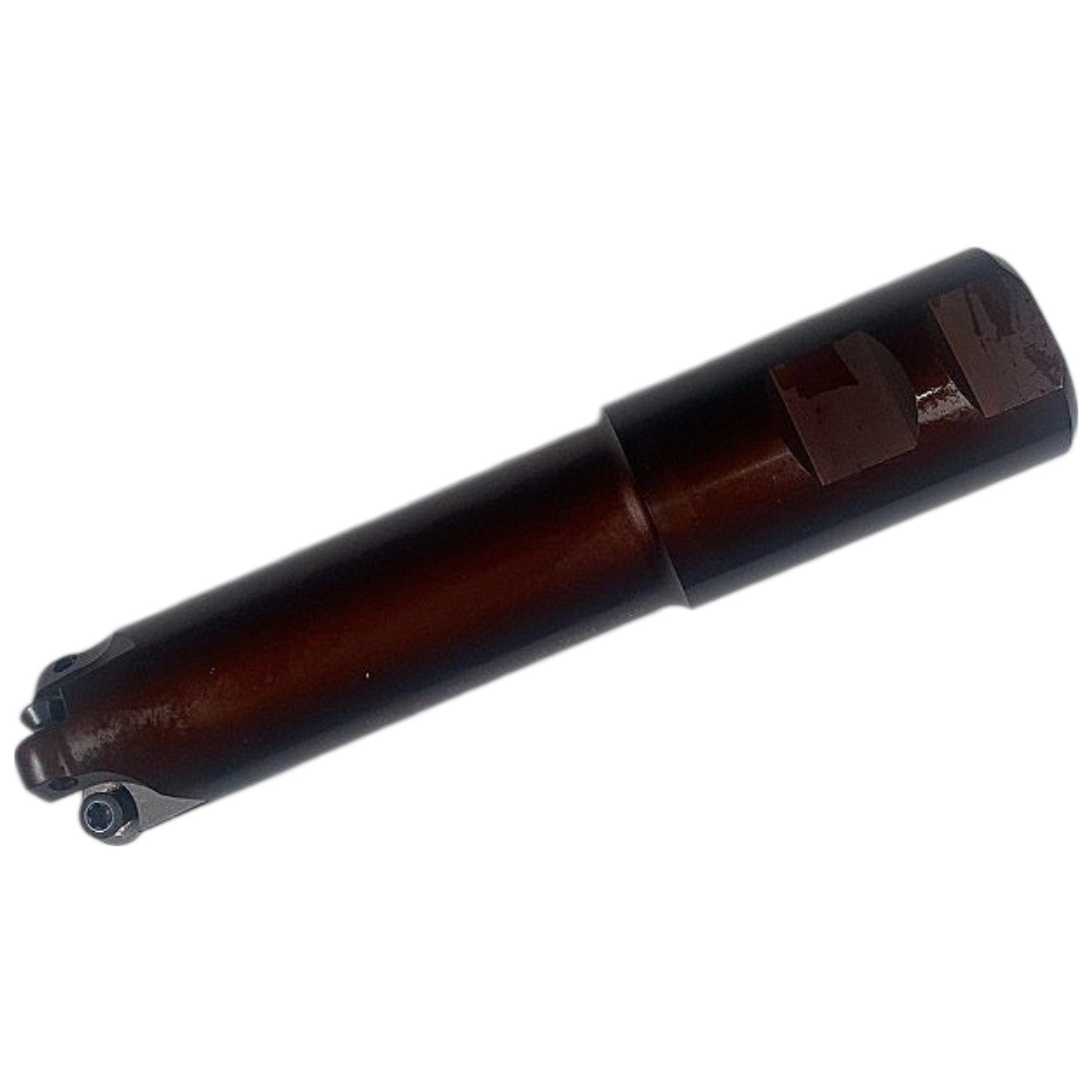

The LMT Fette 4059326 is a new indexable copy (profile) milling shank cutter carrying part number ECT R12.125WFF060, as confirmed directly from the label visible on the body; "WP Kopierschaftfräser" is German for copy/profile shank milling cutter. The designation decodes as follows: ECT = LMT Fette's indexable ball-nose/copy-milling cutter series; R12.125 = 12.125 mm corner radius (ball-nose effective radius), defining the profile geometry; WFF = shank type and fit (Whistle-Notch / flat-face cylindrical shank); 060 = 60 mm shank diameter. The cutter body features a dark red/maroon surface treatment (LMT Fette's standard body coating), with indexable carbide inserts secured by Torx clamping screws visible at the cutting end; an internal coolant port is visible at the shank end face. This tool is designed for 3D contour profiling, die/mold cavities, and copy-milling operations in machining centers accepting 60 mm bore toolholders; the ECT series accepts LMT Fette ECT round/ball-nose insert grades suitable for steel, stainless, and cast iron. Item code 19J on the label denotes a manufacturing date code (week 19, year J). Sold new in used-storage condition with original labeling intact.

Product Specifications
