LMT Onsrud 85-916 0.096in x 1/8in Shank DLC Carbide Kevlar Point Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

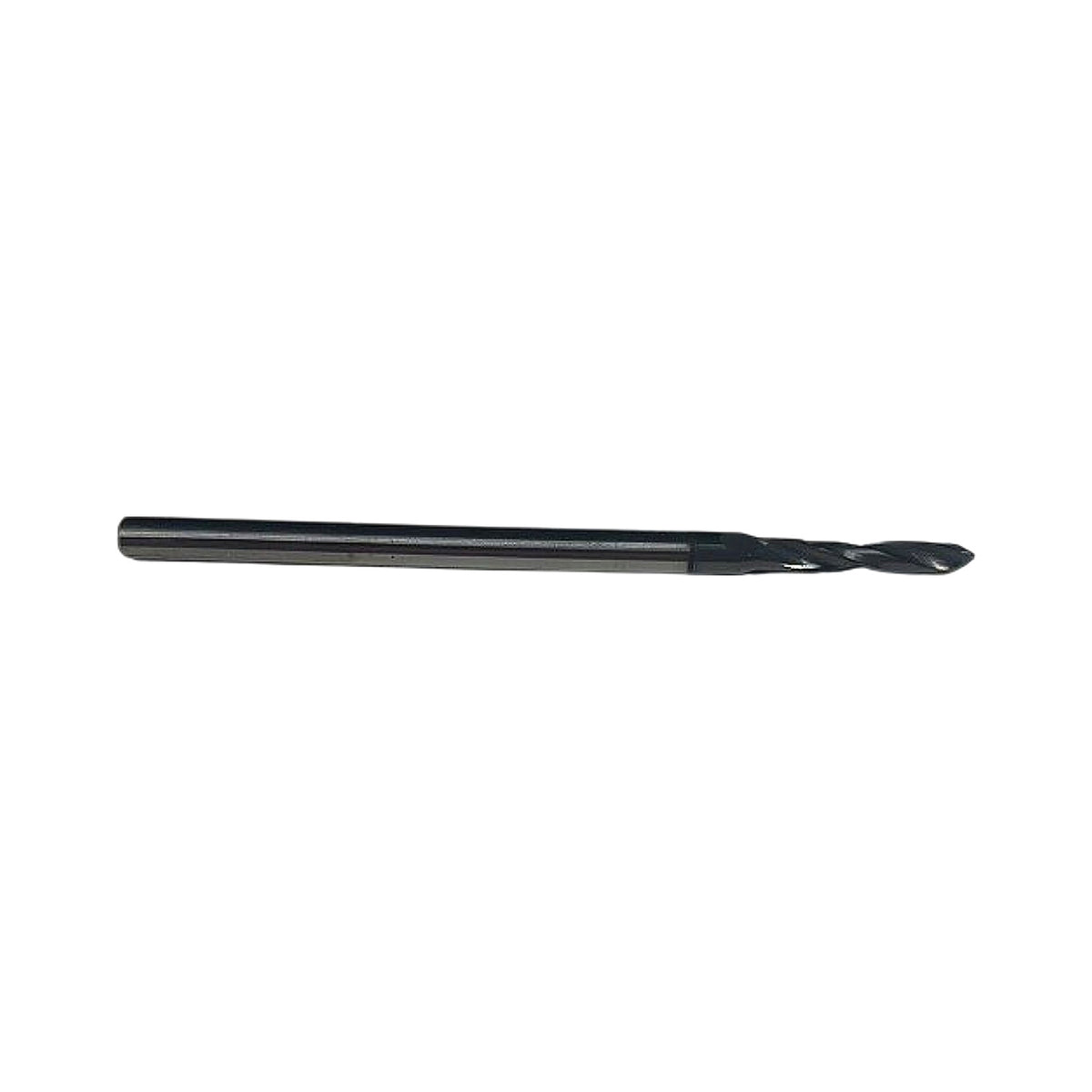

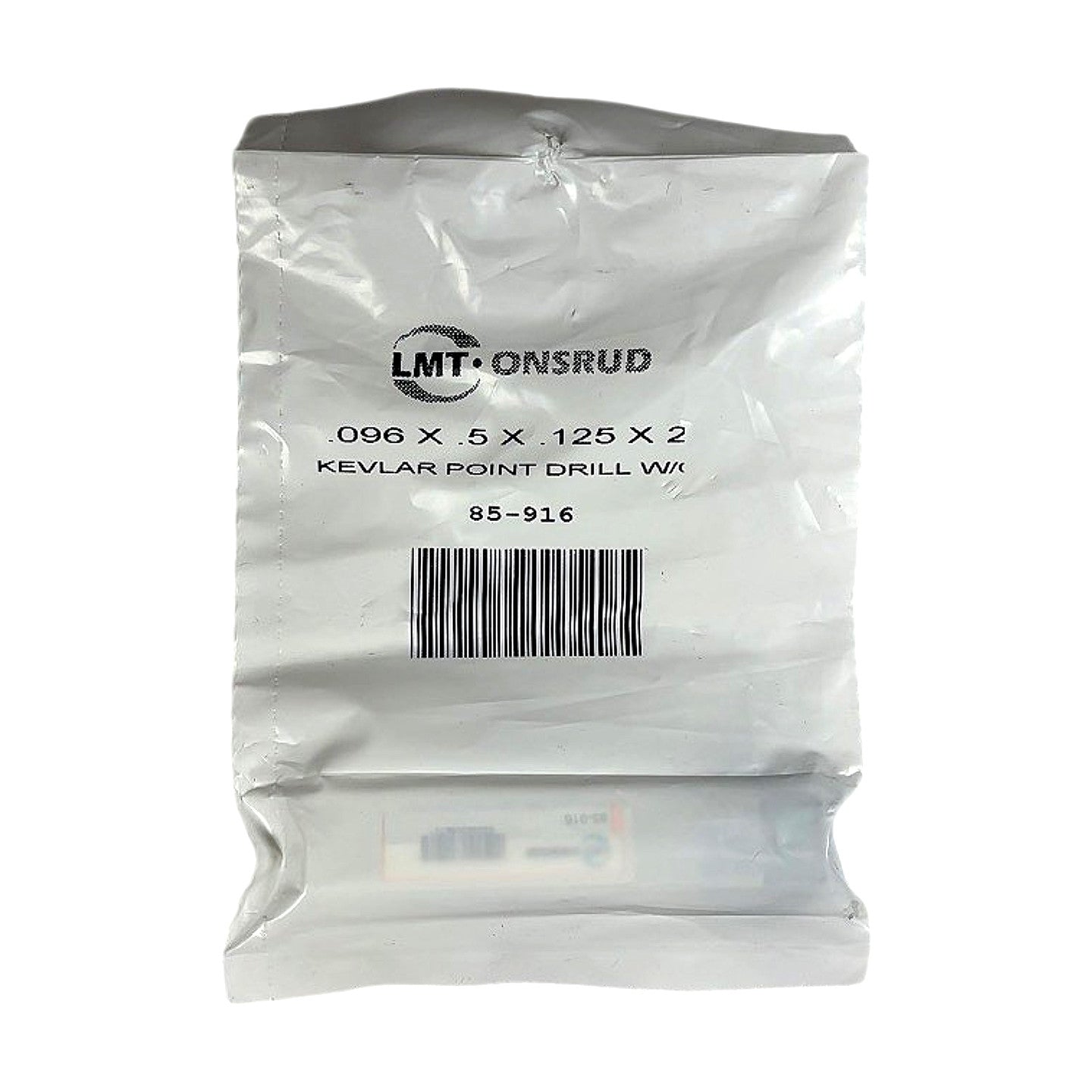

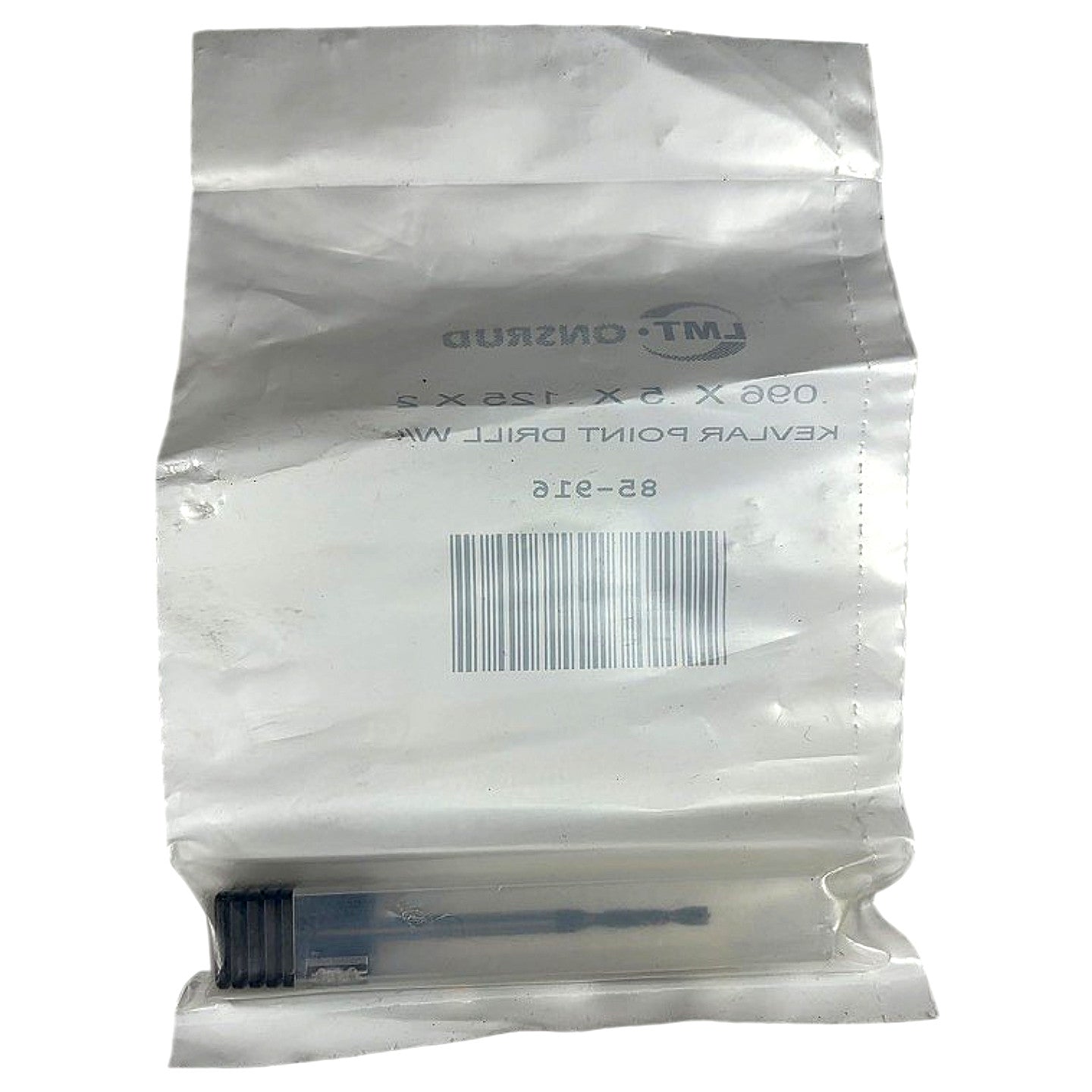

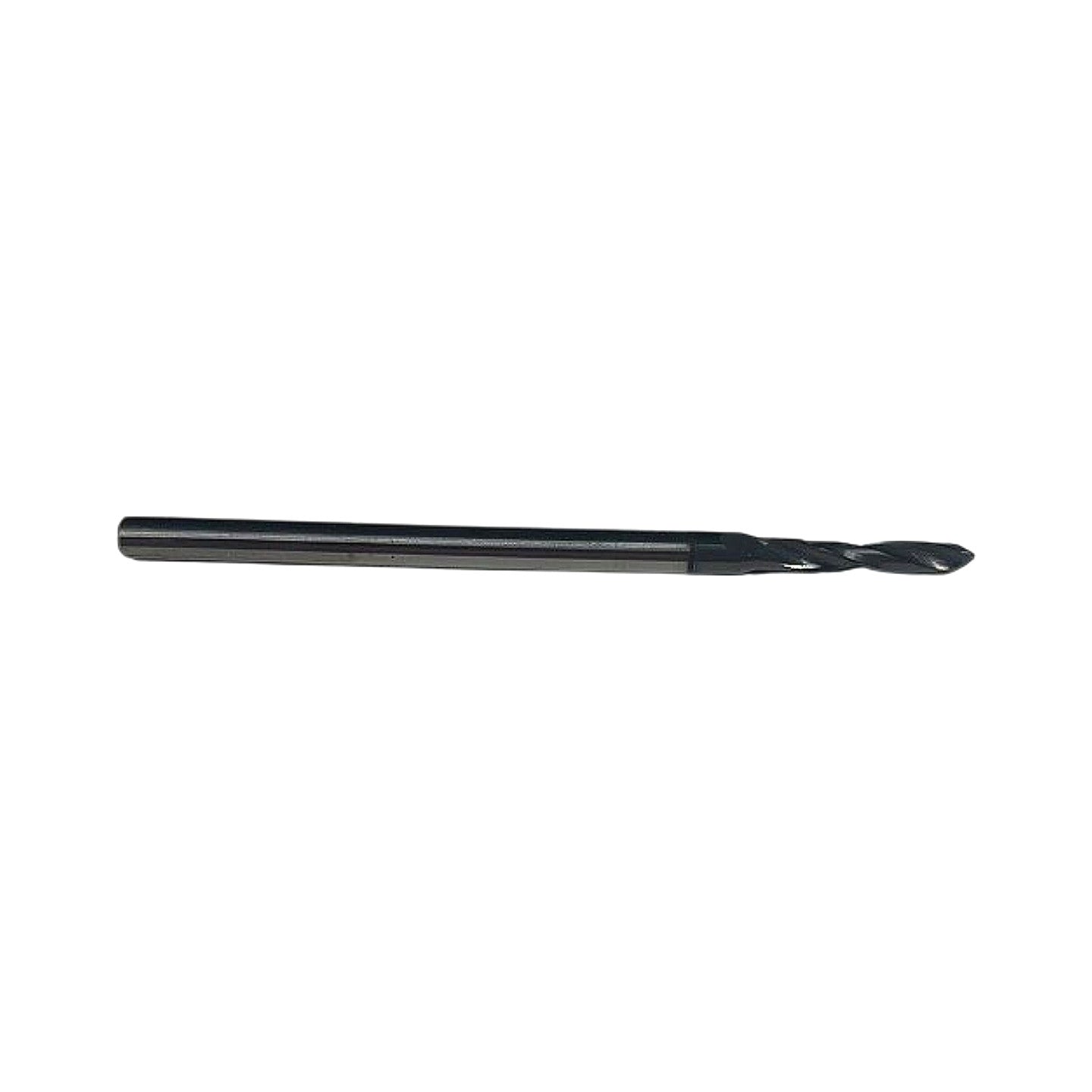

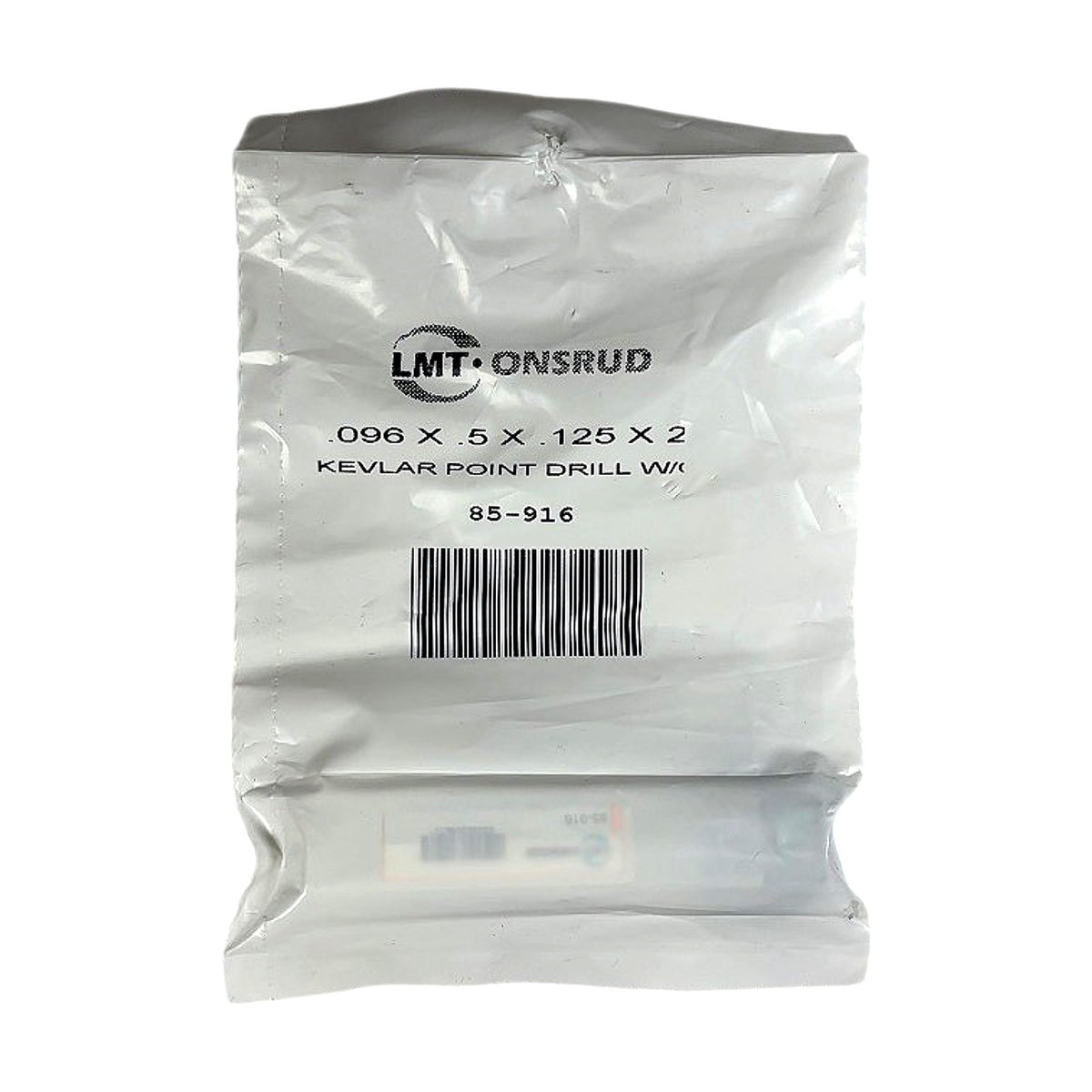

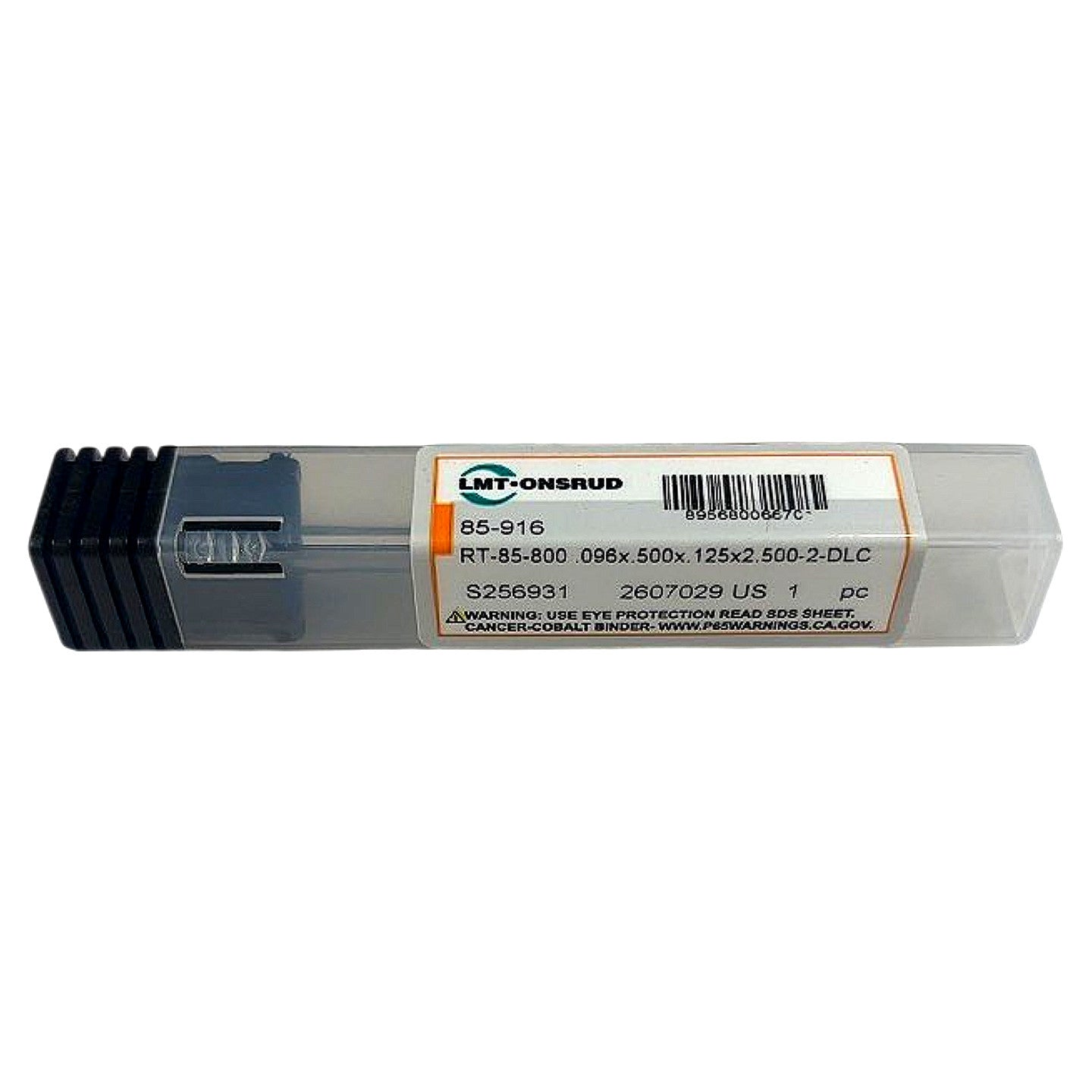

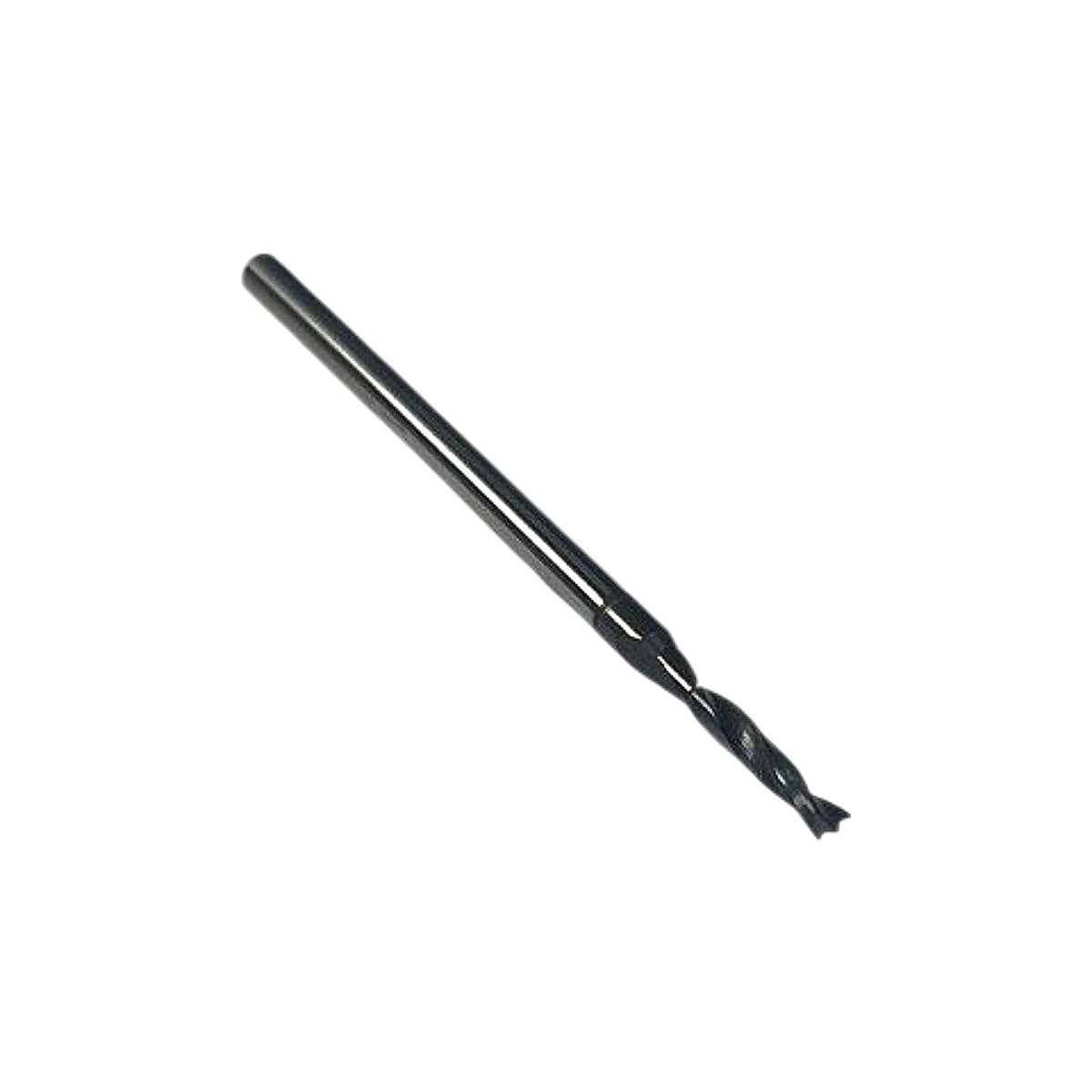

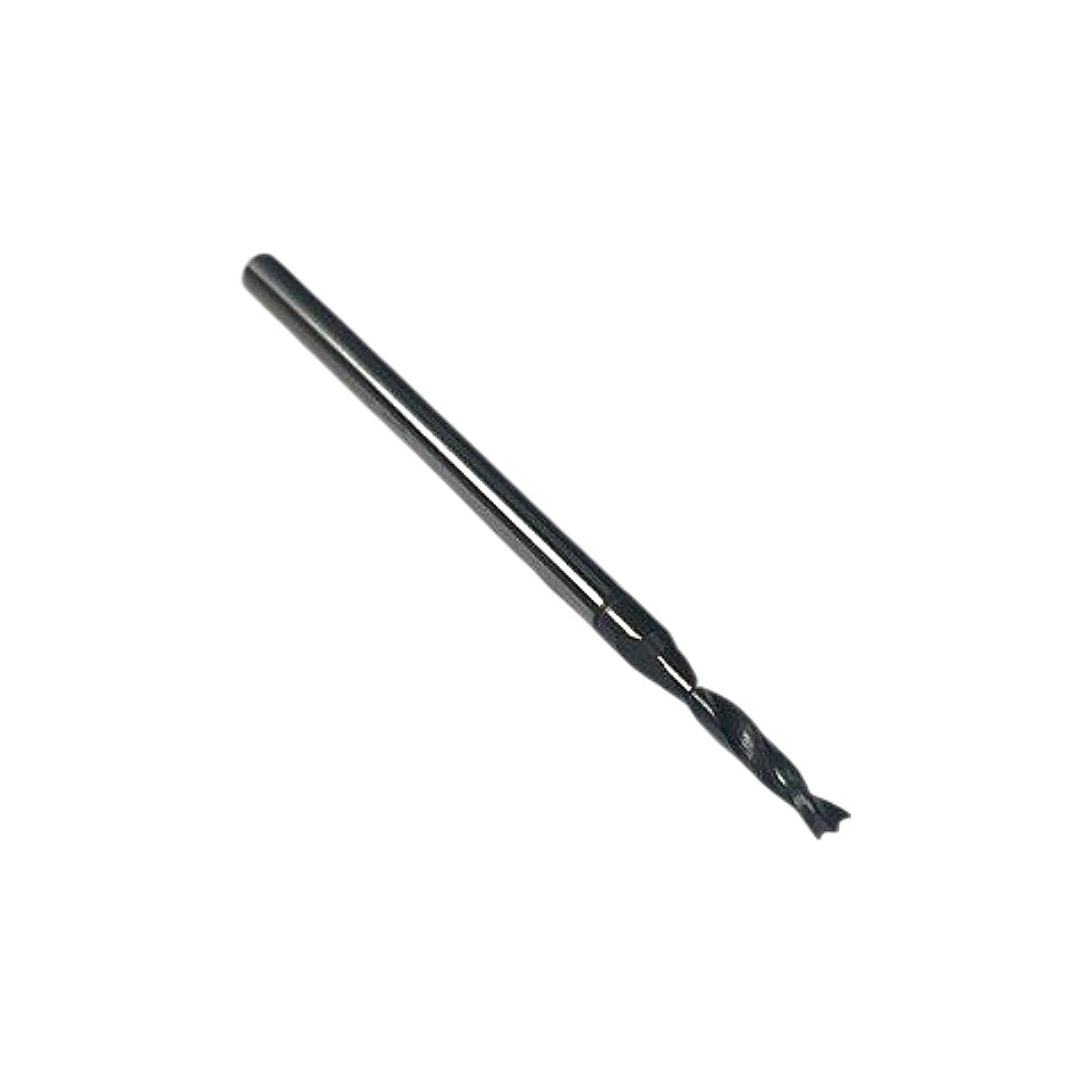

The LMT Onsrud 85-916 is a solid carbide Kevlar point drill from the RT-85-800 series, designed specifically for drilling aramid fiber (Kevlar), carbon fiber, fiberglass, and composite laminates without delamination or fiber pullout. The tool features a 0.096 in cutting diameter, 0.500 in flute length, 0.125 in (1/8 in) straight shank, and 2.500 in overall length with 2 flutes — all decoded directly from the label designation RT-85-800 .096x.500x.125x2.500-2-DLC. The DLC (Diamond-Like Carbon) coating, confirmed on the label, provides extreme hardness, low friction, and abrasion resistance critical for dry machining of abrasive composite materials, extending tool life significantly over uncoated carbide. This drill is manufactured in the USA (per label "2607029 US") and is sold new in the original LMT Onsrud plastic case and sealed poly bag; it is suited for CNC machining centers and drill presses using 1/8 in collet or ER-style toolholders.
Product Specifications
| Brand | LMT Onsrud |
| MPN | 85-916 |
| Series | RT-85-800 |
| Cutting Diameter | 0.096 in |
| Flute Length | 0.500 in |
| Shank Diameter | 0.125 in (1/8 in) |
| Overall Length | 2.500 in |
| Number of Flutes | 2 |
| Coating | DLC (Diamond-Like Carbon) |
| Shank Type | Straight |
| Point Style | Kevlar Point (brad/spur composite tip) |
| Material | Solid Carbide |
| Application | Kevlar, CFRP, fiberglass, composite laminates |
| Country of Origin | USA |
| Condition | New |
