LMT Tools 2605351 1/2 x 1-1/4 x 3-1/2 4-Flute Radius Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

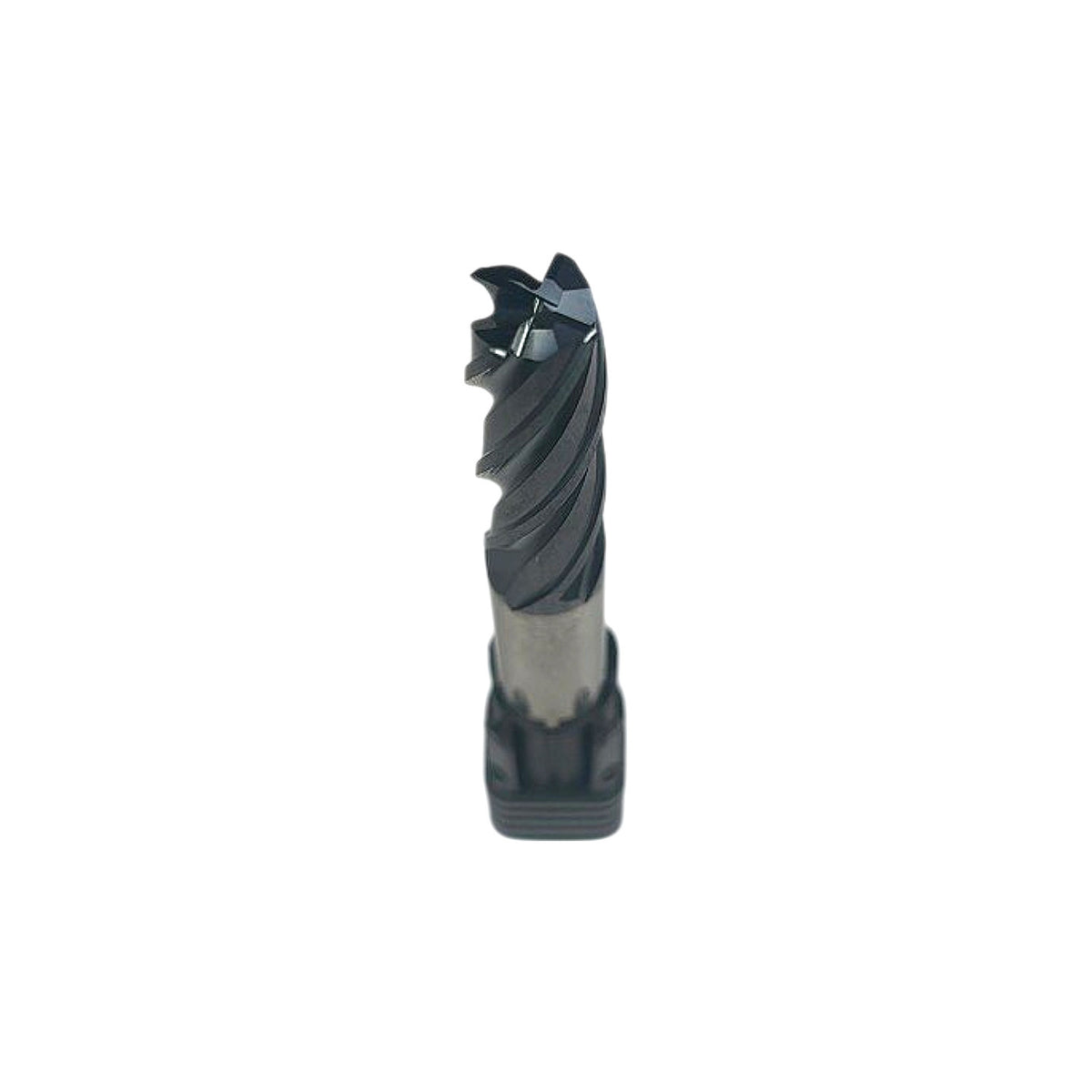

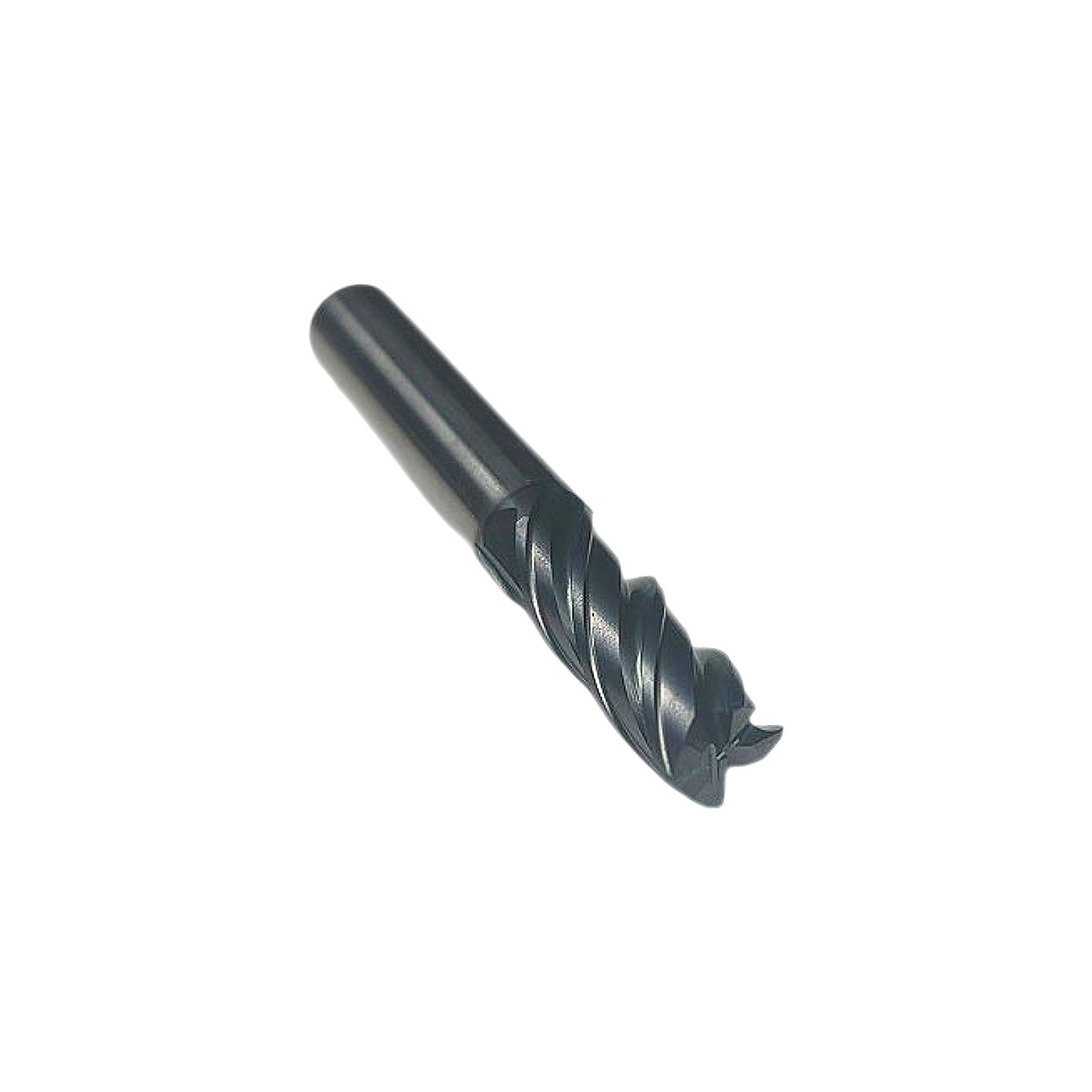

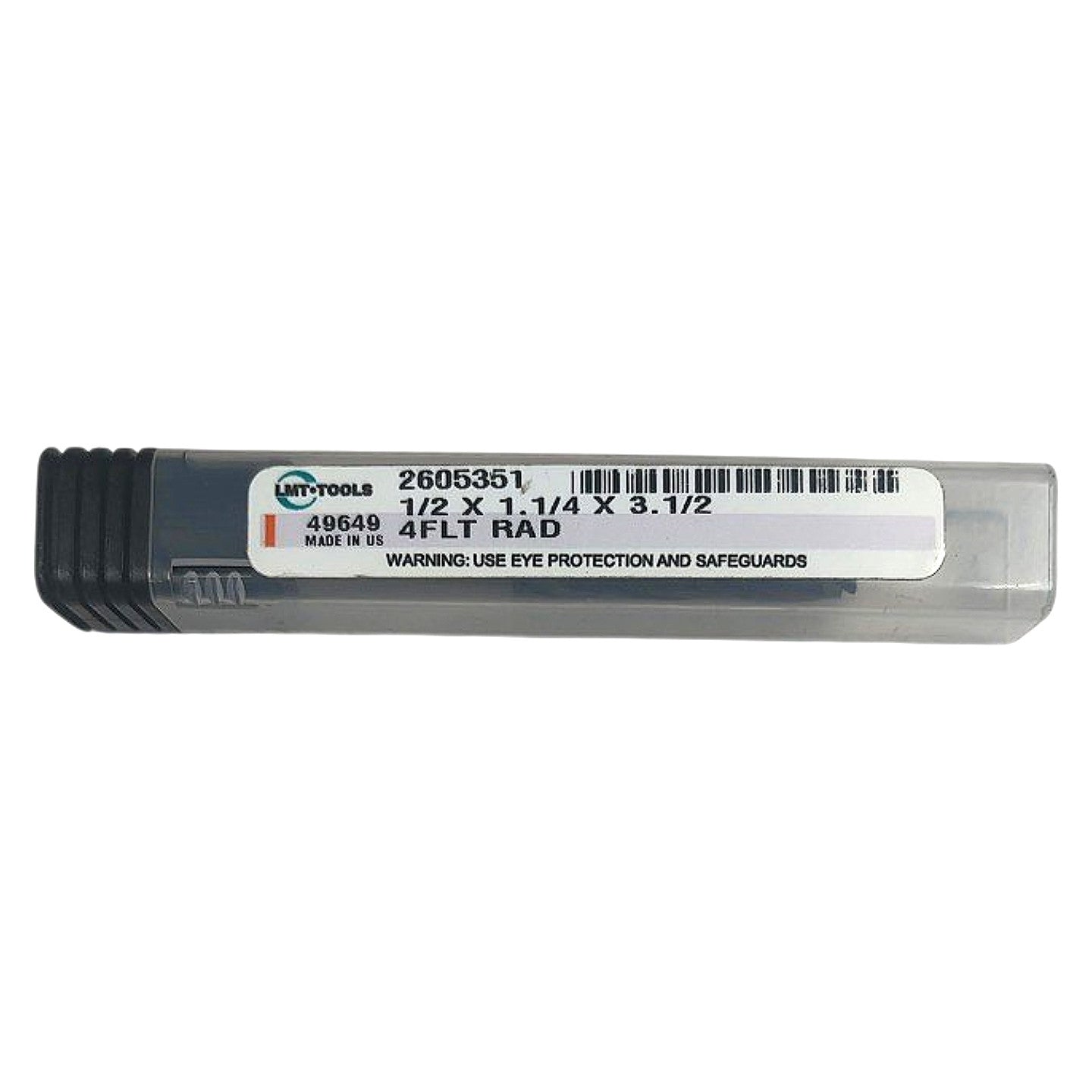

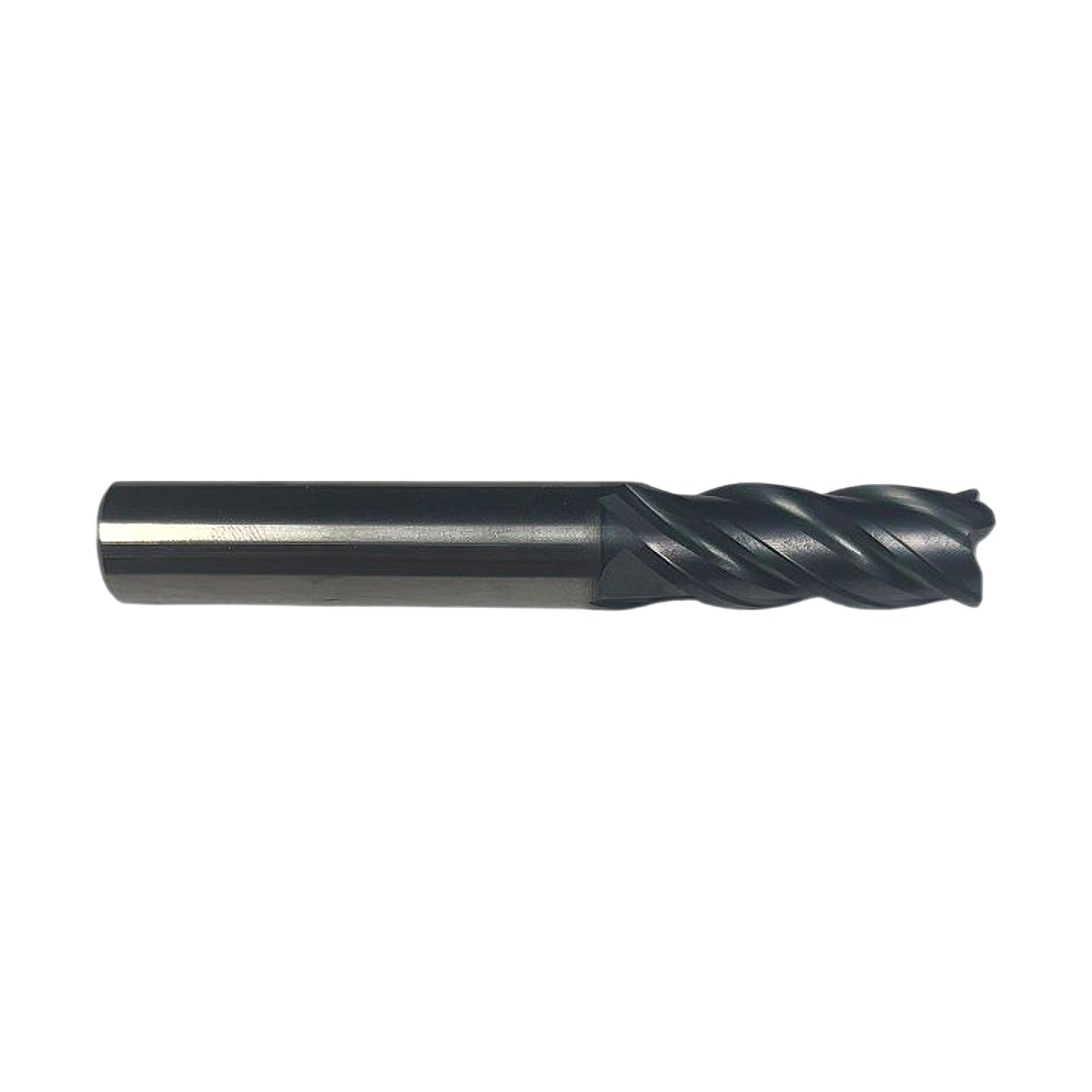

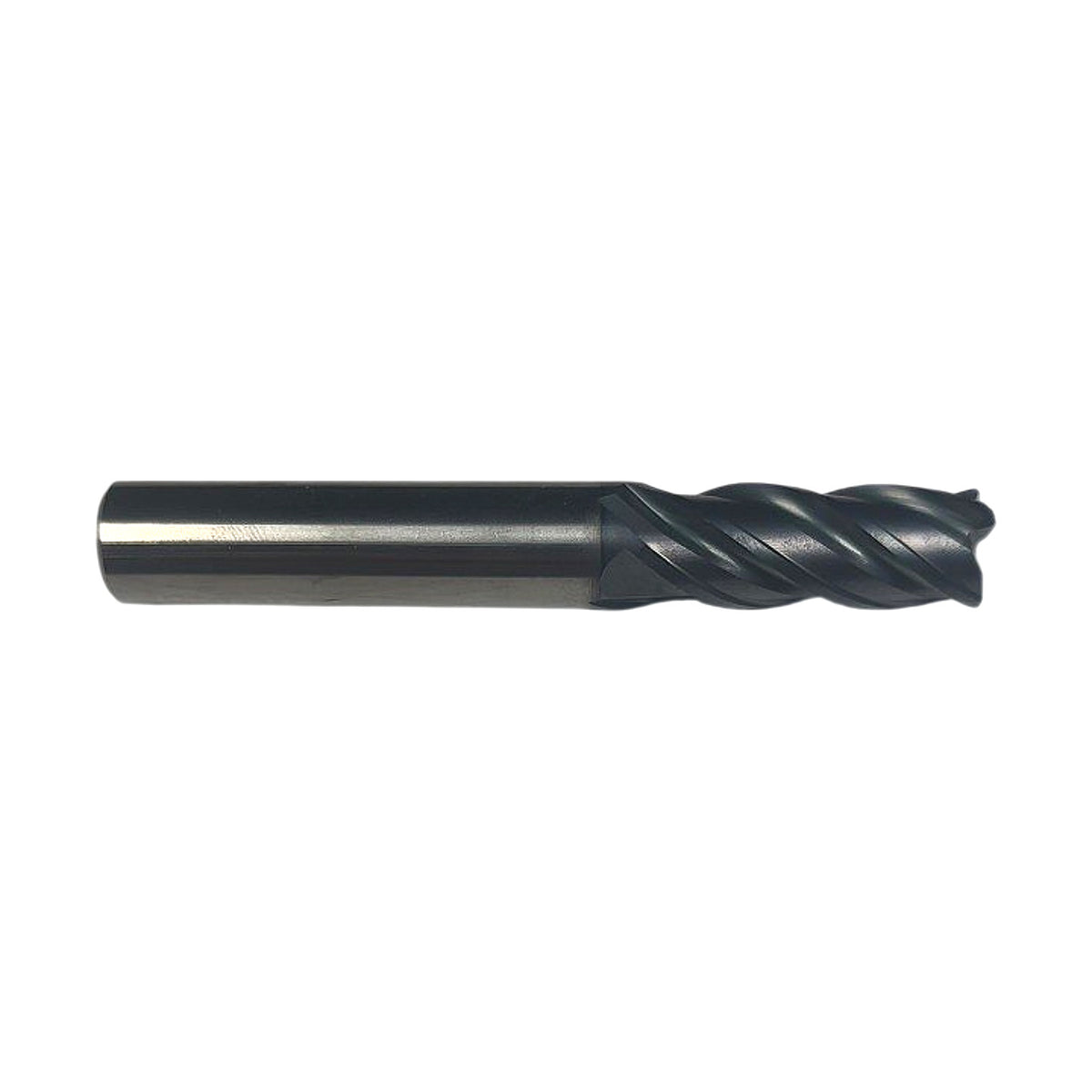

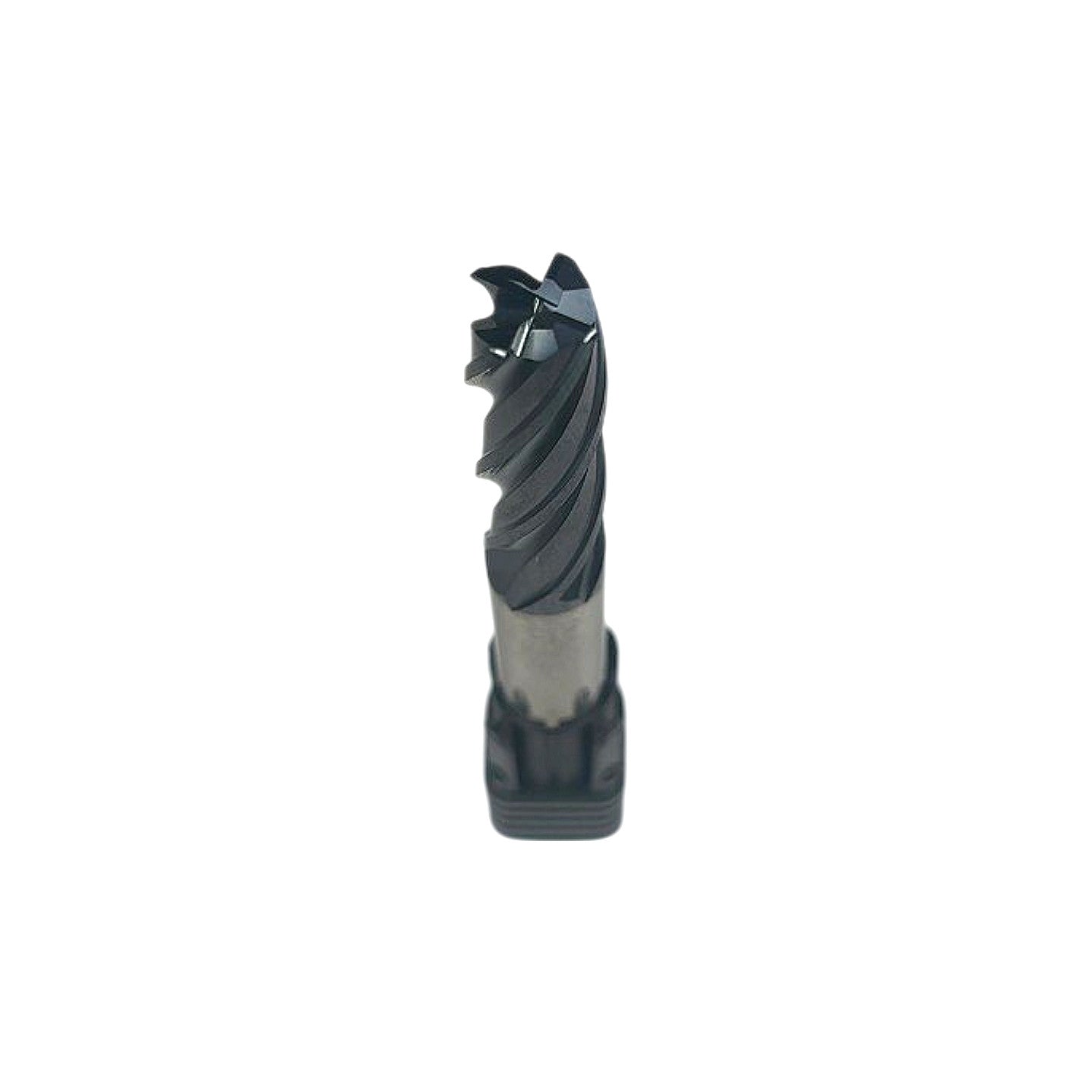

This is a new LMT Tools 2605351 solid carbide 4-flute corner radius end mill, 1/2 in cutting diameter × 1-1/4 in length of cut × 3-1/2 in overall length, made in the USA as stated on the label. The tool features a dark physical vapor deposition (PVD) coating — consistent in appearance with AlTiN or TiAlN — covering both the flute and shank regions, providing elevated hardness and oxidation resistance for cutting steels, stainless steels, and high-temperature alloys at aggressive parameters. The 4-flute, variable-helix geometry with a corner radius (RAD) tip geometry, visible in the end-view photo, reduces chatter, extends tool life vs. a square end geometry, and is suited to finishing and semi-finishing passes on mold, die, and general machining centers. The 1/2 in straight shank is compatible with standard ER, Weldon, and shrink-fit toolholders. LMT's 49649 item code corresponds to this configuration within their high-performance solid carbide end mill family.
Product Specifications
| Brand | LMT Tools |
| MPN | 2605351 |
| Item Code | 49649 |
| Country of Origin | USA |
| Cutting Diameter | 1/2 in (0.500 in) |
| Length of Cut (LOC) | 1-1/4 in (1.250 in) |
| Overall Length (OAL) | 3-1/2 in (3.500 in) |
| Shank Diameter | 1/2 in |
| Number of Flutes | 4 |
| End Geometry | Corner Radius (RAD) |
| Tool Material | Solid Carbide |
| Coating | PVD (dark/black — AlTiN or TiAlN type) |
| Shank Type | Straight |
| Condition | New |
| Hand of Cut | Right Hand |
