Loctite 234225 510 Medium Strength High Temp 250mL Flange Sealant
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

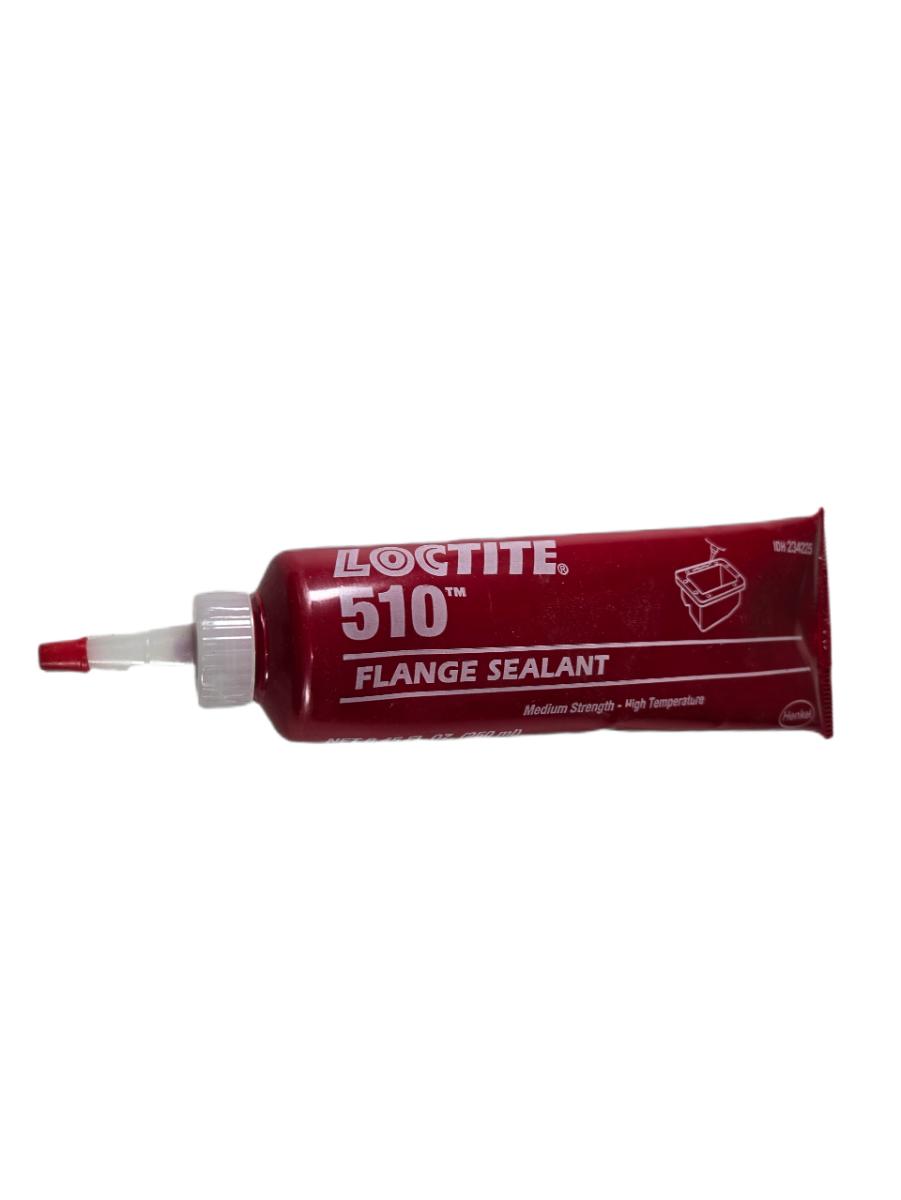

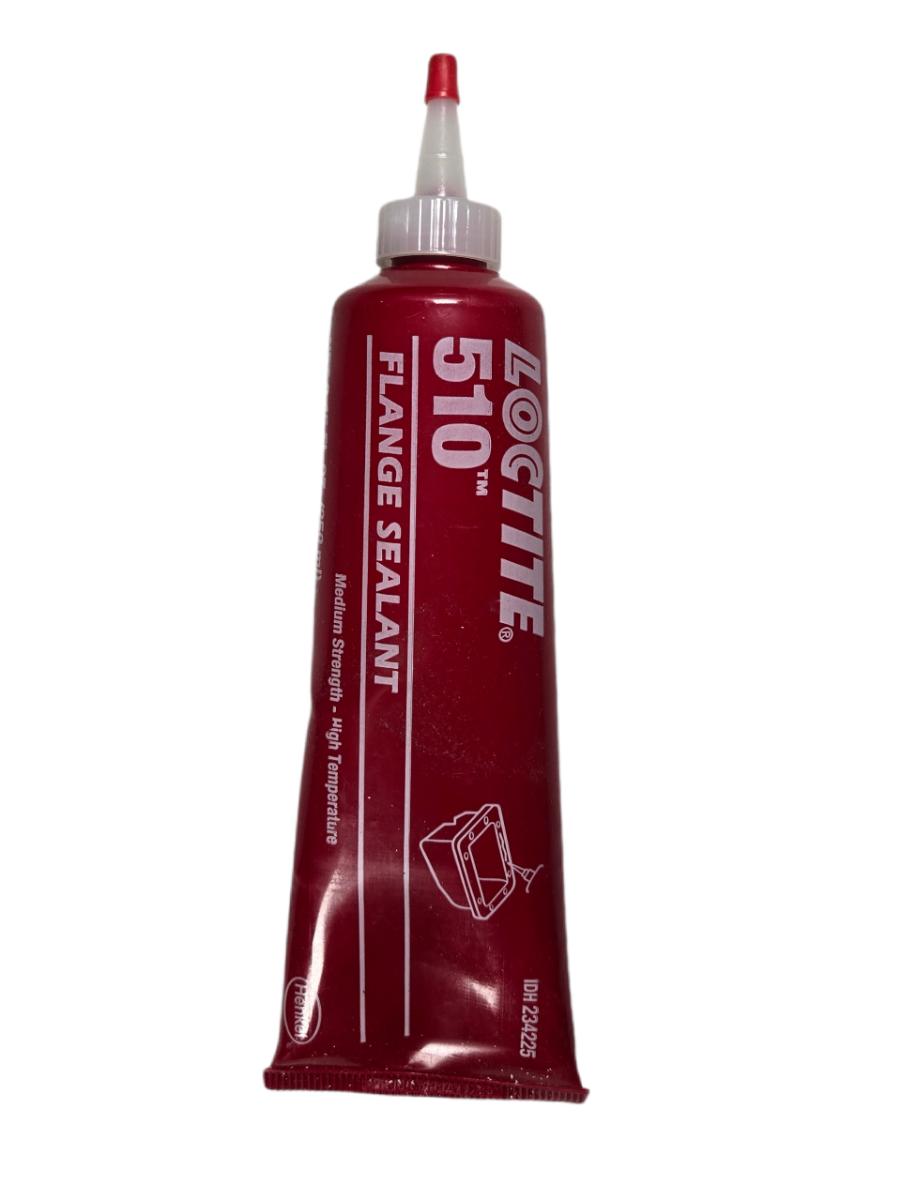

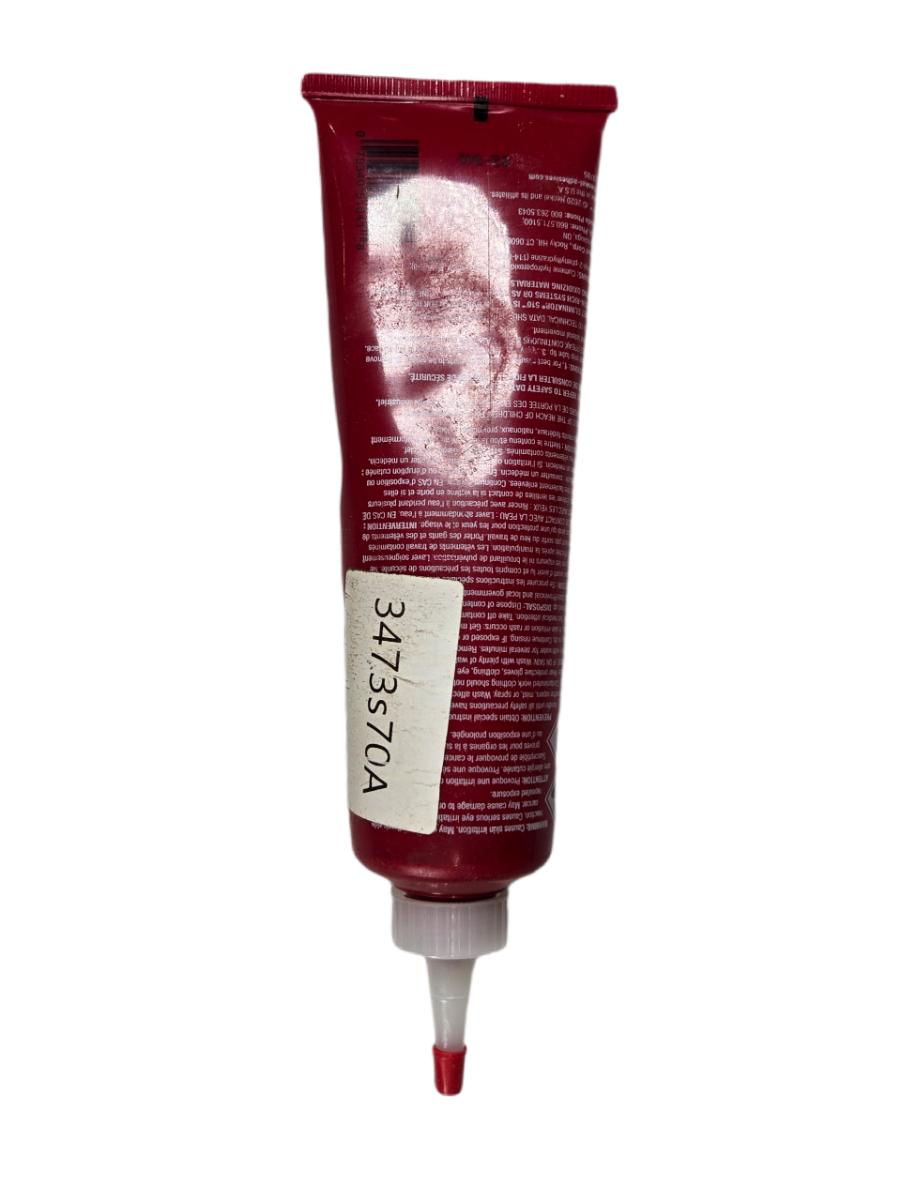

Loctite 510 (IDH 234225) is a medium-strength, high-temperature anaerobic flange sealant supplied in a 250 mL squeeze tube, new and unused. It cures in the absence of air between close-fitting metal surfaces to form a tough, solvent-resistant gasket that eliminates the need for pre-cut gaskets on rigid flanged assemblies. Loctite 510 is formulated to withstand continuous operating temperatures up to 150°C (302°F) with intermittent resistance to 200°C (392°F), and resists hydraulic fluids, oils, fuels, and coolants. The product cures on active metals such as steel and cast iron without primer, and on passive metals such as stainless steel and aluminum with the use of Loctite Primer 7649 or 7471. Typical applications include gearbox housings, pump housings, compressor end caps, and other rigid flanged joints where a formed-in-place gasket is required.
Product Specifications
| Brand | Loctite (Henkel) |
| Product Number | 510 |
| IDH (Item Data Handle) | 234225 |
| Product Type | Anaerobic Flange Sealant |
| Strength Grade | Medium Strength |
| Temperature Rating | High Temperature |
| Continuous Temperature Resistance | 150°C (302°F) |
| Intermittent Temperature Resistance | 200°C (392°F) |
| Net Volume | 250 mL |
| Container Type | Squeeze tube with nozzle applicator |
| Color | Red |
| Chemical Type | Anaerobic methacrylate ester |
| Cure Type | Anaerobic (cures in absence of air between metal surfaces) |
| Condition | New |
