M.A. Ford 13550000N 1/2x5/8x1-1/8x3 TuffCut AL 2FL .020R Necked End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

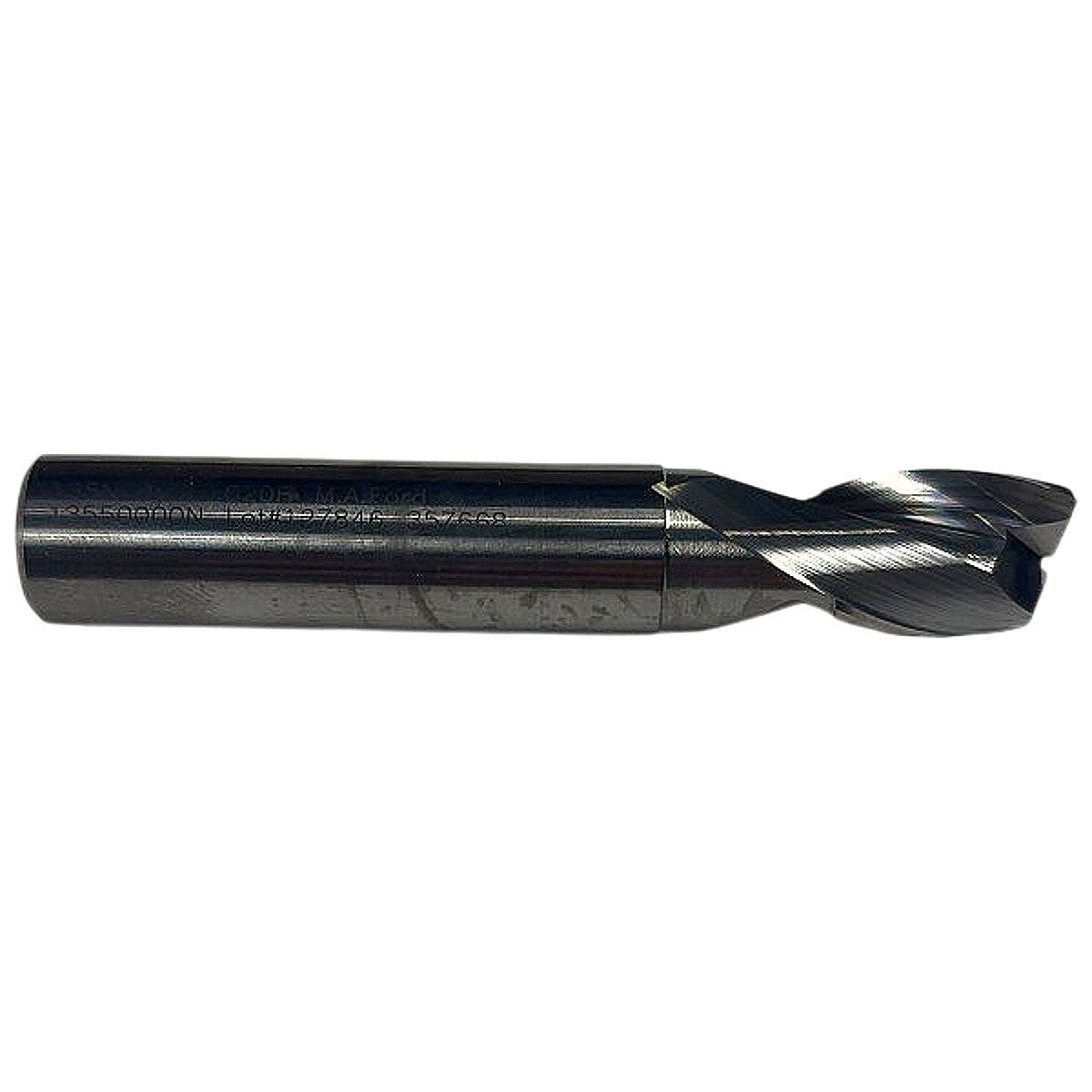

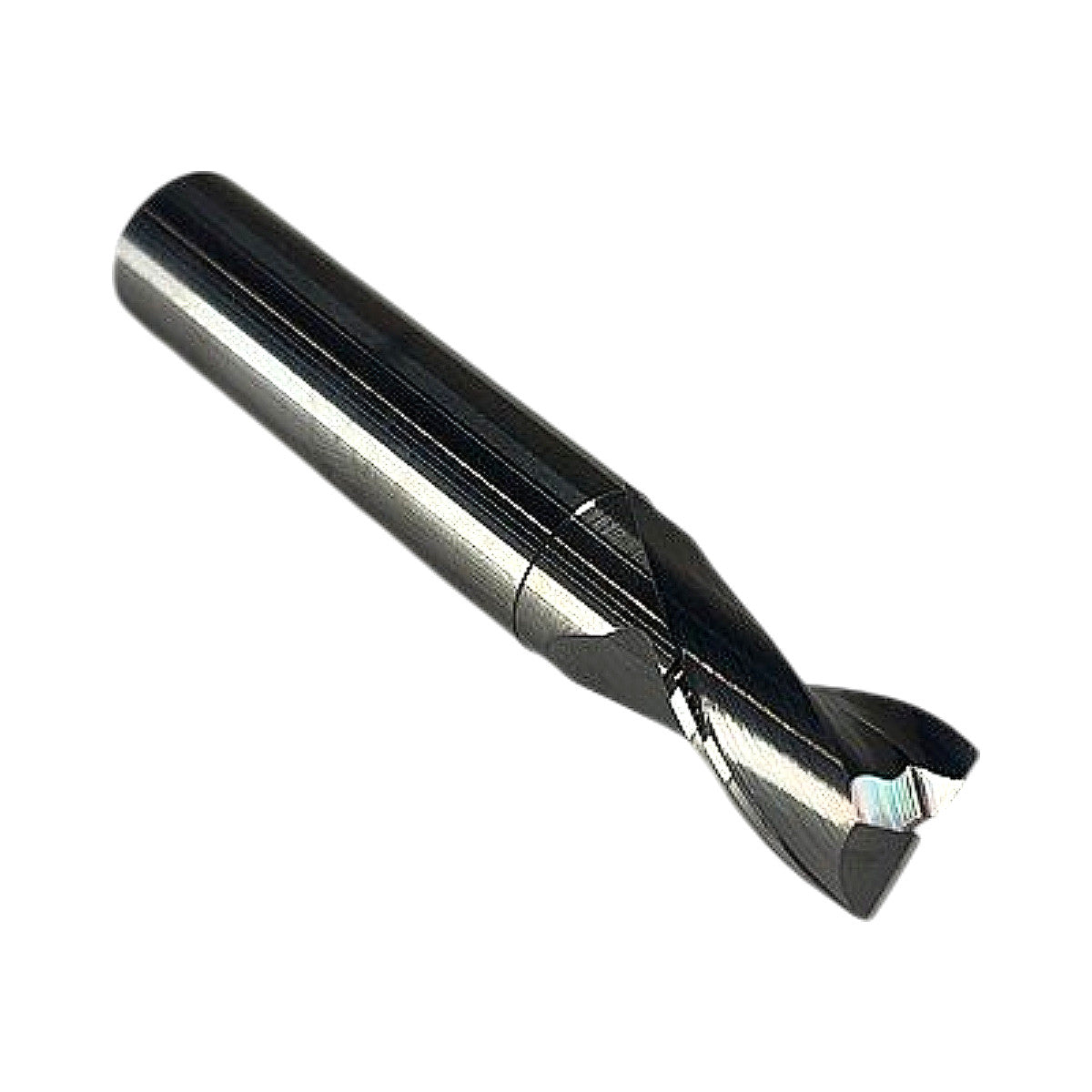

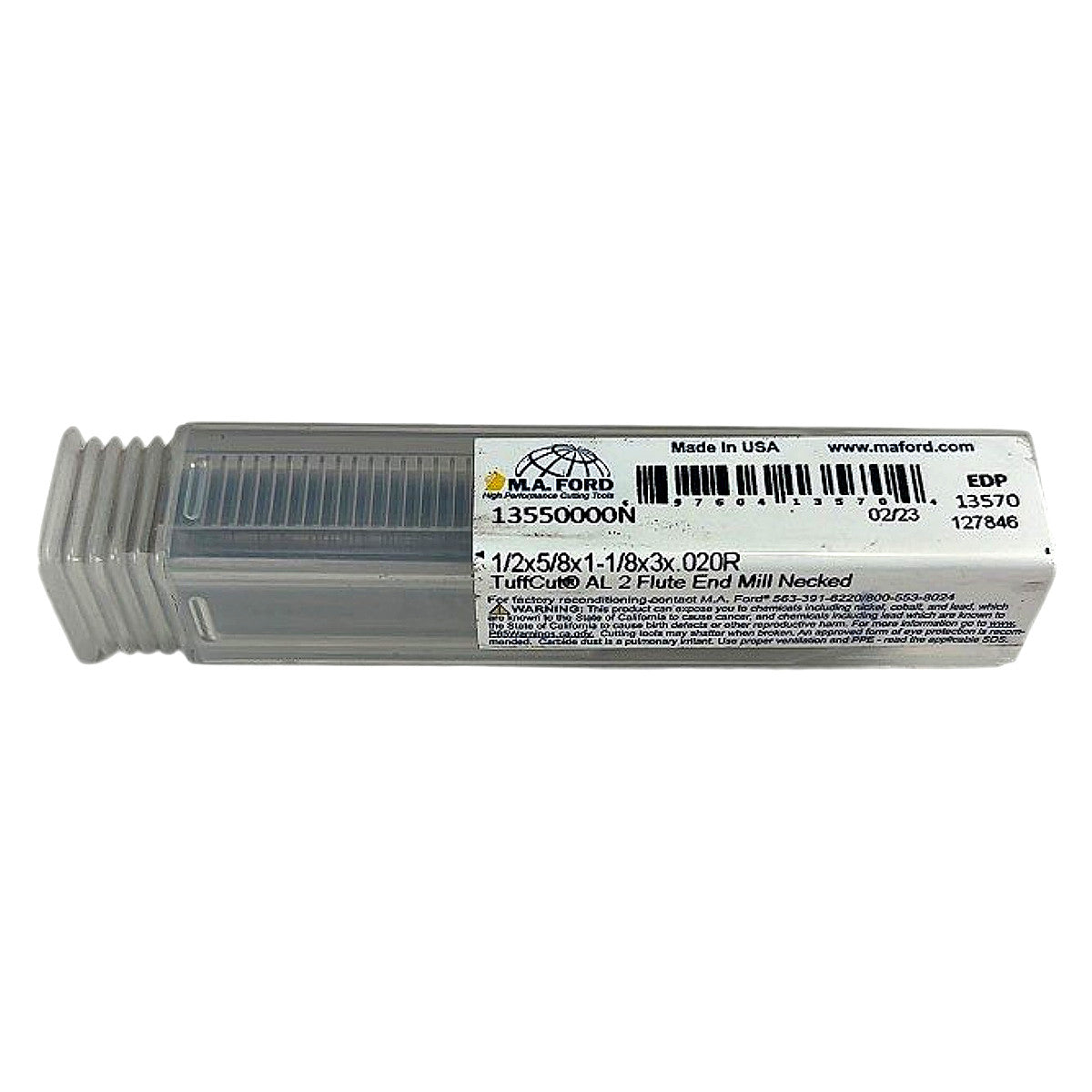

The M.A. Ford 13550000N is a new, USA-made TuffCut® AL series 2-flute solid carbide necked end mill with a 1/2 in cutting diameter, 5/8 in neck diameter, 1-1/8 in length of cut, and 3 in overall length, featuring a 0.020 in corner radius. The TuffCut AL series is specifically engineered for high-speed machining of aluminum and non-ferrous materials, utilizing a polished flute geometry and a dark PVD coating (visible in the photos) that minimizes built-up edge and promotes chip evacuation in gummy materials. The reduced-diameter neck (5/8 in) enables deep-pocket and cavity milling with increased clearance, and the straight 1/2 in shank is compatible with standard ER collet chucks, milling chucks, and end mill holders. EDP 13570 / catalog number 127846 as shown on the label; manufactured 02/2023.
Product Specifications
| Brand | M.A. Ford |
| Part Number (MPN) | 13550000N |
| EDP Number | 13570 |
| Series | TuffCut AL |
| Cutting Diameter | 1/2 in (0.500 in) |
| Shank Diameter | 1/2 in (0.500 in) |
| Neck Diameter | 5/8 in (0.625 in) |
| Length of Cut (LOC) | 1-1/8 in (1.125 in) |
| Overall Length (OAL) | 3 in |
| Corner Radius | 0.020 in |
| Number of Flutes | 2 |
| End Style | Necked / Reduced Neck |
| Material | Solid Carbide |
| Coating | PVD (dark/black) |
| Intended Material | Aluminum, Non-Ferrous |
| Country of Origin | USA |
| Condition | New |
| Date of Manufacture | 02/2023 |
