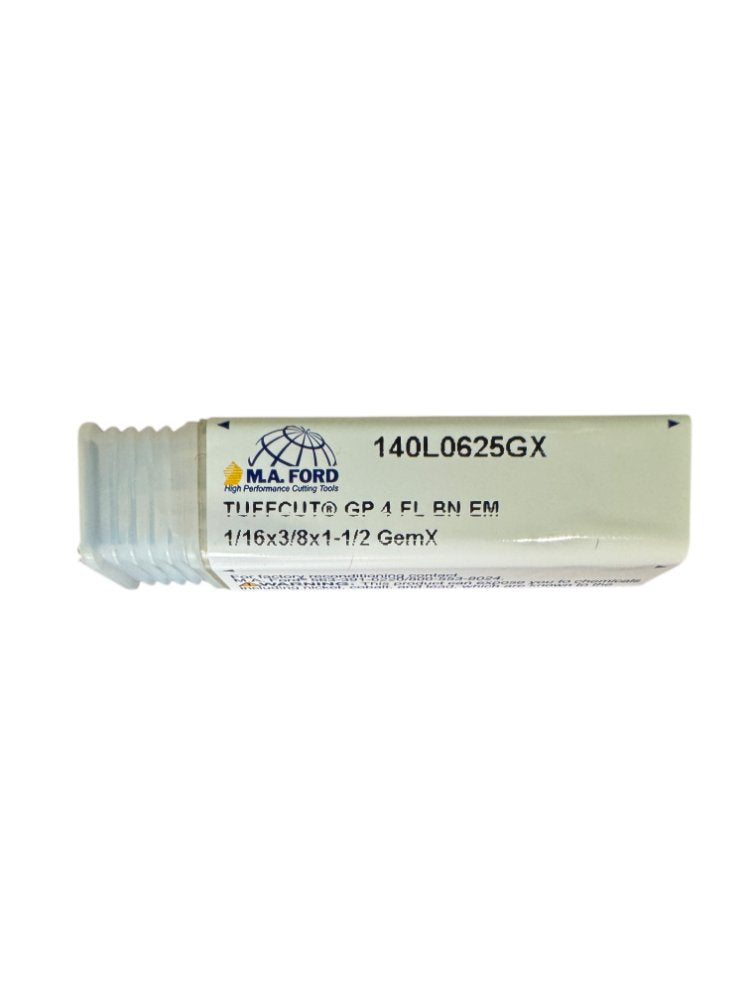

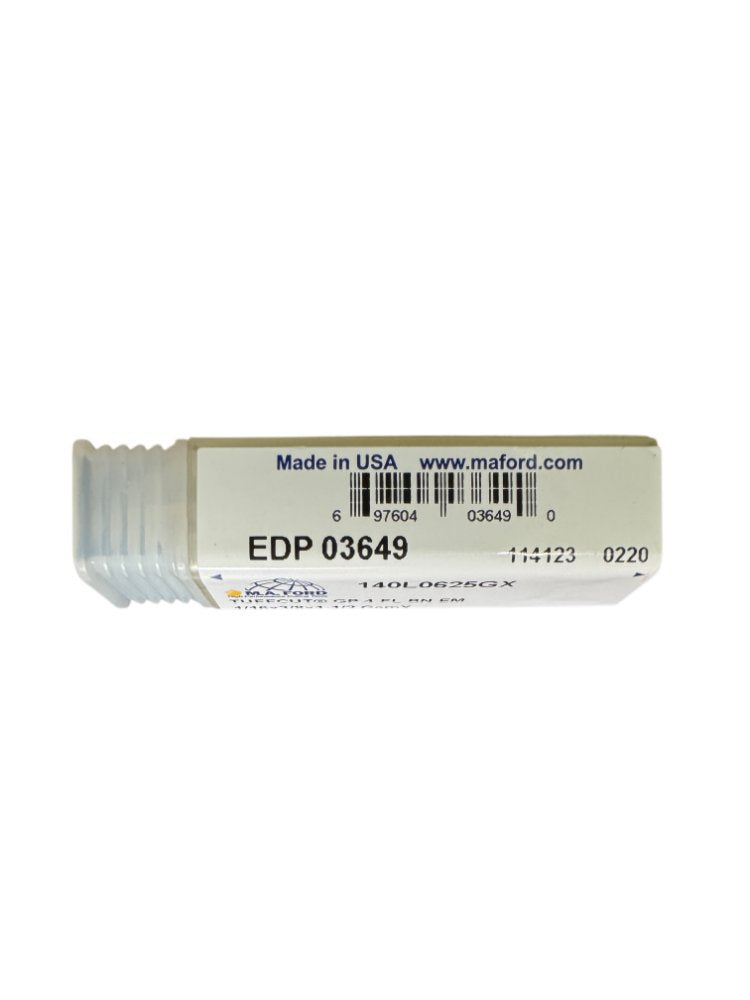

M.A. Ford 140L0625GX 1/16x3/8x1-1/2 4FL GemX Ball Nose End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

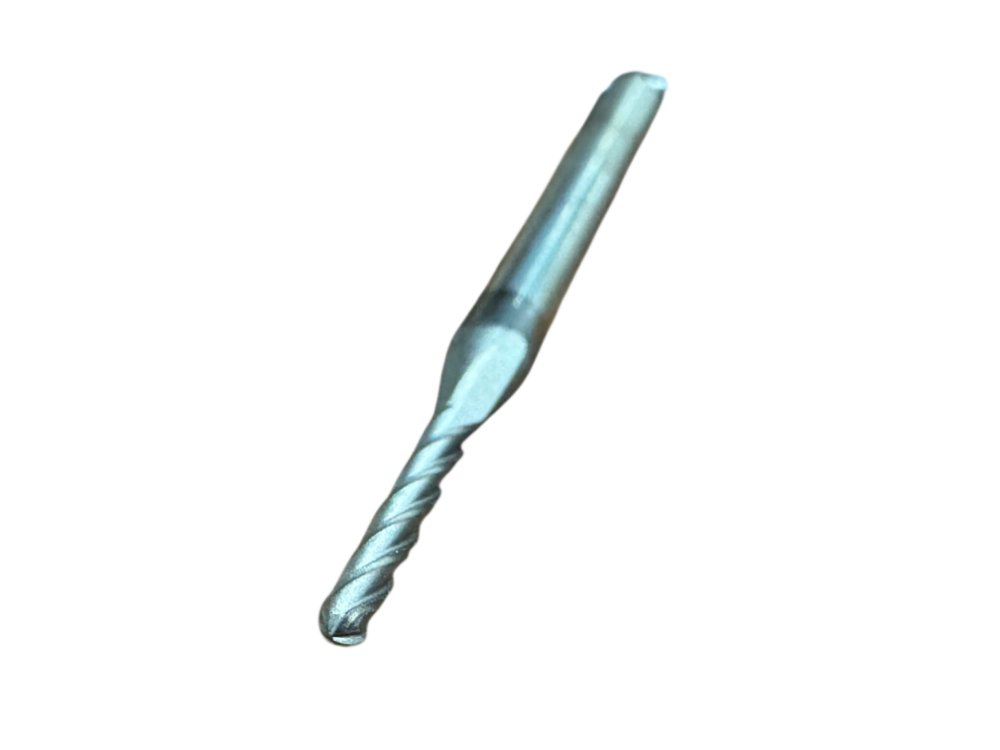

This is a new M.A. Ford TUFFCUT GP Series 4-flute ball nose end mill, part number 140L0625GX (EDP 03649), made in the USA from submicron carbide substrate with a GemX PVD coating — M.A. Ford's proprietary AlTiN-based multilayer coating engineered for hardened steels, stainless, and high-temp alloys. The tool features a 1/16 in (0.0625 in) ball nose cutting diameter on a 3/8 in straight shank, with a 1-1/2 in overall length, making it well-suited for tight-tolerance 3D contouring, profiling, and finishing operations in CNC machining centers. The long-reach, reduced-neck geometry visible in the photo allows access to deep cavities and complex sculptured surfaces while the 4-flute configuration improves surface finish and feed rates versus 2-flute designs. Compatible with standard 3/8 in ER or shrink-fit toolholders.
Product Specifications
| Brand | M.A. Ford |
| Series | TUFFCUT GP |
| Part Number (MPN) | 140L0625GX |
| EDP Number | 03649 |
| End Type | Ball Nose |
| Number of Flutes | 4 |
| Cutting Diameter | 1/16 in (0.0625 in) |
| Shank Diameter | 3/8 in (0.375 in) |
| Overall Length (OAL) | 1-1/2 in (1.500 in) |
| Coating | GemX (AlTiN-based PVD multilayer) |
| Substrate | Solid Carbide |
| Country of Origin | USA |
| Shank Style | Straight (cylindrical) |
| Condition | New |
