Mahr 2191802 Pocket Surf IV Ra 1-250µIn Surface Roughness Gage

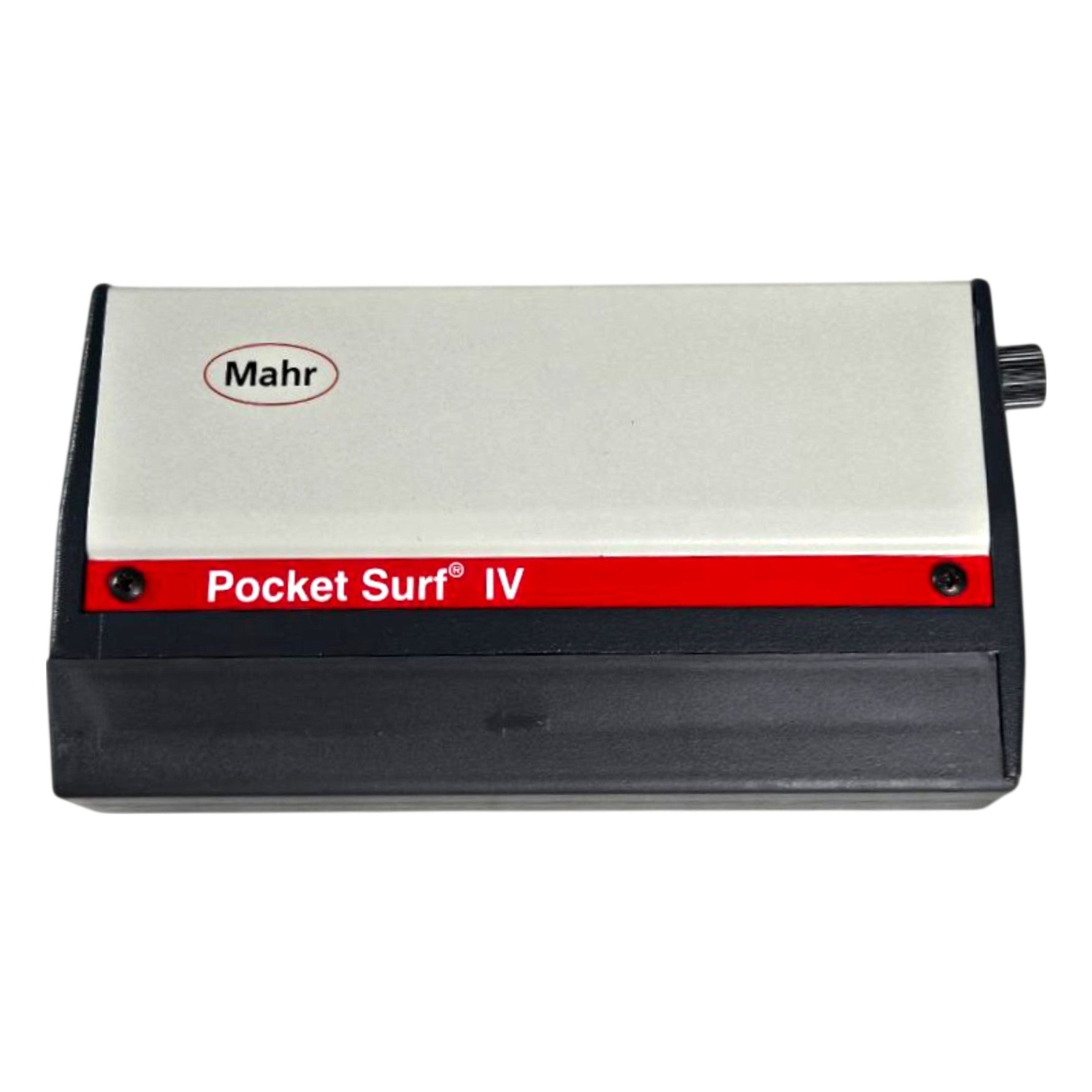

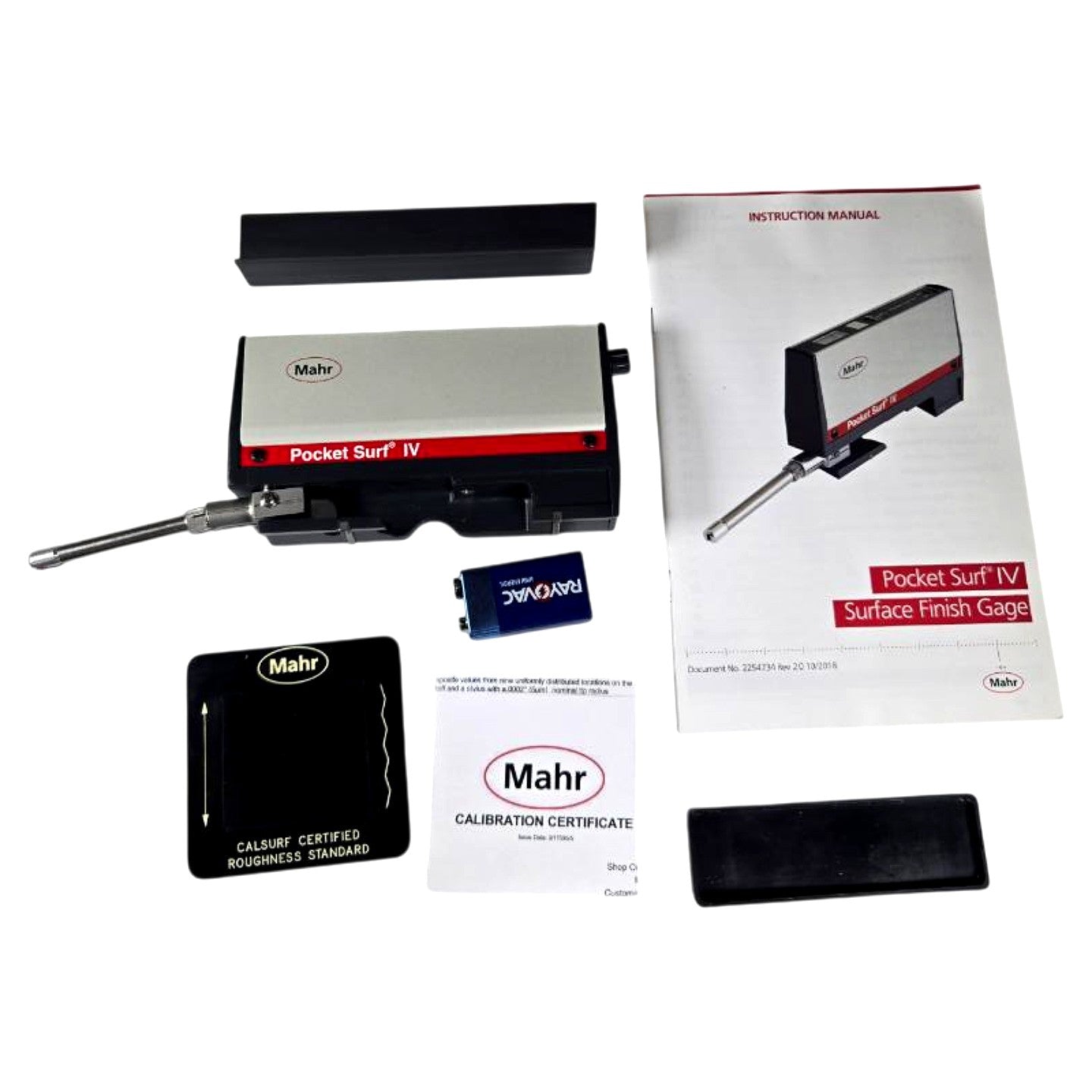

The Mahr 2191802 Pocket Surf IV is a new, portable contact-type surface finish profilometer designed for shop-floor and inspection use, measuring Ra, Rmax, Ry, and Rz parameters with a measuring range of Ra 1 µin to 250 µin (0.03 µm to 6.35 µm). The instrument uses a diamond-tipped stylus with a 0.0002 in (5 µm) nominal tip radius driven by an internal motorized traverse unit, and reads directly in both inch (µin) and metric (µm) units via a digital display. Power is supplied by a standard 9V battery (included Rayovac), and the complete kit ships with a CalSurf certified roughness standard tile with calibration certificate, a V-block workpiece support, magnetic battery cover, and full instruction manual — everything required for immediate out-of-box deployment. The Pocket Surf IV conforms to ANSI/ASME B46.1 and ISO 4287 surface texture standards and is manufactured in the USA, making it suitable for aerospace, automotive, medical device, and general precision machining quality control applications.

Product Specifications
