Mahr 5323010 P2004M 4mm Range Millimar Inductive Probe

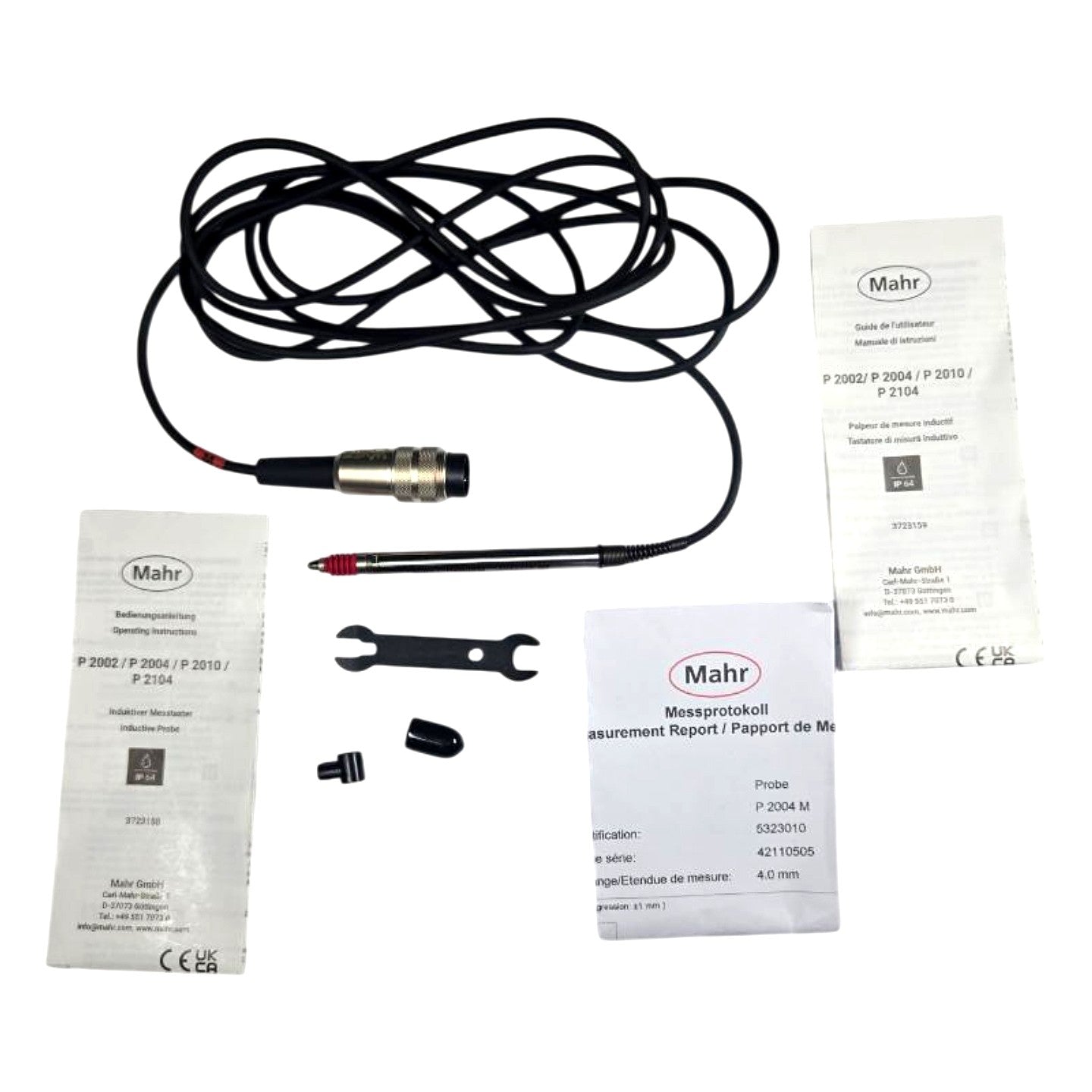

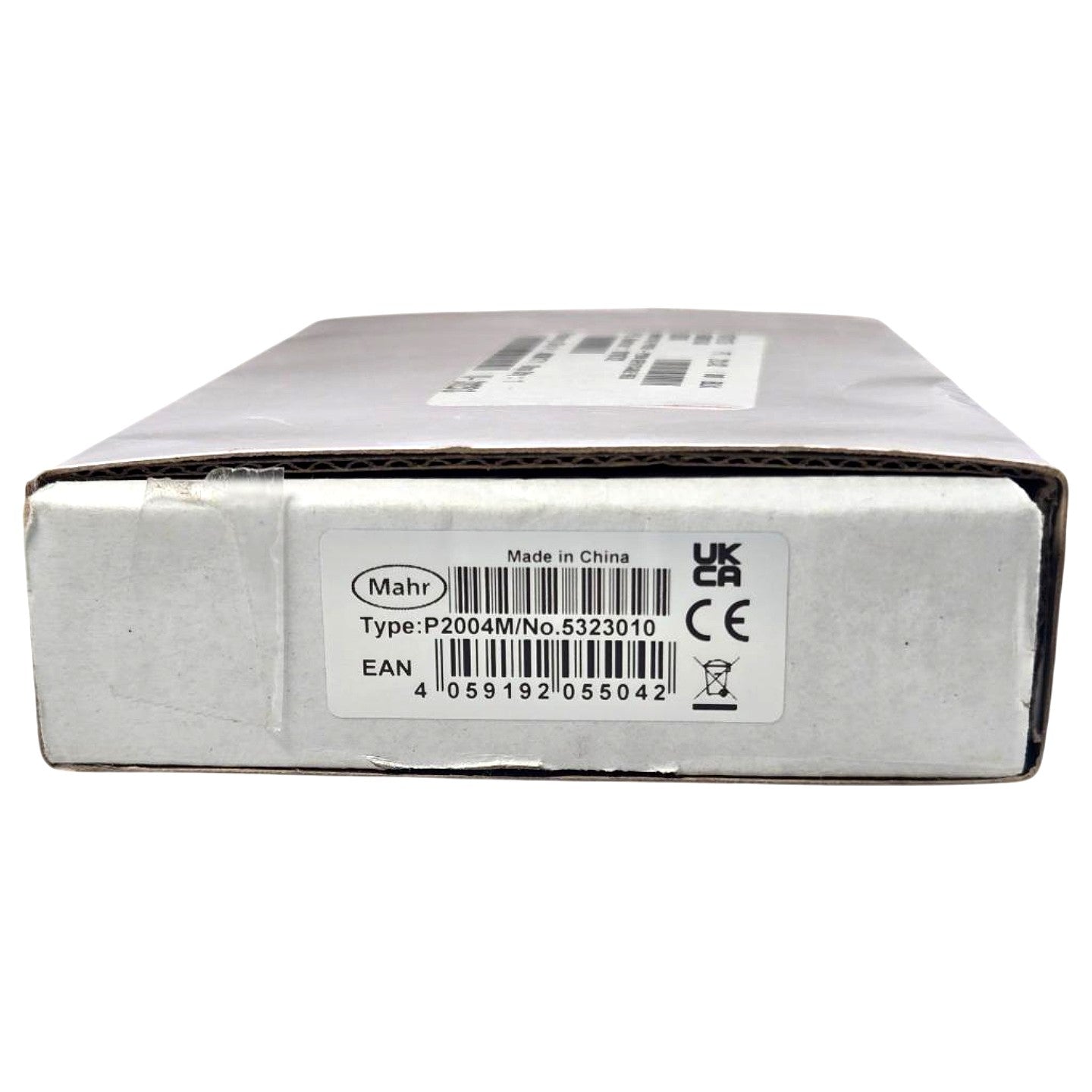

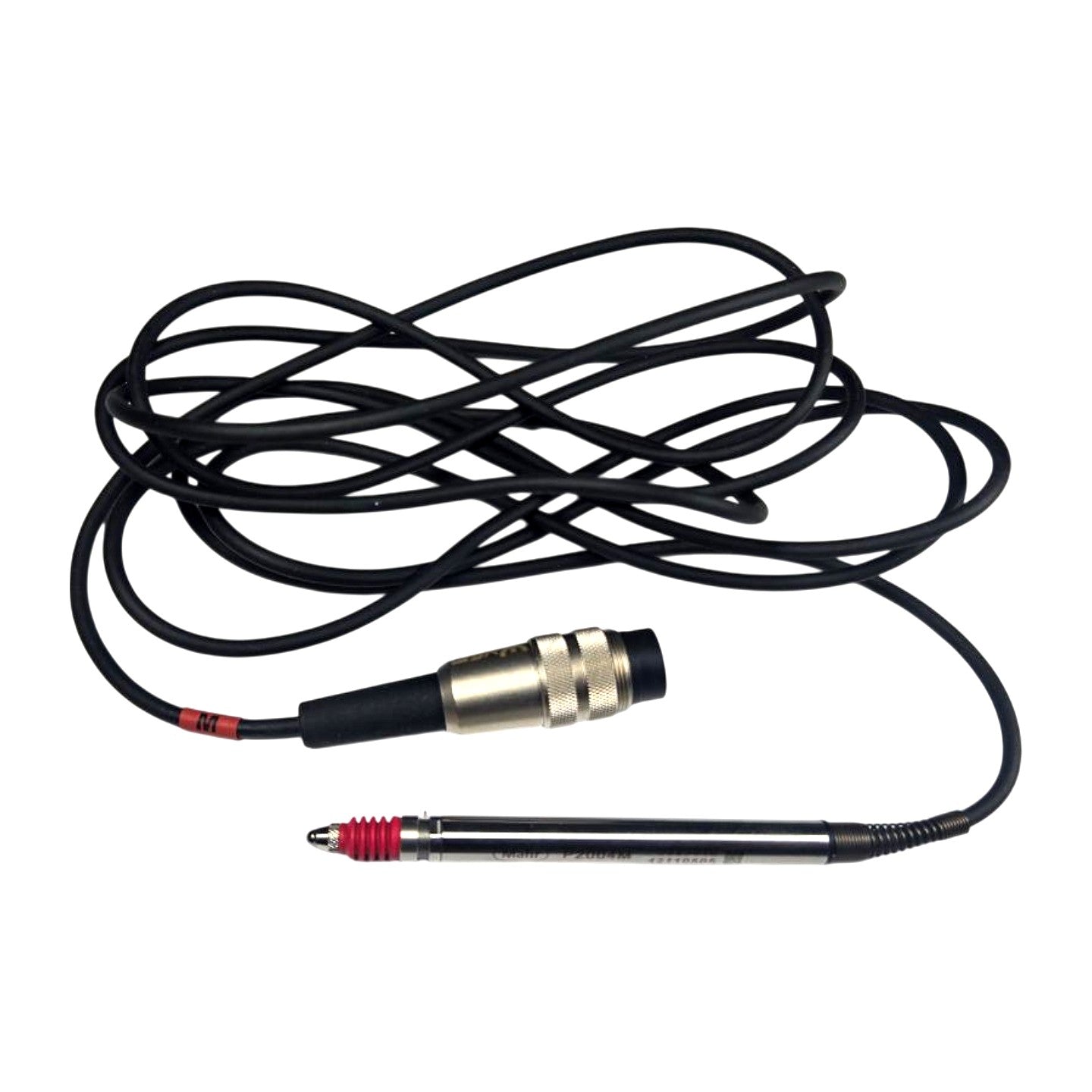

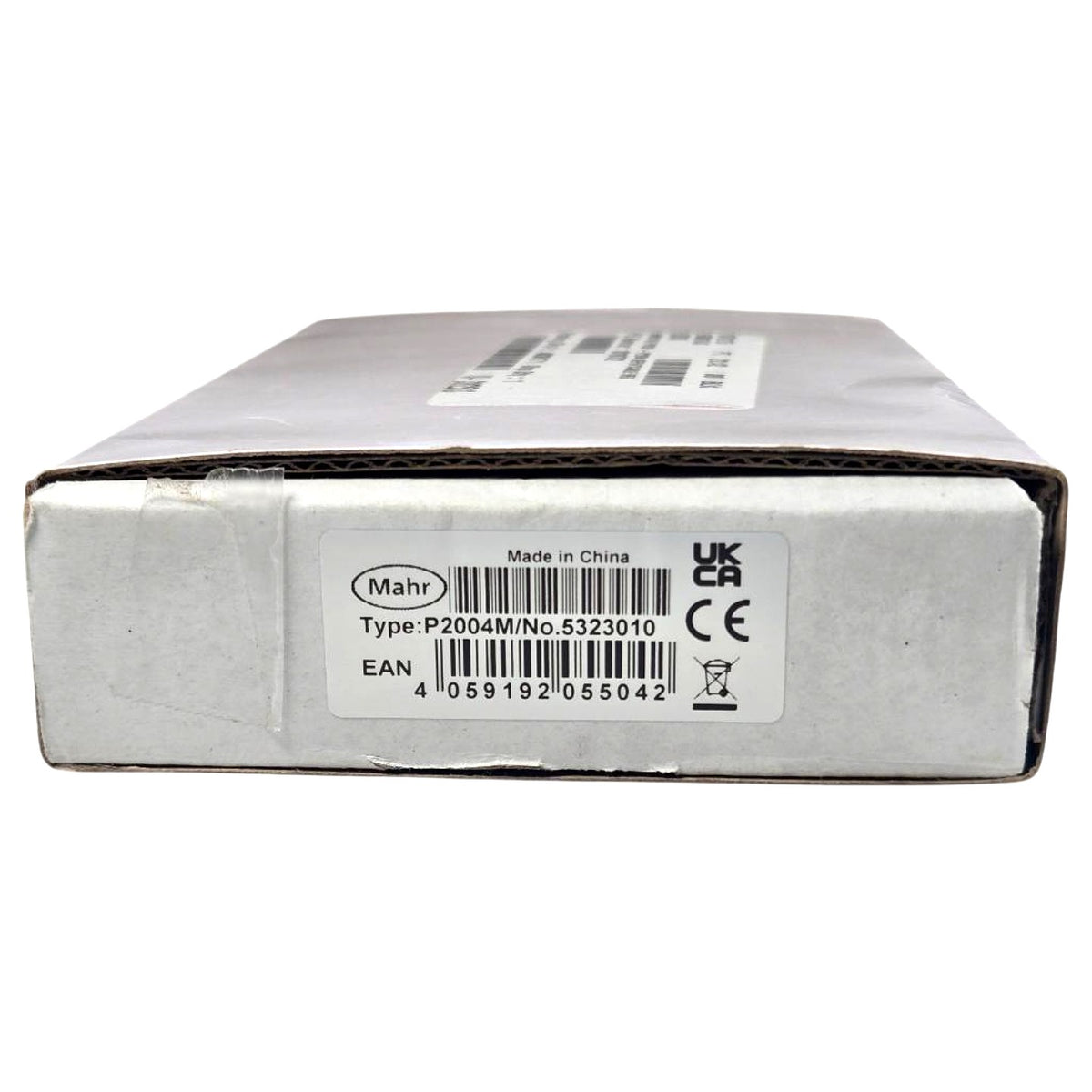

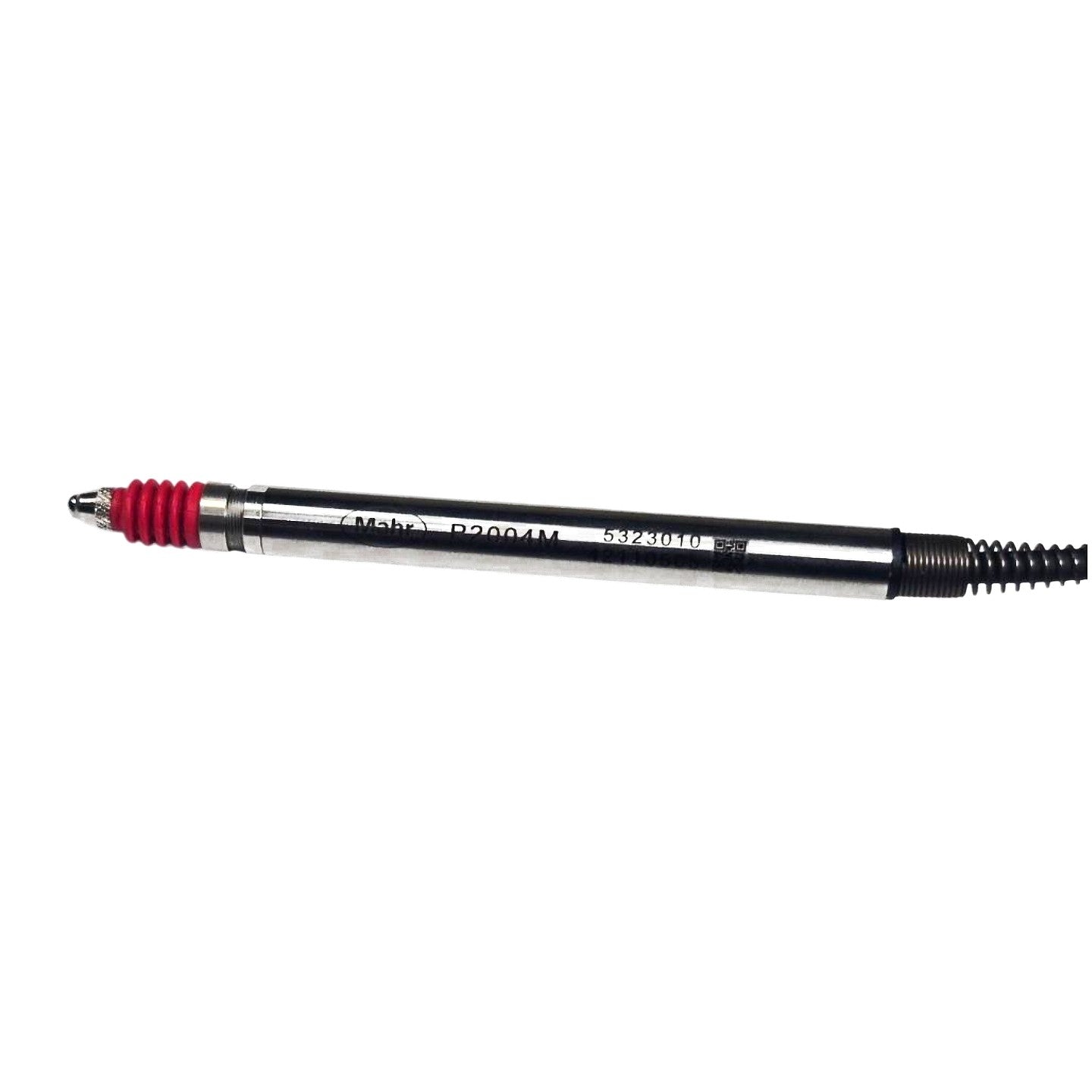

The Mahr Millimar P2004M (part no. 5323010) is a new inductive linear measuring probe from Mahr GmbH's P2000 series, designed for high-precision dimensional gauging in quality control and production measurement applications. The probe operates on an inductive (LVDT-type) measurement principle with a 4.0 mm measuring range (±2 mm stroke), rated IP64 for protection against dust and splash water, making it suitable for use in light industrial environments and on or near machine tools. It connects via the included multi-pin circular connector cable to compatible Mahr Millimar amplifier/display units (such as the Millimar C1200, C1208, and related electronics) that accept the P2000-series probe interface. The complete kit includes the P2004M probe body with carbide ball stylus tip, strain-relief cable with circular connector, spanner wrench for stylus adjustment, protective stylus cap, operating instructions, and a factory-issued individual measurement report (Messprotokoll) certifying traceability. The 'M' suffix in the model designation indicates metric configuration; Mahr order no. 5323010 is the direct factory identifier confirmed on the probe body, box label, and measurement report.

Product Specifications
