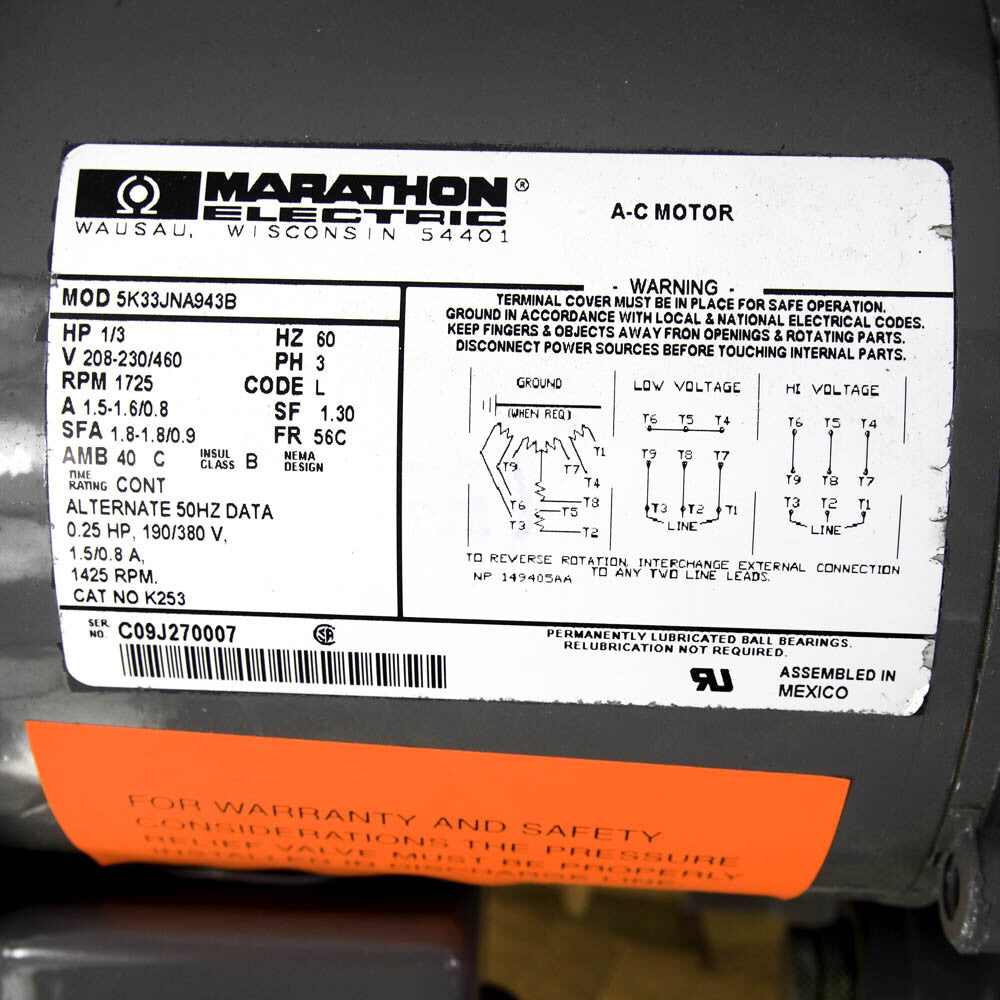

Marathon 5K33JNA943B 208-230/460V 3PH 1/3HP 60Hz 1725 RPM Gen Purpose Motor -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | Marathon |
| MPN | 5K33JNA943B |
| Rated Load (HP) | 1/3 |
| Current Type | AC |
| Nominal Rated Input Voltage | 208-230/460 |
| AC Phase | Three Phase |
| Service Factor | 1.00 |
| NEMA Frame Suffix | 56C |
| Shaft Diameter | 5/8 in |
| Special Motor Construction | N/A |
| IEC Frame Size | N/A |
| AC Frequency Rating | N/A |
| AC Motor Type | General Application |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| DC Stator/Winding Type | N/A |
| Mounting Type | Face |
| Reversible/Non-Reversible | CW/CCW |
| Shaft Type | Keyed |
| Inverter/Vector Duty Rating | Continuous |
| Insulation Class | B (Max 266°F) |
| Model | General Purpose Motor |
| Base RPM | 1725 |
| Full Load Amps | 1.5-1.6/0.8 |
| Unit Quantity | 1 |
| Unit Type | Unit |

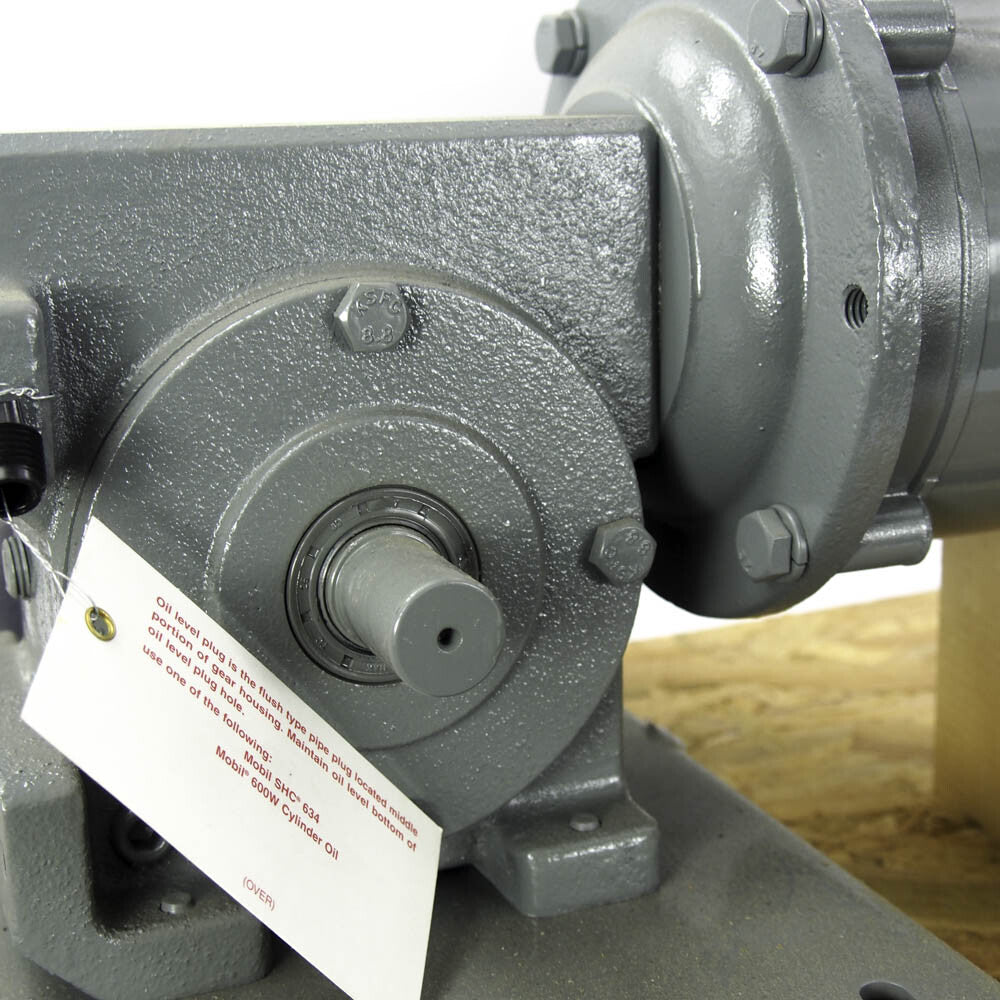

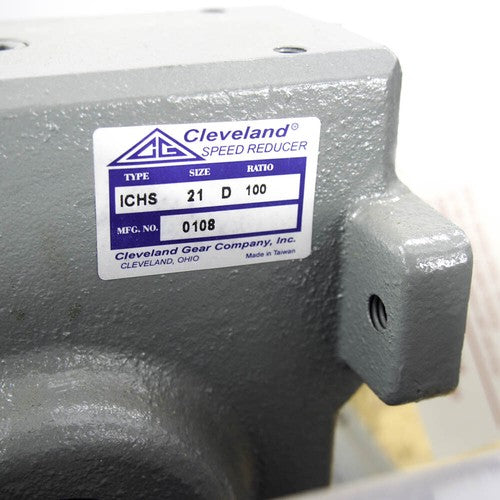

| Includes | Cleveland 0108 Speed Reducer |
| IP Rating | NA |
| NEMA Design Letter | NA |
| Protection Against Liquids | NA |
| Rated/Full-Load Torque | NA |
| Starting/Locked Rotor Torque | NA |
| Protection Against Solids | NA |
Marathon 5K33JNA943B 208-230/460V 3PH 1/3HP 60Hz 1725 RPM General Purpose Motor
