Masterdrive Q1-1.5/8 Double Split 1-5/8" Bore Taper Bushing
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

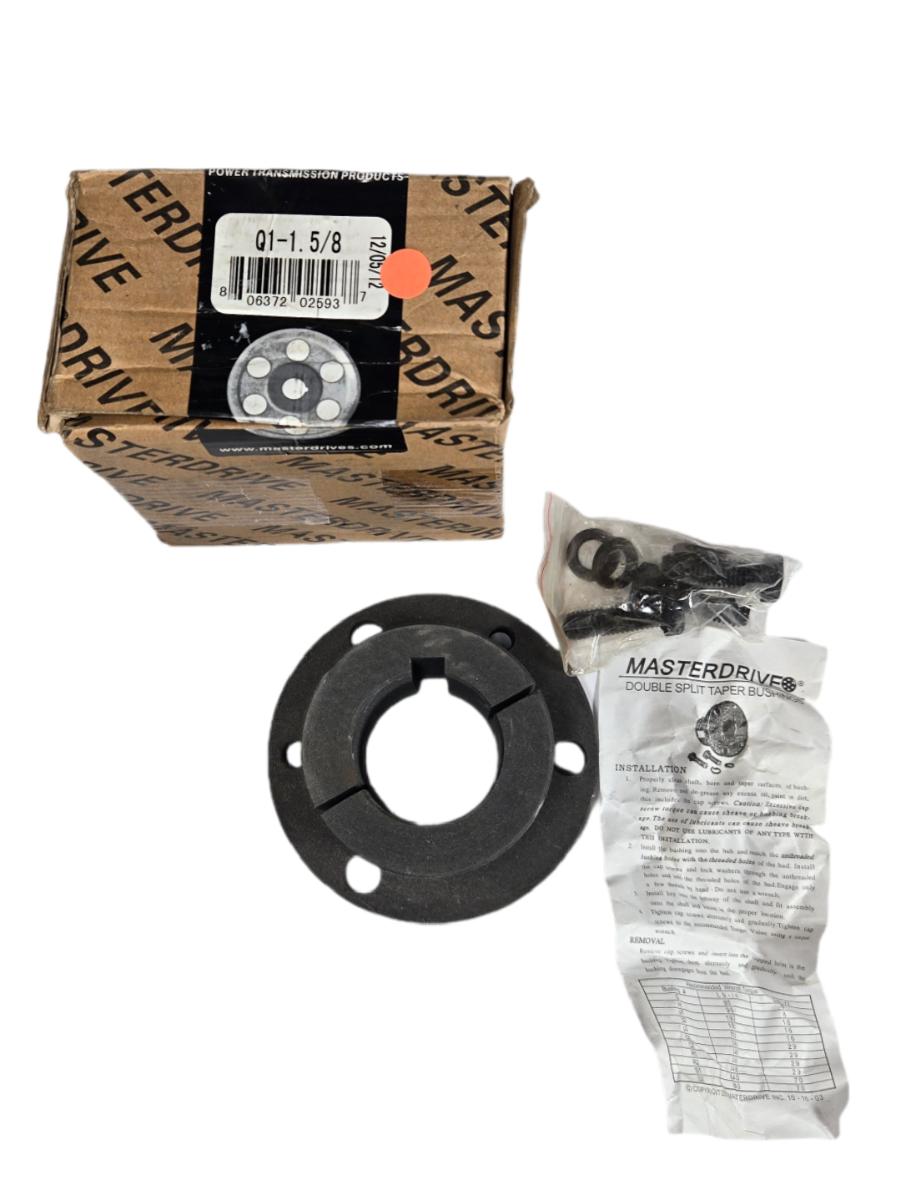

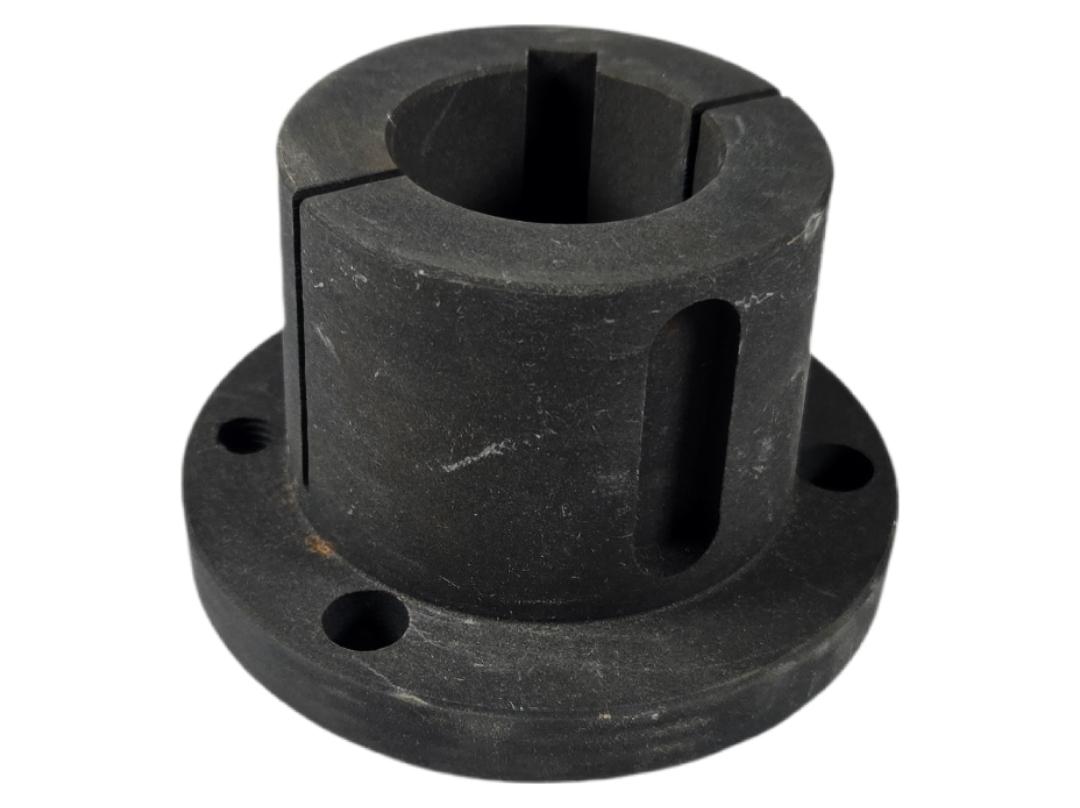

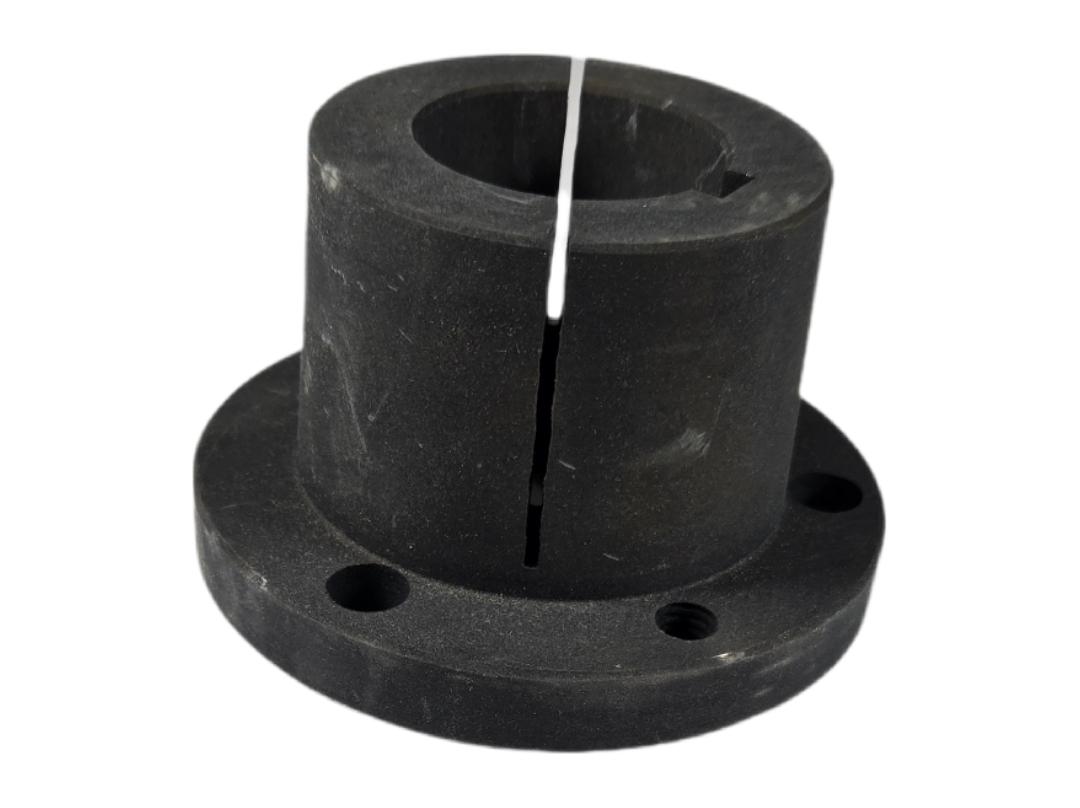

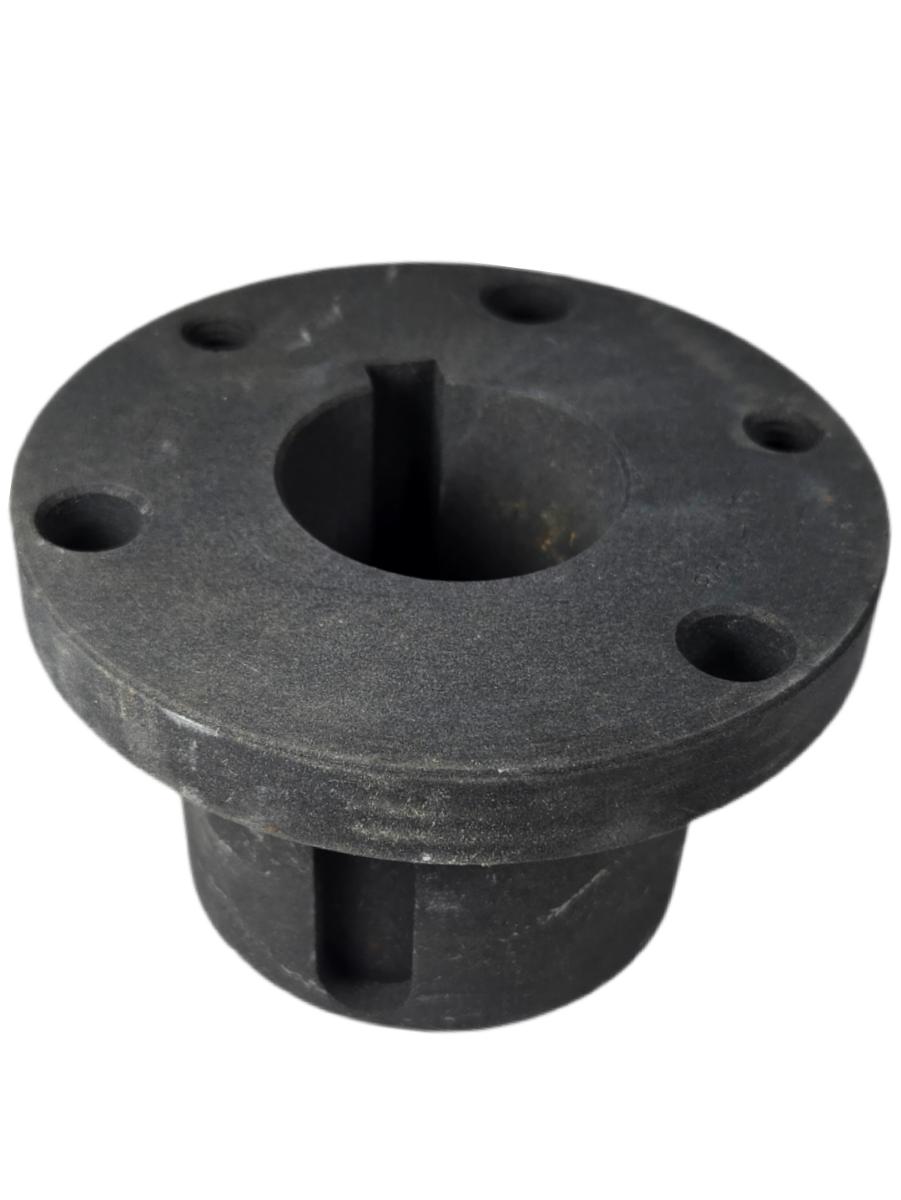

The Masterdrive Q1-1.5/8 is a new, double split taper bushing in the Q1 bushing series with a 1-5/8" (1.625") finished bore diameter and a standard keyway, designed to mount sheaves, sprockets, and pulleys onto shafts in power transmission drive systems. The double-split design — evidenced by the two full-length axial splits visible in the photos — allows the bushing to clamp uniformly around the shaft when the flange cap screws are tightened, providing a concentric, high-grip fit without requiring a press. Constructed from cast iron with a black oxide finish, the Q1 bushing uses a flanged face-mount configuration secured by socket head cap screws (hardware included per the photo), and is compatible with Q1-series sheaves, sprockets, and pulleys from Masterdrive and other manufacturers using the Q1 taper bore standard. This unit ships new-in-box with original Masterdrive hardware bag and installation/removal instructions.
Product Specifications
| Manufacturer | Masterdrive |
| Part Number | Q1-1.5/8 |
| Bushing Series | Q1 |
| Bore Diameter | 1-5/8 in (1.625 in) |
| Bore Type | Finished bore with keyway |
| Split Type | Double split (two full-length axial splits) |
| Mounting Style | Flanged face-mount with cap screws |
| Material | Cast iron |
| Surface Treatment | Black oxide |
| Fastener Included | Yes — socket head cap screws with washers |
| Condition | New |
