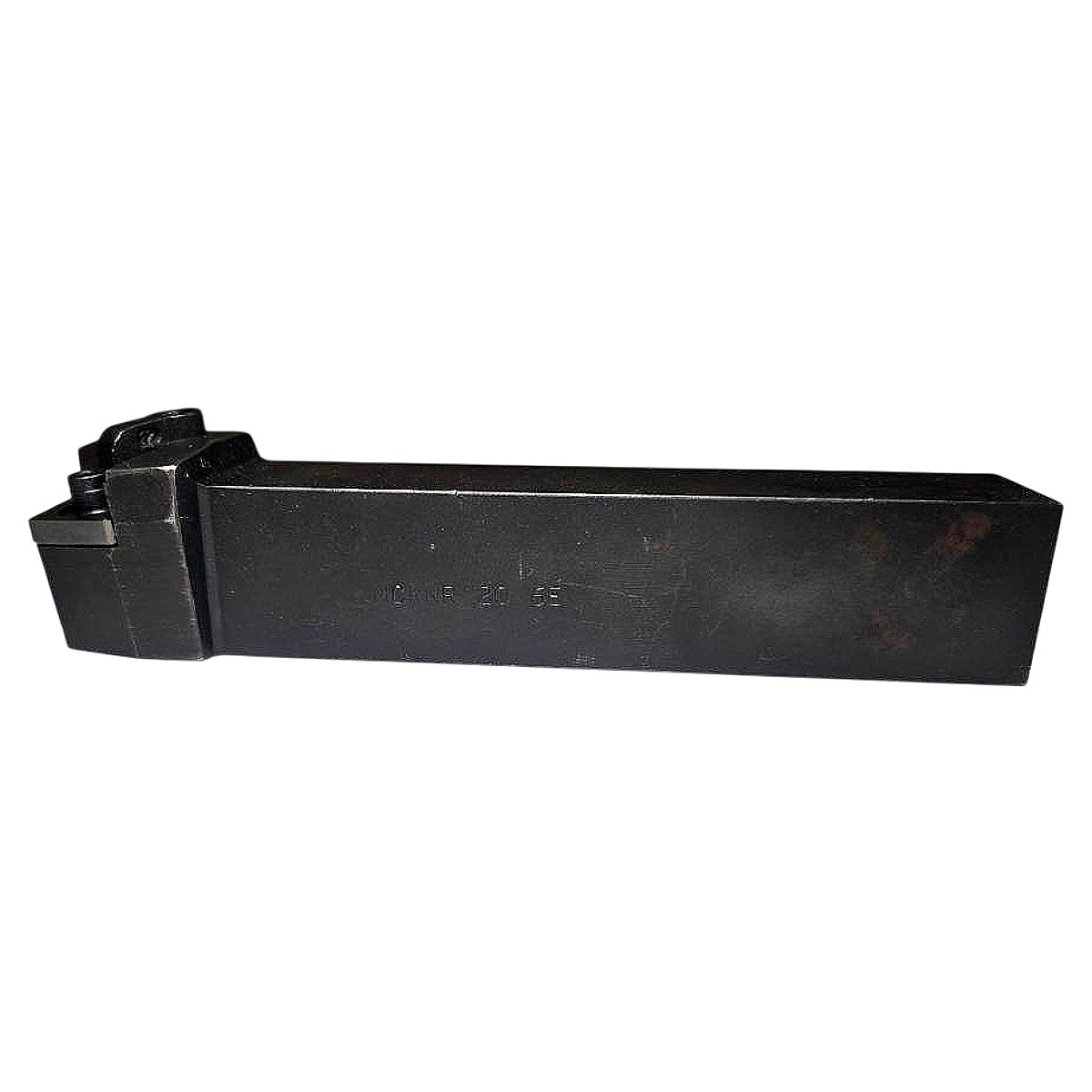

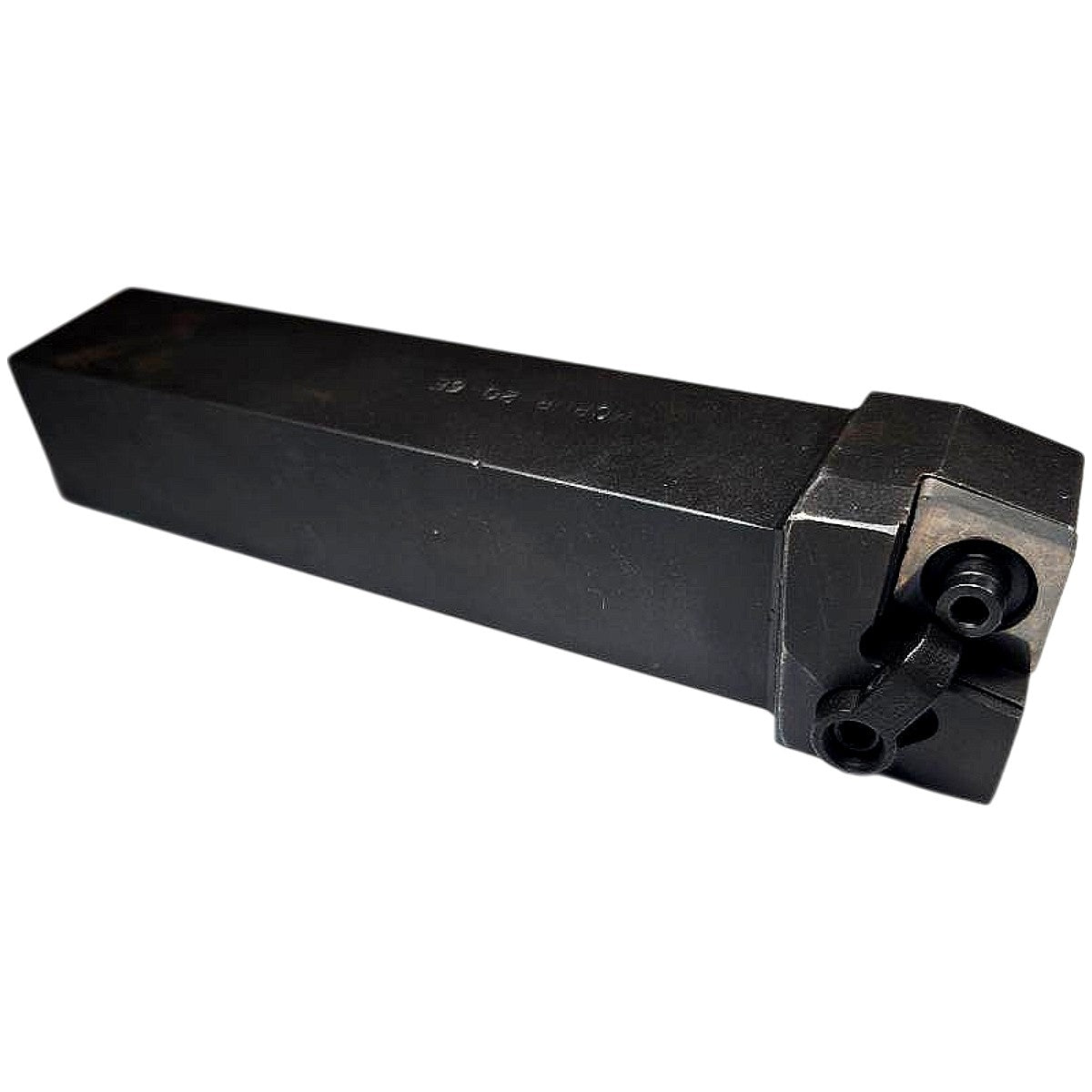

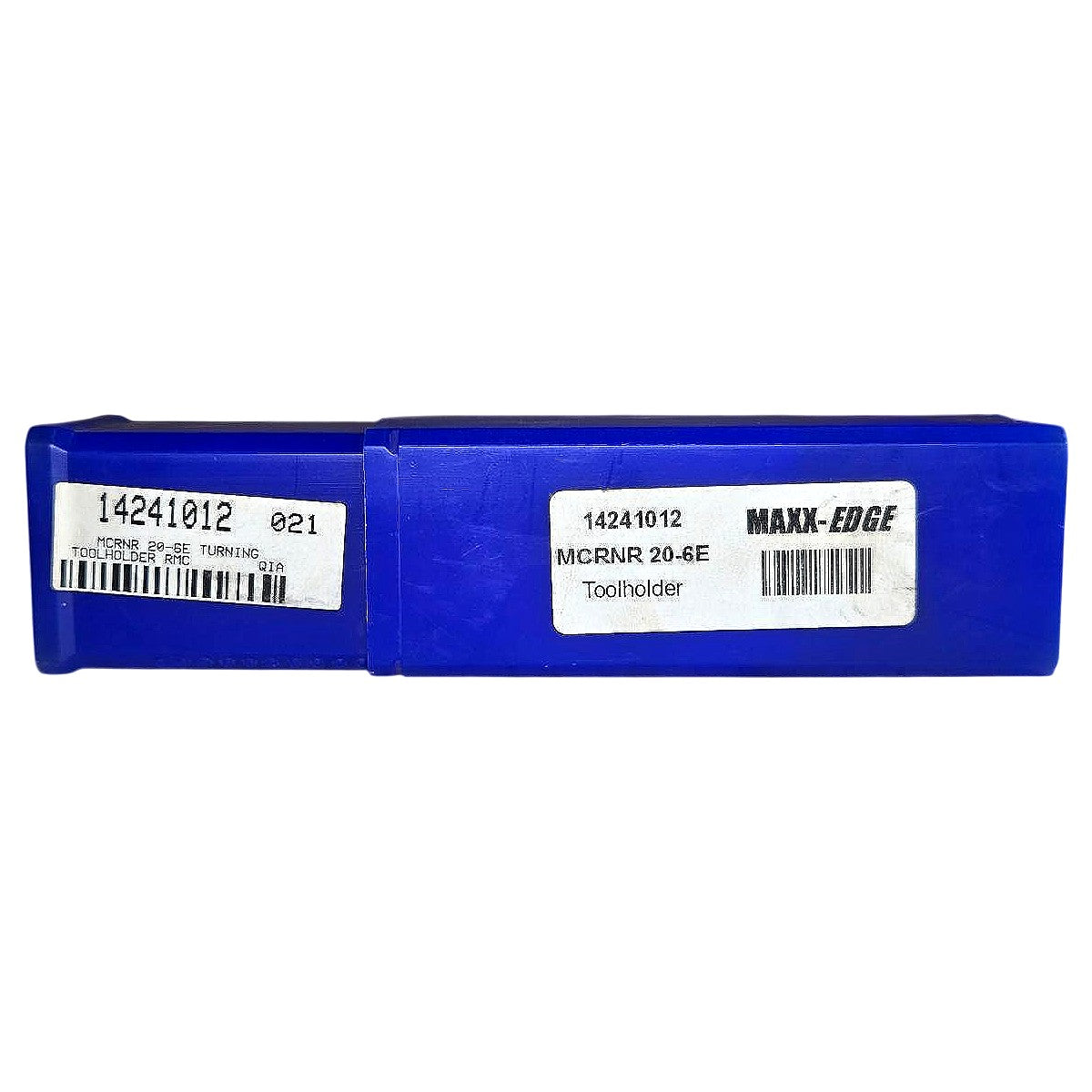

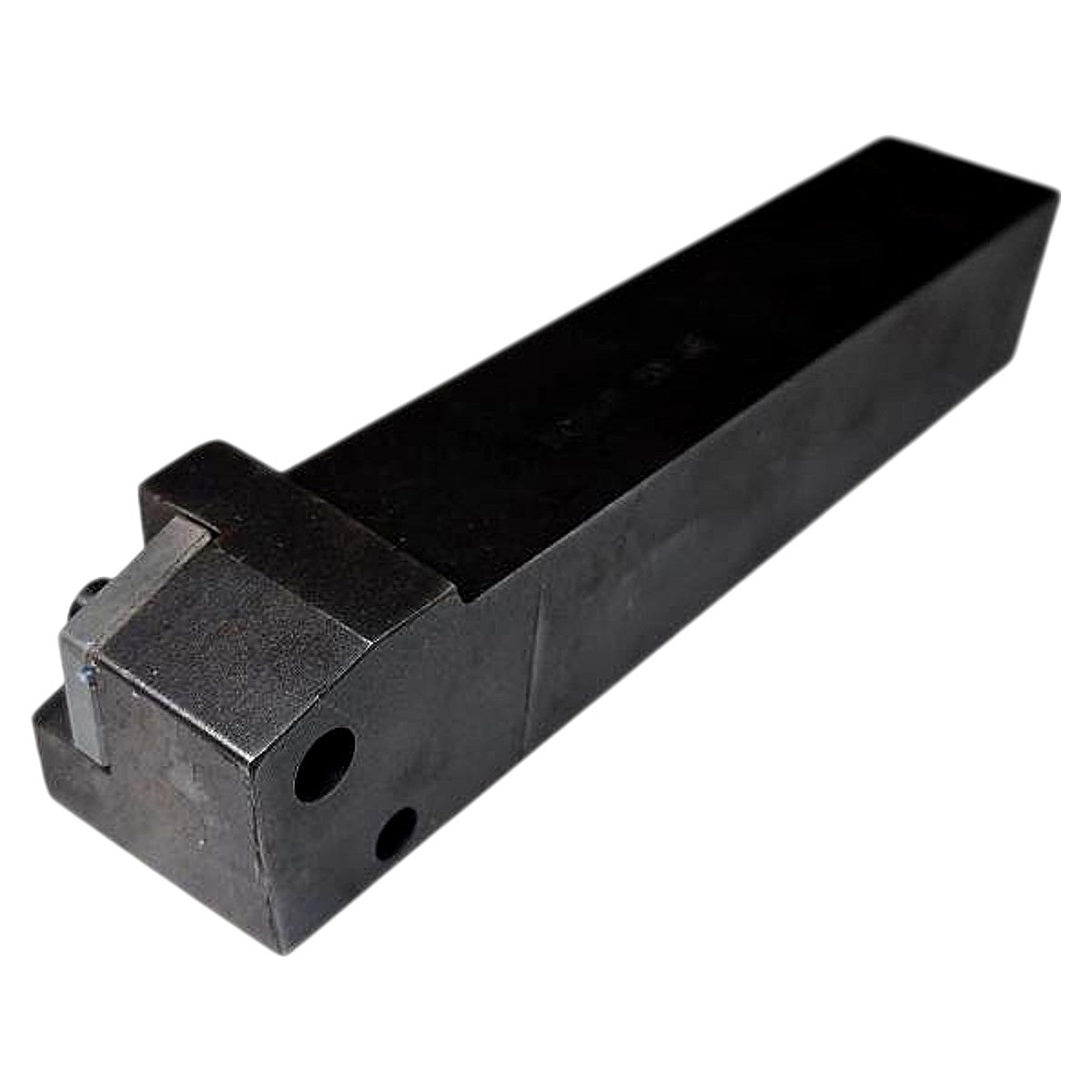

Maxx-Edge MCRNR 20-6E Right-Hand 20mm Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Maxx-Edge MCRNR 20-6E (catalog # 14241012) is a new ISO-standard external turning toolholder designed for CNMG 06-series inserts, featuring a 75° approach/lead angle (C-style mounting) and right-hand (R) cutting direction. The shank is 20 mm × 20 mm square cross-section with an overall length of 125 mm per the ISO MCRNR designation standard, constructed from hardened alloy steel with a black oxide finish for corrosion resistance. The "6E" suffix indicates compatibility with CNMG 060204/060208/060212 inserts and the lever-lock (E-style) clamping mechanism, which provides rigid insert seating and fast indexing without auxiliary components. This toolholder is suited for general-purpose external longitudinal turning and facing operations on CNC lathes and manual turret lathes accepting 20 mm square shank tooling.
Product Specifications
| Brand | Maxx-Edge |
| MPN | MCRNR 20-6E |
| Catalog # | 14241012 |
| ISO Designation | MCRNR 20-6E |
| Insert Style | CNMG (80° diamond, 7° clearance) |
| Insert Size | CNMG 06 series (06xx) |
| Clamping System | Lever-lock (E-style) |
| Cutting Direction | Right-Hand (R) |
| Approach Angle | 75° |
| Shank Width | 20 mm |
| Shank Height | 20 mm |
| Overall Length | 125 mm |
| Shank Cross-Section | Square |
| Body Material | Alloy steel |
| Finish | Black oxide |
| Hand of Cut | Right-Hand |
| Operation | External turning, facing |
| Condition | New |
