Melin CCMG-1616-R020-DIA 1/2in 4 Flute .020 Radius Carbide End Mill
Regular price
$53.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

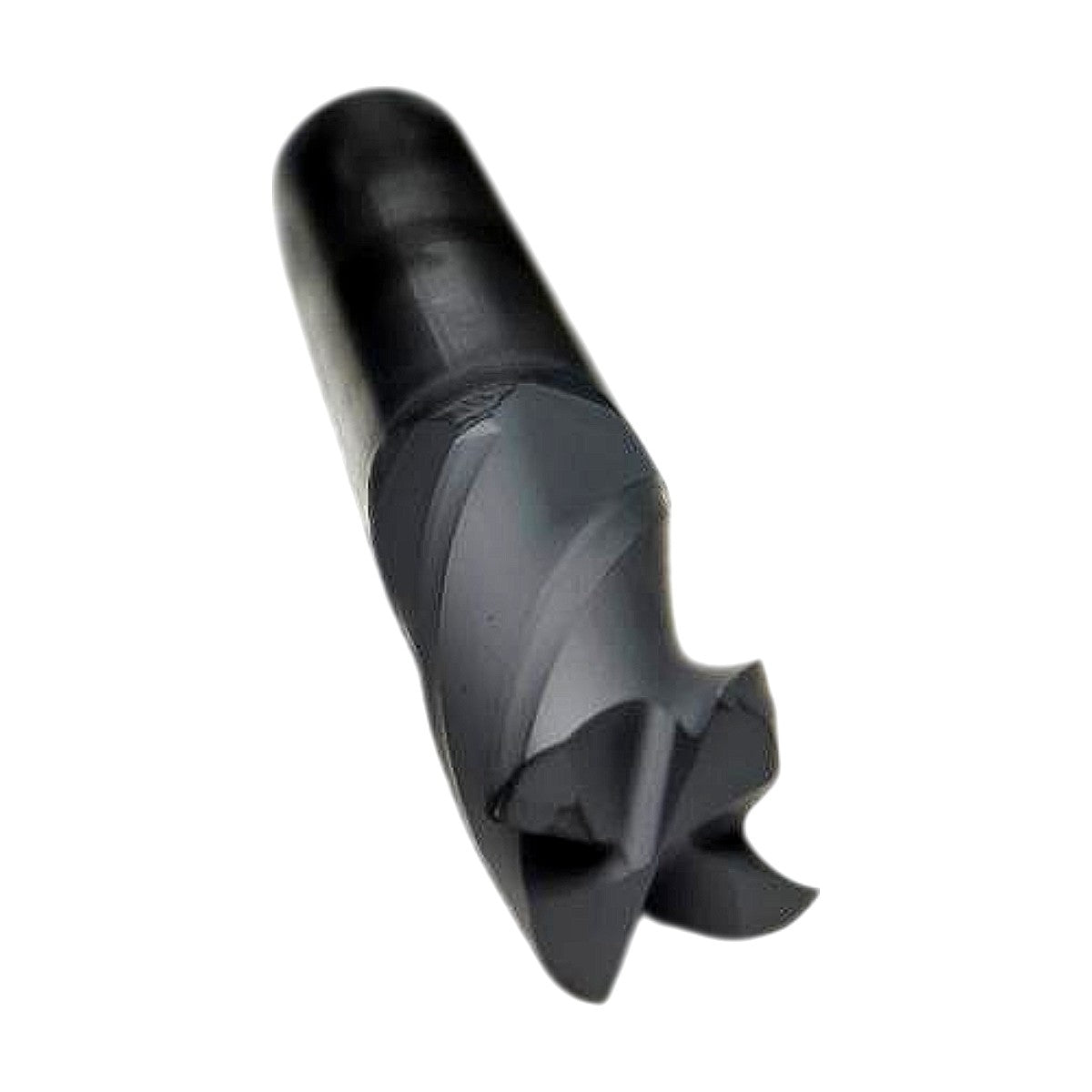

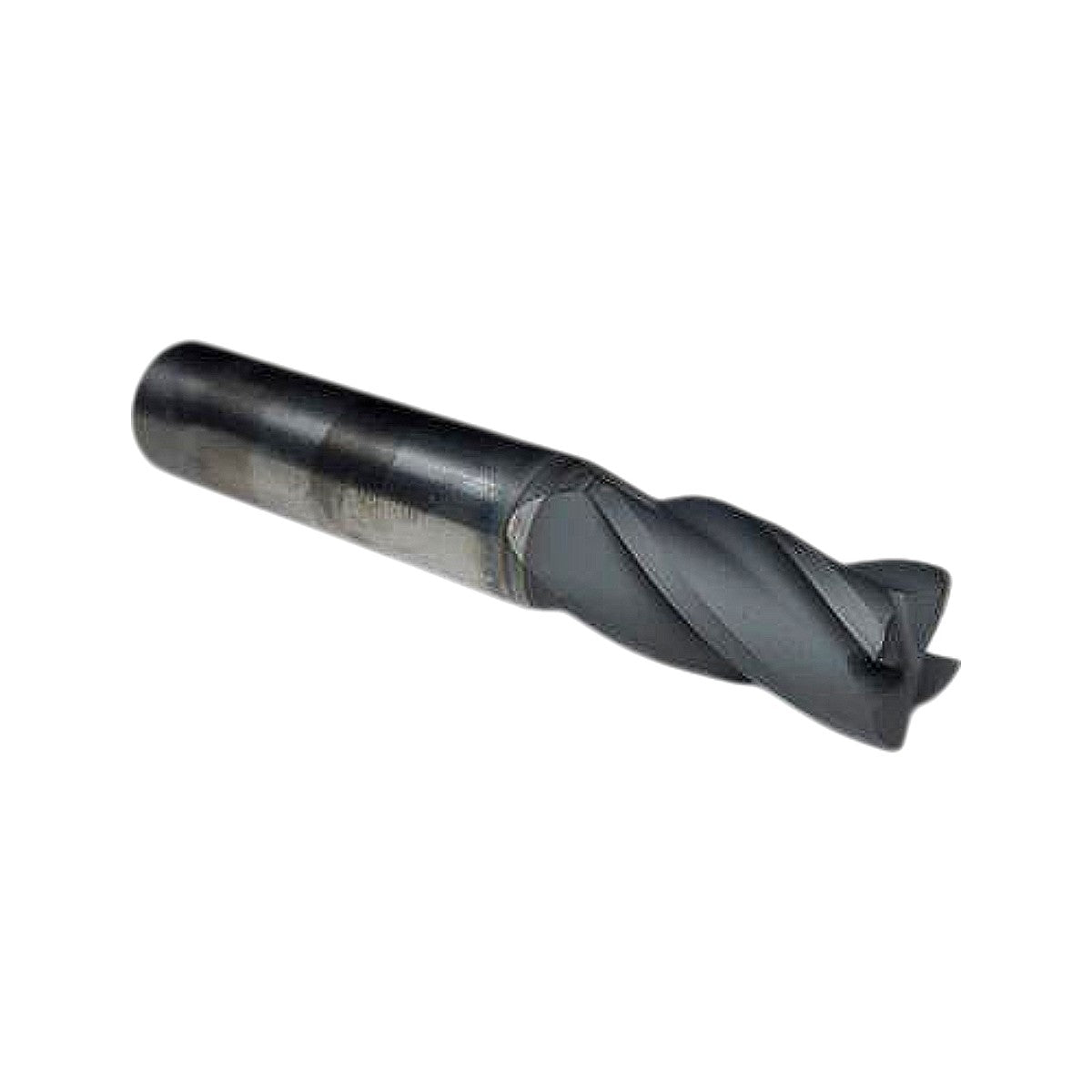

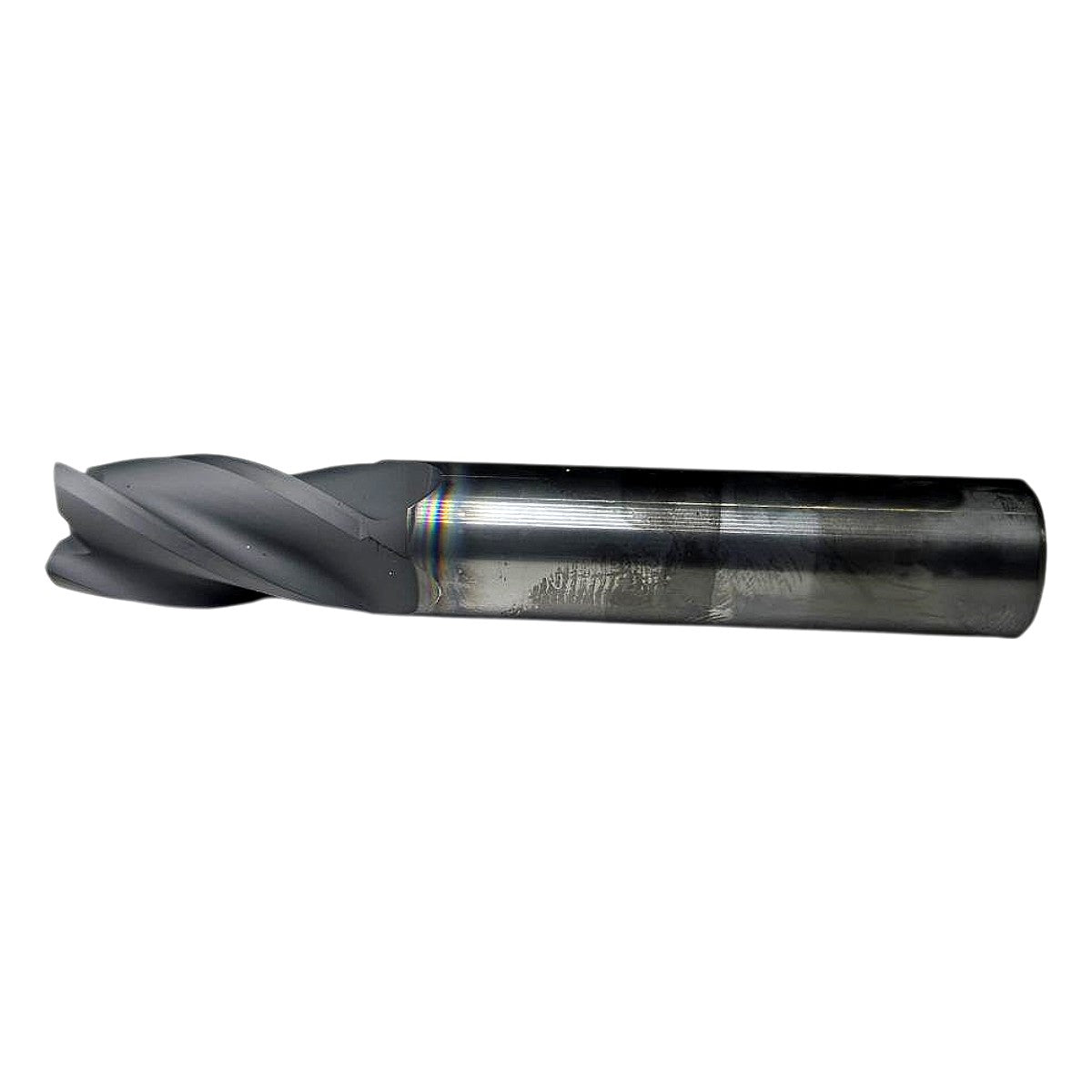

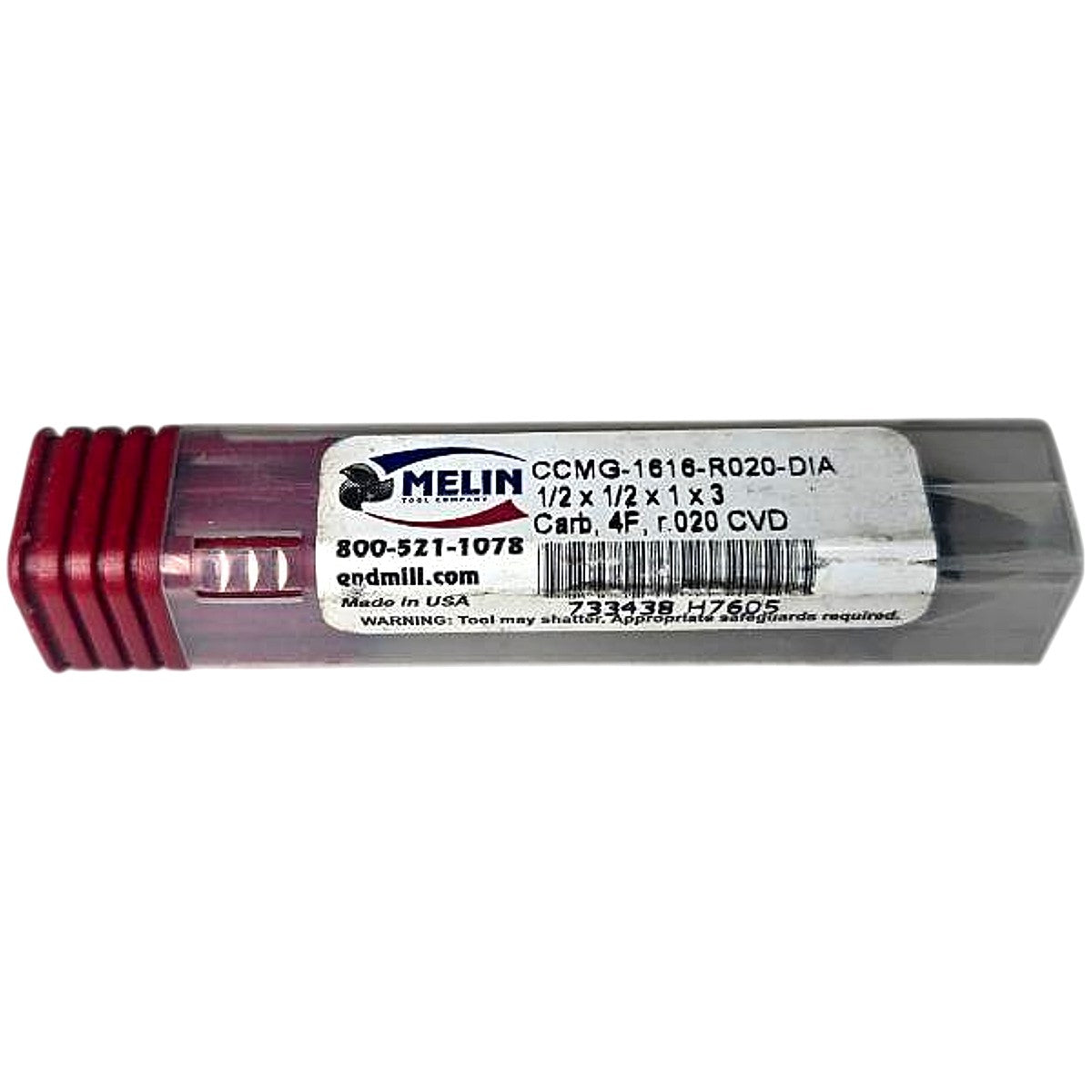

This Melin Tool Company CCMG-1616-R020-DIA is a solid carbide corner radius end mill with four flutes, a 1/2 in cutting diameter, a 1/2 in shank, a 1 in length of cut and a 3 in overall length. The corner radius is 0.020 in, which strengthens the cutting corner and improves tool life compared to a sharp-corner tool. The label identifies a CVD coating, and the tool appears dark gray with a bright ground shank. Melin catalog number 733438 is printed on the label, and the tool is made in the USA. This end mill is new, supplied in its original plastic tube packaging.
Product Specifications
| Brand | Melin Tool Company |
| MPN | CCMG-1616-R020-DIA |
| Alternate Part Number | 733438 |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Cutting Diameter | 1/2 in |
| Shank Diameter | 1/2 in |
| Length of Cut | 1 in |
| Overall Length | 3 in |
| Corner Radius | 0.020 in |
| Coating | CVD |
| End Type | Corner Radius |
| Country of Origin | USA |
| Operation | Milling |
| Shank Type | Straight |
