Metal 30-958-3,25 0-6 1/8in .286 THD Groove Checker Checking Rod
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

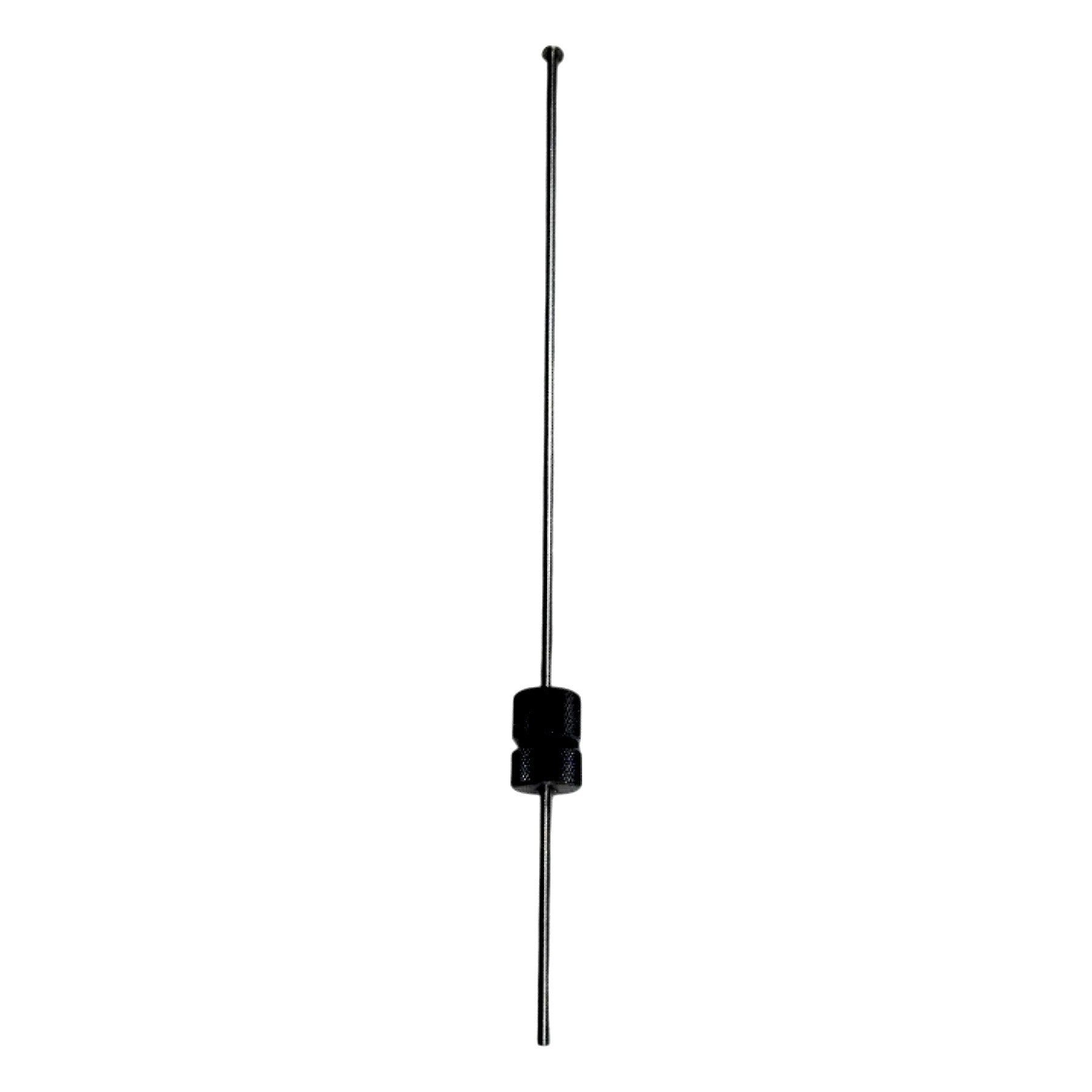

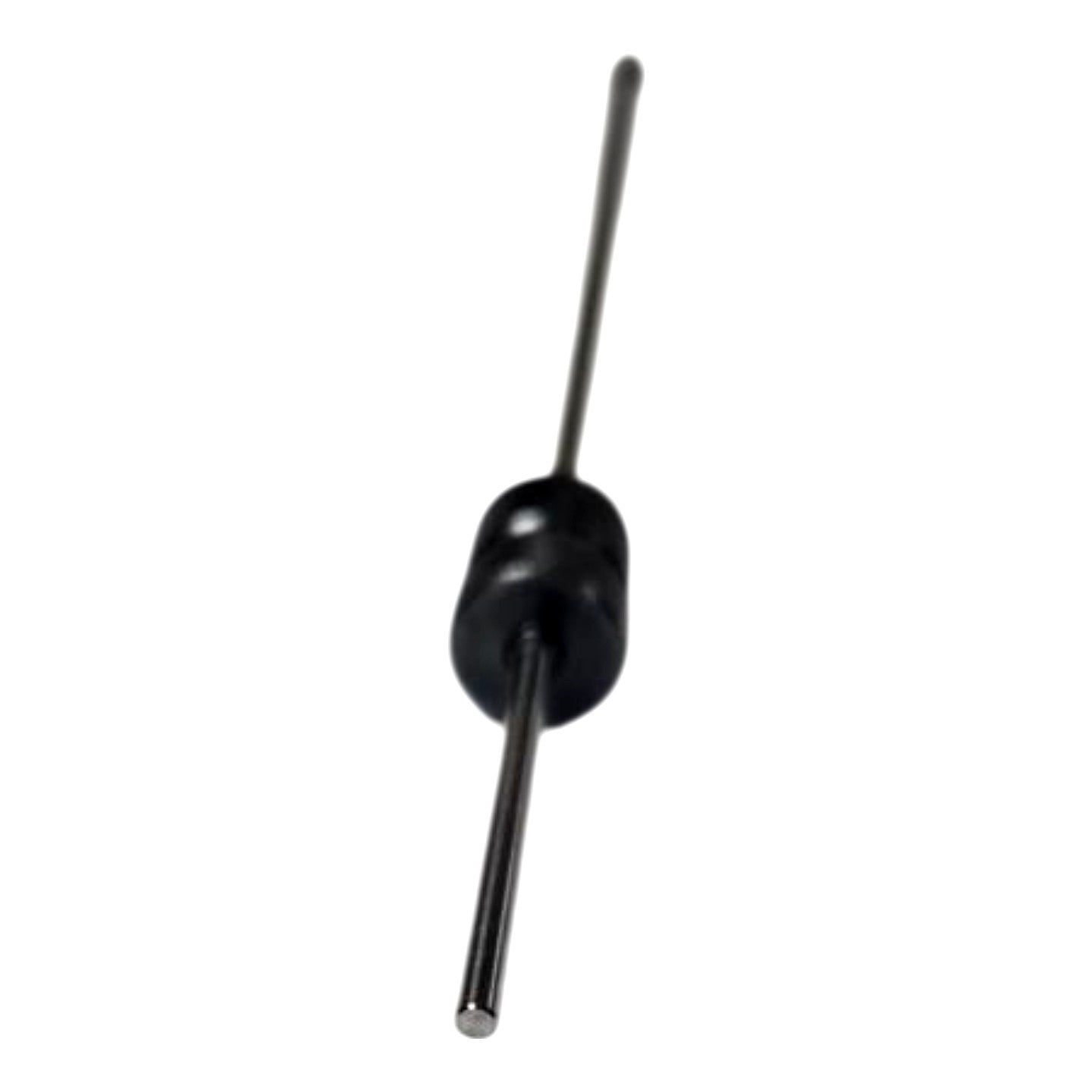

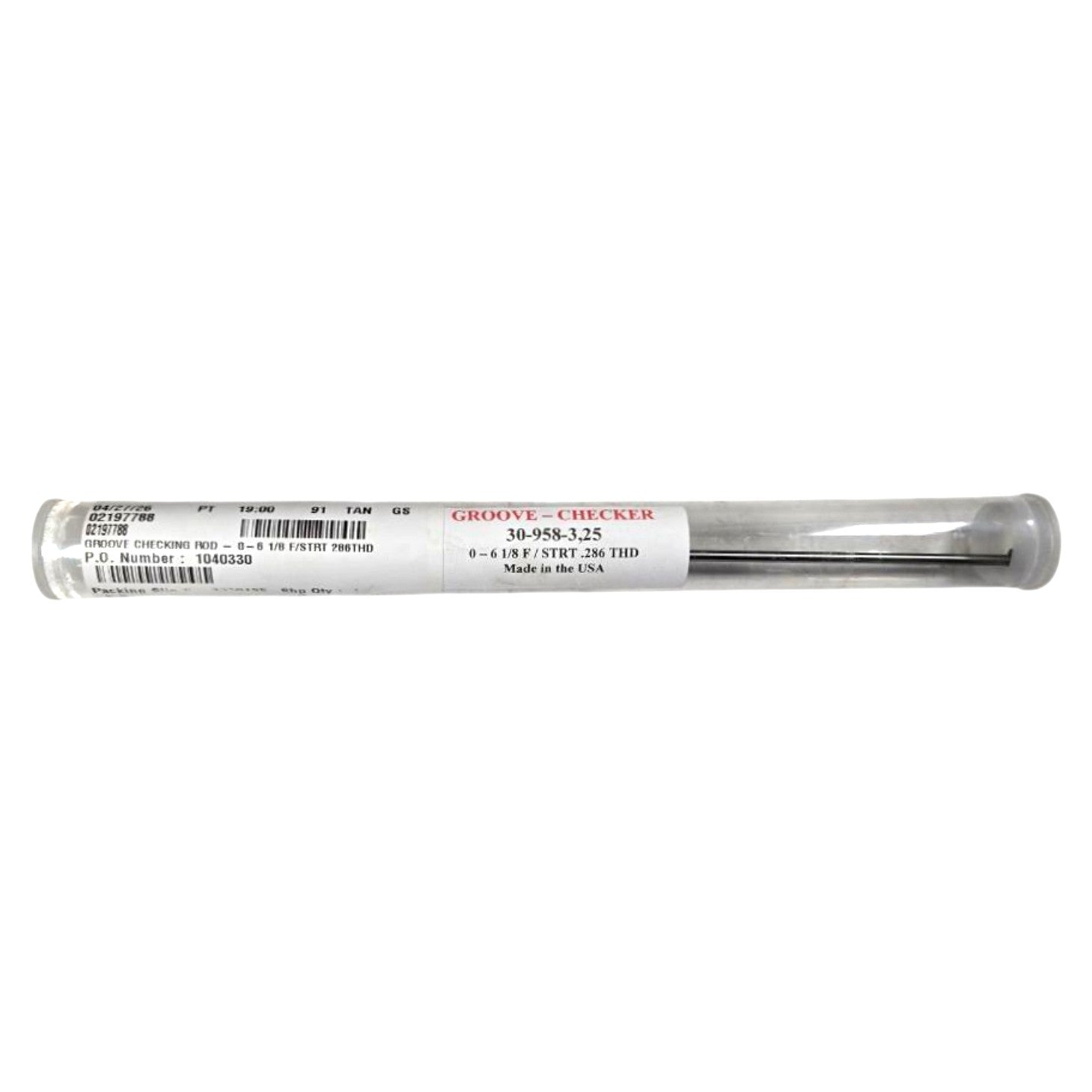

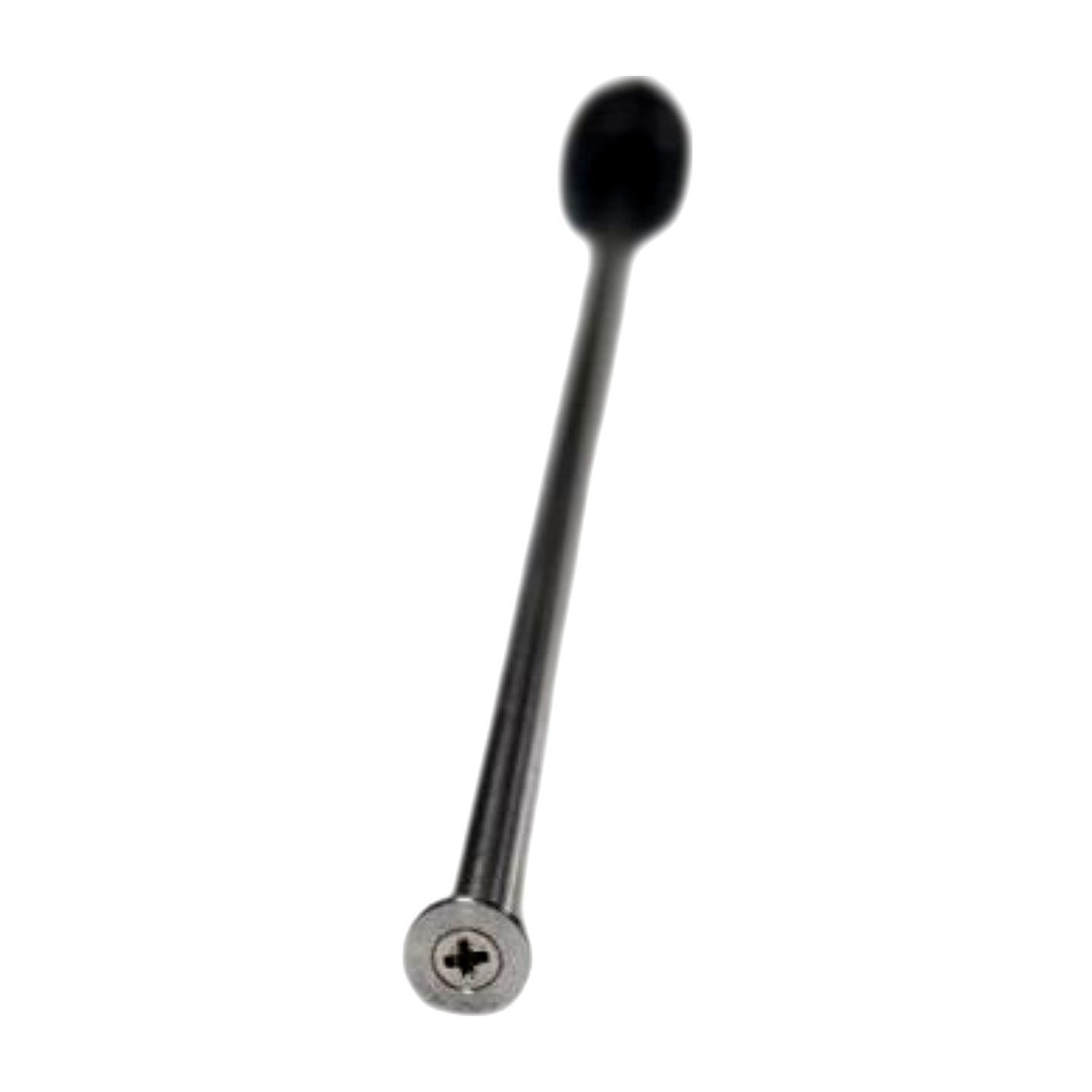

The Metal Groove-Checker model 30-958-3,25 is a new, USA-made groove checking rod designed for use with Starrett 440 Series Groove Depth Gages. The rod spans a measurement range of 0 to 6-1/8 inches and features a straight .286-inch thread (STRT .286 THD) for secure attachment to compatible depth gage heads. Construction is hardened steel with a black oxide finish on the central locking collar and a precision ground rod body with a spherical contact tip for accurate groove depth measurement. The knurled locking collar, visible in the photos, allows the rod to be set and secured at the desired depth position during measurement. This instrument is suited for measuring groove depth, slot depth, and recessed features where a standard depth micrometer rod cannot reach.
Product Specifications
| Brand | Metal (Groove-Checker) |
| MPN | 30-958-3,25 |
| Country of Origin | USA |
| Minimum Measurement | 0 in |
| Maximum Measurement | 6-1/8 in |
| Thread Specification | Straight .286 THD |
| Contact Tip Style | Spherical (ball tip) |
| Compatible Gage | Starrett 440 Series Groove Depth Gage |
| Collar Style | Knurled locking collar |
| Finish | Black oxide collar, ground steel rod |
| Condition | New |
| Measurement Type | Groove / slot depth |
