Micro 100 ARM-281-2S 9/32 in 2-Flute ZrN Coated Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

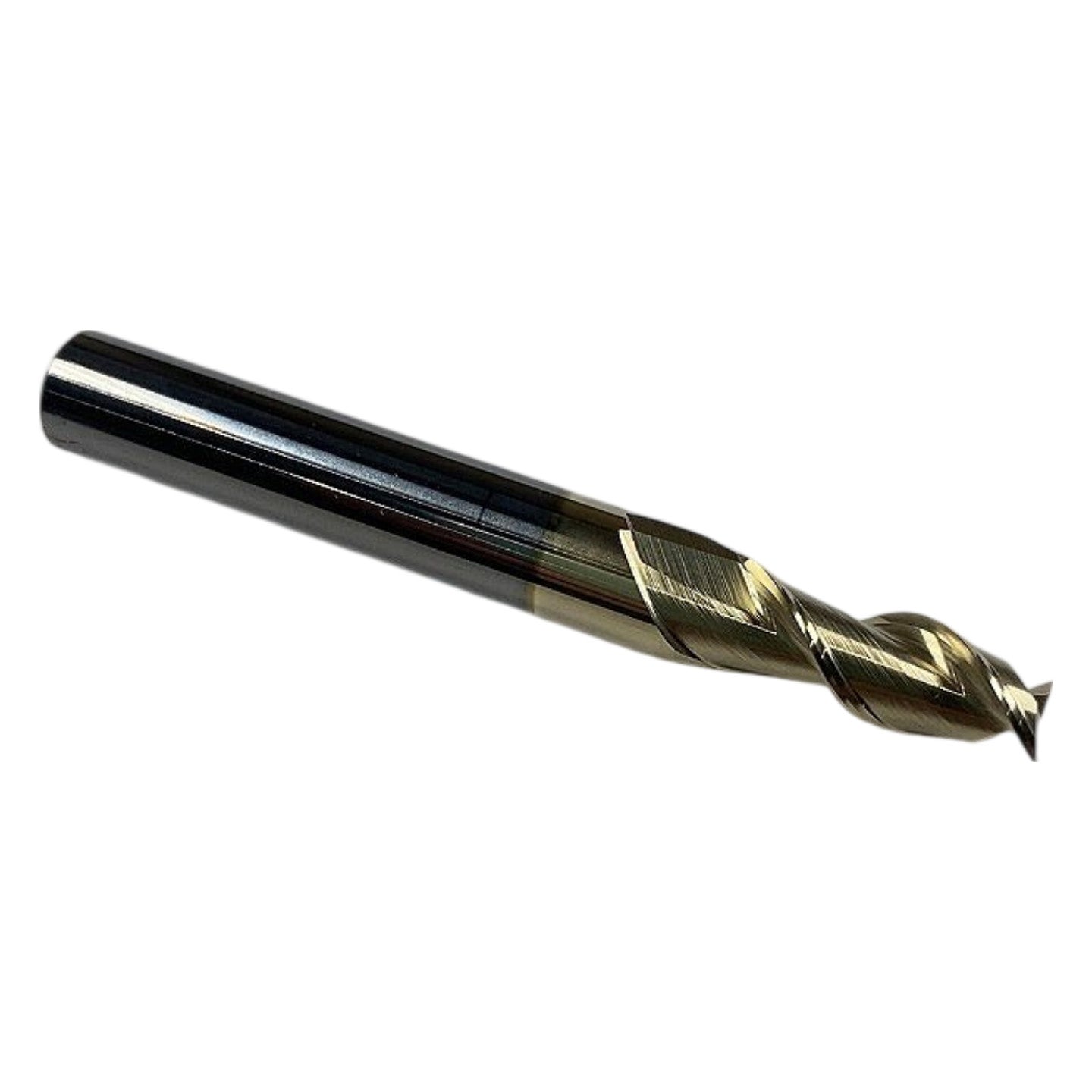

The Micro 100 ARM-281-2S is a new, solid "super carbide" 2-flute square-end end mill from the ARM (Aluminum Roughing Mill) series, manufactured in the USA. The part number decodes as follows: ARM = Aluminum Roughing Mill series; 281 = 9/32 in (0.2813 in) cutting diameter; 2 = 2 flutes; S = ZrN (Zirconium Nitride) coating, which appears as the gold finish visible in the primary photo. ZrN coating provides an extremely low coefficient of friction and excellent lubricity, making it purpose-built for high-speed machining of aluminum and non-ferrous alloys where chip welding and built-up edge are primary concerns. The ARM series features a high-helix geometry and polished flutes engineered for aggressive aluminum roughing with superior chip evacuation; the 9/32 in shank diameter matches the cutting diameter per Micro 100's standard ARM geometry. This tool is compatible with standard ER collet chucks and precision milling chucks accepting a 9/32 in (0.2813 in) shank.
Product Specifications
| Brand | Micro 100 |
| MPN | ARM-281-2S |
| Country of Origin | USA |
| Material | Solid Carbide (Super Carbide) |
| Coating | ZrN (Zirconium Nitride) – gold finish |
| Number of Flutes | 2 |
| Cutting Diameter | 9/32 in (0.2813 in) |
| Shank Diameter | 9/32 in (0.2813 in) |
| End Type | Square (Flat) |
| Series | ARM – Aluminum Roughing Mill |
| Helix Angle | High helix (approx. 45°) |
| Primary Application | Aluminum & non-ferrous alloys |
| Condition | New |
