Micro 100 ASM-312-5 3/8in 5-Flute AlTiN Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

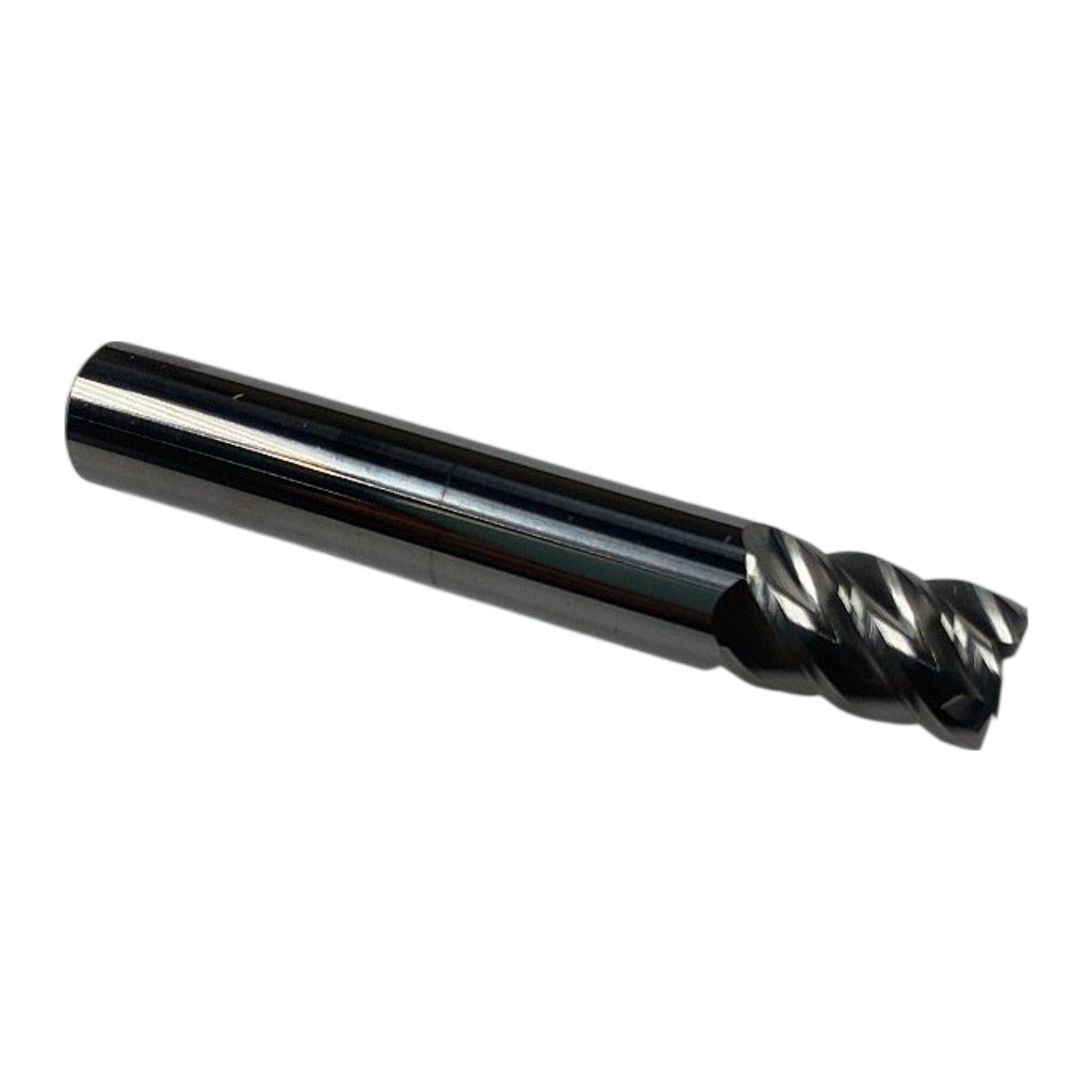

The Micro 100 ASM-312-5 is a new, USA-made solid submicron carbide square end mill from the "Advanced" (ASM) series, ground to a 3/8 in (0.3125 in) cutting diameter with a 3/8 in straight shank and featuring 5 flutes for superior surface finish and increased feed rates versus 4-flute designs. The AlTiN (Aluminum Titanium Nitride) coating — indicated by the dark finish visible in the product photo — provides hardness up to ~3,300 HV and oxidation resistance to approximately 1,600 °F, making the tool well-suited for dry or semi-dry machining of hardened steels, stainless steel, titanium alloys, and superalloys. Per Micro 100's published catalog data for the ASM-312-5, the tool has a 1-1/16 in length of cut and a 3 in overall length, with a 45° helix angle optimized for chip evacuation and vibration damping in high-performance CNC milling operations. This end mill is compatible with standard 3/8 in ER collet chucks, hydraulic chucks, and shrink-fit holders.
Product Specifications
| Brand | Micro 100 |
| MPN | ASM-312-5 |
| Series | Advanced (ASM) |
| Cutting Diameter | 3/8 in (0.3750 in) |
| Shank Diameter | 3/8 in (0.3750 in) |
| Number of Flutes | 5 |
| End Type | Square (Flat) |
| Length of Cut (LOC) | 1-1/16 in (1.0625 in) |
| Overall Length (OAL) | 3 in |
| Helix Angle | 45° |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Substrate | Submicron solid carbide |
| Shank Type | Straight |
| Country of Origin | USA |
| Condition | New |
