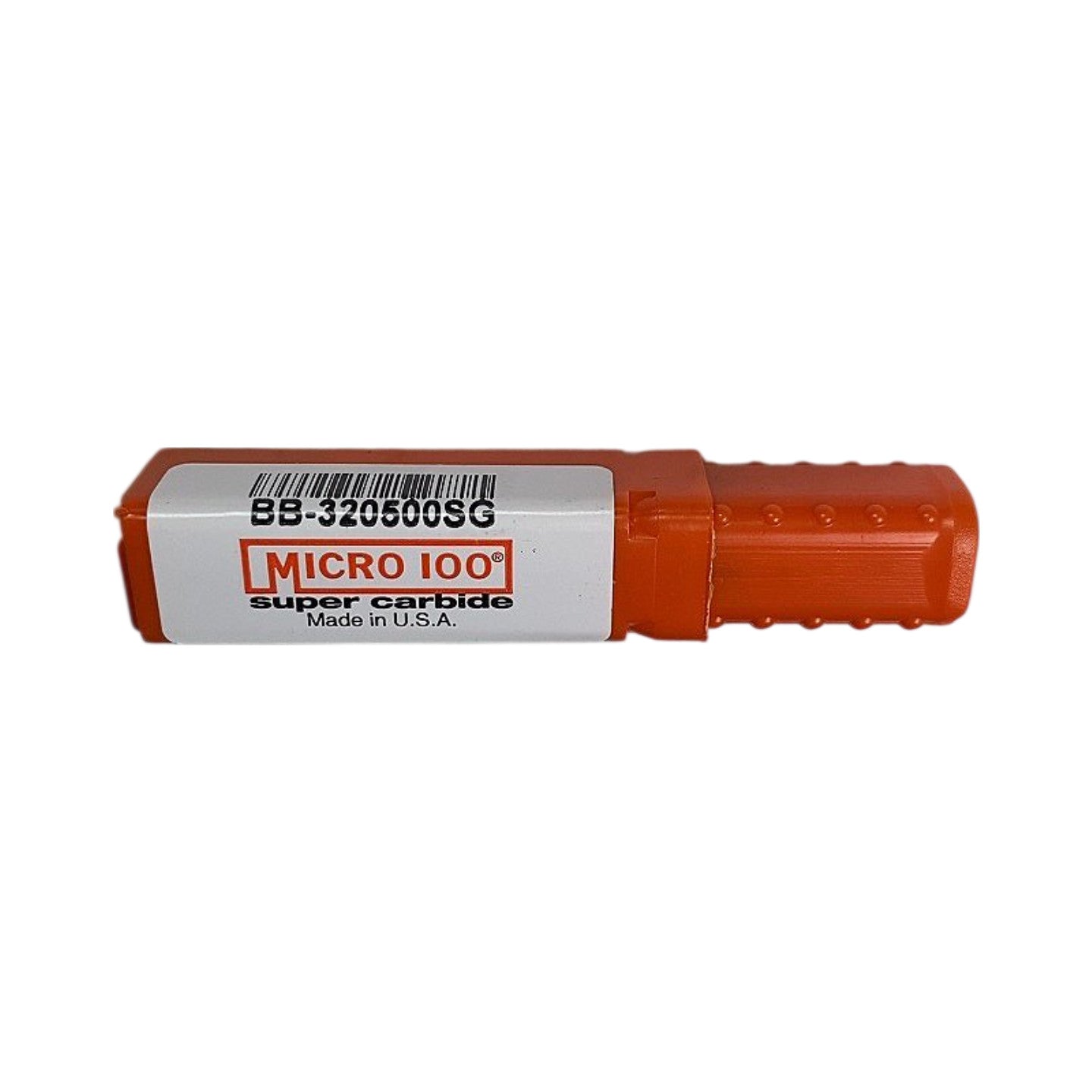

Micro 100 BB-320500SG Solid Carbide Right Hand Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

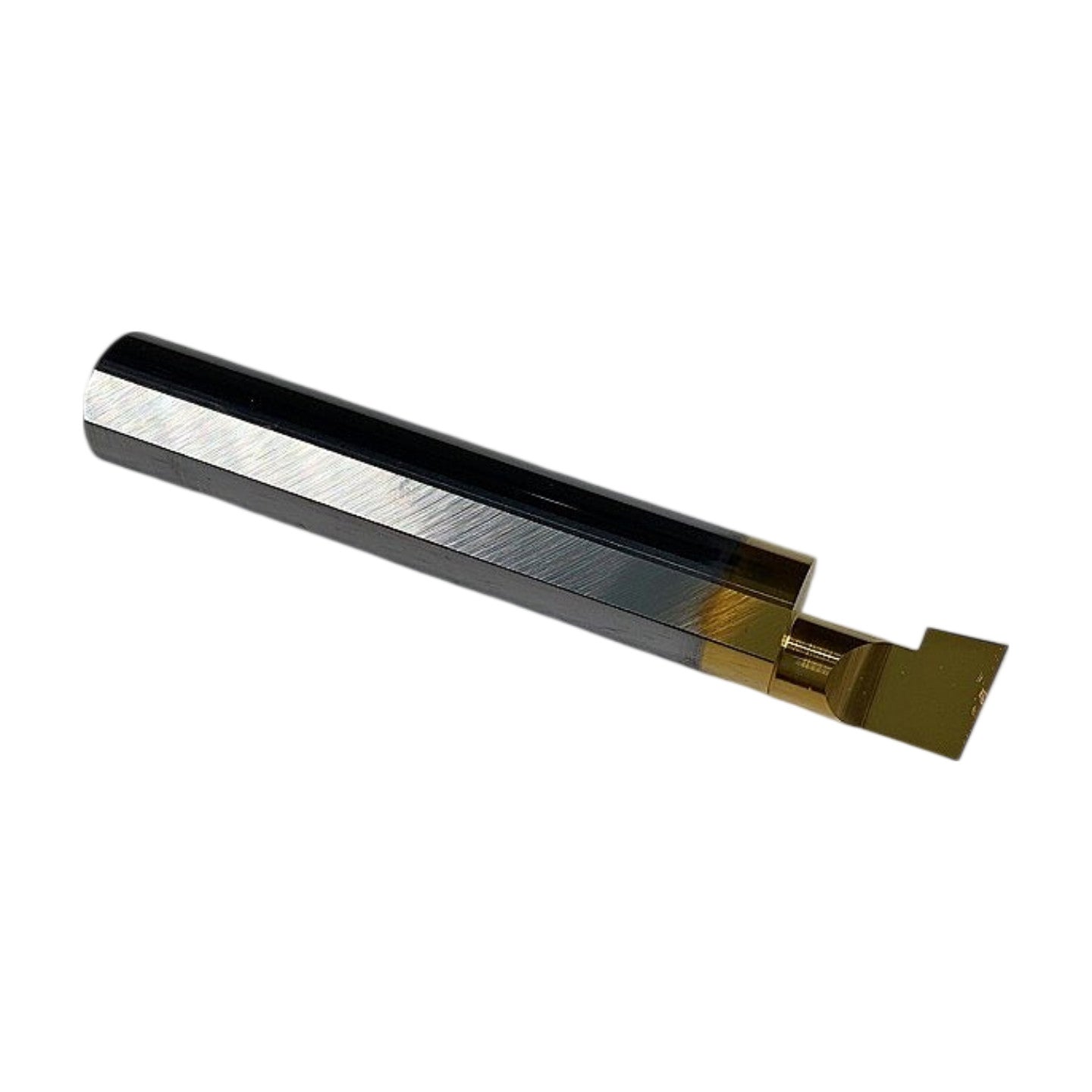

The Micro 100 BB-320500SG is a new, solid "Super Carbide" right-hand boring bar from Micro 100's BB (Boring Bar) series, manufactured in the USA. Decoding the part number: BB = Boring Bar, 320 = 5/16 in (0.3125 in) shank diameter, 500 = 1/2 in (0.500 in) minimum bore diameter, SG = Single-end, with a TiN (gold) coated carbide insert brazed at the tip — consistent with the bright gold cutting tip clearly visible in the photos. The bar body features a DLC/black-oxide finish on the steel shank with a precision-ground flat for secure setscrew clamping, and the gold-colored TiN-coated carbide tip provides superior wear resistance for boring steel, cast iron, aluminum, and non-ferrous alloys. This tool is designed for use in CNC and manual lathes where the toolholder accepts a 5/16 in shank, with an overall length of 3.00 in providing a maximum bore depth of approximately 0.500 in.
Product Specifications
| Brand | Micro 100 |
| MPN | BB-320500SG |
| Series | BB (Boring Bar) |
| Shank Diameter | 5/16 in (0.3125 in) |
| Minimum Bore Diameter | 0.500 in |
| Overall Length | 3.00 in |
| Hand of Cut | Right Hand |
| Tool Material | Solid Carbide (Super Carbide grade) |
| Coating | TiN (Titanium Nitride) — gold tip |
| Shank Finish | Black oxide / DLC coated shank |
| Country of Origin | USA |
| Condition | New |
