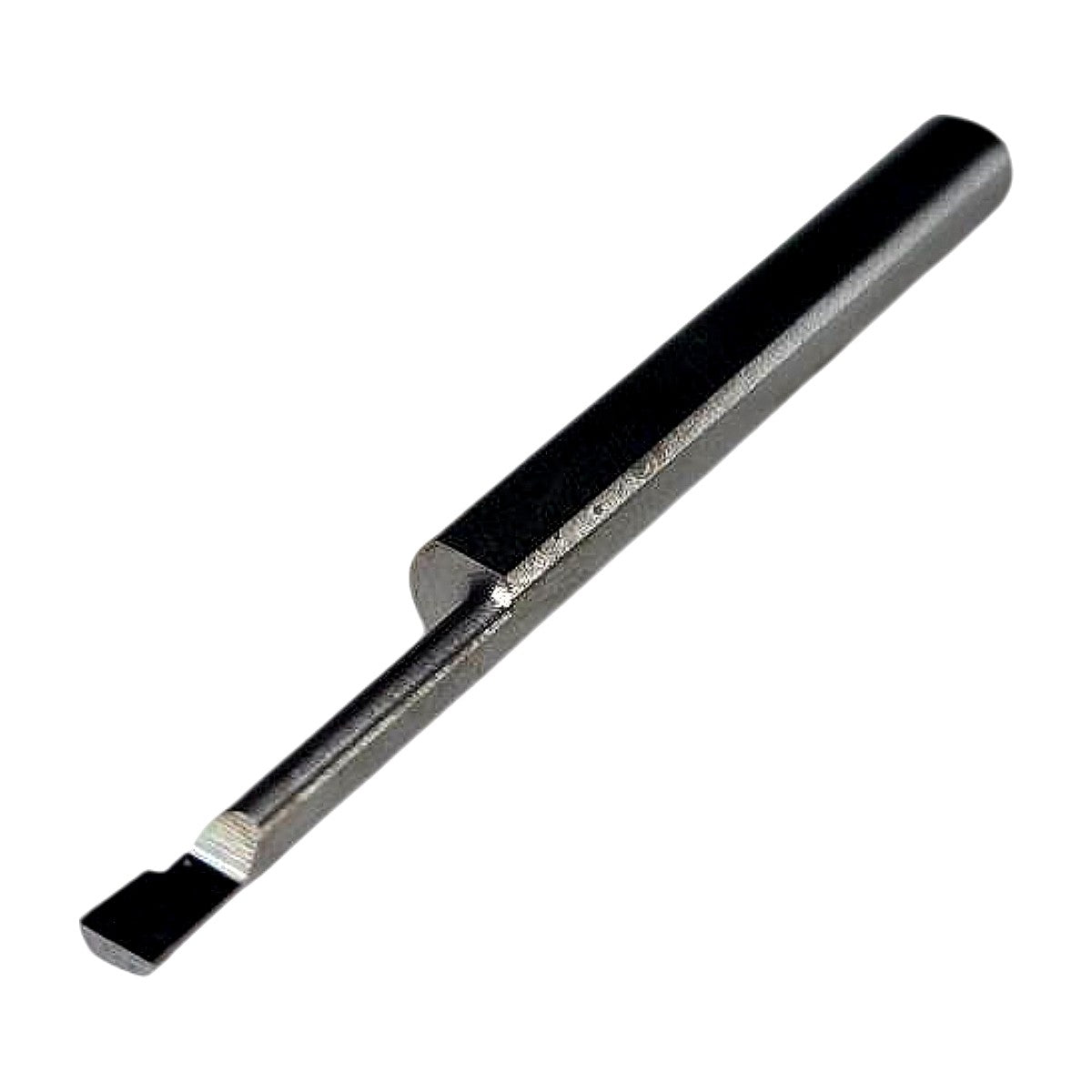

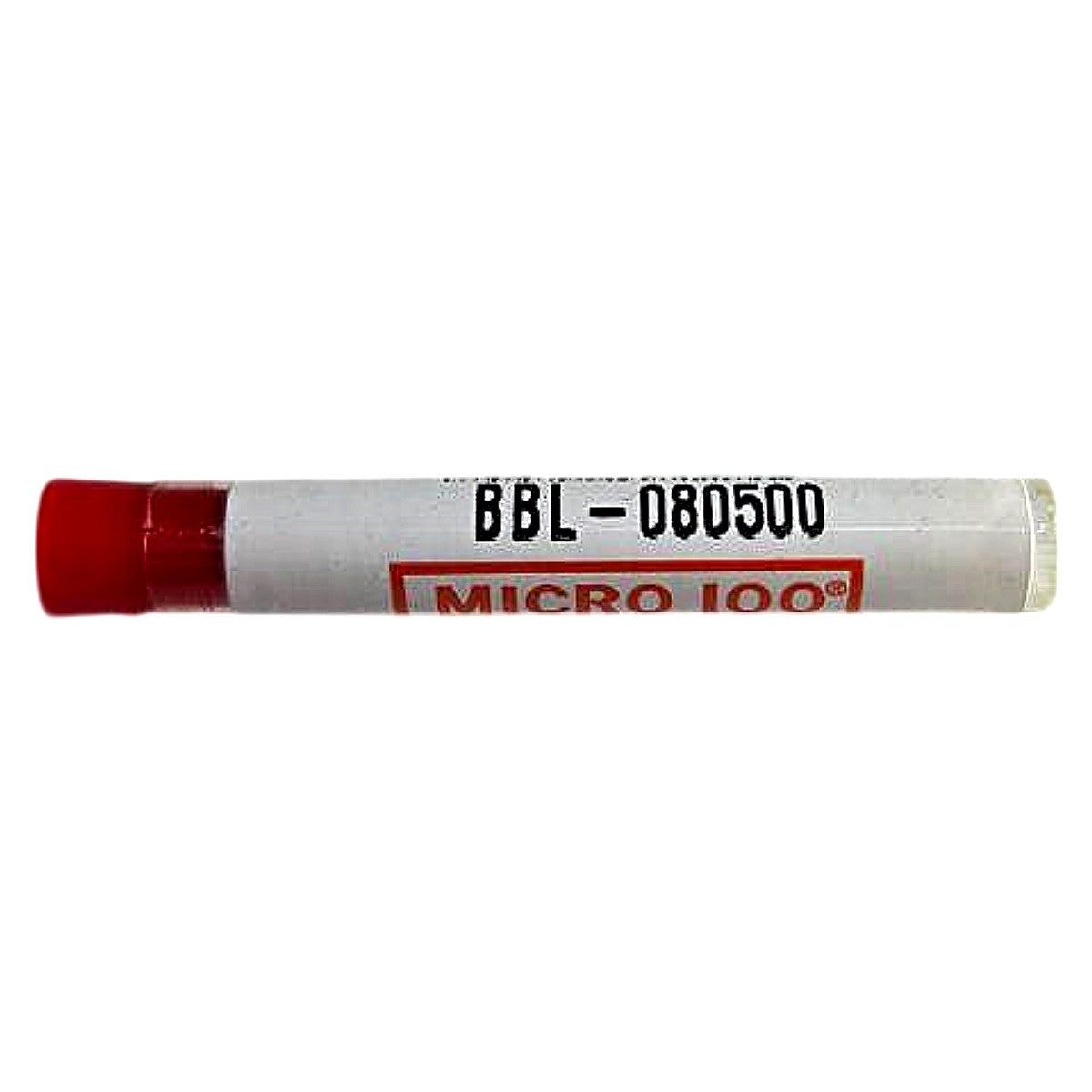

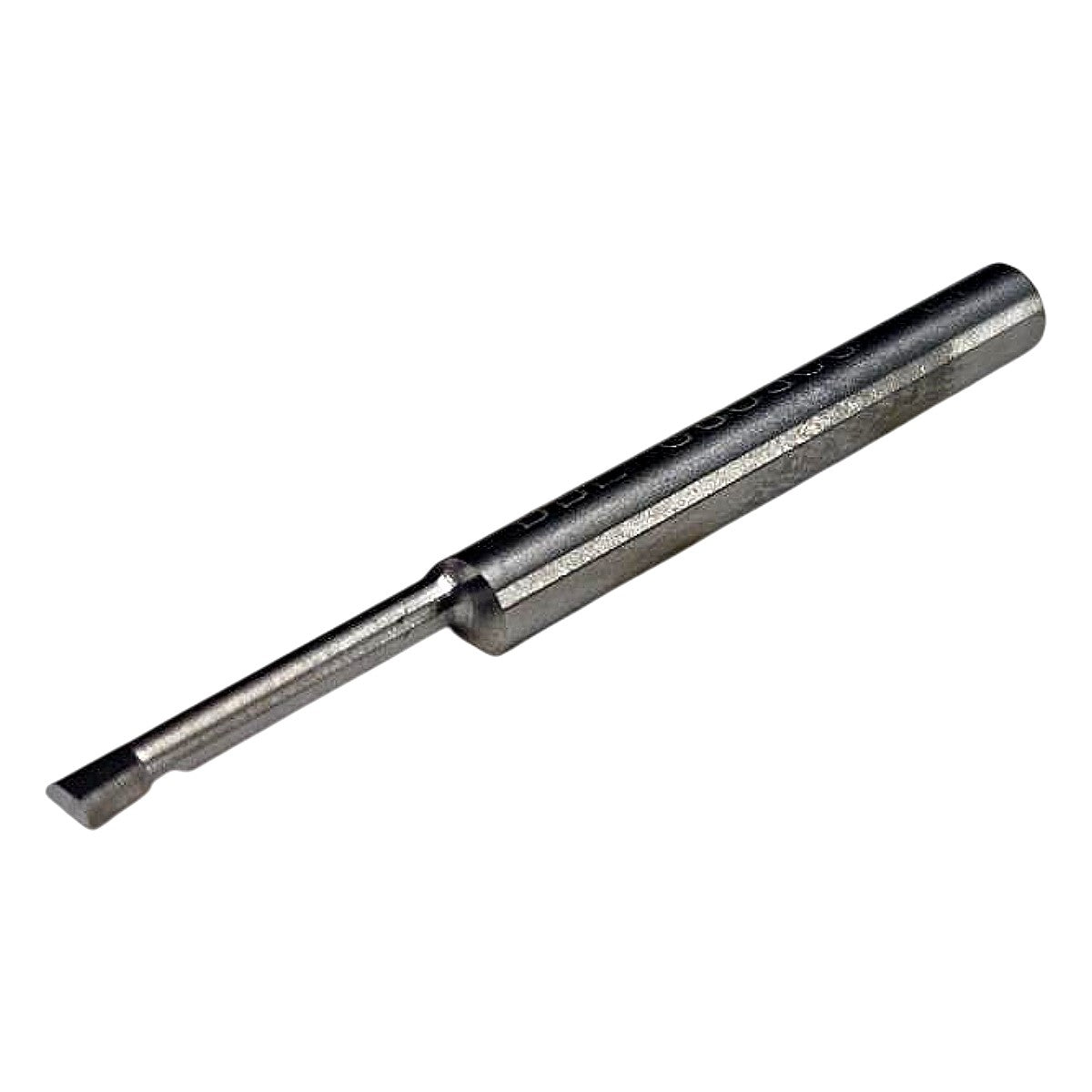

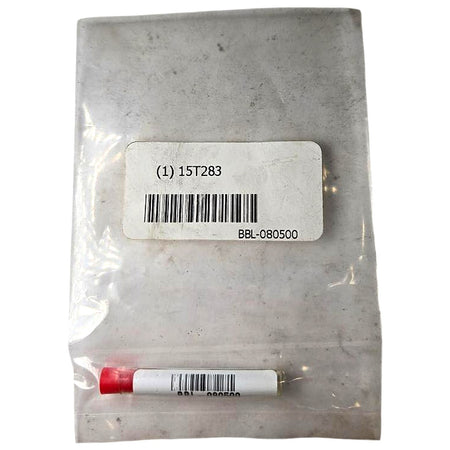

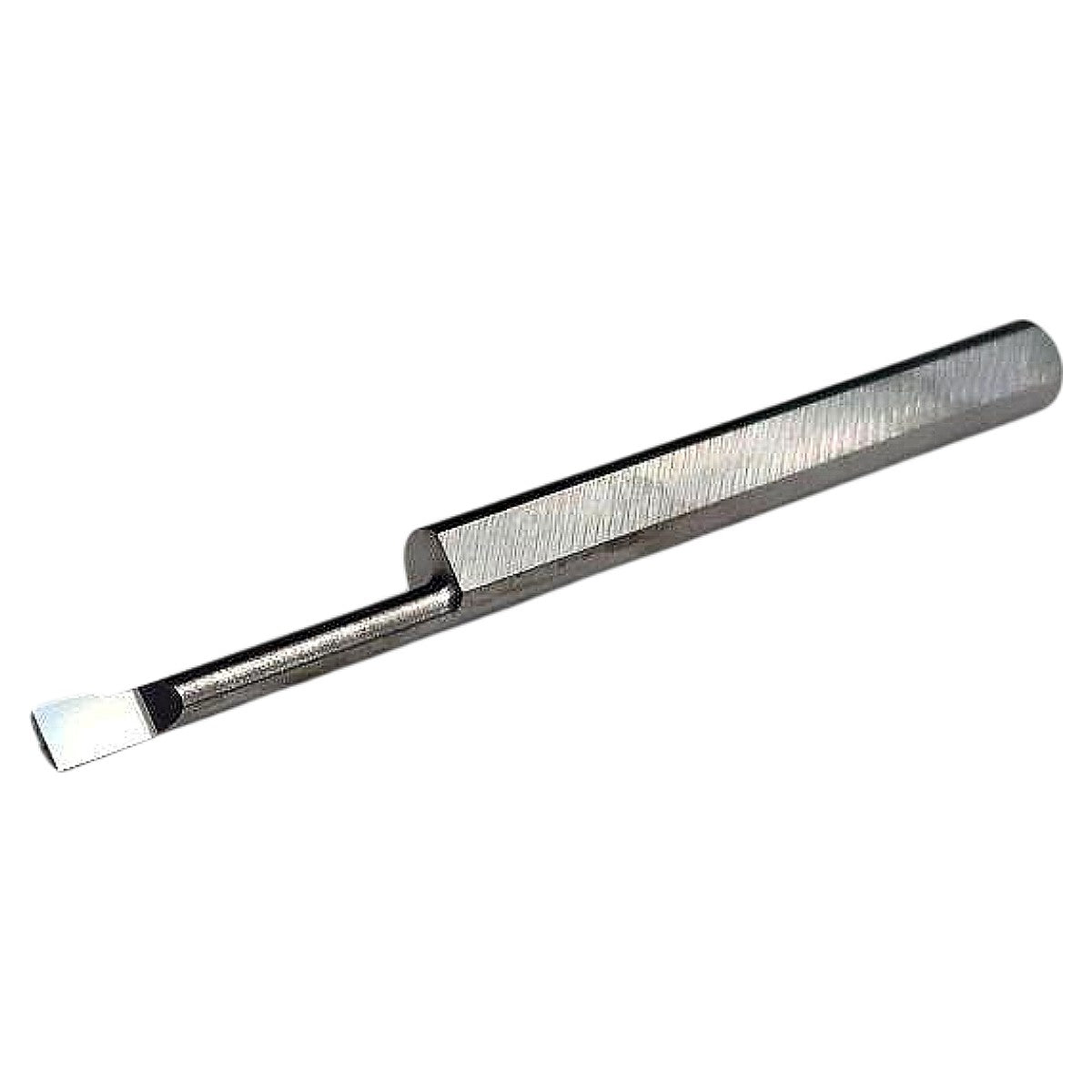

The Micro 100 BBL-080500 is a solid carbide left-hand boring bar from the BBL (Boring Bar, Left-hand) series, featuring a 1/8 in (0.0800 in) shank diameter and a 1/2 in (0.500 in) overall length, as decoded from the MPN suffix "080500" (0.080 in shank × 0.500 in OAL). The cutting geometry is a single-point, straight-shank design with the cutting tip ground 0.0180 in below center, optimized for internal boring of small-diameter holes on Swiss-type screw machines, CNC lathes, and multi-spindle automatics. The tool is supplied in a bright (uncoated) finish, preserving the as-ground carbide substrate for optimal edge sharpness and dimensional accuracy on non-ferrous materials, aluminum, plastics, and free-machining steels. Being new in original Micro 100 packaging (tube with red cap), this bar ships unused and unmounted, ready for direct clamping into compatible Micro 100 or standard round-bore toolholders sized for 1/8 in shank tools.
Product Specifications
| Brand | Micro 100 |
| MPN | BBL-080500 |
| Tool Type | Boring Bar, Left-Hand (BBL) |
| Material | Solid Carbide |
| Coating / Finish | Bright (Uncoated) |
| Shank Diameter | 0.0800 in (1/8 in) |
| Overall Length (OAL) | 0.500 in |
| Center to Cutting Tip | 0.0180 in |
| Hand of Cut | Left-Hand |
| Condition | New |
