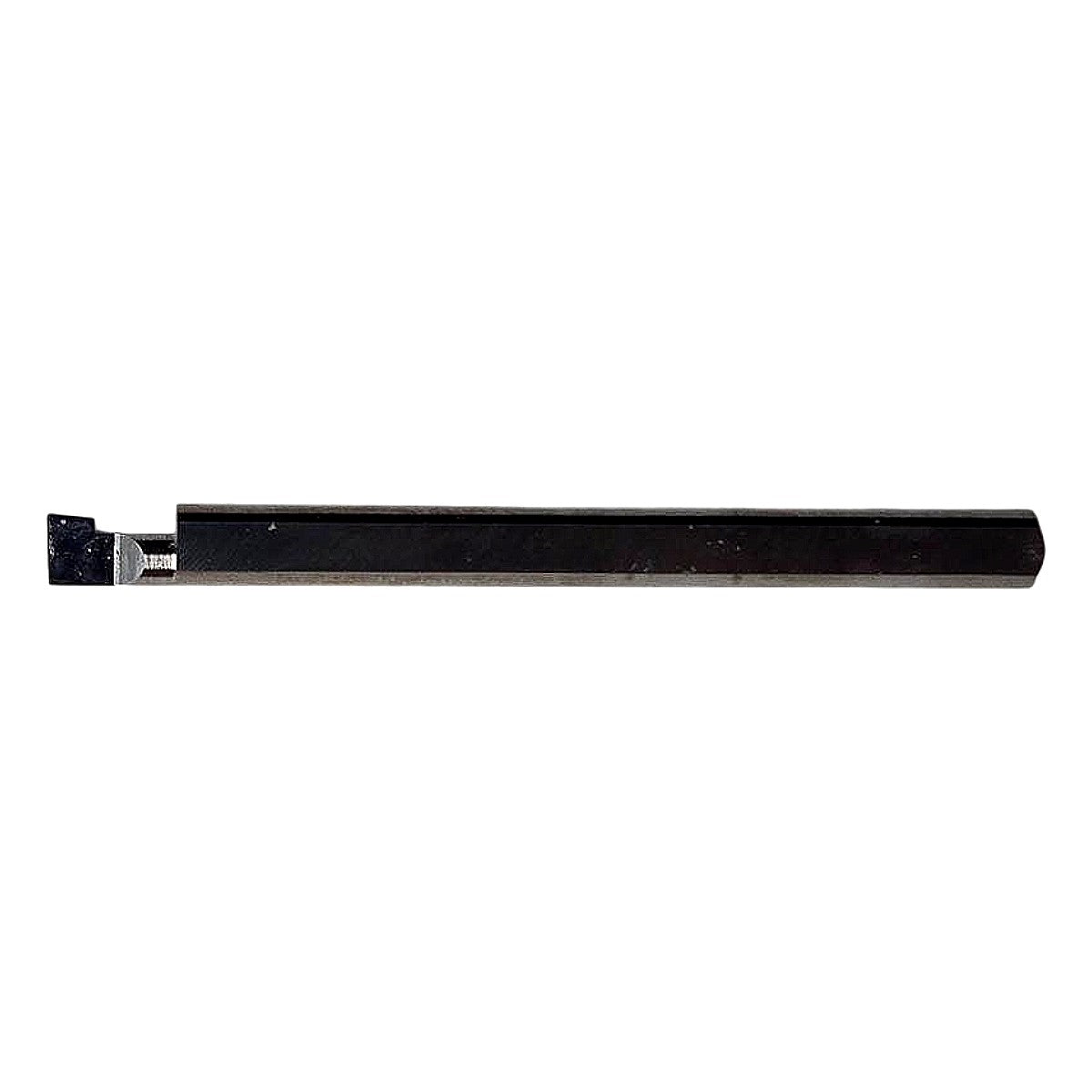

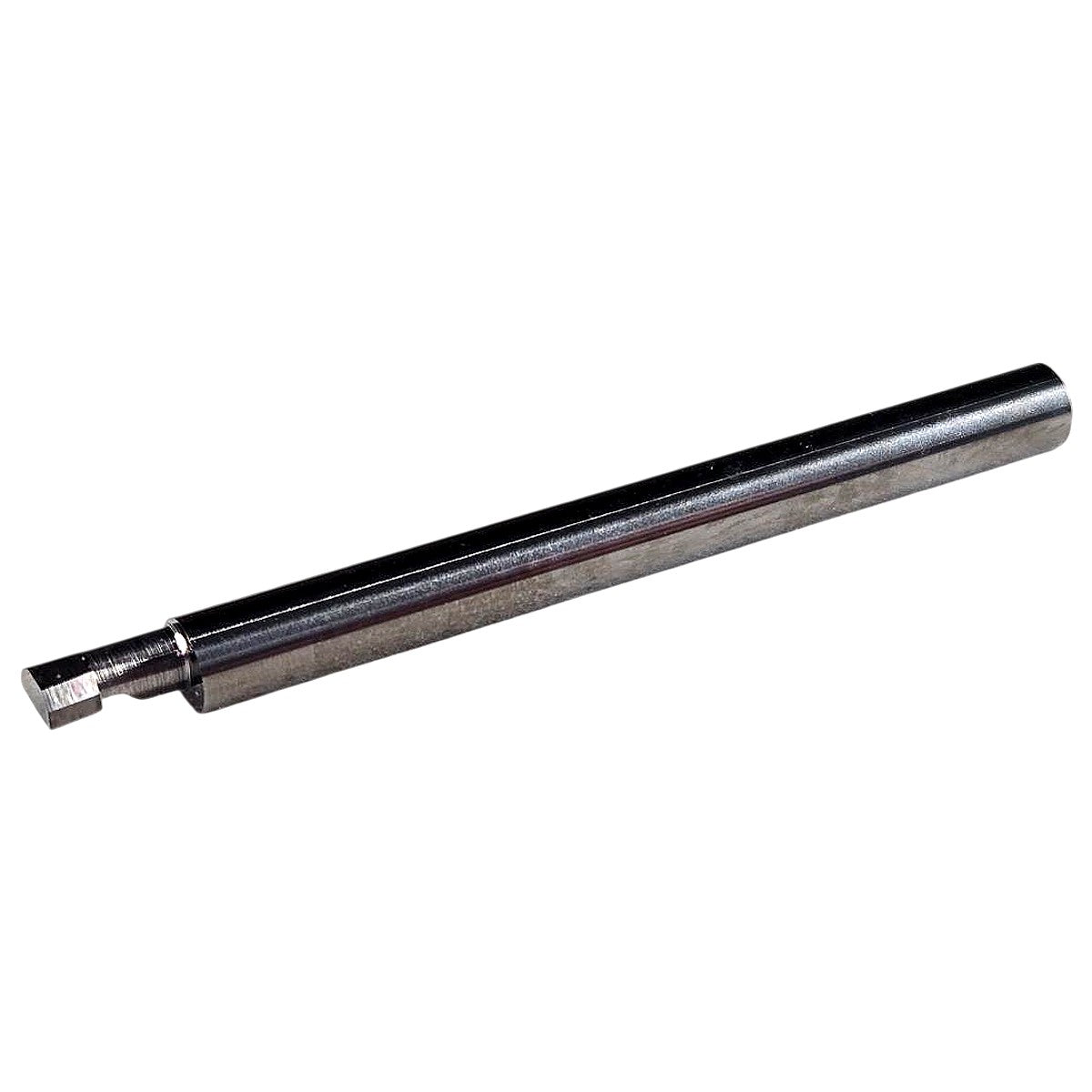

Micro 100 BBL-110150 1/8in Shank Uncoated Carbide Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

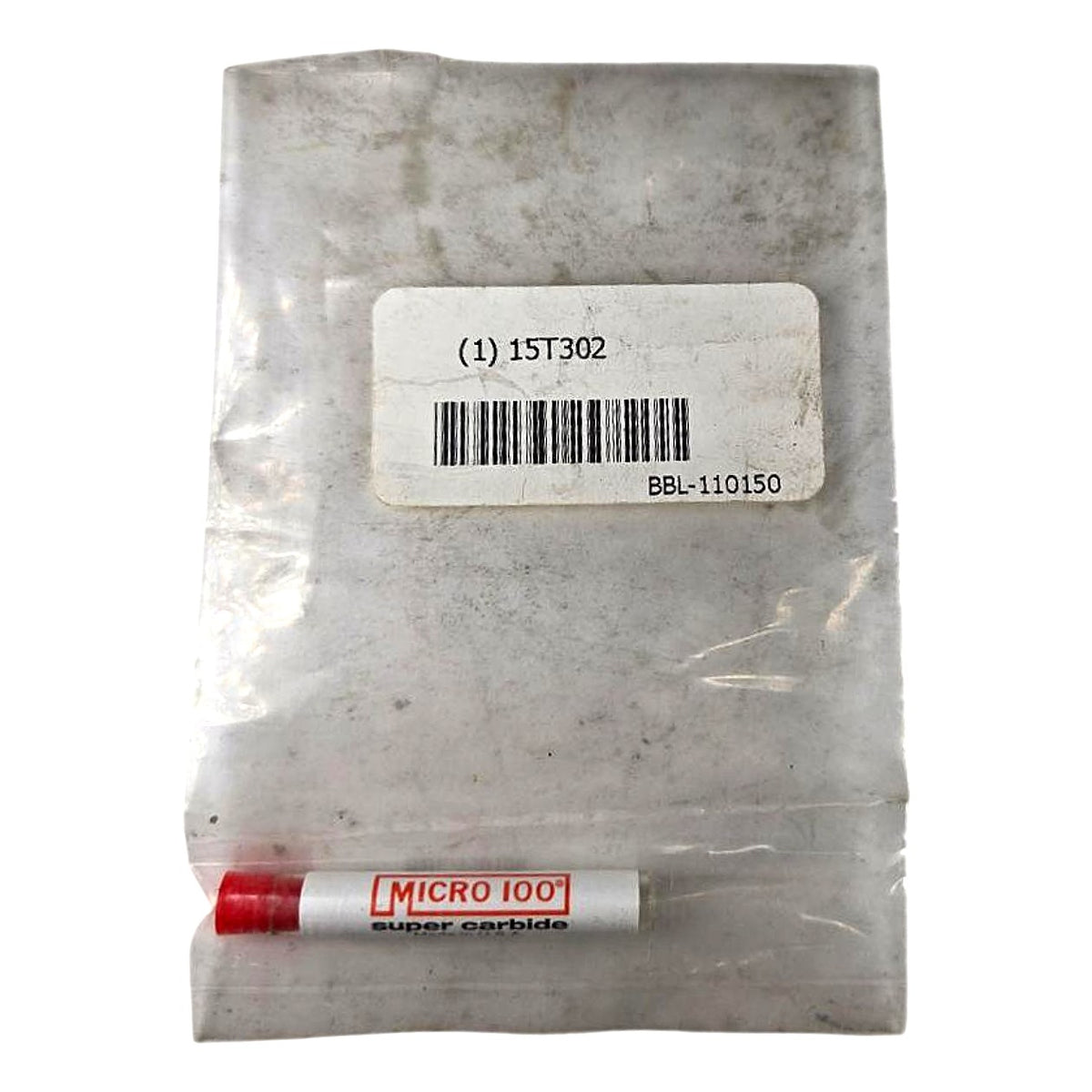

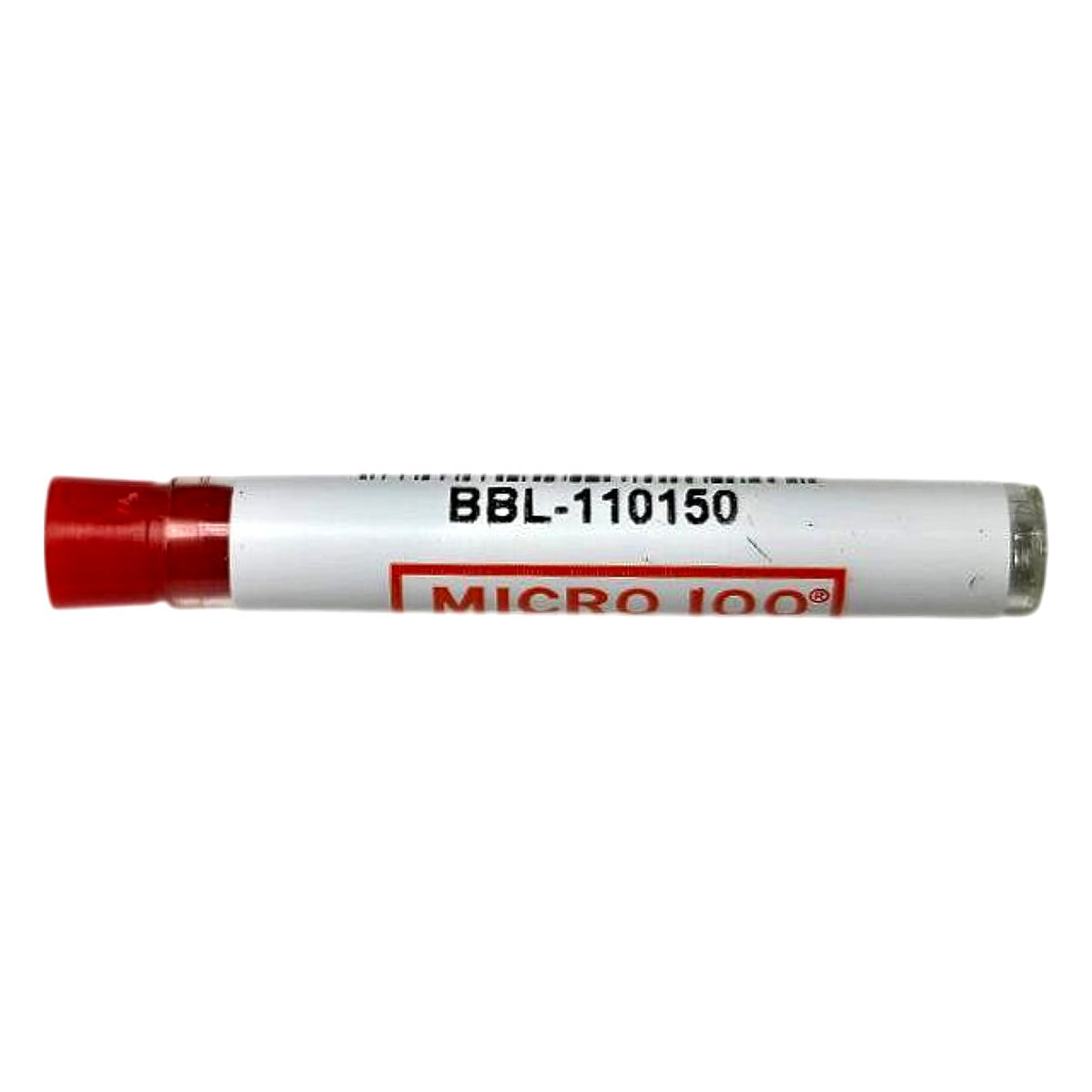

The Micro 100 BBL-110150 is a solid carbide boring bar designed for internal boring operations on CNC lathes and manual turning equipment. Decoding the part number: "BBL" denotes the Right Hand Bright (uncoated) Boring Bar series; "110" encodes the 1/8 in (0.110 in nominal) shank diameter; "150" encodes the 1-1/2 in overall length. The cutting tip features a 0.0480 in center-to-cutting-tip dimension, enabling machining of very small bores. Constructed from Micro 100's "Super Carbide" substrate (visible on packaging), this bar offers excellent rigidity and vibration resistance relative to its compact shank diameter. The bright (uncoated) finish is suited for finishing passes in non-ferrous metals, plastics, and other materials where coating adhesion or built-up edge is a concern. This tool is new and supplied in Micro 100's standard protective tube packaging.
Product Specifications
| Brand | Micro 100 |
| MPN | BBL-110150 |
| Tool Type | Boring Bar |
| Series | BBL – Right Hand Boring Bar |
| Shank Diameter | 1/8 in (0.1250 in) |
| Overall Length | 1-1/2 in |
| Center to Cutting Tip | 0.0480 in |
| Shank Shape | Round |
| Material | Solid Carbide (Super Carbide) |
| Coating | Uncoated (Bright) |
| Hand of Cut | Right Hand |
| Condition | New |
