Micro 100 BBL-4904000 49/64in Bore Carbide Boring Bar

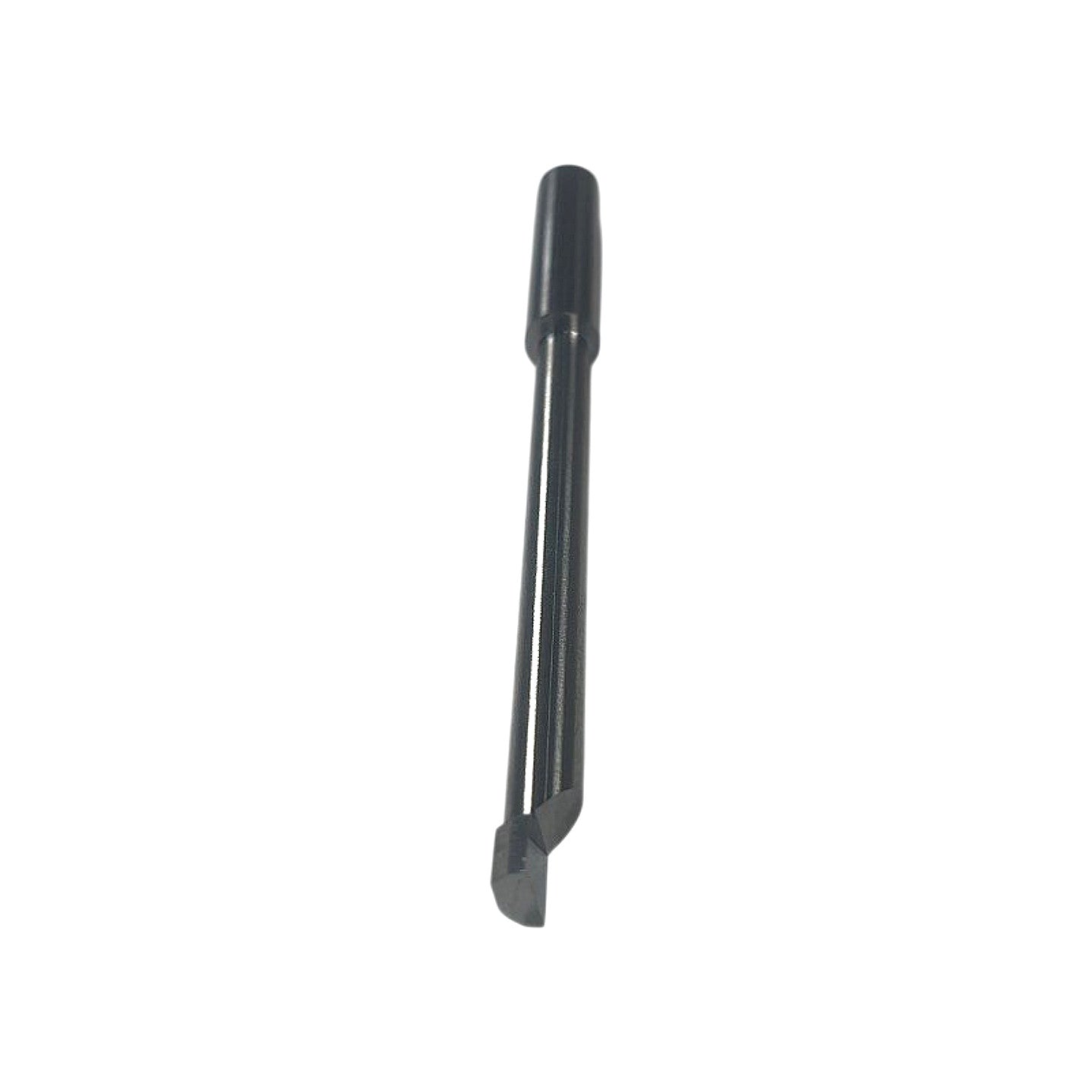

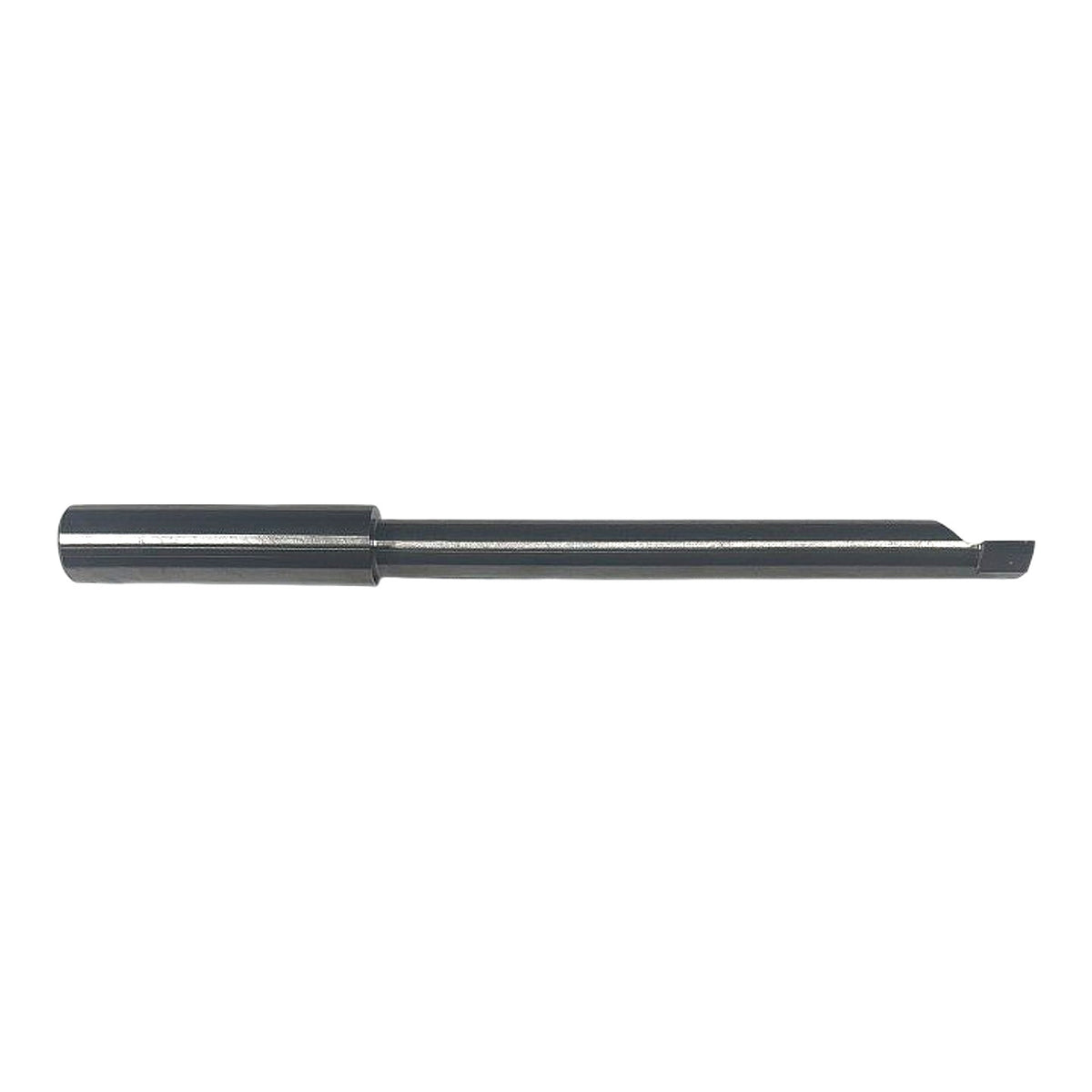

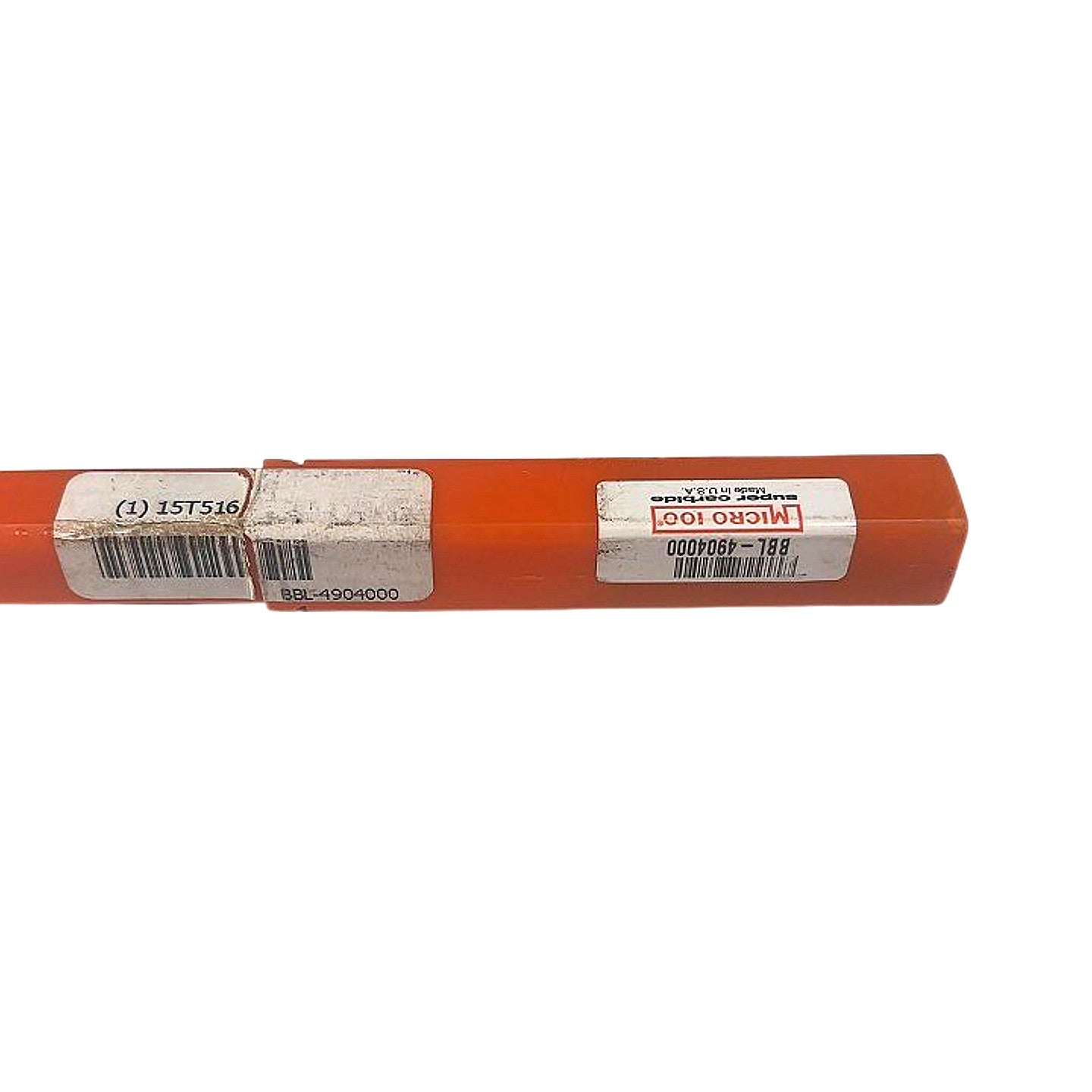

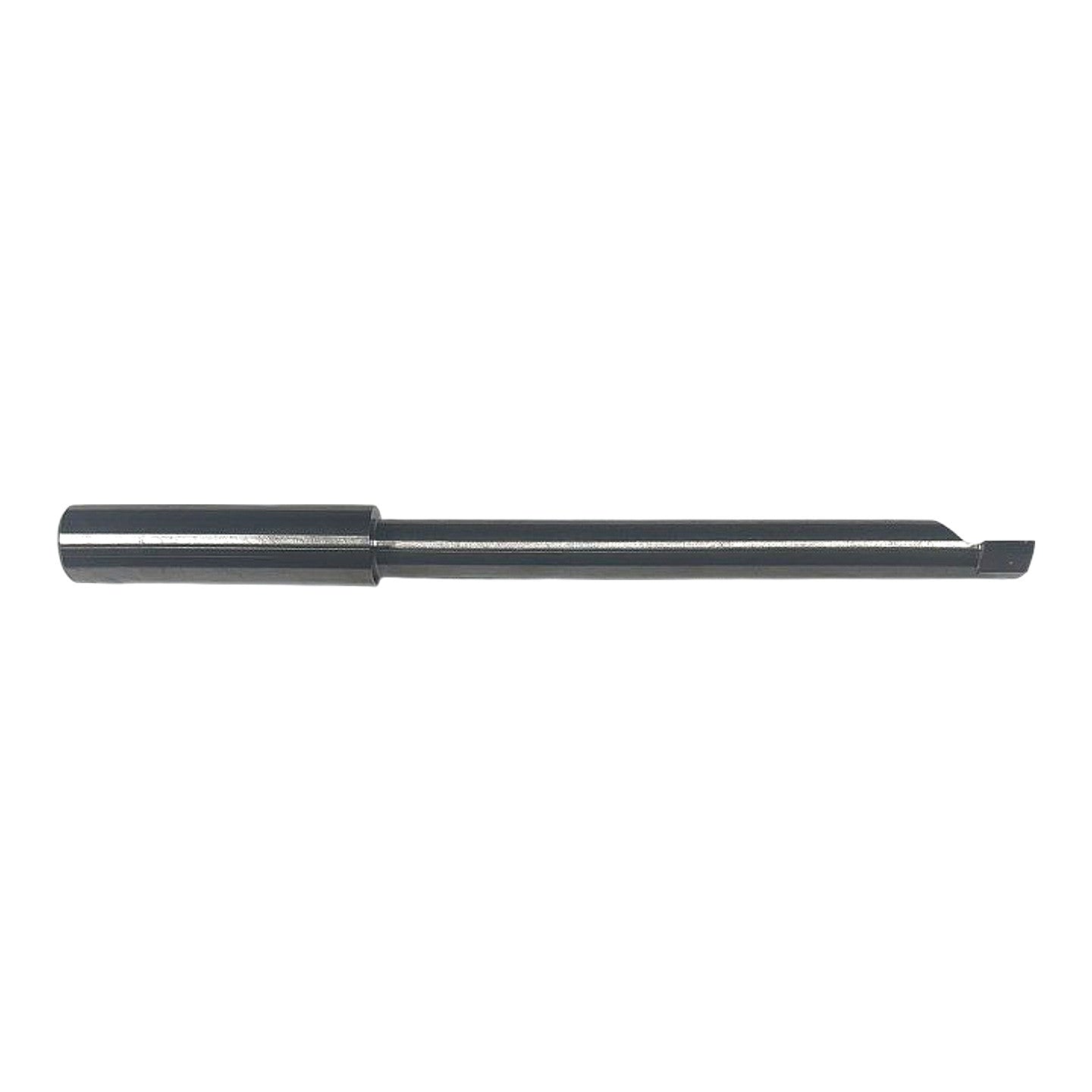

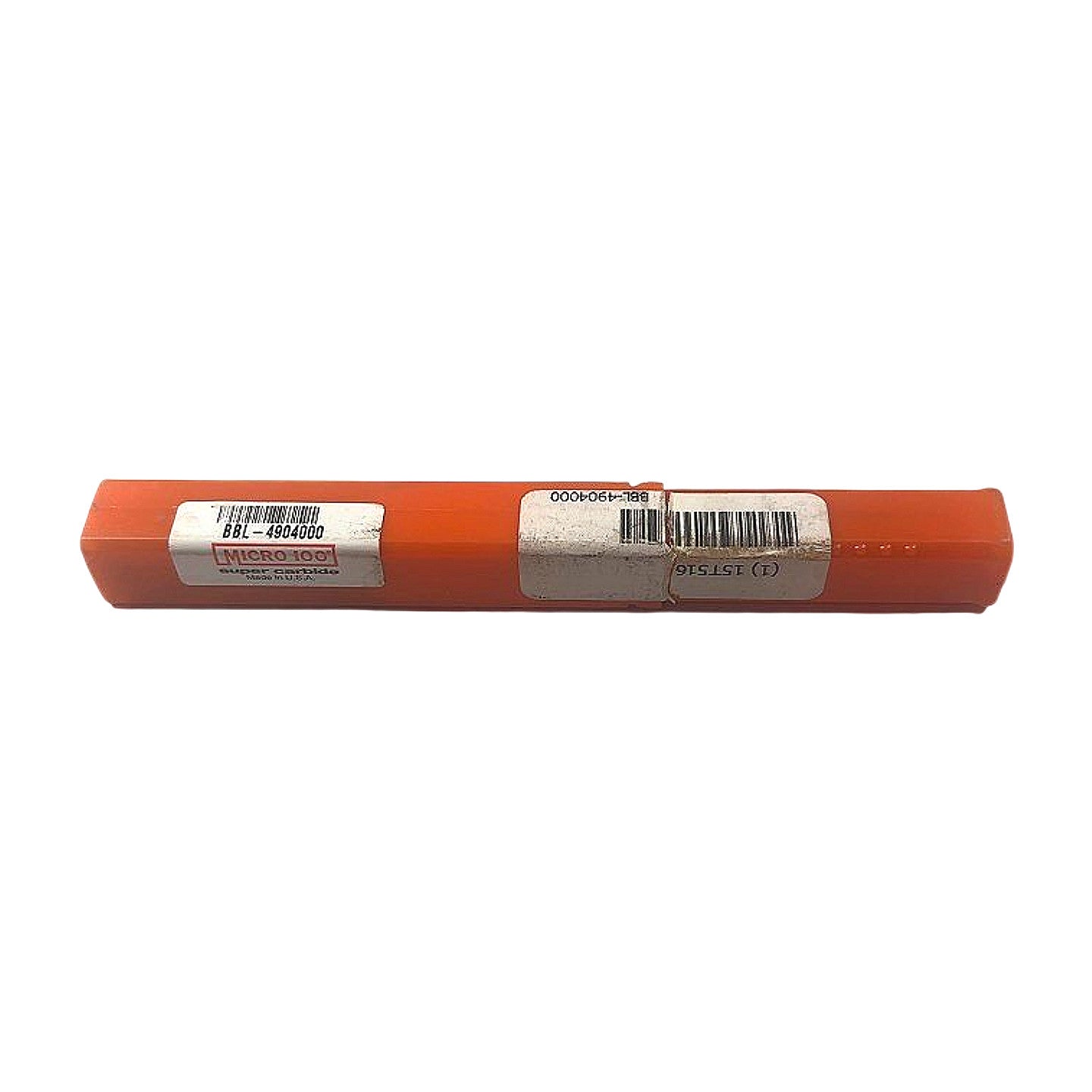

The Micro 100 BBL-4904000 is a new, solid carbide boring bar from the BBL (Boring Bar, Left-hand) series, manufactured in the USA as indicated by the orange tube packaging and label. Decoding the part number: BBL = Boring Bar, Left-hand cutting; 490 = 0.490 in shank diameter; 4000 = 4.000 in overall length; the minimum bore diameter is determined by the bar geometry and is nominally 49/64 in. The bar is fabricated from Micro 100 Super Carbide — a proprietary micrograin tungsten carbide substrate — and features a black oxide or PVD-style surface treatment visible in the product images, providing corrosion resistance and reduced chip adhesion. This tool is designed for internal diameter (ID) boring operations on CNC lathes and manual engine lathes, capable of machining ferrous and non-ferrous workpieces to tight tolerances in blind or through-bore applications. Compatible with standard 1/2 in bore toolholders and quick-change toolpost systems that accept 0.490 in round shank boring bars.
