Micro 100 BLR-187-2X 3/16in 2-Flute AlTiN Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

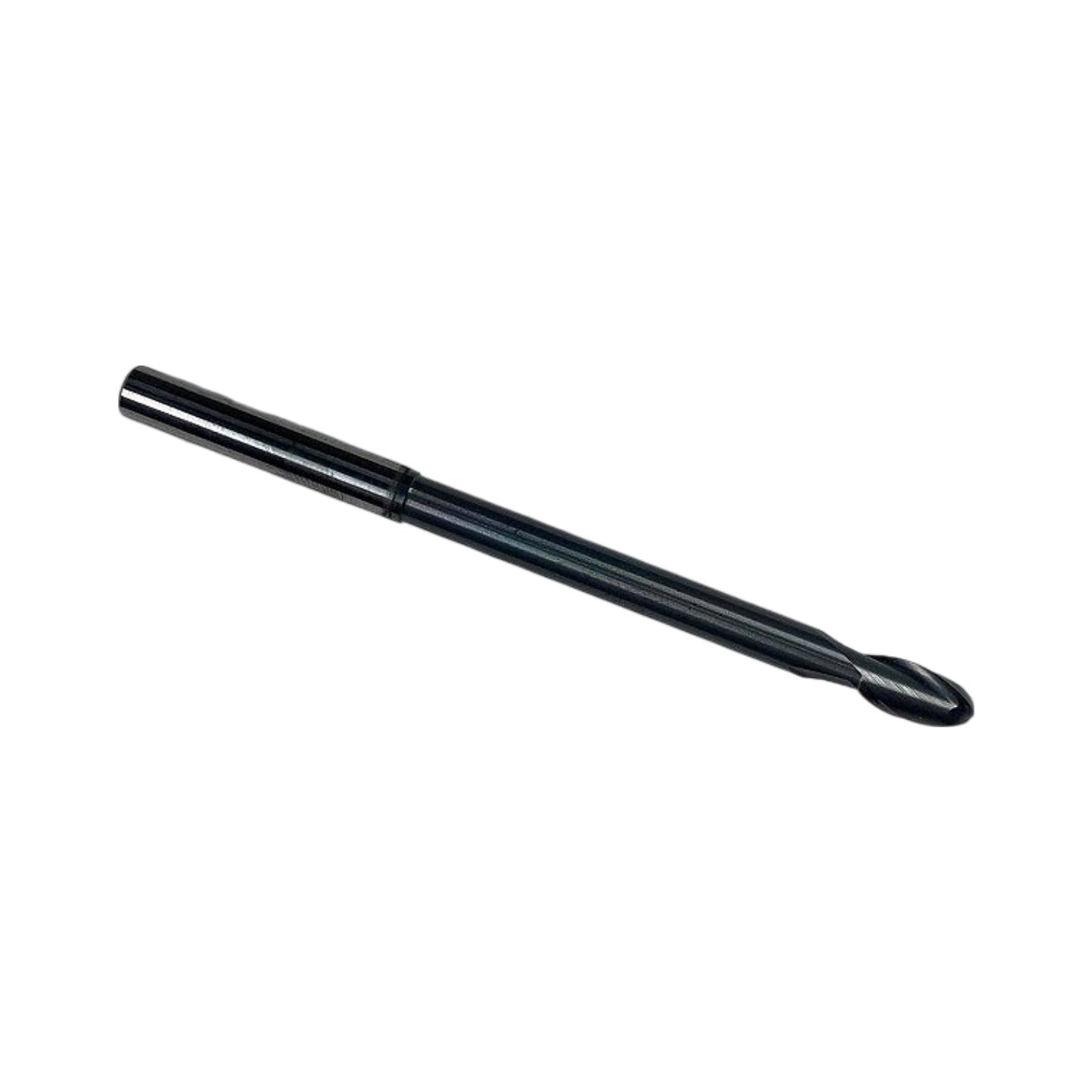

The Micro 100 BLR-187-2X is a new, solid carbide 2-flute ball nose end mill with a 3/16 in (0.1875 in) cutting diameter, manufactured in the USA from Micro 100's proprietary "super carbide" submicron-grain tungsten carbide substrate. The tool features a black AlTiN (aluminum titanium nitride) PVD coating — visible in the photos as the uniform dark finish — which provides oxidation resistance up to ~1,400°F and extends tool life in hardened steels, stainless steels, titanium, and high-temperature alloys compared to uncoated or TiN-coated tools. The BLR series designates a long-reach ball end mill with a reduced-neck geometry: the "187" encodes the 0.187 in (3/16 in) ball diameter, and "2X" indicates a 2× diameter reach, allowing access to deep pockets, contoured surfaces, and 3D profiling operations where standard-length tools cannot reach. The straight shank is compatible with standard ER collet chucks and shrink-fit holders accepting a 3/16 in shank.
Product Specifications
| Brand | Micro 100 |
| MPN | BLR-187-2X |
| Series | BLR (Ball Long Reach, Reduced Neck) |
| Cutting Diameter | 3/16 in (0.1875 in) |
| Number of Flutes | 2 |
| End Type | Ball Nose |
| Reach | 2X diameter (approx. 0.375 in) |
| Shank Diameter | 3/16 in (0.1875 in) |
| Material | Submicron-grain solid carbide |
| Coating | AlTiN (black PVD) |
| Country of Origin | USA |
| Condition | New |
