Micro 100 BLRM-030-2 0.030in 2-Flute Long Reach Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

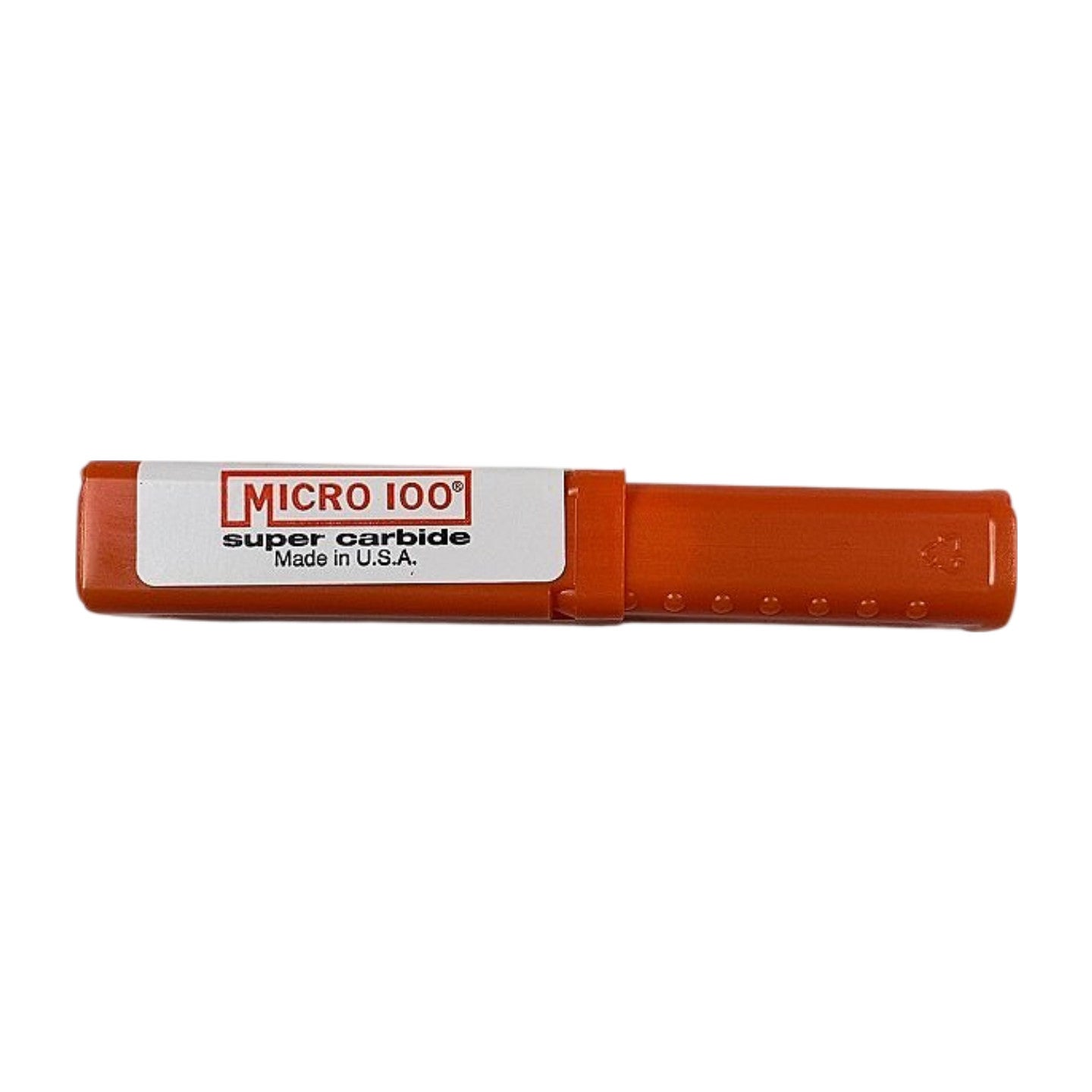

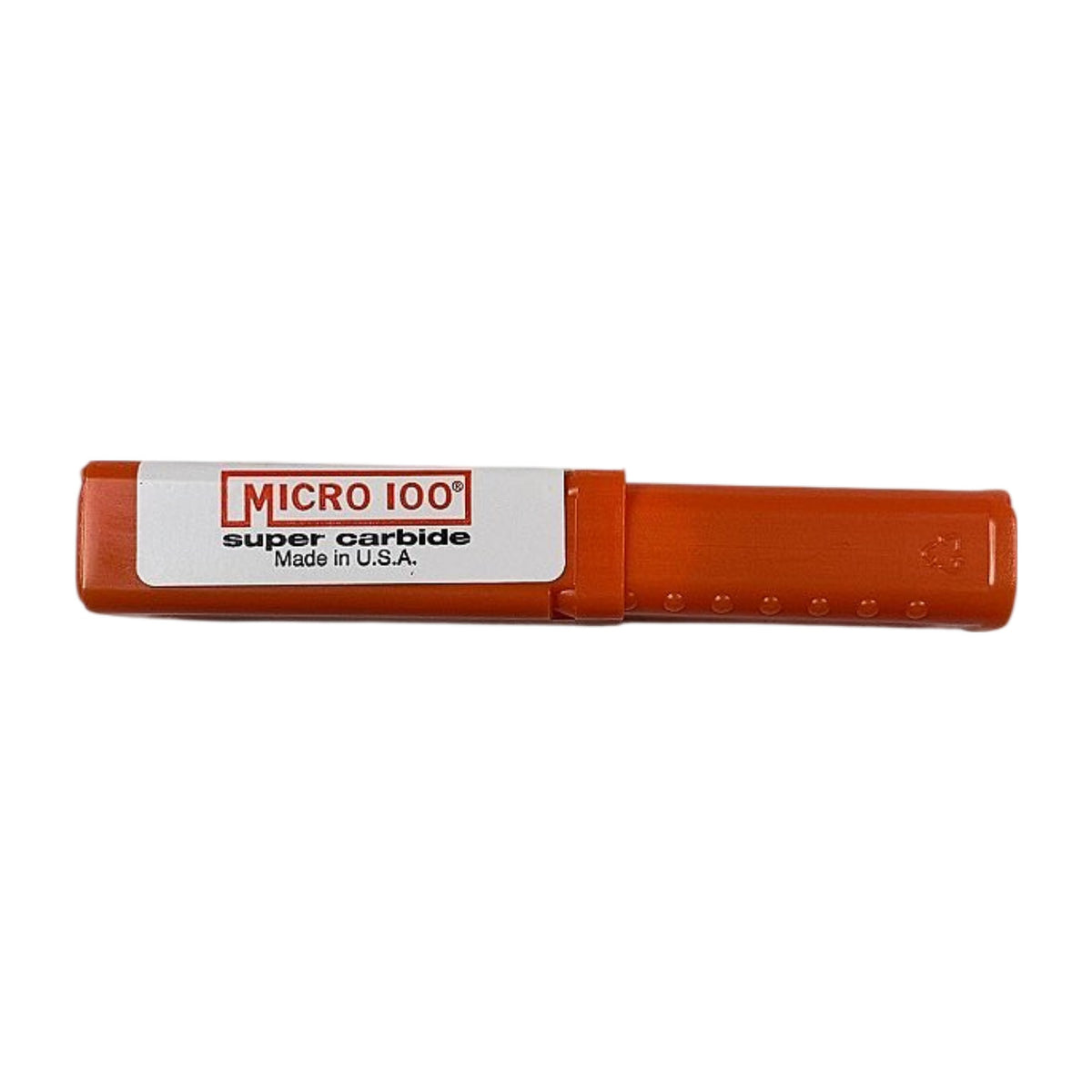

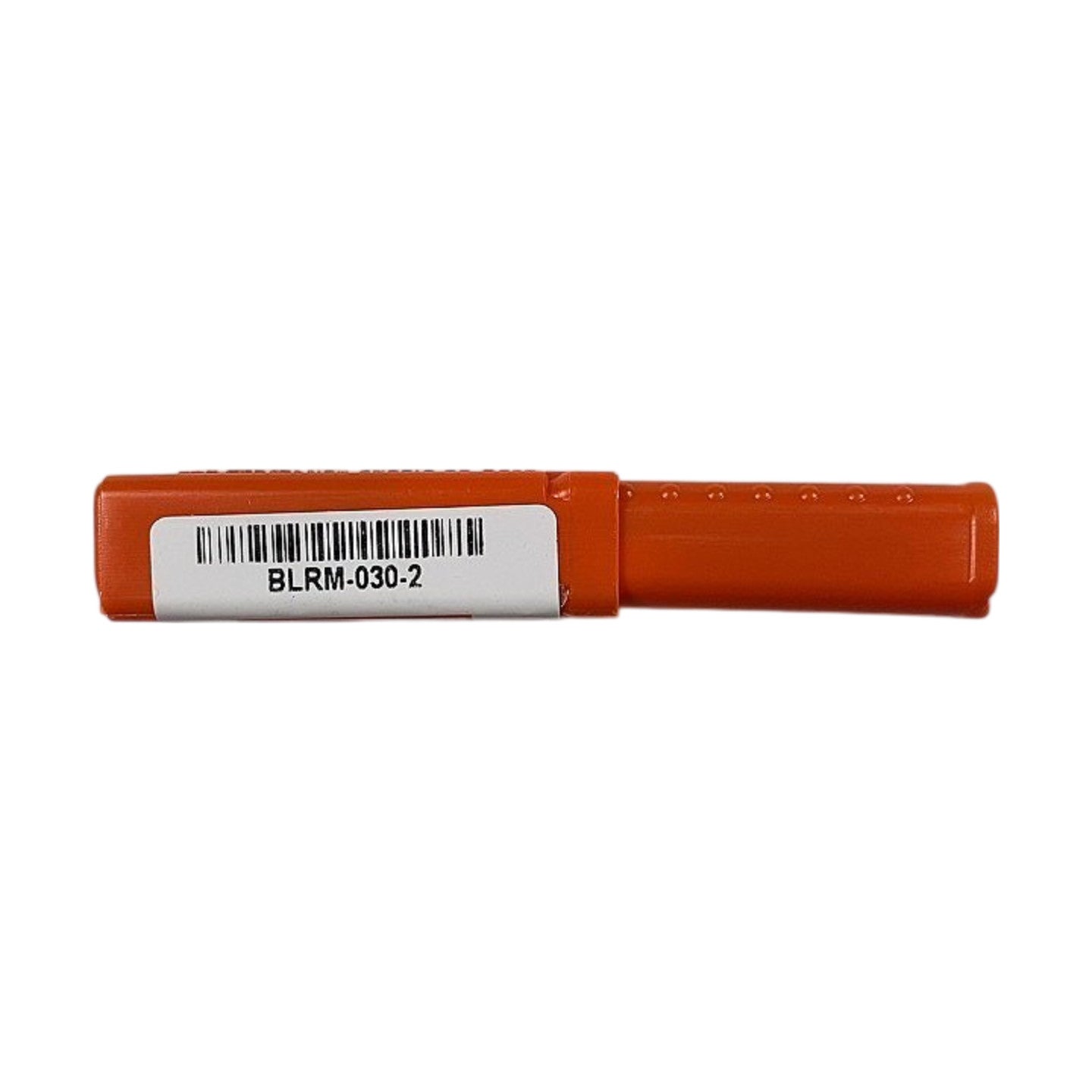

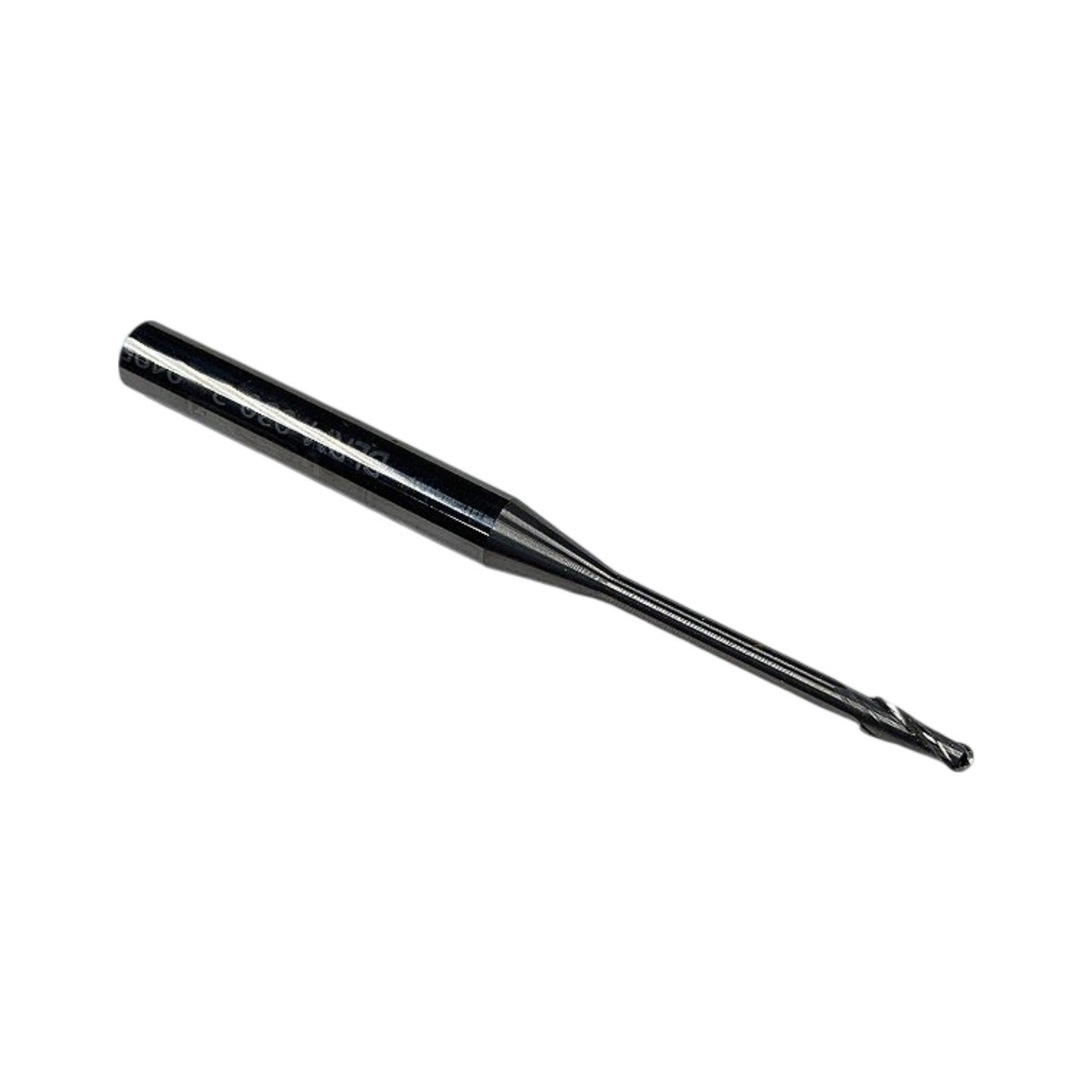

The Micro 100 BLRM-030-2 is a new, USA-made solid "Super Carbide" long-reach ball-nose end mill with a 0.030 in (0.762 mm) cutting diameter and 2 flutes, designed for deep-cavity profiling and contouring in confined areas where standard-reach tools cannot reach. The part number decodes as: BL = Ball Long-Reach, RM = right-hand helix/right-hand cut, 030 = 0.030 in cutting diameter, 2 = 2 flutes; the extended neck taper visible in the photo provides rigidity while allowing deep reach with minimal wall clearance. The tool features a dark PVD-style DLC or AlTiN-family coating (confirmed by the uniform black finish on both shank and flutes visible in the image), consistent with Micro 100's standard treatment for their BLRM series, reducing friction and extending tool life in steels, stainless, aluminum, and non-ferrous materials. It ships in Micro 100's standard orange plastic protective tube and is compatible with any collet or shrink-fit toolholder accepting a 1/8 in (3.175 mm) shank.
Product Specifications
| Brand | Micro 100 |
| MPN | BLRM-030-2 |
| Country of Origin | USA |
| Tool Type | Ball Nose Long Reach End Mill |
| Number of Flutes | 2 |
| Cutting Diameter | 0.030 in (0.762 mm) |
| Shank Diameter | 1/8 in (0.125 in / 3.175 mm) |
| Material | Solid Carbide (Micro 100 Super Carbide) |
| Coating | Black PVD (AlTiN-family) |
| Cut Direction | Right-Hand Cut, Right-Hand Helix |
| End Geometry | Ball Nose |
| Reach Type | Long Reach (extended neck taper) |
| Condition | New |
