Micro 100 BLRM-060-2 3/16in Dia 2-Flute Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

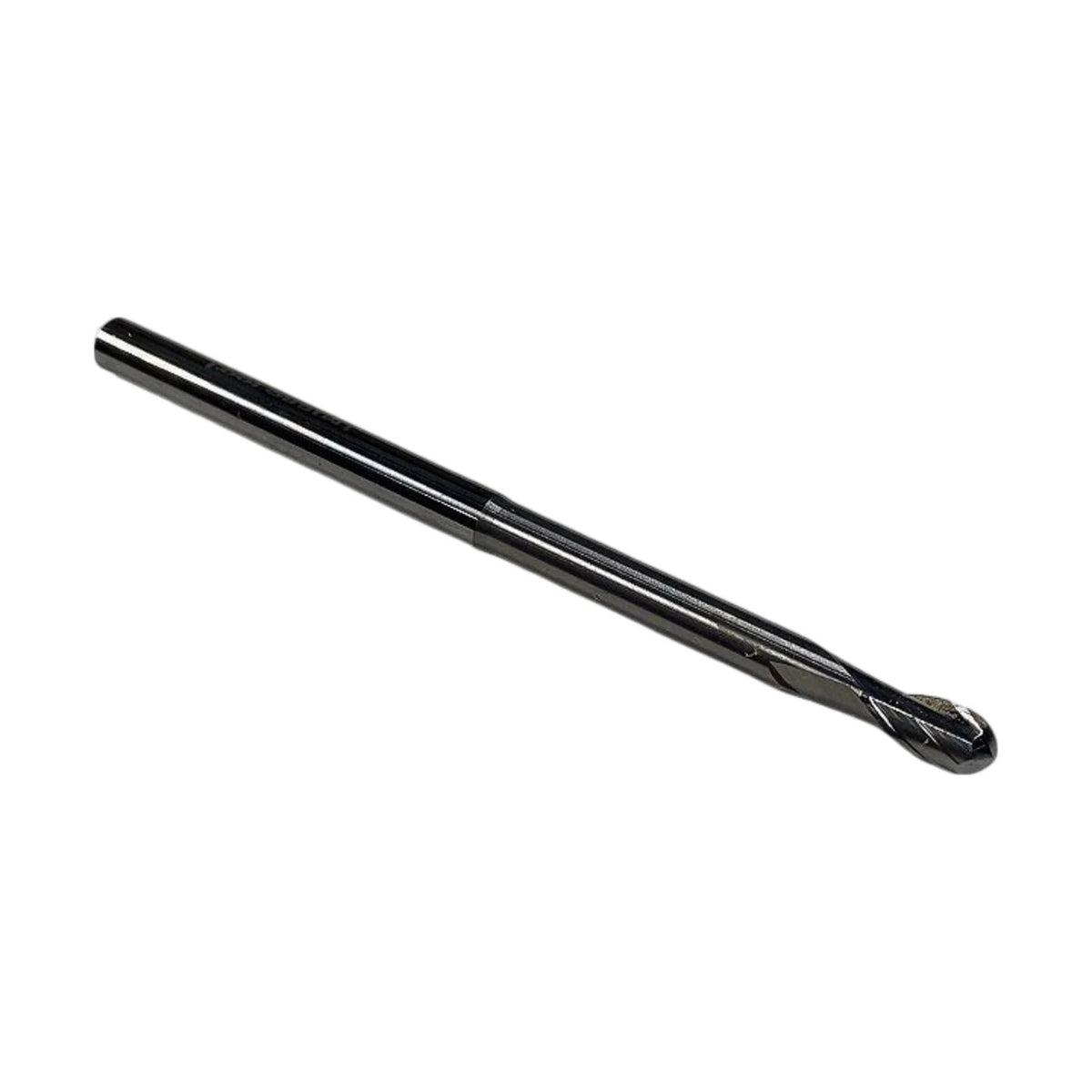

The Micro 100 BLRM-060-2 is a new, solid carbide ball-nose end mill from Micro 100's Super Carbide line, manufactured in the USA. Decoding the MPN: "BL" = ball end mill, "R" = right-hand cut, "M" = metric-style shank designation (cylindrical shank), "060" = 0.060 in (3/32 in) cutter diameter — however, per Micro 100's published catalog, the BLRM-060-2 specifies a 3/32 in (0.0937 in) cutter diameter with a 3/16 in shank diameter, 2-flute configuration. The tool features Micro 100's uncoated "Super Carbide" submicron grain tungsten carbide substrate ground to tight tolerances, delivering excellent rigidity and edge retention in ferrous and non-ferrous materials, plastics, and composites at small diameters. With a 3/16 in straight shank it is compatible with standard ER collet chucks, precision toolholders, and CNC machining centers; the ball-nose geometry is suited for contouring, 3D profiling, and slotting operations requiring a full-radius tip.
Product Specifications
| Brand | Micro 100 |
| MPN | BLRM-060-2 |
| Cutter Diameter | 0.060 in (3/32 in) |
| Shank Diameter | 3/16 in (0.1875 in) |
| Number of Flutes | 2 |
| End Style | Ball Nose |
| Cut Direction | Right Hand |
| Material | Solid Submicron Grain Carbide |
| Coating | Uncoated |
| Country of Origin | USA |
| Shank Style | Straight |
| Condition | New |
