Micro 100 BMR-027-2X 0.027in 2-Flute Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

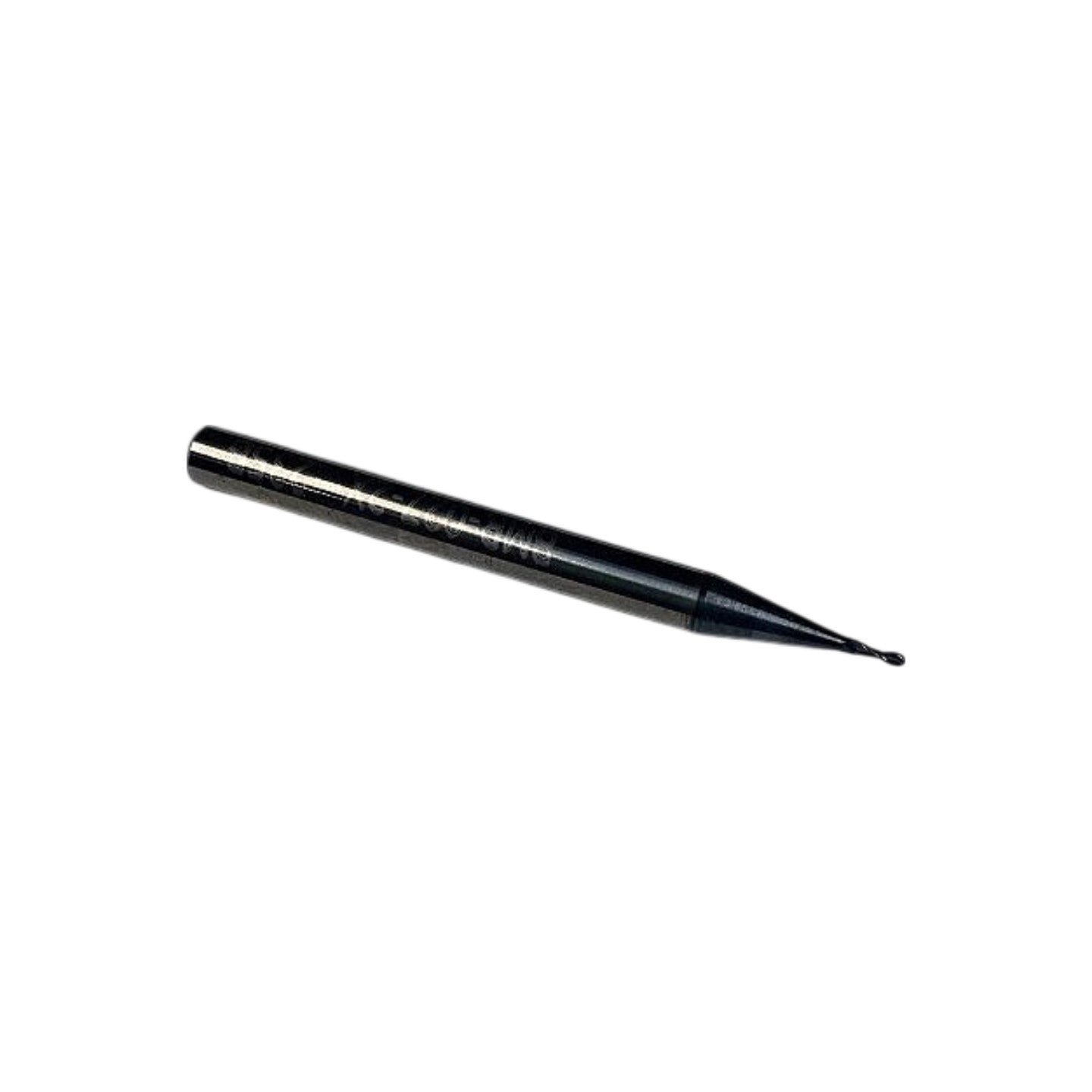

The Micro 100 BMR-027-2X is a new, solid "Super Carbide" subminiature ball end mill manufactured in the USA, designed specifically for micro-milling applications. Decoding the part number: BMR = Ball Mill, Reduced Neck (tapered reach); 027 = 0.027 in (0.686 mm) cutting diameter; 2X = 2× diameter cutting length. The tool features a reduced-neck / tapered shank profile clearly visible in the photo, which maximizes rigidity while allowing access into narrow cavities — a key advantage for mold & die finishing, medical device components, and fine detail engraving in hardened steels and exotic alloys. Micro 100's "Super Carbide" designation indicates a fine-grain tungsten carbide substrate, and the uniform dark coating visible on the cutting end of the tool is consistent with AlTiN (aluminum titanium nitride), which Micro 100 applies to their BMR series for improved hardness and thermal resistance. The tapered body steps down to a 1/8 in (3.175 mm) round shank, compatible with standard ER or collet-style toolholders accepting that shank diameter.
Product Specifications
| Brand | Micro 100 |
| Part Number (MPN) | BMR-027-2X |
| End Mill Type | Ball, Reduced Neck (Tapered Reach) |
| Cutting Diameter | 0.027 in (0.686 mm) |
| Number of Flutes | 2 |
| Cutting Length | 2× dia = 0.054 in (1.37 mm) |
| Shank Diameter | 1/8 in (3.175 mm) |
| Substrate | Solid Fine-Grain Tungsten Carbide |
| Coating | AlTiN |
| Country of Origin | USA |
| Condition | New |
