Micro 100 BMR-033-2X 1/32" 2-Fl AlTiN Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

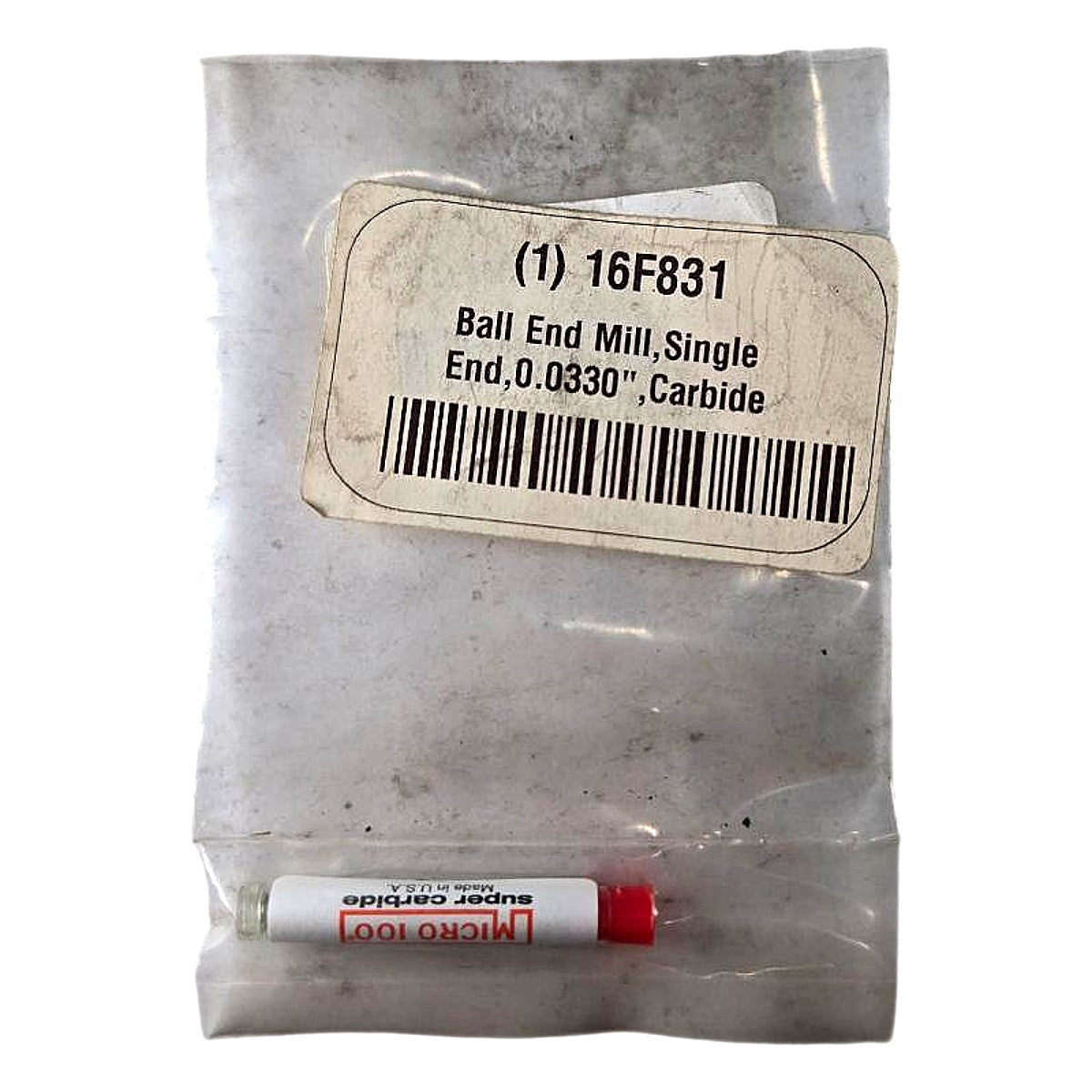

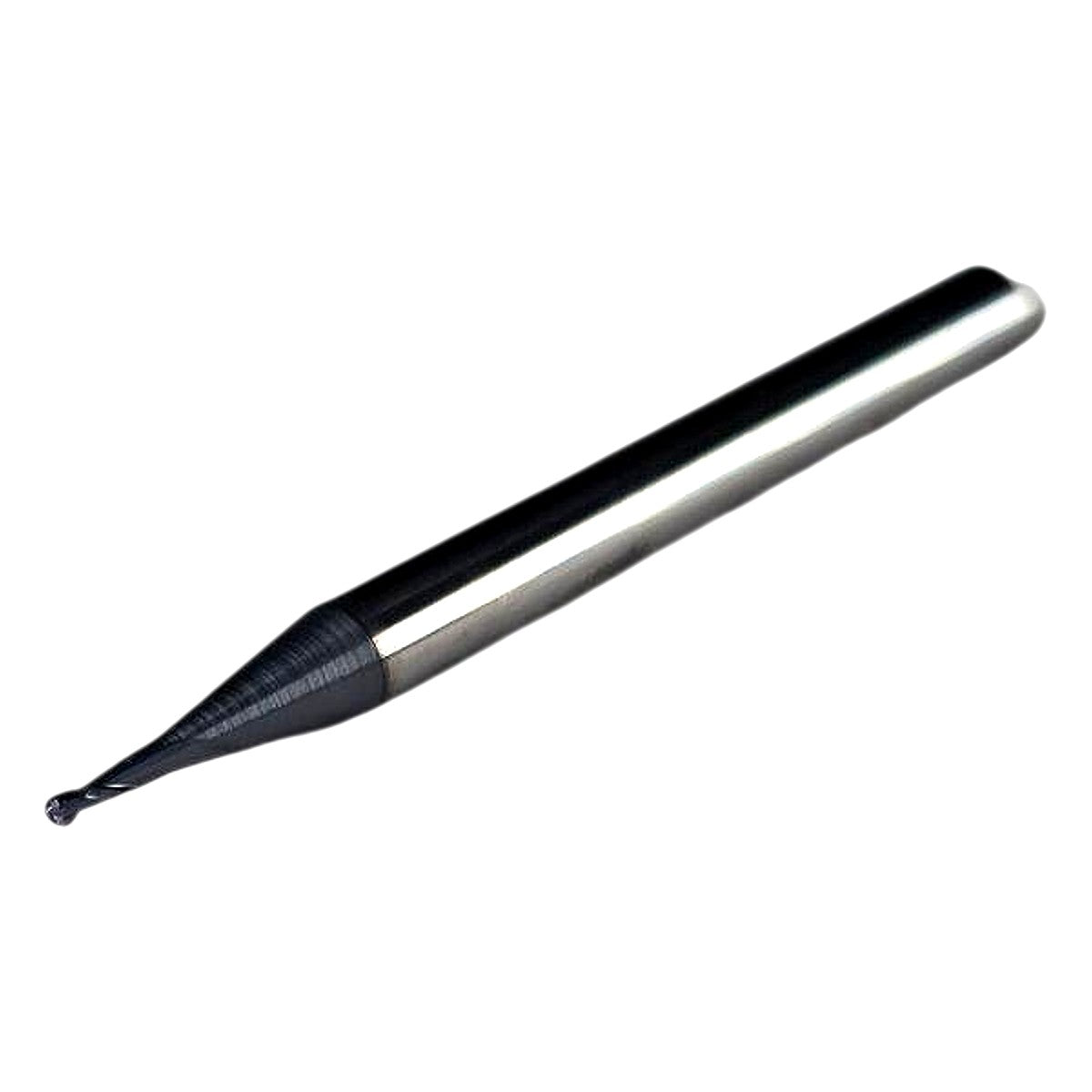

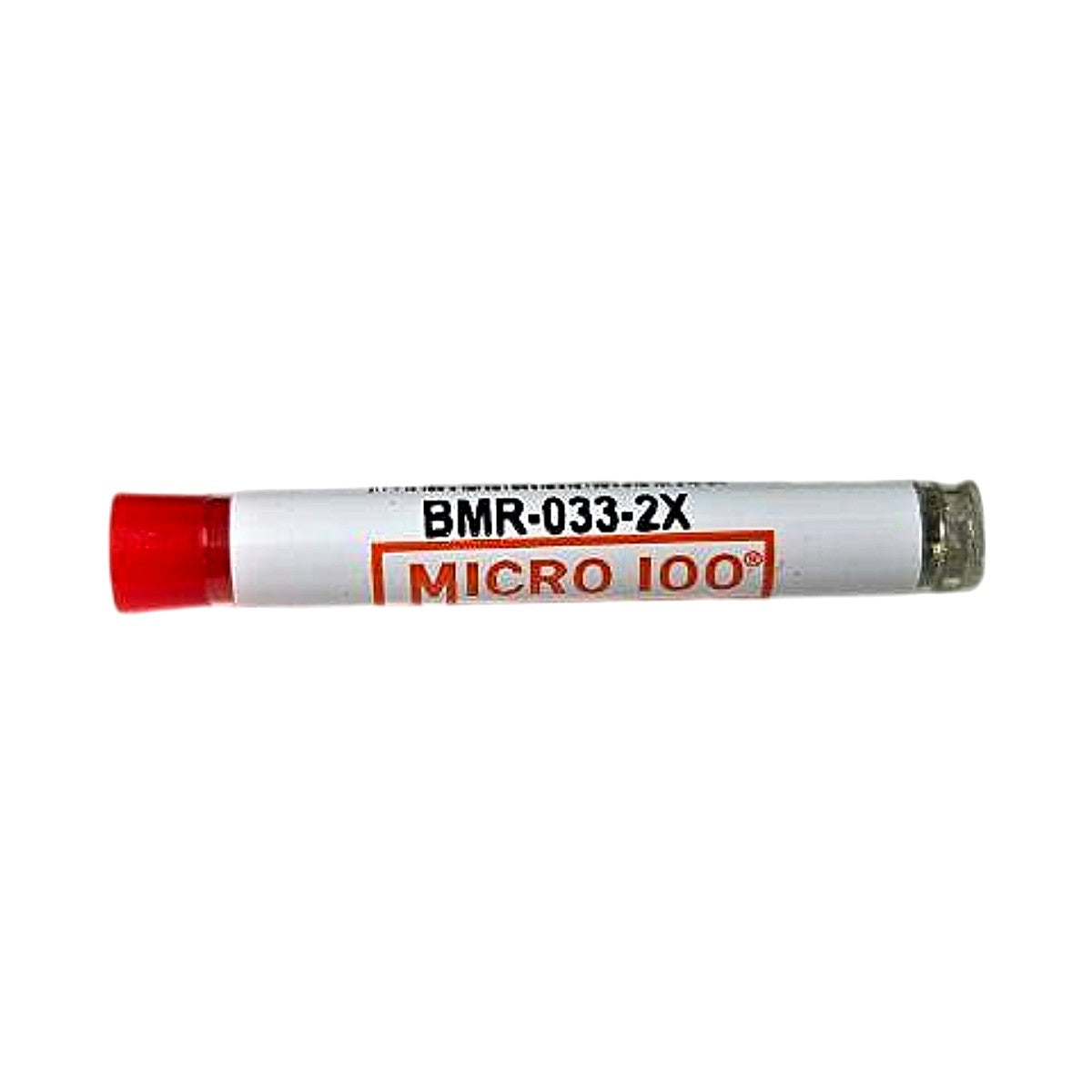

The Micro 100 BMR-033-2X is a new, single-end solid carbide ball nose end mill with a 0.0330" (1/32") cutting diameter, 2 flutes, 0.099" length of cut, and 1-1/2" overall length, packaged in Micro 100's standard glass vial for protection. The tool features an AlTiN (Aluminum Titanium Nitride) coating applied over the fluted section, which provides elevated hardness, oxidation resistance up to approximately 1470°F, and reduced friction — making it well-suited for dry or near-dry cutting in hardened steels, titanium alloys, stainless steel, and nickel-based superalloys. The tapered reach/neck relief visible in the photo allows access to deep pockets and cavities while minimizing deflection risk at this micro diameter. The BMR series (Ball Mill, Reduced neck, extended reach) is designed specifically for micro-milling applications in CNC machining centers and high-speed spindles with ER or precision collet toolholding systems accepting a 1/8" shank.
Product Specifications
| Brand | Micro 100 |
| MPN | BMR-033-2X |
| Series | BMR (Ball Mill, Reduced Neck) |
| Cutting Diameter | 0.0330 in (1/32 in) |
| Number of Flutes | 2 |
| Length of Cut (LOC) | 0.099 in |
| Overall Length (OAL) | 1-1/2 in |
| Shank Diameter | 1/8 in |
| End Type | Ball Nose, Single End |
| Material | Solid Carbide |
| Coating | AlTiN (Aluminum Titanium Nitride) |
| Neck Relief | Tapered/Reduced Neck (extended reach) |
| Condition | New |
| Country of Origin | USA (Made in U.S.A.) |
