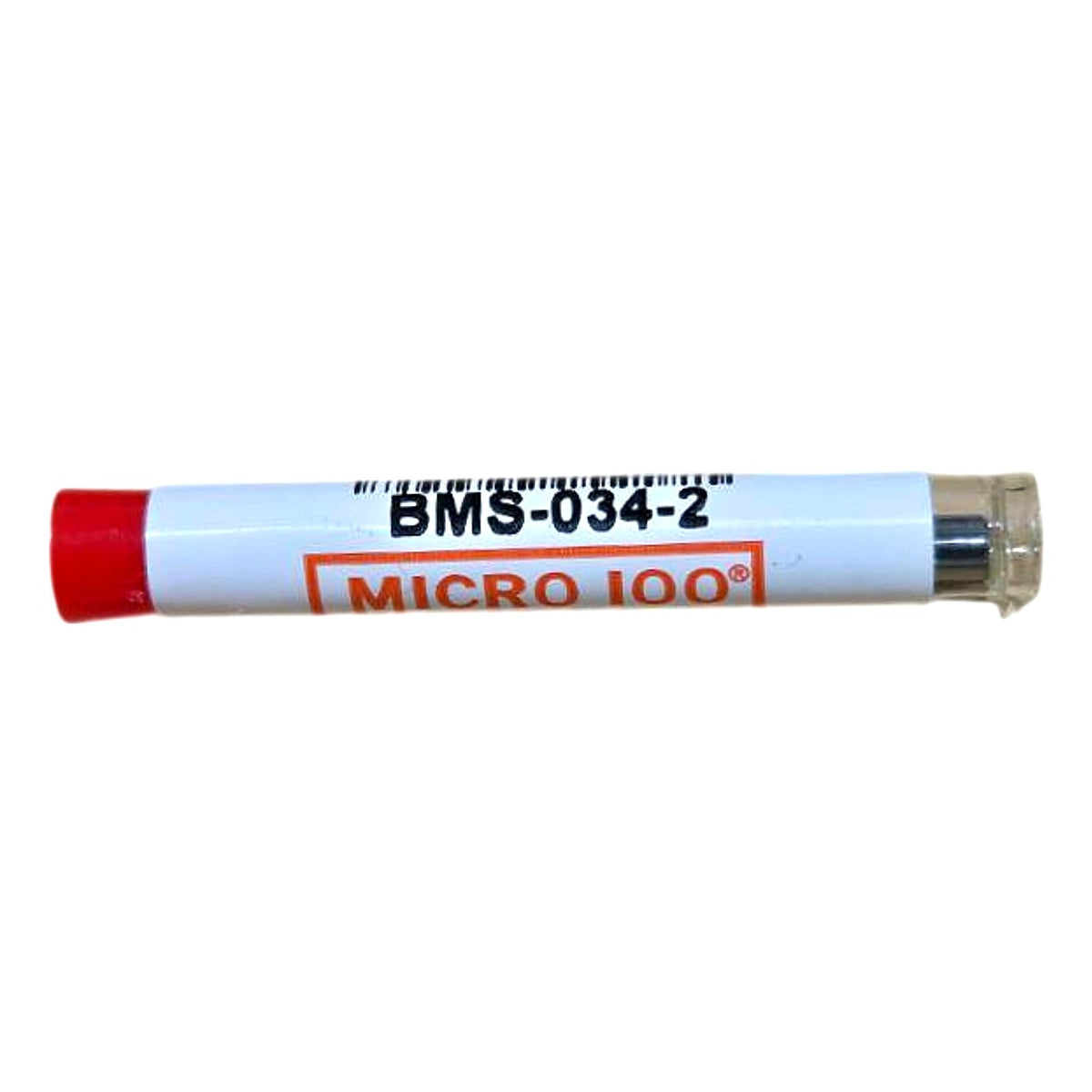

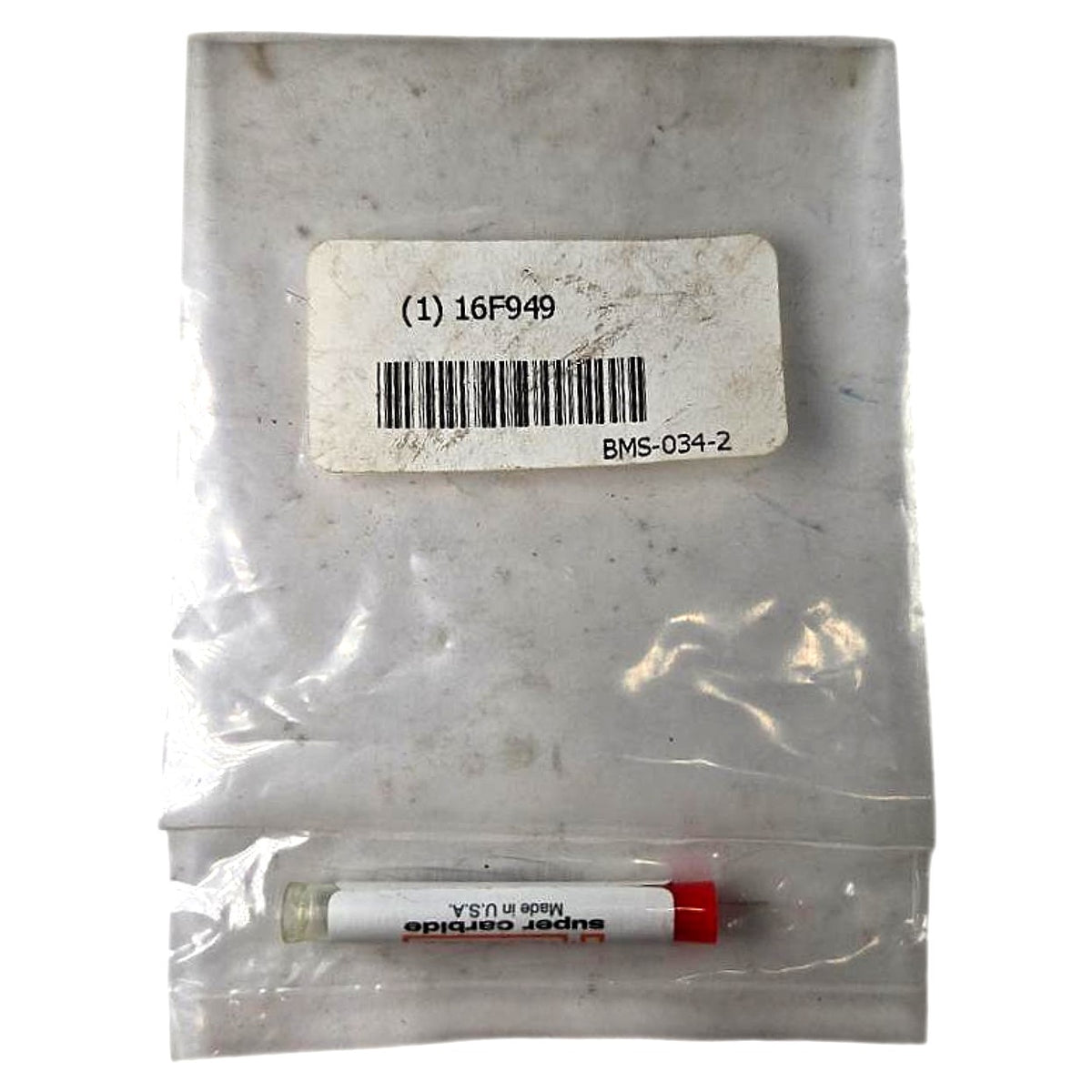

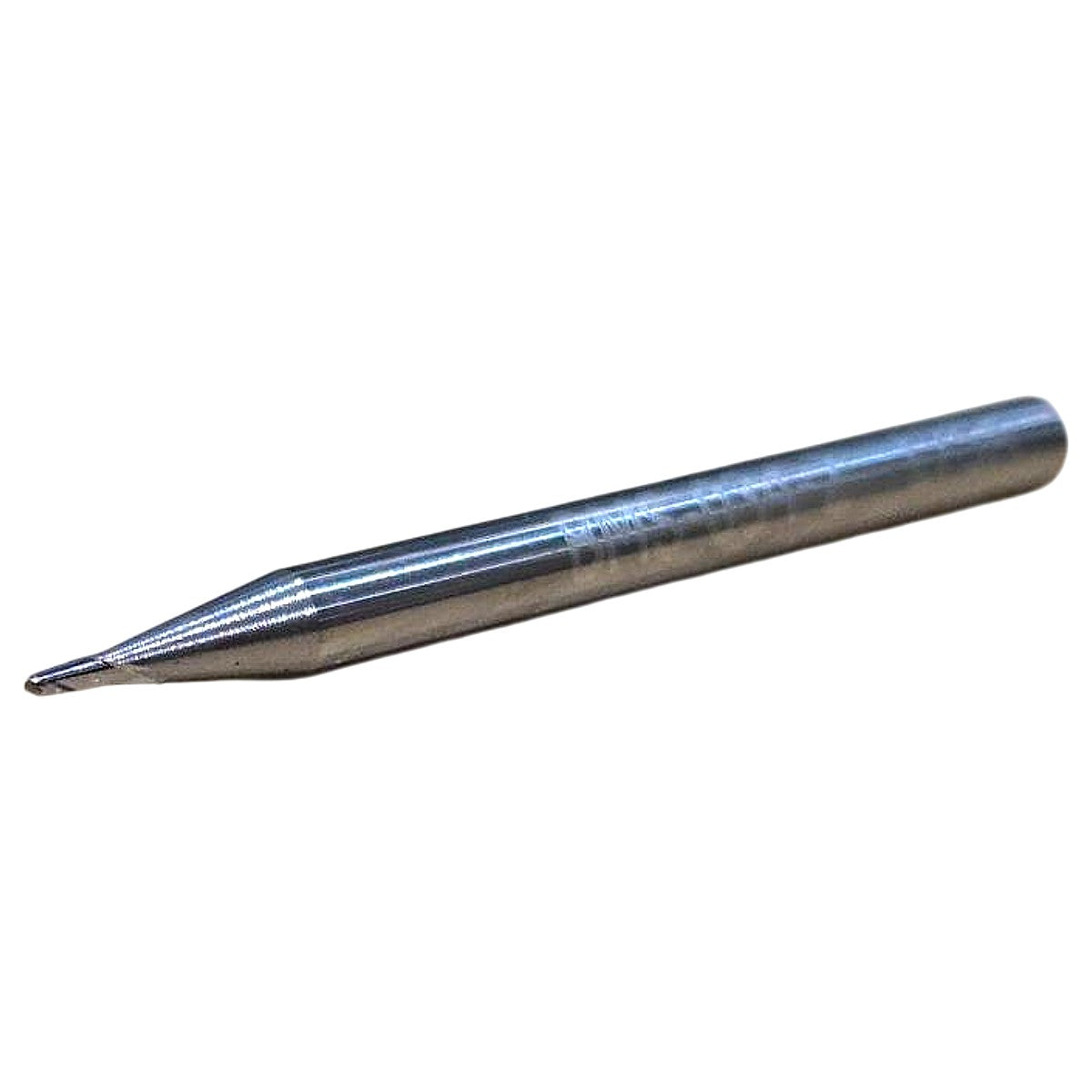

Micro 100 BMS-034-2 1/32" 2-Flute Carbide Ball End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Micro 100 BMS-034-2 is a new, solid submicron carbide ball end mill ground in the USA, designed for precision micro-milling applications requiring tight tolerances and fine surface finishes. The part number decodes as follows: BMS = Ball end Mill, Stub length; 034 = 0.034" ball diameter (1/32" nominal); 2 = 2 flutes. It features a 1/32" (0.0313") ball diameter cutting end, 0.051" length of cut, and 1-1/2" overall length with a 1/8" straight shank, suitable for use in collet chucks, ER collet holders, and precision miniature toolholders. Micro 100 manufactures this tool from "Super Carbide" — their proprietary submicron-grain carbide substrate — providing superior wear resistance and edge integrity for milling hardened steels, stainless steel, aluminum, titanium, and exotic alloys at high RPM. The uncoated bright finish and stub-length geometry minimize deflection in deep-cavity and intricate contour work such as die/mold detail milling, engraving, and 3D profiling on CNC machining centers.
Product Specifications
| Brand | Micro 100 |
| MPN | BMS-034-2 |
| Tool Type | Ball End Mill |
| Number of Flutes | 2 |
| Mill Diameter | 1/32 in (0.0313 in) |
| Ball Radius | 1/64 in (0.01565 in) |
| Length of Cut (LOC) | 0.051 in |
| Overall Length (OAL) | 1-1/2 in |
| Shank Diameter | 1/8 in |
| Shank Type | Straight |
| Material | Submicron Solid Carbide |
| Coating | Uncoated (Bright) |
| Series | BMS — Ball End Mill Stub Length |
| Country of Origin | USA |
| Condition | New |
