Micro 100 DMM-060-290X Solid Carbide 0.060in Drill Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

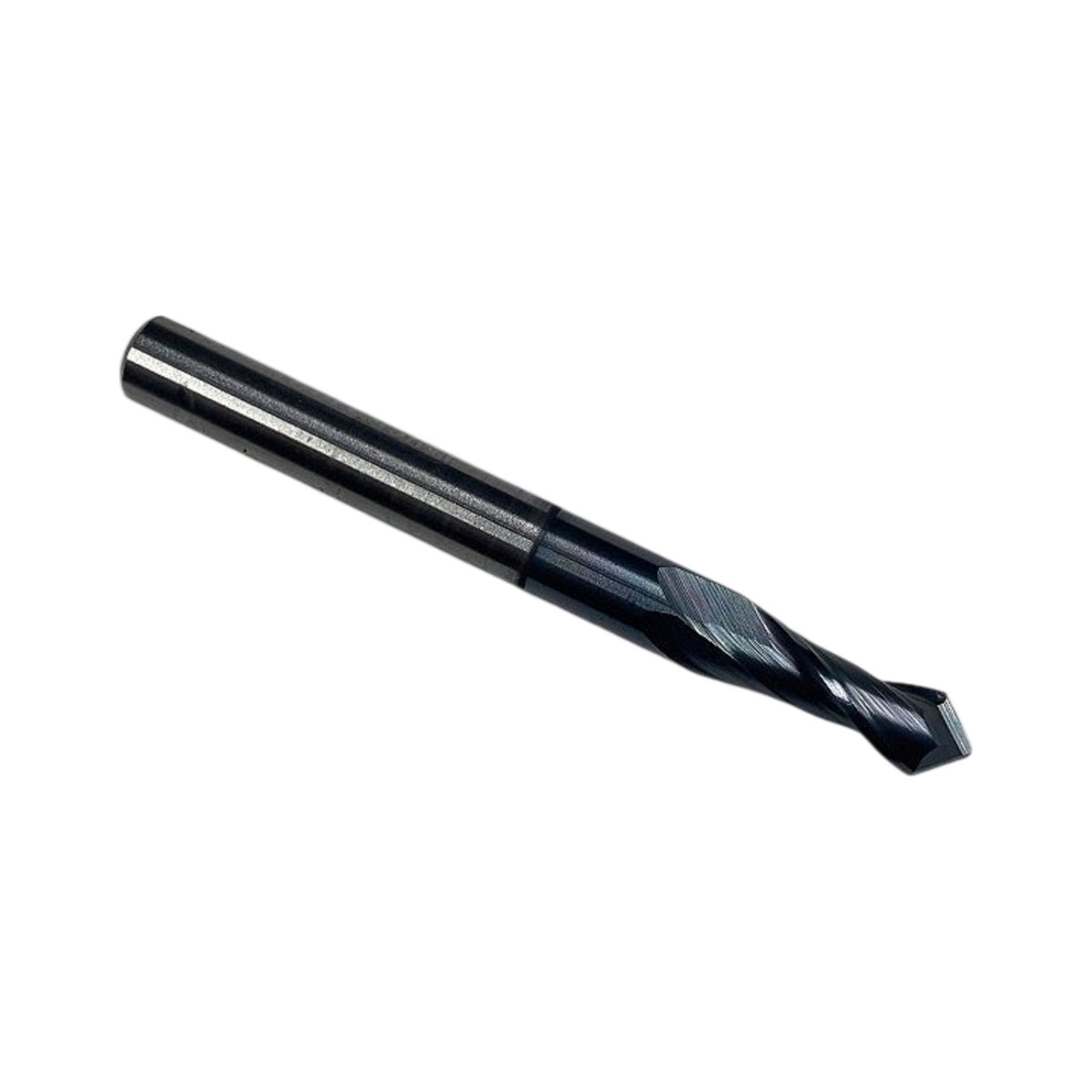

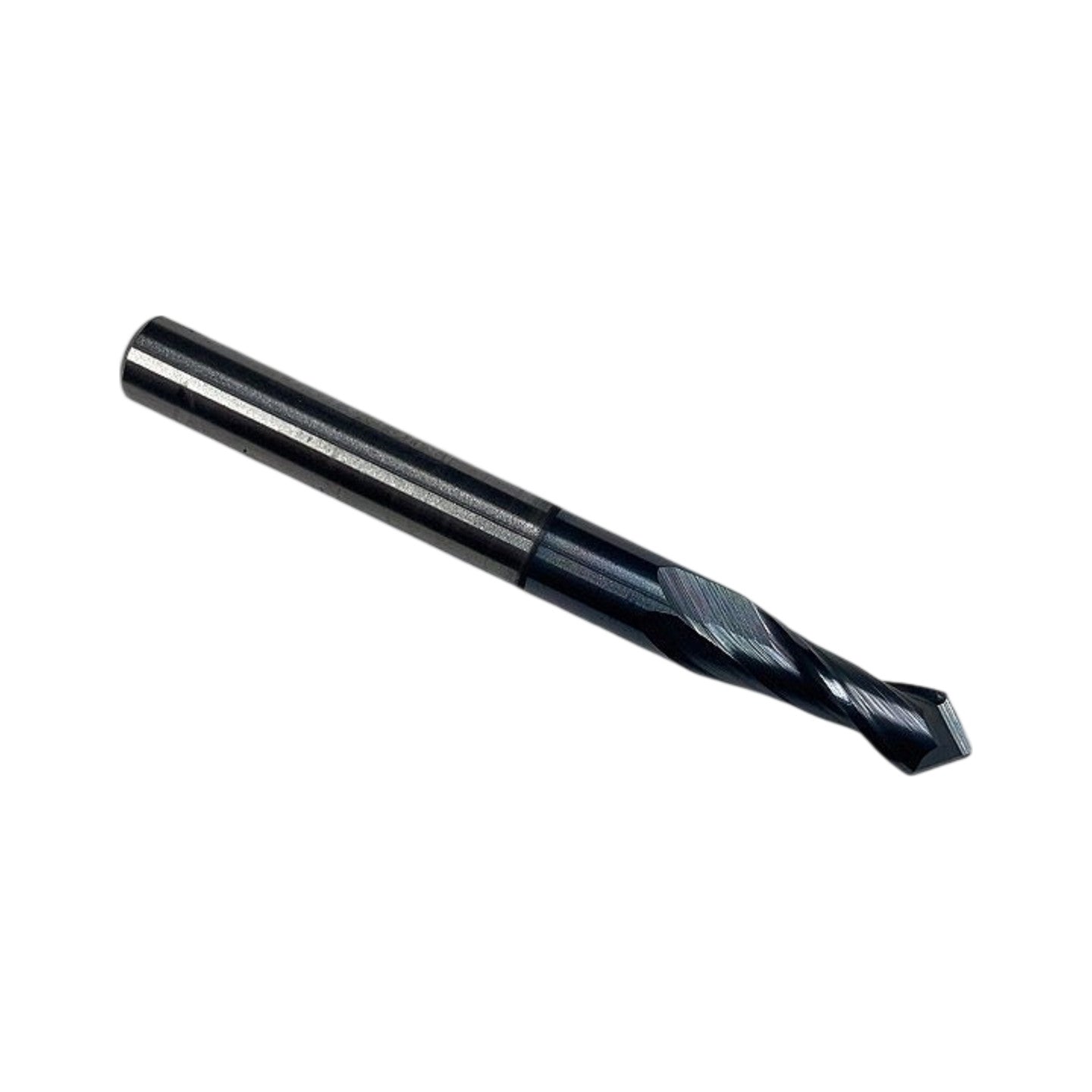

The Micro 100 DMM-060-290X is a new, solid carbide drill mill with a 0.060 in (1.524 mm) cutting diameter and a 290° included point angle, designed for drilling and milling in a single operation. The "X" suffix in Micro 100's DMM series designates an AlTiN (Aluminum Titanium Nitride) coating, which is confirmed by the dark black finish visible in the product photo; AlTiN coating provides elevated heat resistance and hardness, making this tool well-suited for cutting hardened steels, stainless steels, and other difficult-to-machine alloys. The DMM series features a 2-flute helical design with a self-centering point geometry, enabling the tool to drill to depth and then perform radial milling operations without a separate spotting operation, reducing cycle times in precision CNC machining applications. Manufactured in the USA by Micro 100, this tool is designed for use in standard CNC machining centers and mill/drill applications requiring tight tolerance micro-diameter work.
Product Specifications
| Brand | Micro 100 |
| MPN | DMM-060-290X |
| Tool Type | Drill Mill |
| Cutting Diameter | 0.060 in (1.524 mm) |
| Point Angle | 290° included |
| Coating | AlTiN (X suffix) |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Shank Diameter | 1/8 in (0.125 in) |
| Country of Origin | USA |
| Condition | New |
