Micro 100 DMM-120-280X 1/2 in 120° Solid Carbide Spot Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

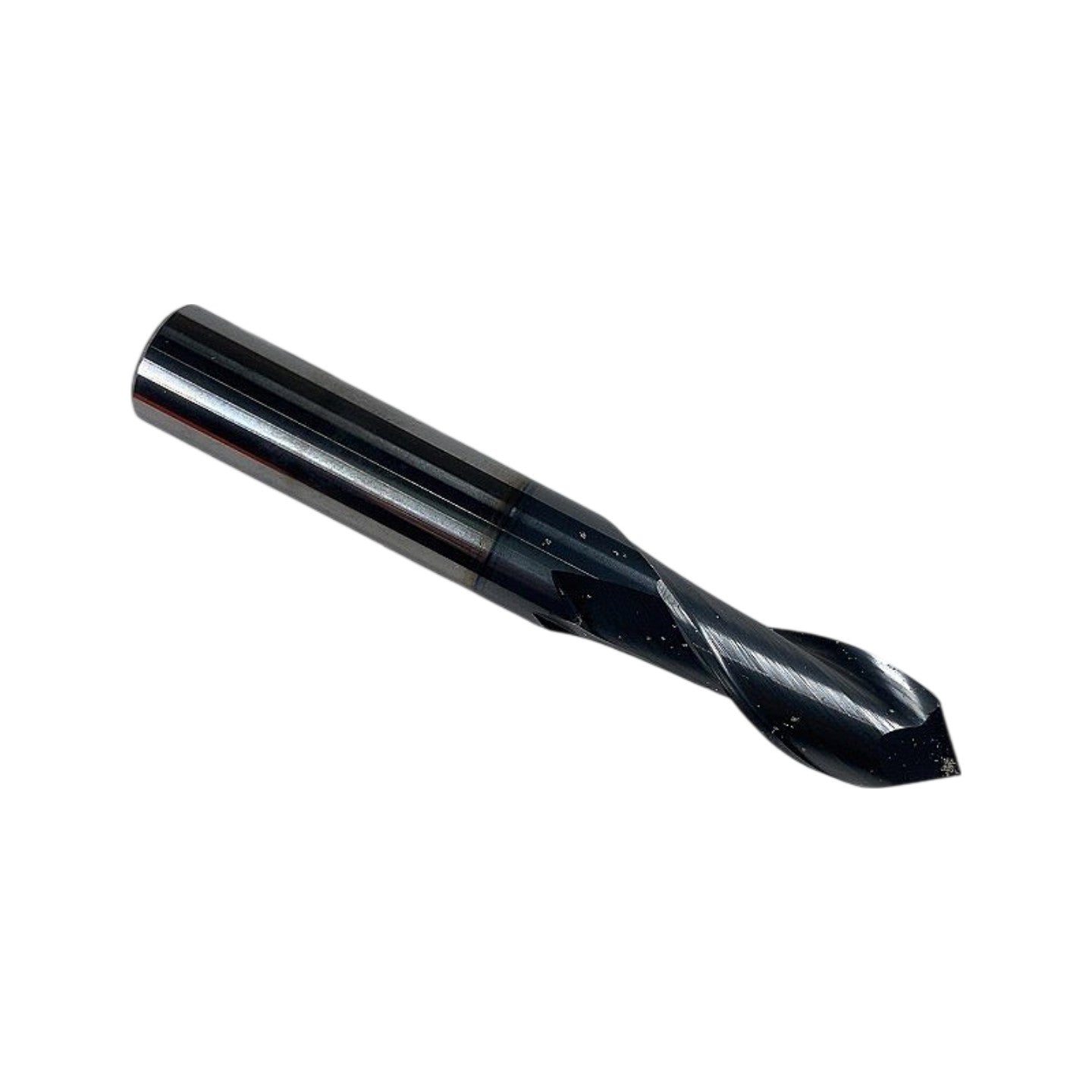

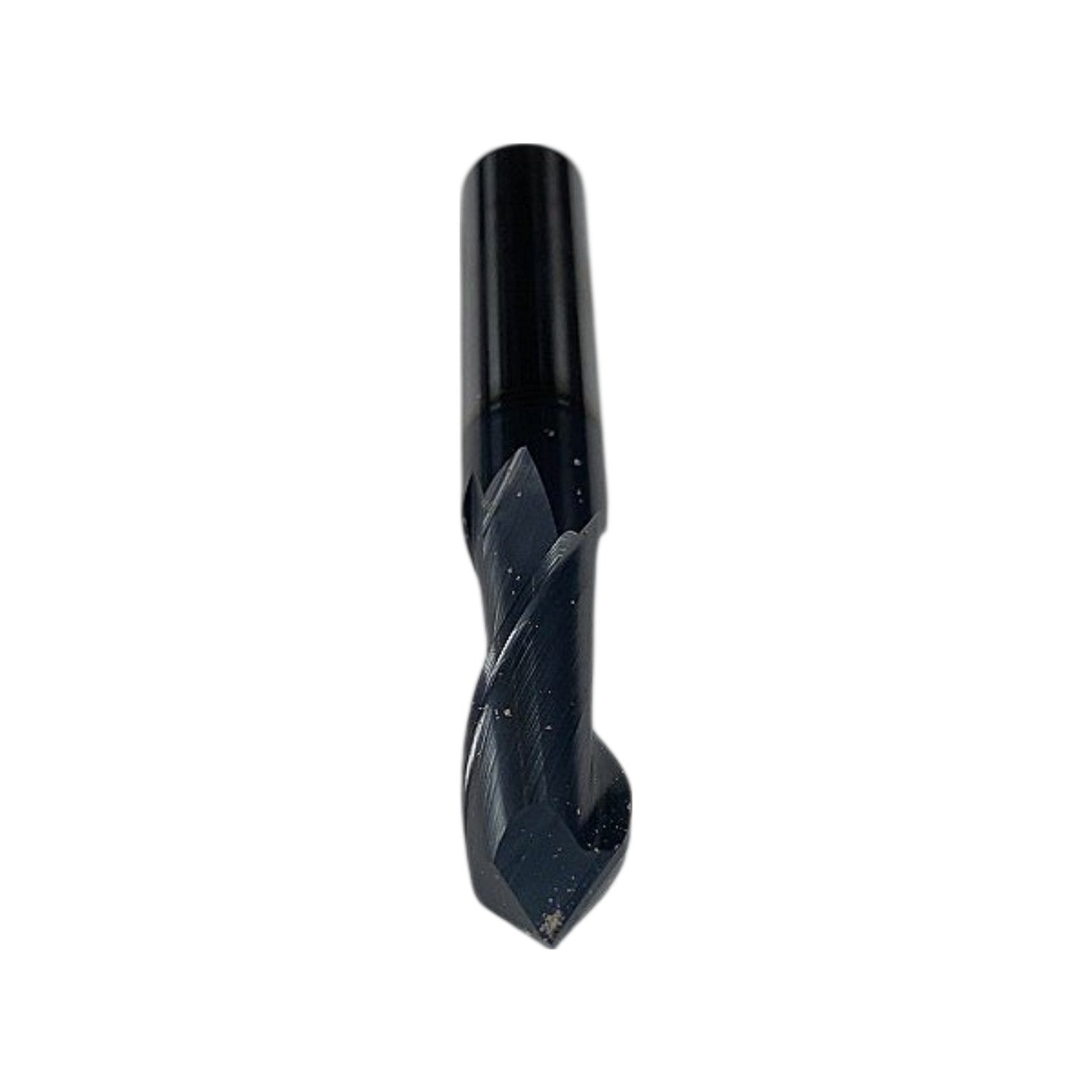

The Micro 100 DMM-120-280X is a new solid carbide spotting/centering drill from Micro 100's "Super Carb" line, featuring a 120° included point angle and a 1/2 in (12.7 mm) shank diameter. The tool is finished with a black oxide / TiN-family dark PVD coating visible across the fluted body and shank, providing lubricity and oxidation resistance for dry or flood-coolant applications in steel, cast iron, stainless, and aluminum. With 2 flutes and a stub-length flute zone, the DMM-series spot drill is designed for precise hole location and chamfering prior to through-drilling, producing clean 120° seat geometry for standard drill points. The straight cylindrical shank is compatible with any standard ER, Weldon, or drill-chuck toolholder accepting 1/2 in shanks.
Product Specifications
| Brand | Micro 100 |
| MPN | DMM-120-280X |
| Product Line | Super Carb |
| Tool Type | Spotting / Spot Drill |
| Point Angle | 120° |
| Shank Diameter | 1/2 in (0.500 in) |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Coating | Black PVD (dark nitride/oxide) |
| Shank Type | Straight Cylindrical |
| Condition | New |
| Country of Origin | USA (Made in USA per label) |
