Micro 100 EMS-250-2 1/4in 2-Flute TiN Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

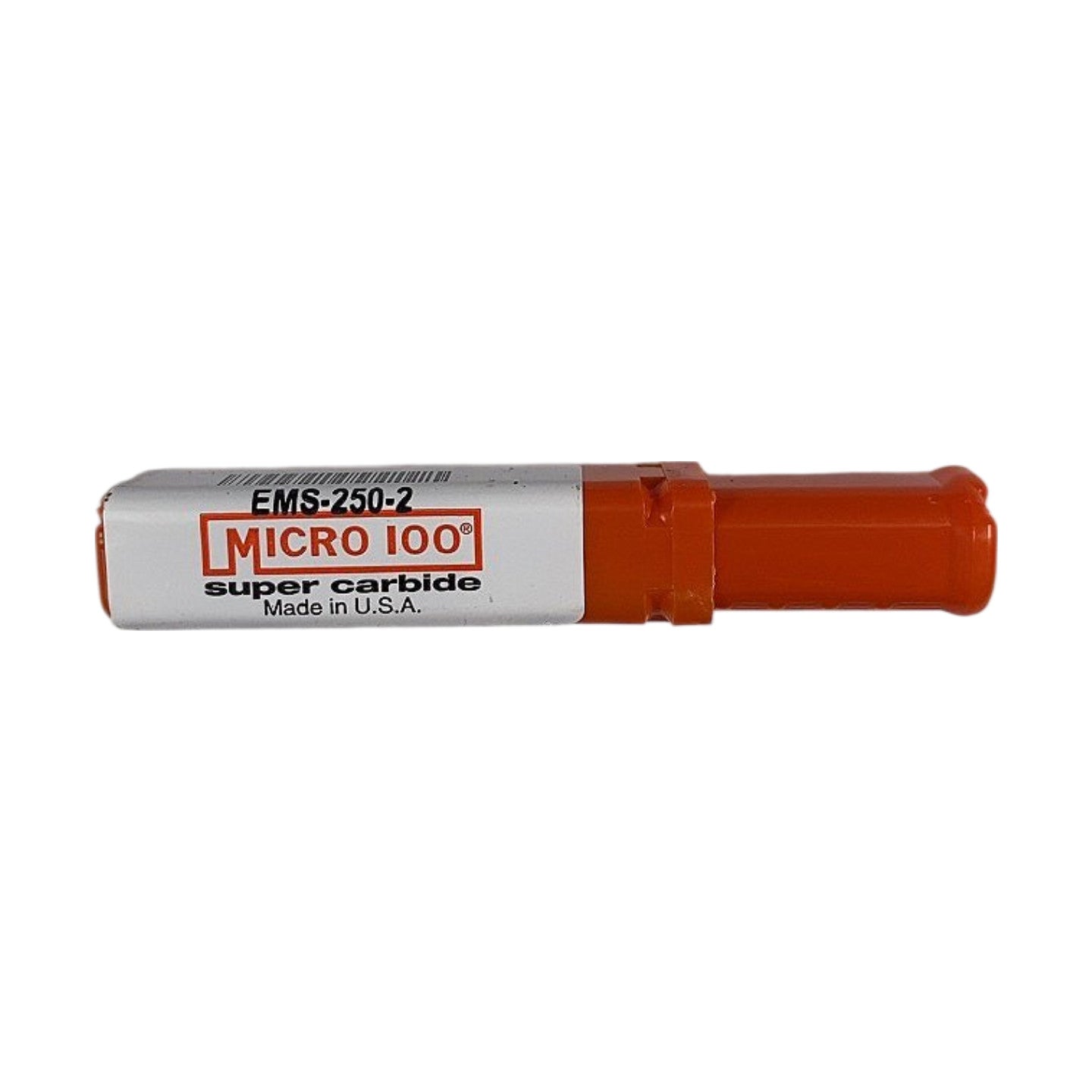

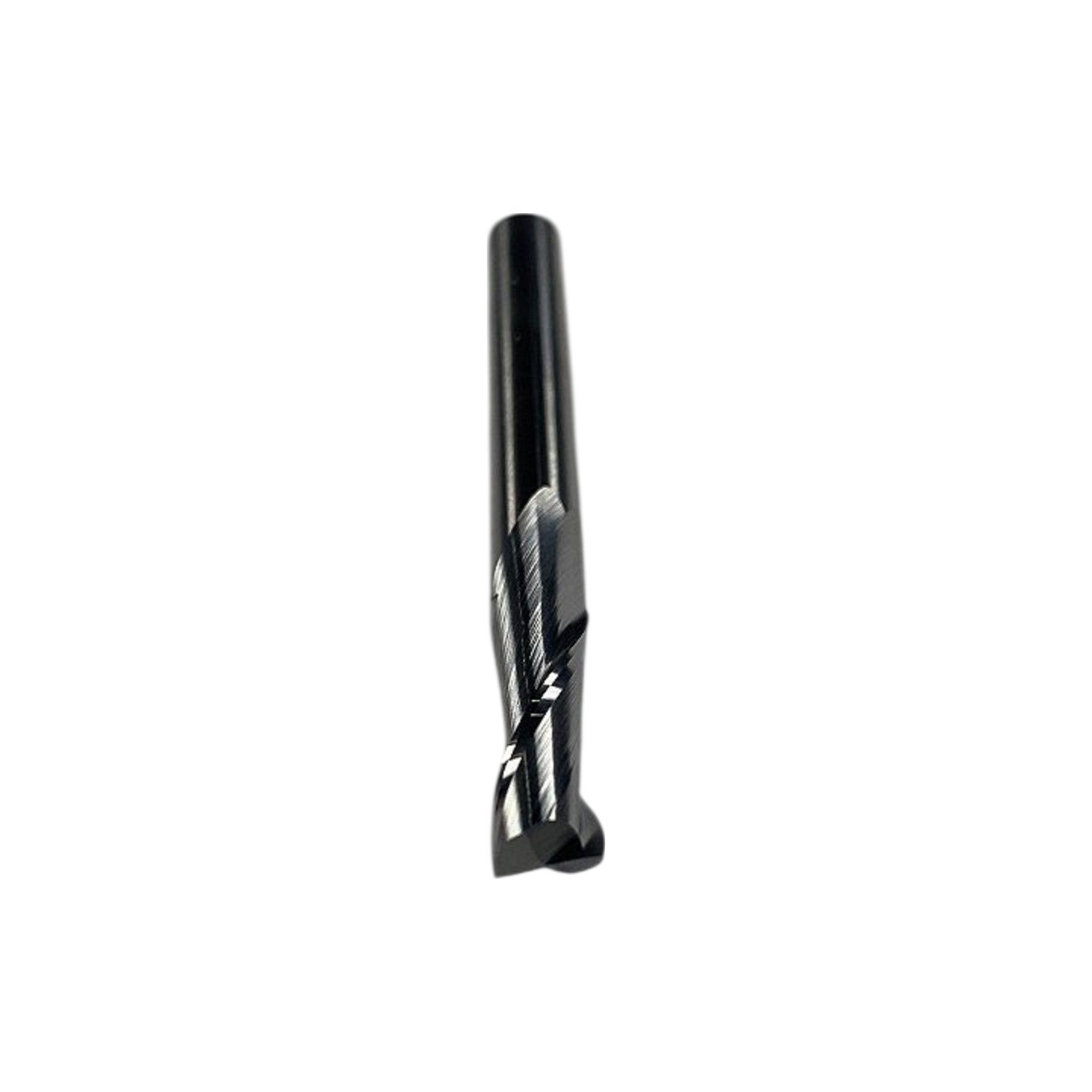

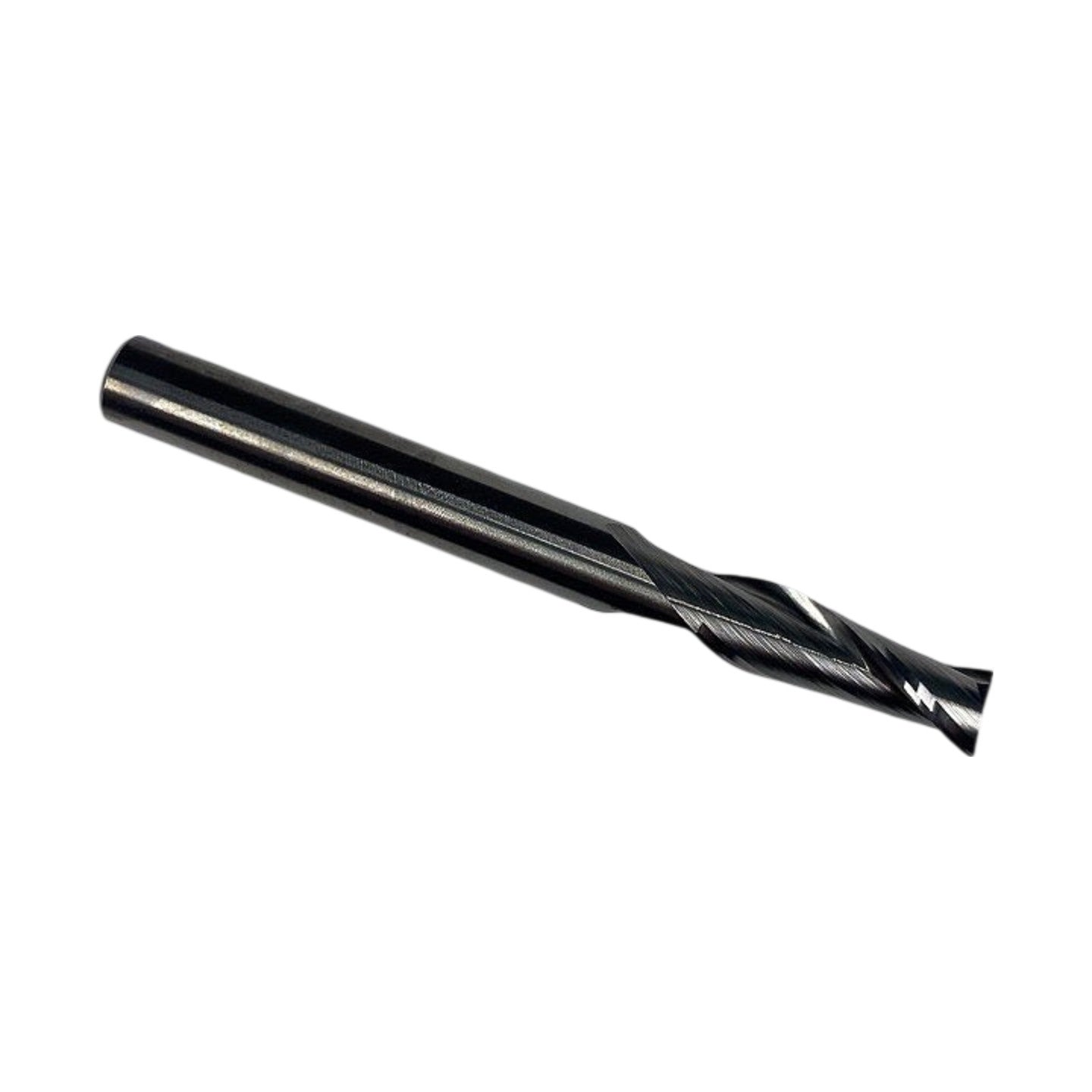

The Micro 100 EMS-250-2 is a new, solid submicron carbide 2-flute square end mill with a 1/4 in (0.250 in) cutting diameter, manufactured in the USA to Micro 100's "Super Carbide" standard — a proprietary ultra-fine grain tungsten carbide substrate that provides superior hardness and edge retention over standard carbide grades. The tool features a TiN (Titanium Nitride) PVD coating, visible as the characteristic dark gold-black finish in the photos, which raises surface hardness, reduces friction, and extends tool life in ferrous and non-ferrous milling applications. With 2 flutes, this end mill offers larger chip gullets suited for slotting, profiling, and peripheral milling in steel, stainless steel, cast iron, and aluminum where chip evacuation is a priority. The shank diameter matches the cutting diameter at 1/4 in, making it directly compatible with standard 1/4 in ER collets, end mill holders, and Weldon-style chucks.
Product Specifications
| Brand | Micro 100 |
| MPN | EMS-250-2 |
| Cutting Diameter | 0.250 in (1/4 in) |
| Number of Flutes | 2 |
| End Style | Square (Flat) |
| Shank Diameter | 0.250 in (1/4 in) |
| Substrate | Submicron solid carbide (Super Carbide) |
| Coating | TiN (Titanium Nitride) |
| Helix Angle | 30° |
| Country of Origin | USA |
| Condition | New |
