Micro 100 GEM-171-2 11/64in 2-Flute Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

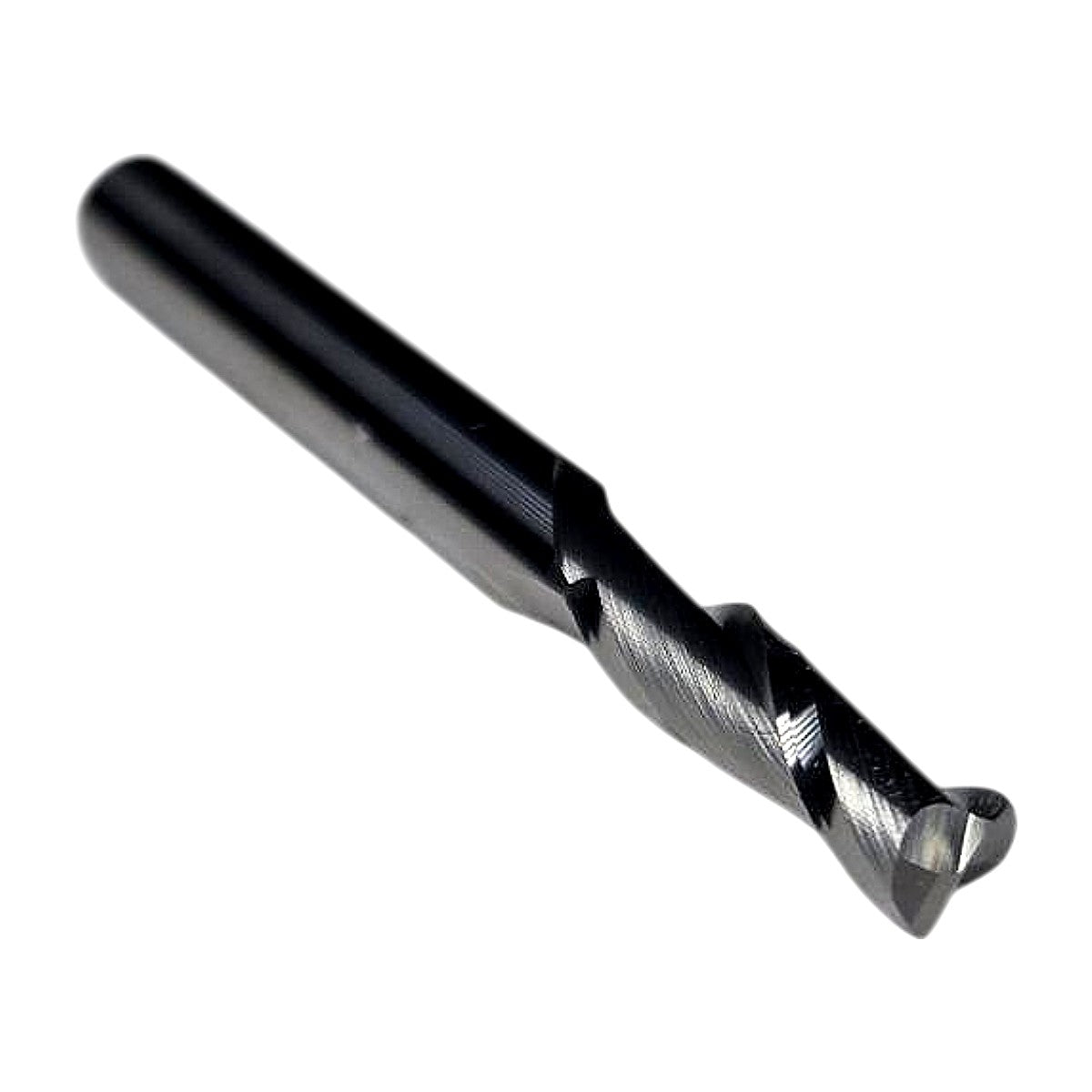

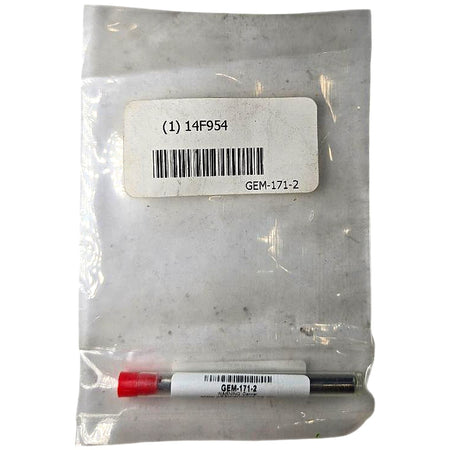

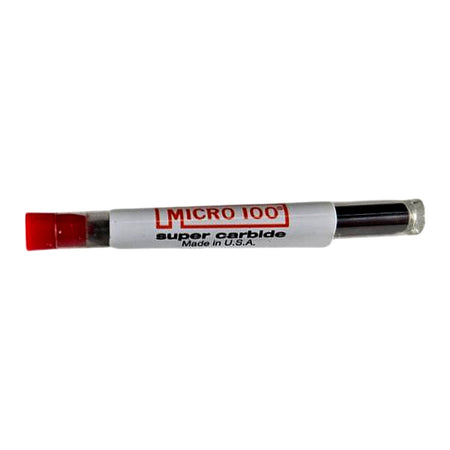

The Micro 100 GEM-171-2 is a new, USA-made solid carbide square end mill from Micro 100's "Super Carbide" GEM series, featuring 2 flutes, an 11/64 in (0.1719 in) cutting diameter, 5/8 in length of cut, and 2 in overall length. The tool is ground from Micro 100's proprietary submicron-grain "Super Carbide" substrate and carries a dark DLC/TiB2-style hard coating visible in the photos — consistent with Micro 100's standard AlTiN or TiB2 coating applied to GEM-series general-purpose end mills — delivering elevated hardness and heat resistance for extended tool life. The straight (non-reduced) shank seats directly in standard collet chucks, end mill holders, or drill chucks sized for the 11/64 in body diameter. This tool is suited for slotting, profiling, and peripheral milling in steels, stainless, cast iron, and non-ferrous materials at high surface speeds. Packaging shows MPN GEM-171-2 and cross-reference number 14F954 on the bag label.
Product Specifications
| Brand | Micro 100 |
| MPN | GEM-171-2 |
| Series | GEM (General End Mill) |
| Cutting Diameter | 11/64 in (0.1719 in) |
| Number of Flutes | 2 |
| Length of Cut (LOC) | 5/8 in (0.625 in) |
| Overall Length (OAL) | 2 in |
| Shank Diameter | 11/64 in (0.1719 in) |
| End Geometry | Square (Flat) |
| Material | Solid Carbide (Super Carbide submicron grain) |
| Coating | AlTiN or TiB2 (dark hard coating) |
| Country of Origin | USA |
| Condition | New |
| Shank Type | Straight |
| Cut Direction | Right Hand |
| Helix Angle | 30° |
