Micro 100 GEMM-100-4X 1/8 in 4-Flute AlTiN Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

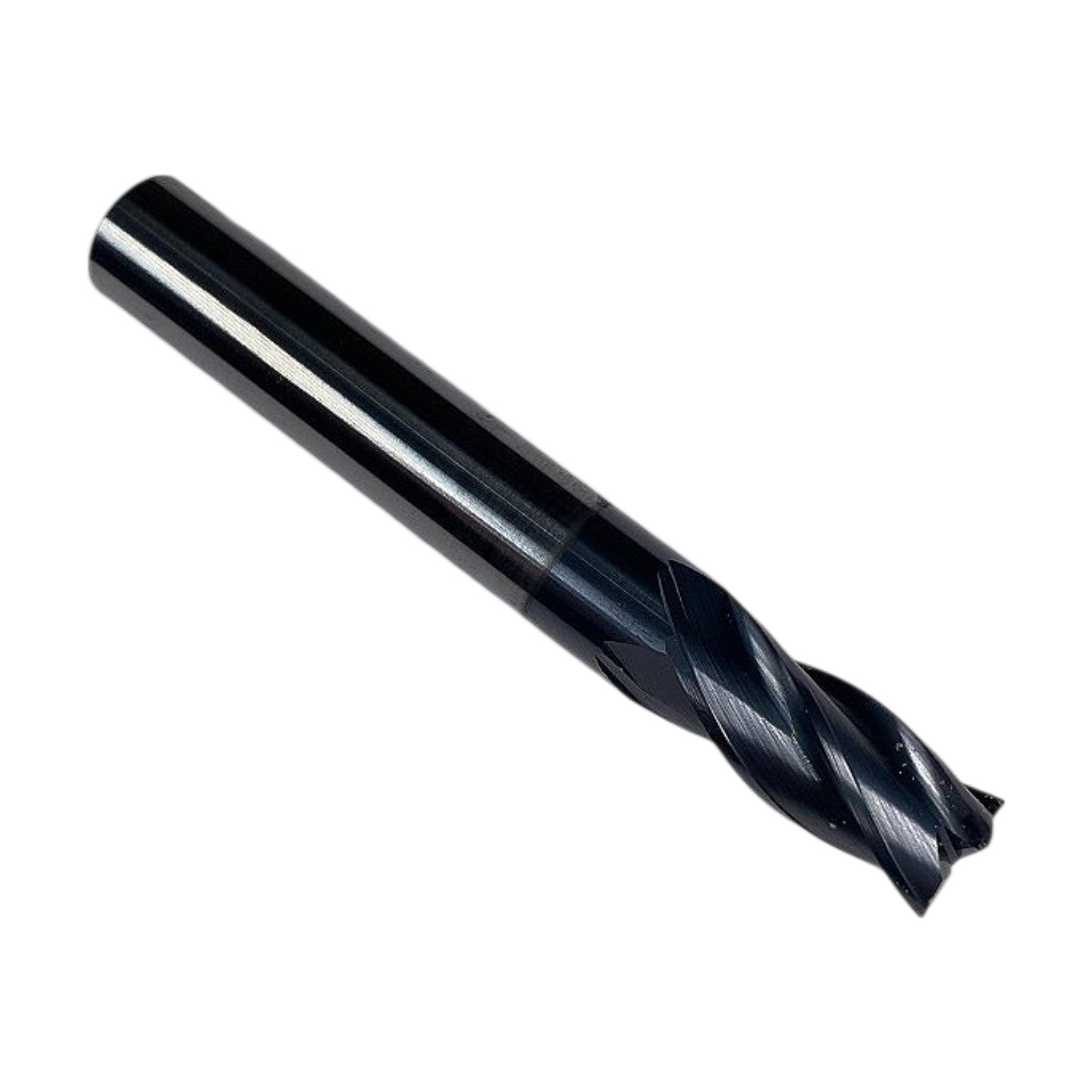

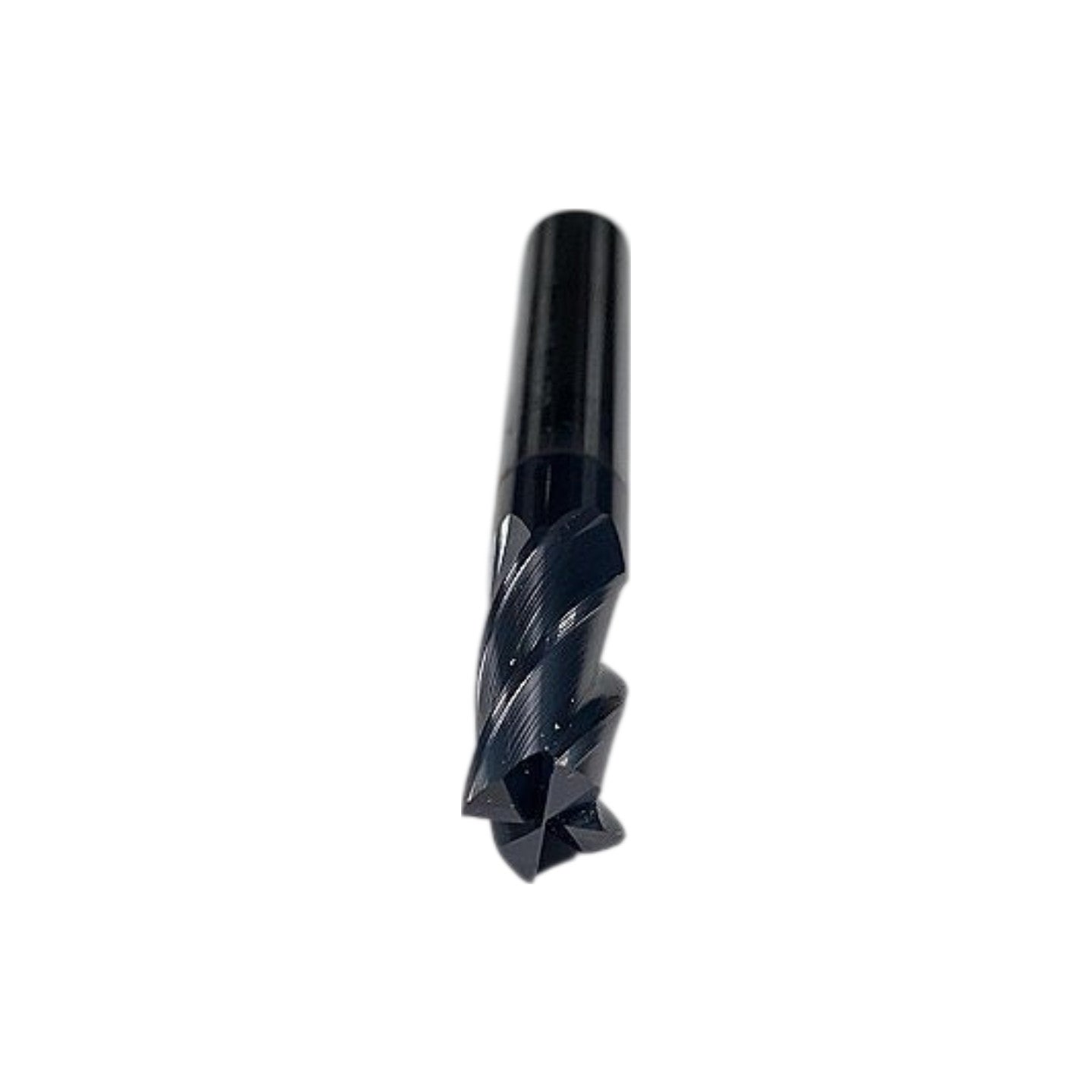

The Micro 100 GEMM-100-4X is a new, solid submicron-grain "Super Carbide" square end mill from Micro 100's GEMM (General End Mill) series, manufactured in the USA. It features a 1/8 in (0.100 in) cutting diameter, 1/8 in straight shank, 4-flute geometry, and a short-length overall profile suited for rigidity in close-quarters milling operations. The tool carries a dark AlTiN (Aluminum Titanium Nitride) PVD coating — visible as the uniform near-black finish across both the flutes and shank — which provides elevated hardness, oxidation resistance up to ~900°C, and extended tool life when machining steels, stainless steels, cast iron, and hardened alloys. The 4-flute configuration and square (flat) end geometry make it suitable for side milling, slotting, and profiling in CNC machining centers using standard ER collet or end mill holder tooling.
Product Specifications
| Brand | Micro 100 |
| MPN | GEMM-100-4X |
| Series | GEMM (General End Mill) |
| Cutting Diameter | 0.100 in (1/8 in) |
| Shank Diameter | 0.100 in (1/8 in) |
| Number of Flutes | 4 |
| End Geometry | Square (Flat) |
| Coating | AlTiN (Aluminum Titanium Nitride) PVD |
| Substrate | Submicron-grain solid carbide |
| Country of Origin | USA |
| Condition | New |
| Length Series | Short / Stub |
| Shank Type | Straight (cylindrical) |
| Compatible Toolholding | ER collet chuck, end mill holder |
