Micro 100 GR-072002 3/4x3/8in Shank Right-Hand Carbide Grooving Tool Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

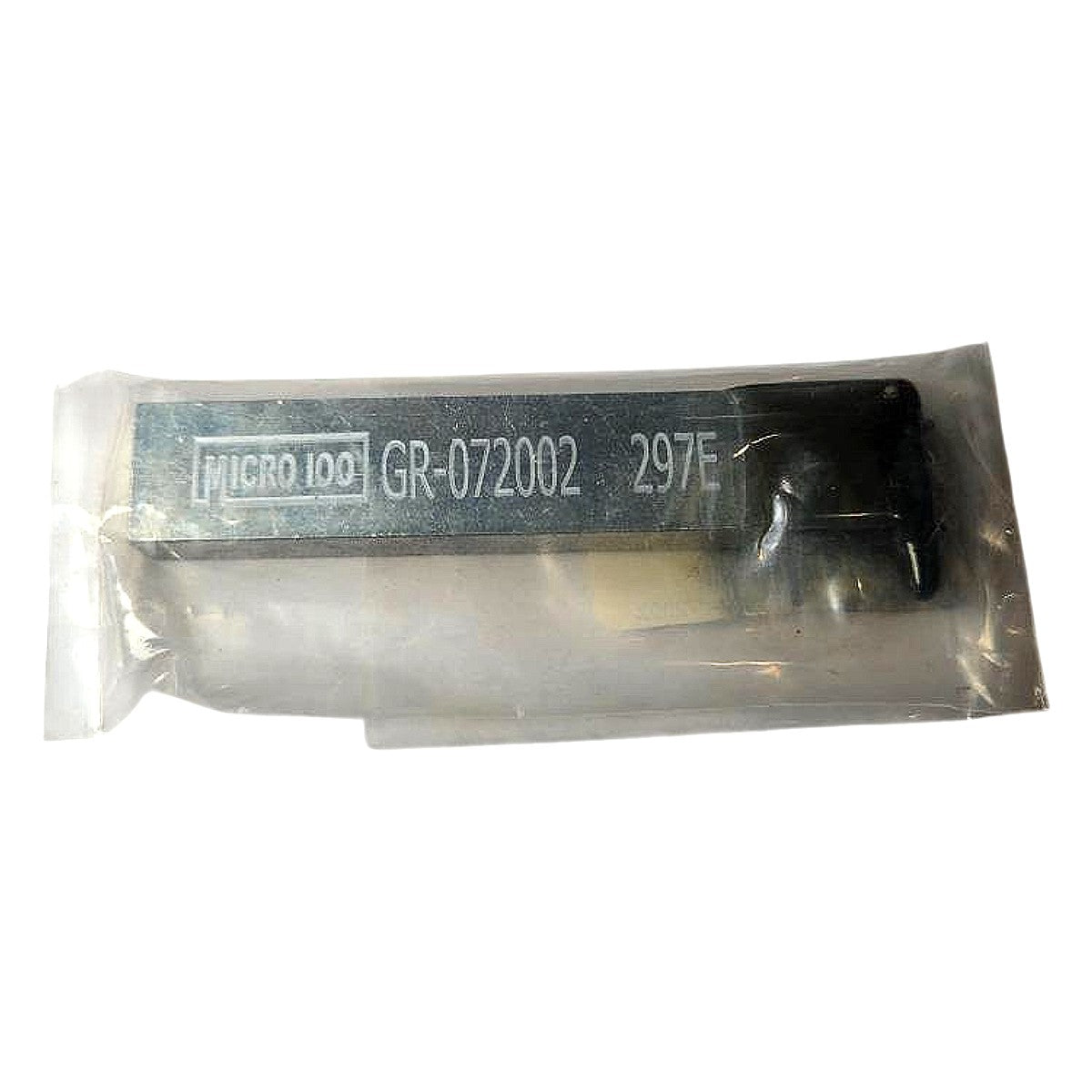

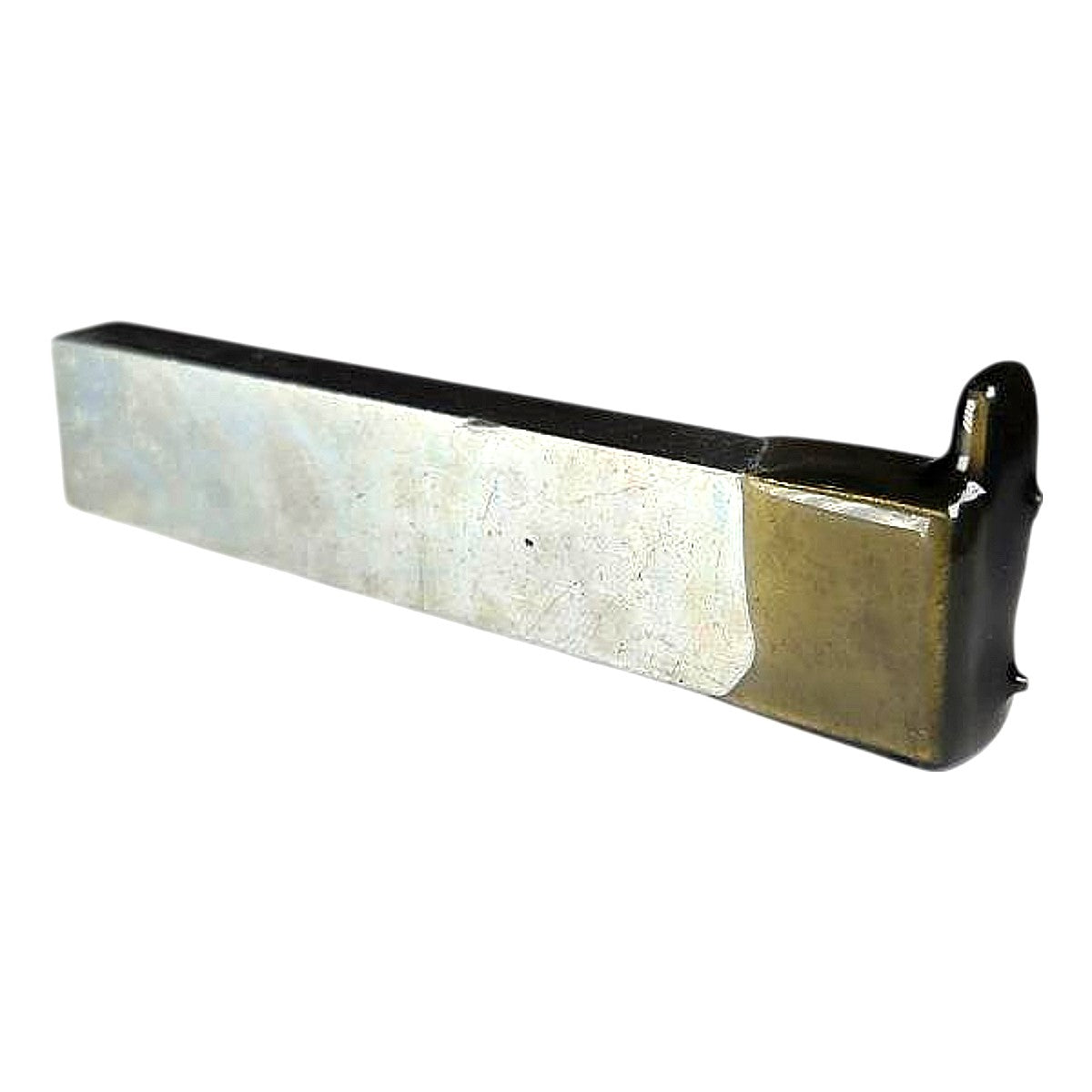

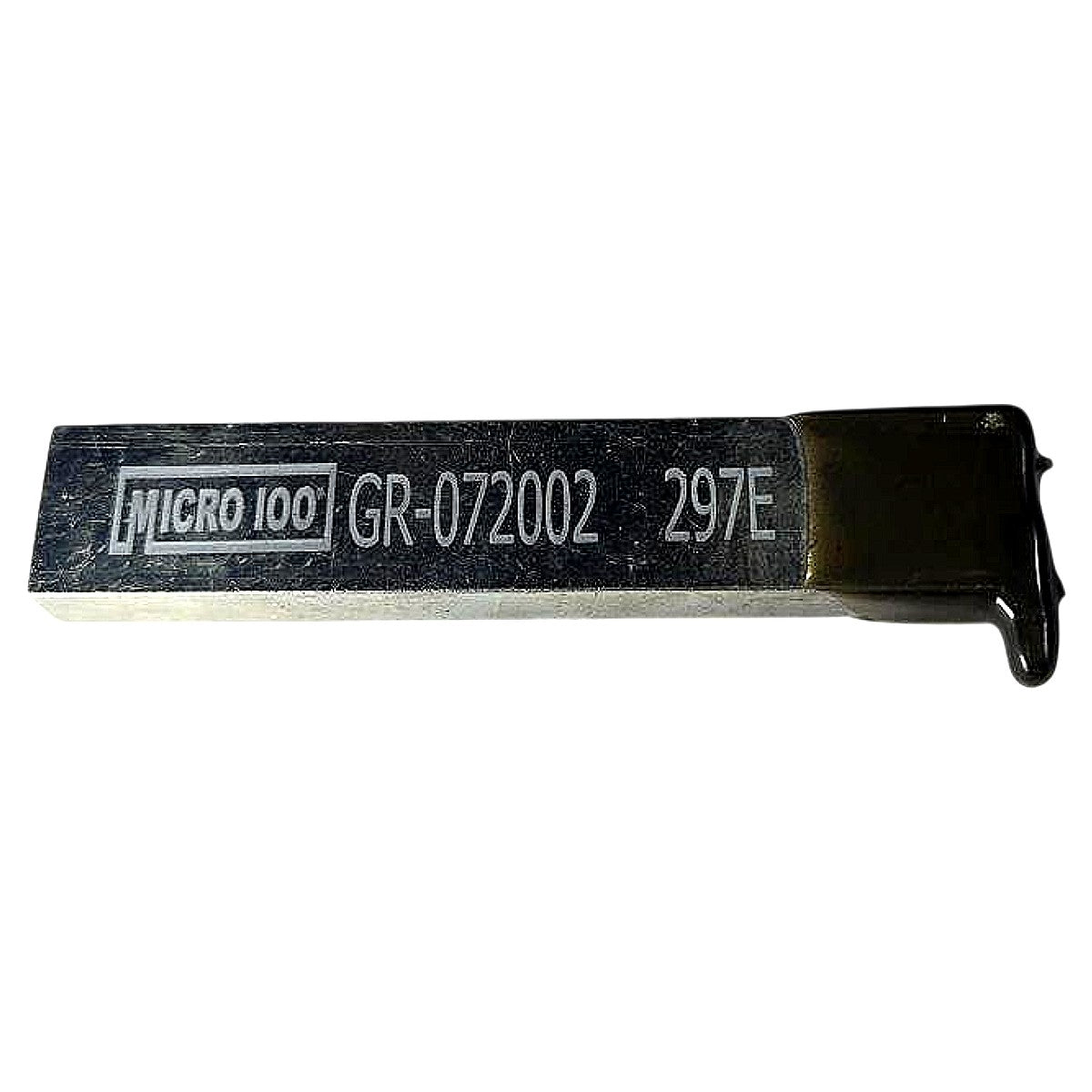

The Micro 100 GR-072002 is a new, single-point, right-hand GR-style solid carbide grooving tool bit with a 3/4 in shank width and 3/8 in shank height, designed for OD grooving and parting operations on CNC and manual lathes. Decoding the part number: "GR" = GR grooving tool style (right-hand orientation); "07" = 7/16 in groove depth of cut; "20" = 0.020 in groove width; "02" = 0.002 in nose radius — all consistent with Micro 100's published GR series nomenclature. The tool body is steel-shanked with a brazed carbide tip, finished with a zinc coating on the shank for corrosion resistance, and the carbide cutting tip is ground to close tolerances for precision groove widths in steel, aluminum, and non-ferrous materials. The 297E lot/date code is visible on the shank and confirms factory-new, unused condition in original poly bag. This tool bit is compatible with standard GR-style tool holders and square shank tool posts accepting 3/4 in shank width.
Product Specifications
| Brand | Micro 100 |
| MPN | GR-072002 |
| Tool Style | GR (Grooving, Right-Hand) |
| Shank Width | 3/4 in |
| Shank Height | 3/8 in |
| Groove Width | 0.020 in |
| Max Groove Depth | 7/16 in (0.4375 in) |
| Nose Radius | 0.002 in |
| Cutting Material | Carbide (brazed tip) |
| Shank Material | Steel |
| Shank Finish | Zinc |
| Hand of Cut | Right-Hand |
| Operation | OD Grooving / Parting |
| Condition | New |
