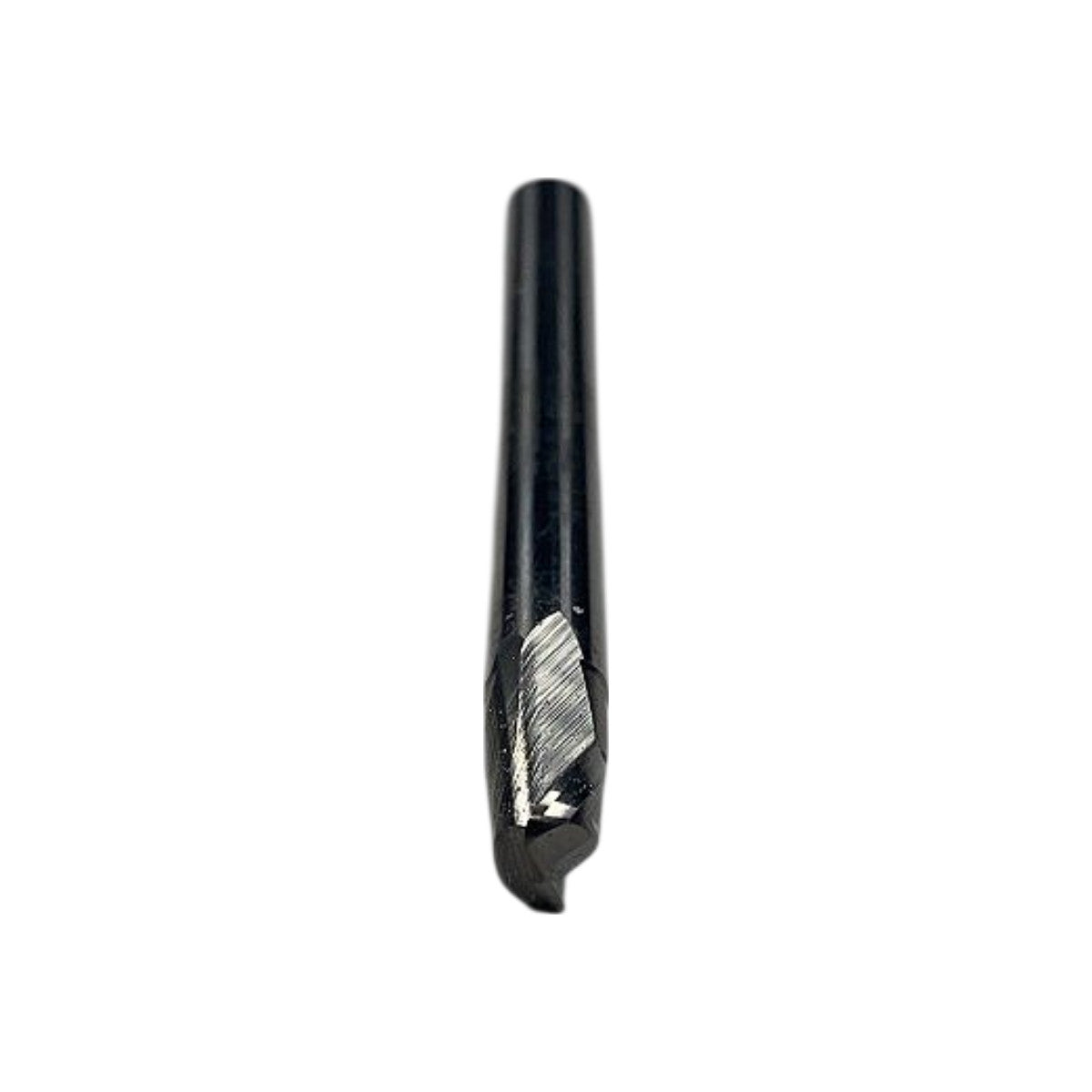

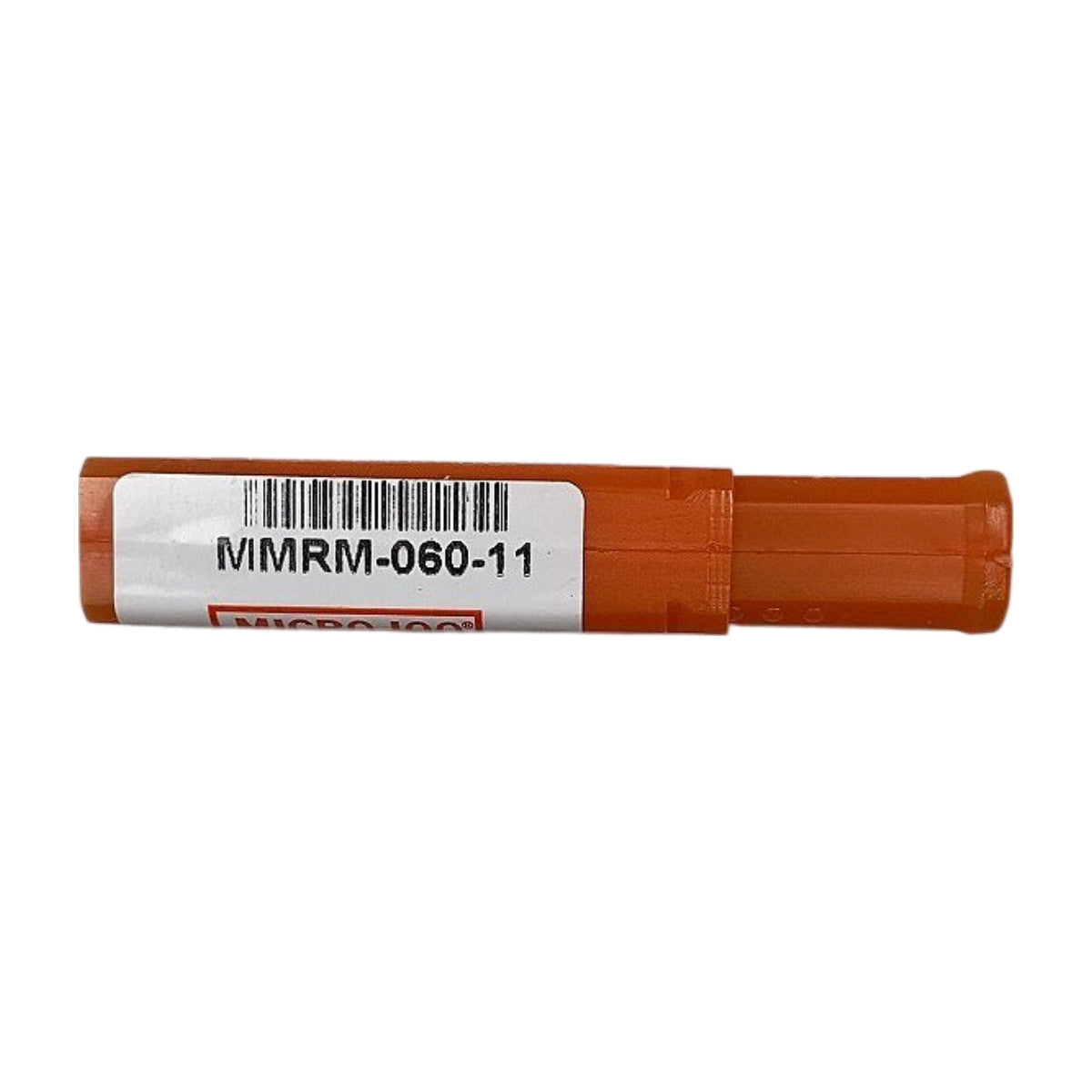

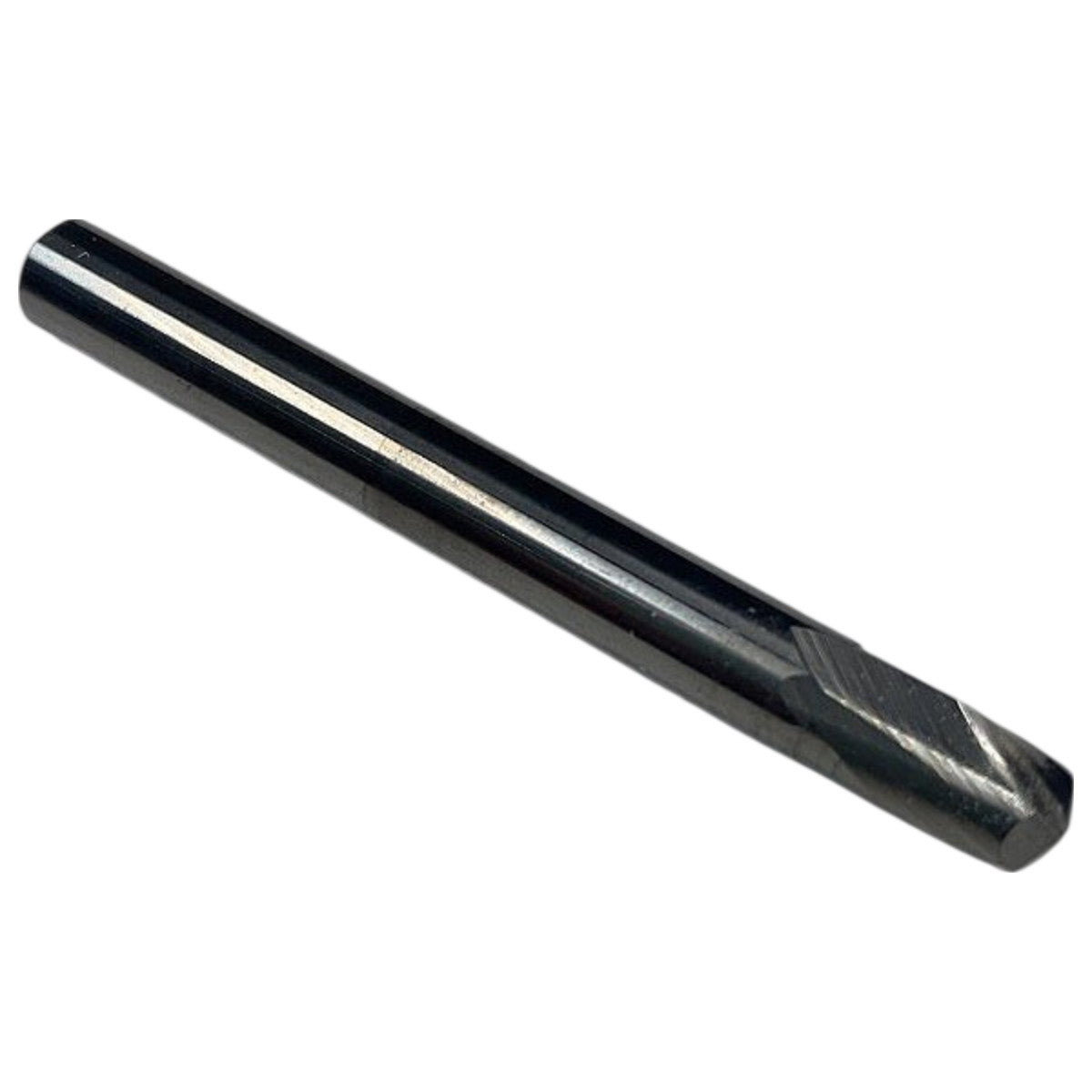

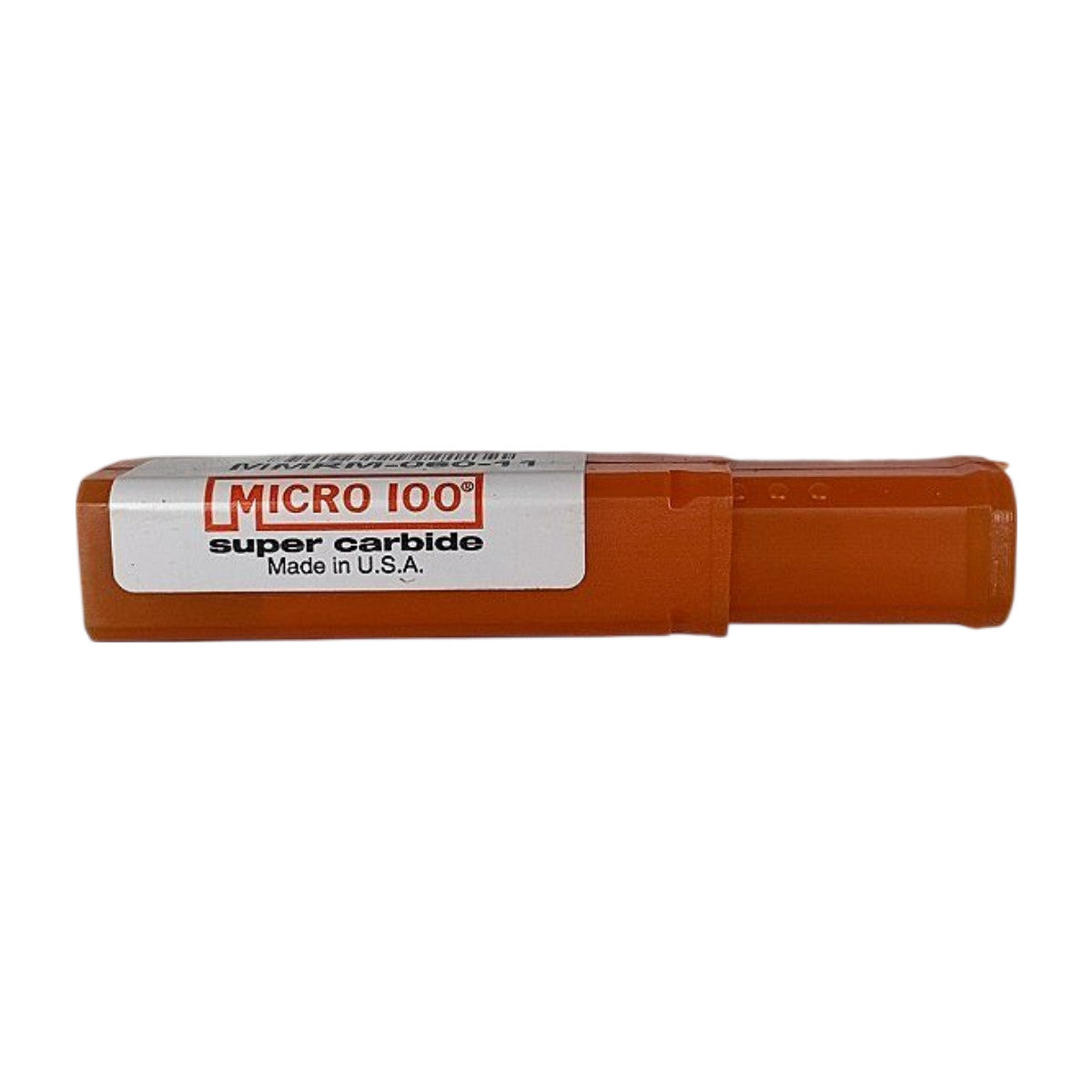

The Micro 100 MMRM-060-11 is a single-flute miniature solid carbide end mill manufactured in the USA from Micro 100's proprietary "Super Carbide" submicron grain carbide substrate, finished with a black AlTiN (aluminum titanium nitride) PVD coating visible in the product photos. Decoding the part number: MMRM = Micro 100 Miniature Router/End Mill series, 060 = 0.060 in (1.524 mm) cutting diameter, 11 = 1-flute configuration; per Micro 100's published catalog the MMRM-060-11 has an overall length of 1.500 in, a flute length of 0.110 in, and a 1/8 in (0.125 in) shank diameter. The single-flute geometry maximizes chip clearance and minimizes cutting forces, making this tool well-suited for high-speed micro-milling of aluminum, plastics, composites, and other non-ferrous materials in CNC machining centers and high-speed spindles accepting a 1/8 in collet or ER collet adapter. This tool is new, unused, and shipped in Micro 100's standard orange protective plastic tube.
Product Specifications
| Brand | Micro 100 |
| MPN | MMRM-060-11 |
| Material | Submicron grain solid carbide (Super Carbide) |
| Coating | AlTiN (black PVD) |
| Number of Flutes | 1 |
| Cutting Diameter | 0.060 in (1.524 mm) |
| Shank Diameter | 0.125 in (1/8 in) |
| Overall Length (OAL) | 1.500 in |
| Flute Length | 0.110 in |
| End Type | Square (flat) end |
| Helix Angle | 30° |
| Country of Manufacture | USA |
| Condition | New |
