Micro 100 QFG-490-062 0.490in Cut Dia 0.062in Width Carbide Grooving End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

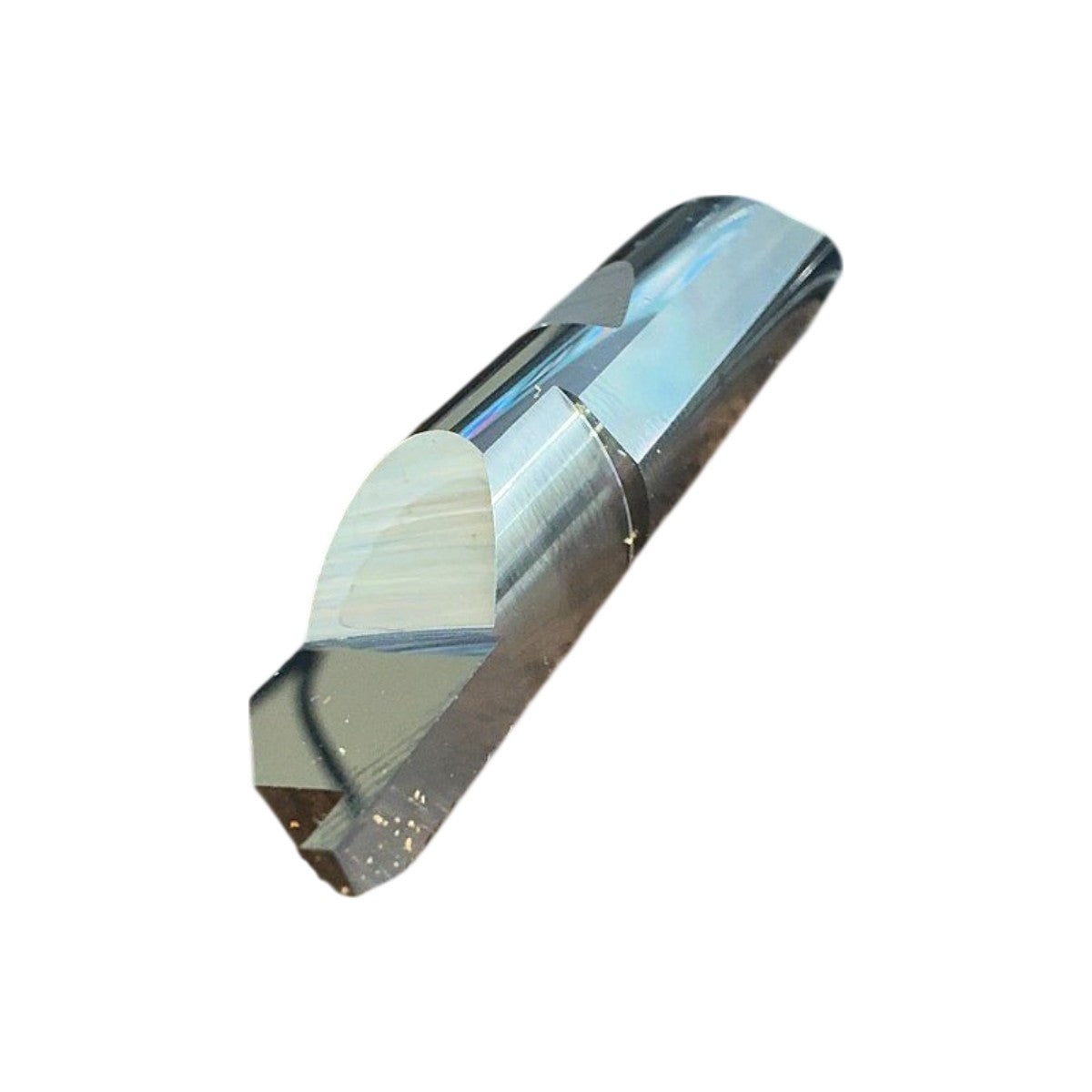

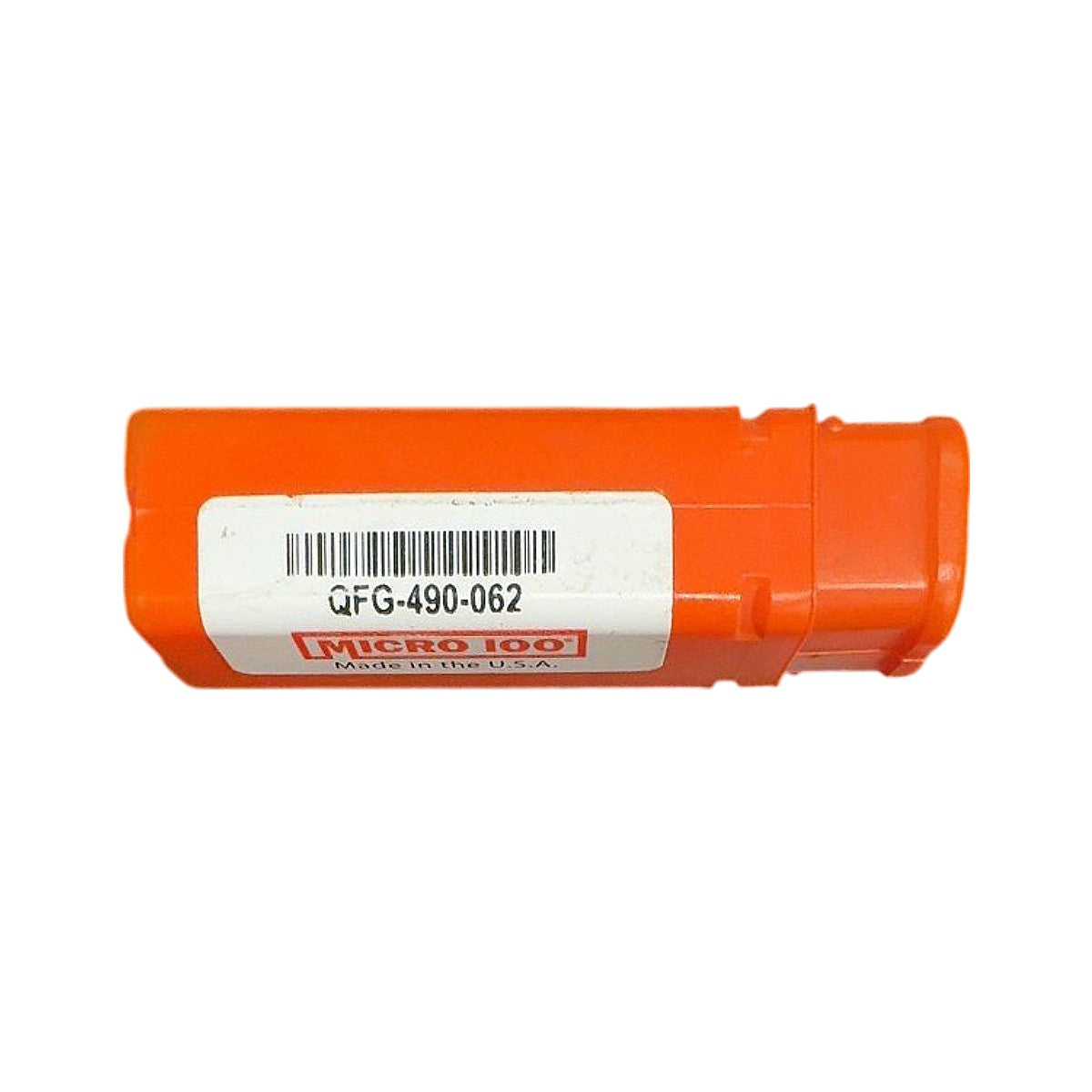

The Micro 100 QFG-490-062 is a solid carbide quick-change grooving end mill manufactured in the USA, designed for cutting external and face grooves on CNC lathes equipped with Micro 100's Quick Change tooling system. The part number decodes as follows: QFG = Quick Change Full Radius Grooving, 490 = 0.490 in maximum cutting diameter, 062 = 0.062 in groove width (cutting edge width). The tool body features a full-radius profile ground to a bright, uncoated finish visible in the photos, providing excellent dimensional accuracy for close-tolerance groove and undercut operations in steel, aluminum, and non-ferrous alloys. As a new, unused tool in its original Micro 100 orange protective case, it is ready for immediate deployment in quick-change boring bar systems using the matching QFG-series holder.
Product Specifications
| Brand | Micro 100 |
| MPN | QFG-490-062 |
| Series | QFG – Quick Change Full Radius Grooving |
| Maximum Cutting Diameter | 0.490 in |
| Groove Width (Cutting Edge Width) | 0.062 in |
| Tool Material | Solid Carbide |
| Coating | Uncoated (Bright) |
| Shank/Interface Type | Quick Change (Micro 100 QFG System) |
| Country of Manufacture | USA |
| Condition | New |
